Post number #394 (Jan 15, 2023) is a *Ver2.zip file, I don't want to repeat.
Please just give me the "line number" and to change from "what" to "that" ???
Homebrew FX Chrony display
- Thread starter DaystateRebel
- Start date
Please just give me the "line number" and to change from "what" to "that" ???
ES= extreme spread between a Max speed and Min speed.
SD= standard deviation from Average speed
Upvote 0

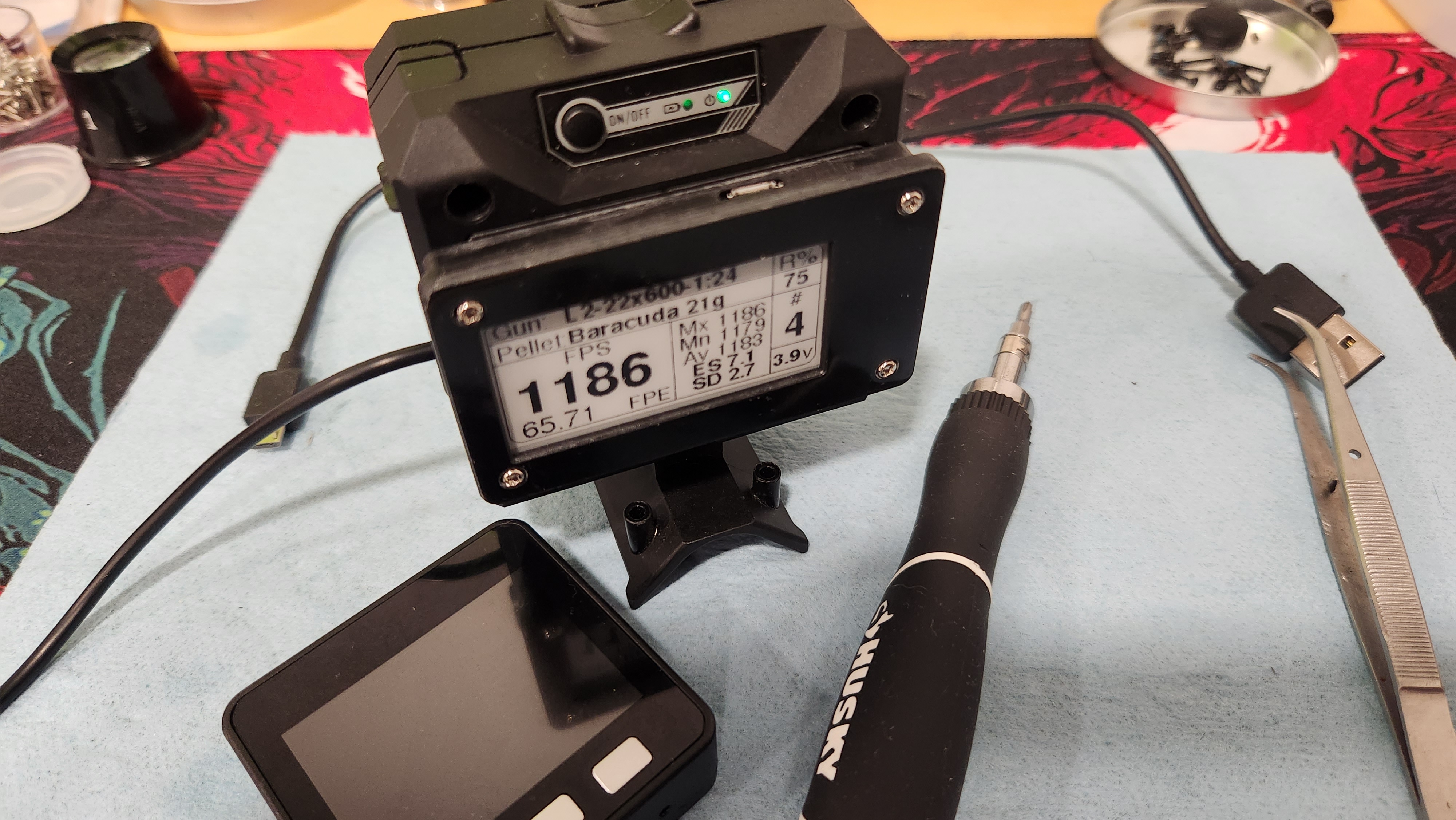

???? the enclosure design and 3d printing and mounting/connecting to the radar yes,
but the coding I got a fantastic help from many programmers here... I just rearranged some txt.
Upvote 0
Any updates for M5Stack Core cubes? I have seen some development earlier in January, but until I got one delivered my replacement battery now I cannot see codes or any group that entertains with ... all just those mini's.
Upvote 0
Looking forward to trying the TTGO display. I decided to finish reading through all 23 pages before buying my display. Some pretty amazing programmers here.
Upvote 0

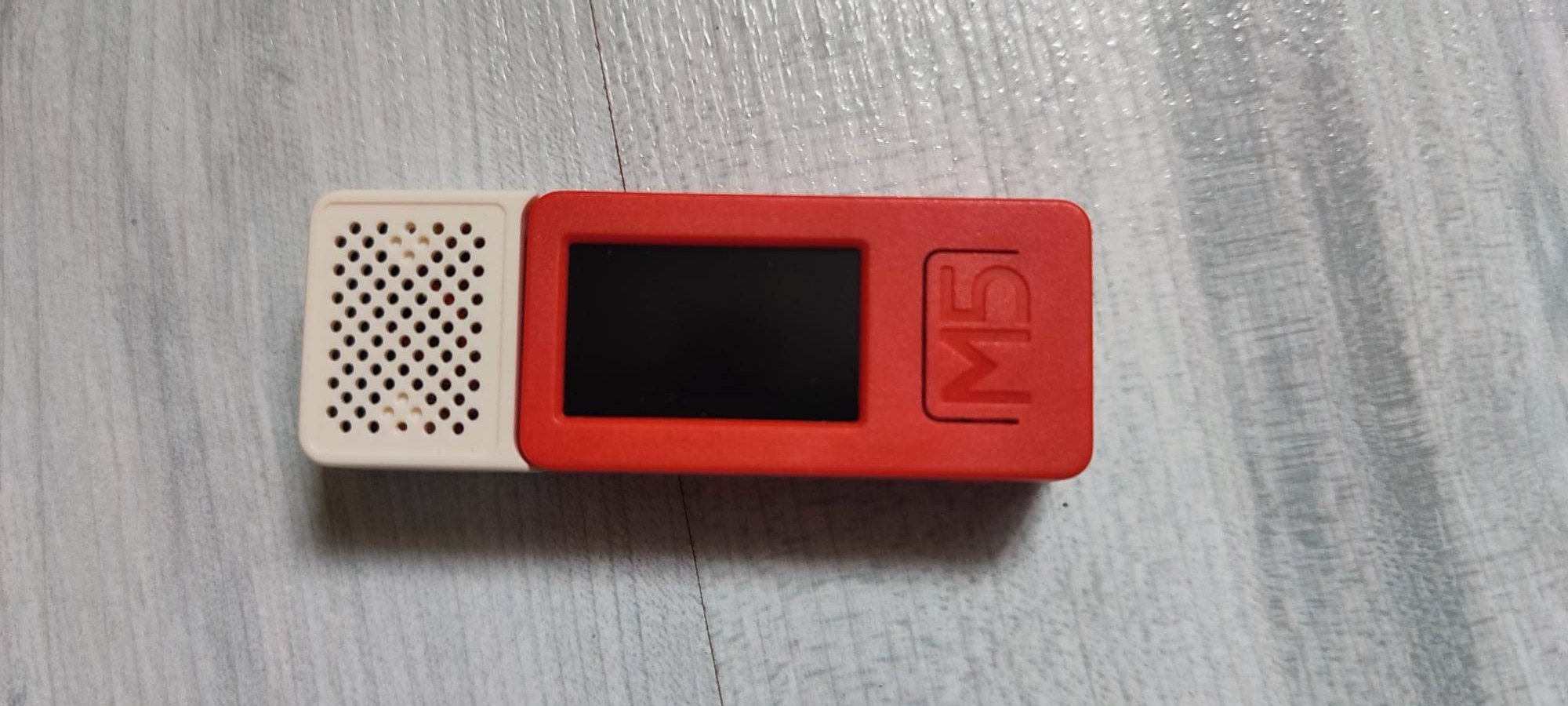

I am not a coder I got this one as well, for my M5Stack Core, but there are other "fake shot servers" on discord for different units as well.
No display and unfortunately cannot see even the battery status, only a black screen, but I charge it before use and works just fine.
Push the button and creates the fake shot speed (fps or m/s is preset in the display).
View attachment FX_server.zip
Upvote 0
Need some help please. So i did all steps in https://github.com/DaystateRebel/FXChrony_M5STICK_PLUS and when i upload i get this message.
C:\Users\user\Desktop\FXChrony_M5STICK_PLUS-main\FXChrony_M5STICK_PLUS\FXChrony_M5STICK_PLUS.ino:4:10: fatal error: ttfbin.h: No such file or directory
#include "ttfbin.h"
^~~~~~~~~~
compilation terminated.
Multiple libraries were found for "SD.h"
Used: C:\Users\user\AppData\Local\Arduino15\packages\m5stack\hardware\esp32\2.0.6\libraries\SD
Not used: C:\Users\user\AppData\Local\Arduino15\libraries\SD
exit status 1
Compilation error: ttfbin.h: No such file or directory
C:\Users\user\Desktop\FXChrony_M5STICK_PLUS-main\FXChrony_M5STICK_PLUS\FXChrony_M5STICK_PLUS.ino:4:10: fatal error: ttfbin.h: No such file or directory
#include "ttfbin.h"
^~~~~~~~~~
compilation terminated.
Multiple libraries were found for "SD.h"
Used: C:\Users\user\AppData\Local\Arduino15\packages\m5stack\hardware\esp32\2.0.6\libraries\SD
Not used: C:\Users\user\AppData\Local\Arduino15\libraries\SD
exit status 1
Compilation error: ttfbin.h: No such file or directory
Upvote 0
I'm an absolute noob to Arduino. I know less than nothing about it, but after 4 hours, I finally got my M5stick working, using the M5stick plus ino file. I was missing the OpenFontRender library. I couldn't find it on the Arduino library, but I found it in Github, so now it's all good!! Thanks for all who contributed to this project!!
Upvote 0
Hi All
I am new to the Arduino thing and want to know if this code were tested or uploaded to a Lilygo T-Display S3 module?
I am trying to do it and it fails.
Some errors were discussed in this Post but still not working for me.
Will anyone please assist if possible.
Thanks
I am new to the Arduino thing and want to know if this code were tested or uploaded to a Lilygo T-Display S3 module?
I am trying to do it and it fails.
Some errors were discussed in this Post but still not working for me.
Will anyone please assist if possible.
Thanks
Upvote 0
I have downloaded the S3 sketch from this location:
https://github.com/DaystateRebel/FXChrony_T_Display_S3
I have followed the steps as per the Readme File.
When Compiling the Sketch it seems like it does not finish it and give these lines "errors" regarding the BLE
Message:
In file included from c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/BLEAdvertising.h:15,
from c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/BLEServer.h:19,
from c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/BLEDevice.h:18,
from C:\Users\Home\OneDrive\Documents\Arduino\Sketches\FXChrony_T_Display_S3\FXChrony_T_Display_S3\FXChrony_TTGO_s3\FXChrony_TTGO_s3.ino:4:
c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/FreeRTOS.h:61:28: error: 'ringbuf_type_t' has not been declared
Ringbuffer(size_t length, ringbuf_type_t type = RINGBUF_TYPE_NOSPLIT);
^~~~~~~~~~~~~~
Then:
exit status 1
Compilation error: exit status 1
No sure what this all means
Any advice?
Thanks
https://github.com/DaystateRebel/FXChrony_T_Display_S3
I have followed the steps as per the Readme File.
When Compiling the Sketch it seems like it does not finish it and give these lines "errors" regarding the BLE
Message:
In file included from c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/BLEAdvertising.h:15,
from c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/BLEServer.h:19,
from c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/BLEDevice.h:18,
from C:\Users\Home\OneDrive\Documents\Arduino\Sketches\FXChrony_T_Display_S3\FXChrony_T_Display_S3\FXChrony_TTGO_s3\FXChrony_TTGO_s3.ino:4:
c:\Users\Home\OneDrive\Documents\Arduino\libraries\ESP32_BLE_Arduino\src/FreeRTOS.h:61:28: error: 'ringbuf_type_t' has not been declared
Ringbuffer(size_t length, ringbuf_type_t type = RINGBUF_TYPE_NOSPLIT);
^~~~~~~~~~~~~~
Then:
exit status 1
Compilation error: exit status 1
No sure what this all means
Any advice?
Thanks
Upvote 0
Ok I got the code to Download.
Had to uninstall the ESP32 BLE Arduino
It only used the default BLE that installs with Arduino as I understand.
It searches for a Chrony and as soon as I switch mine on the Searching stops and screen goes blank.
Do I need to add my chrony info somewhere in the code?
Had to uninstall the ESP32 BLE Arduino
It only used the default BLE that installs with Arduino as I understand.
It searches for a Chrony and as soon as I switch mine on the Searching stops and screen goes blank.
Do I need to add my chrony info somewhere in the code?
Upvote 0
All sorted
I see you need to fire a shot for the unit to change the display>
Great info.
Thanks
Upvote 0
