Homebrew FX Chrony display
- Thread starter DaystateRebel
- Start date
Try Arduino IDE 2.0.3. I think there was an update to the ESP32 files that only works in version 2.0 or higher. And the latest version of the ESP32 board as well from Expressif
Upvote 0

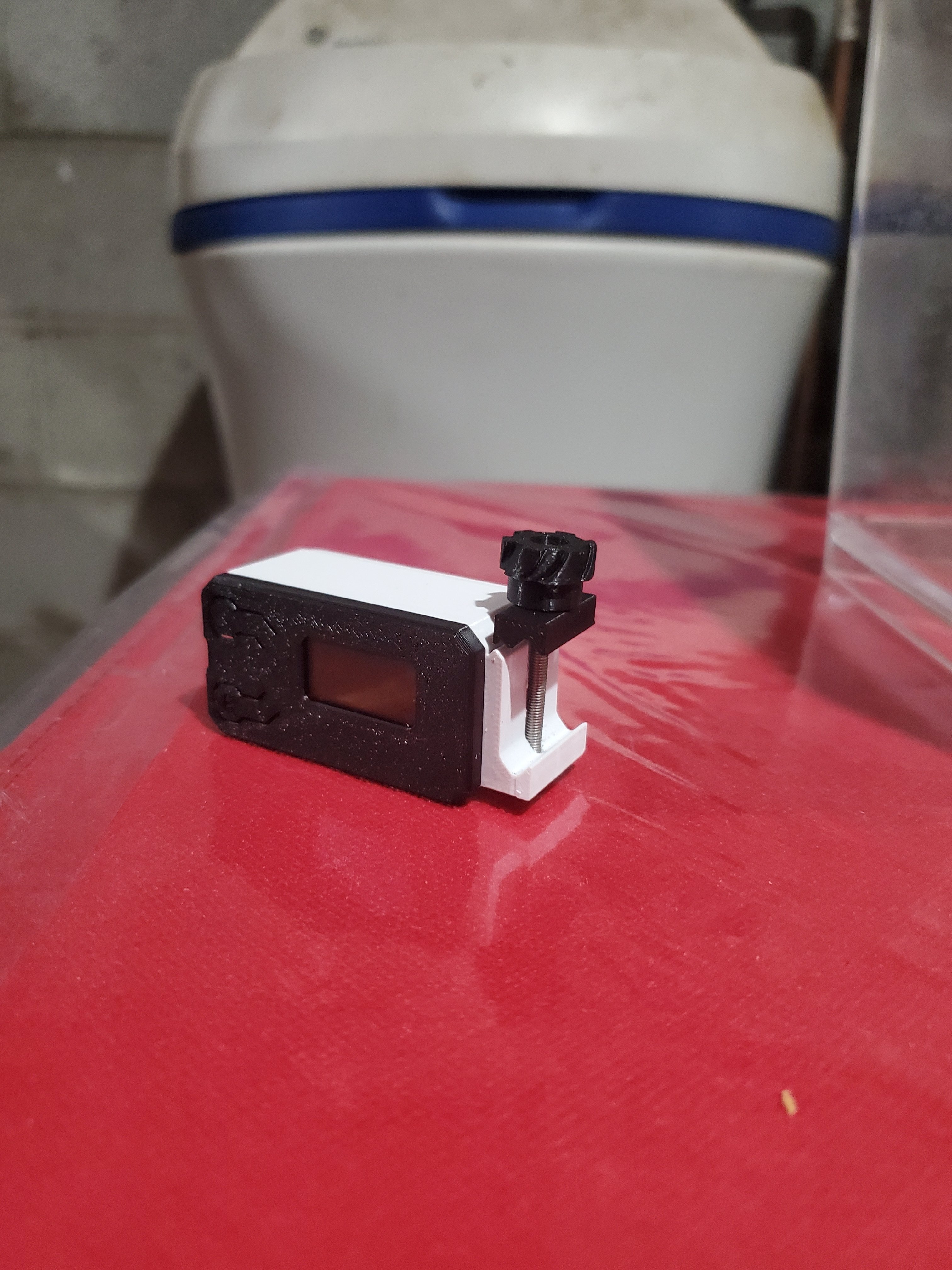

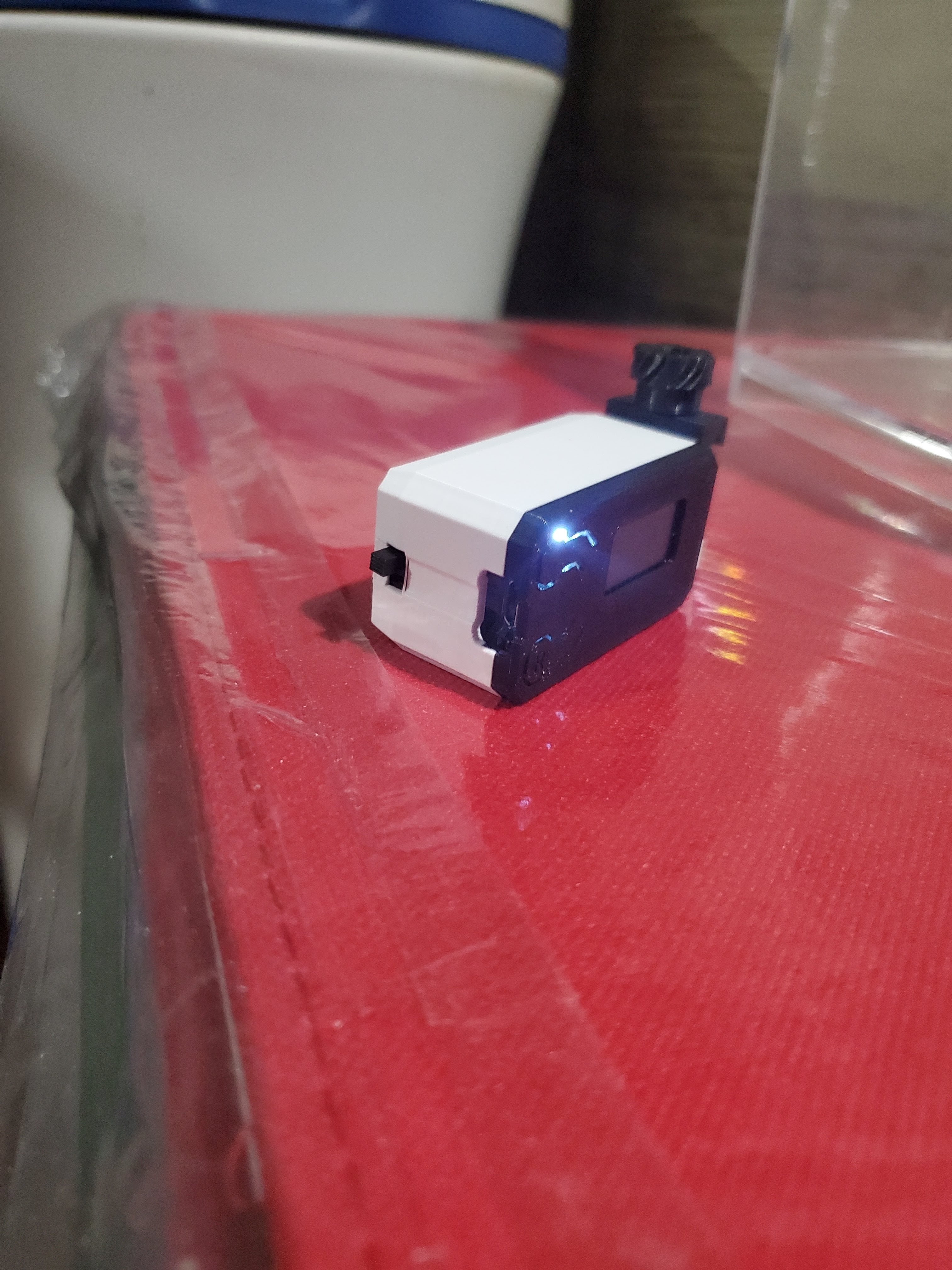

I remixed a box to pic rail for the esp32 board to fit a little switch and a 1000mah battery
www.printables.com
FX Chrony esp32 pic mount by nalby | Download free STL model | Printables.com
A remixed case to mount the esp32 fx chony display to a pic rail. I used a 40mm M3 screw | Download free 3D printable STL models
www.printables.com Last edited:
Upvote 0

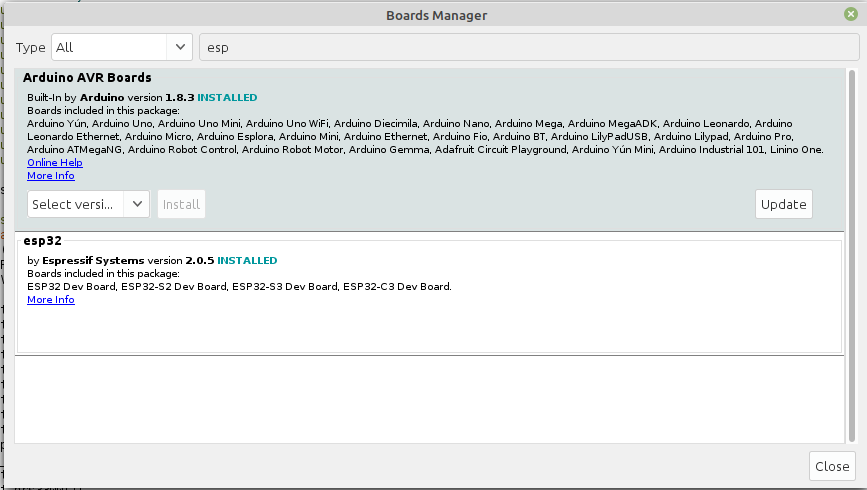

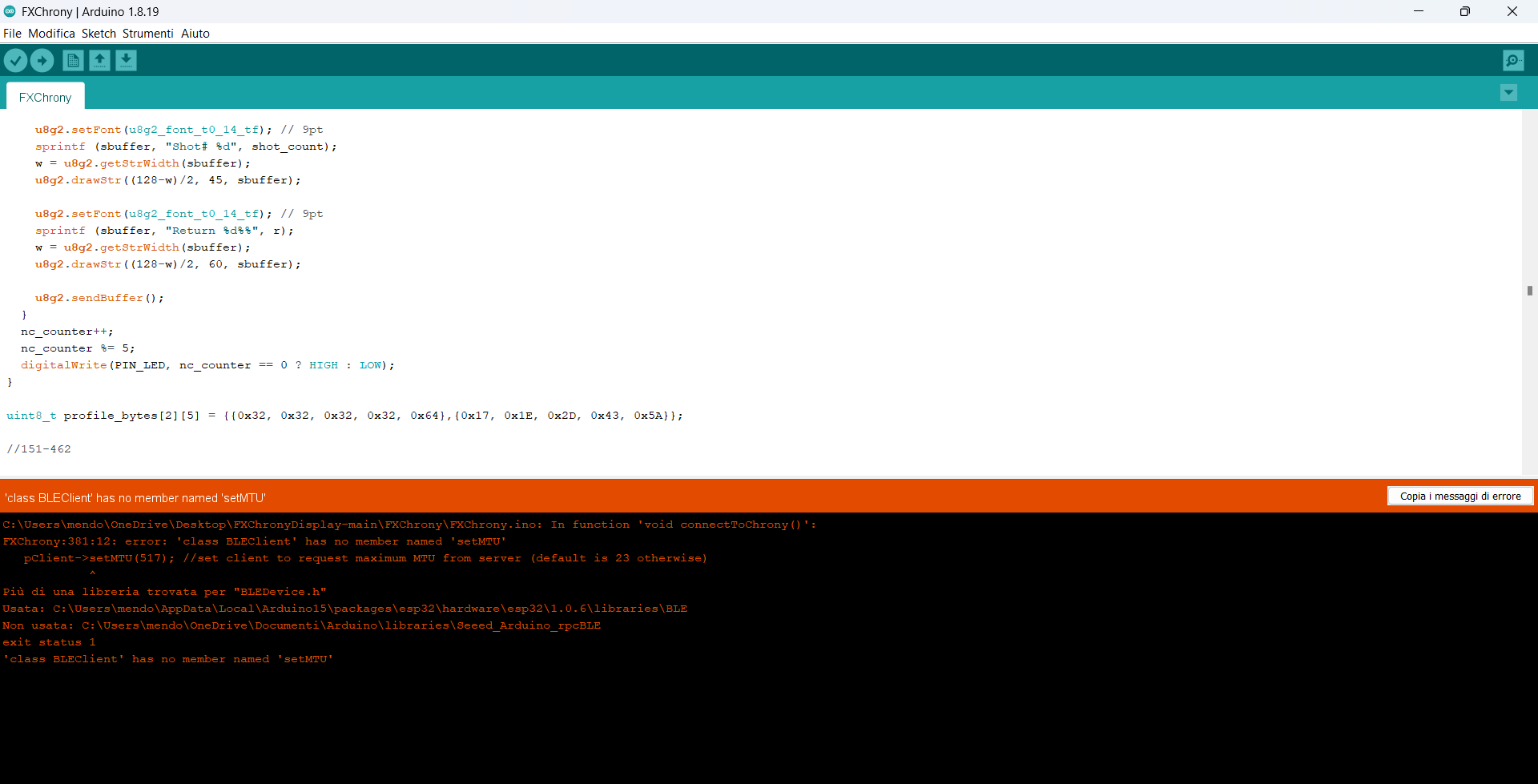

setMTU() was introduced in version 2.0.5 of ESP32 board support. Go to Tools | Board Manager, find the "esp32" package and make sure its v2.0.5. If not there's a drop down list of available versions
If that fails go to line 381 and change it from
pClient->setMTU(517);
to
// pClient->setMTU(517);
Last edited:
Upvote 0

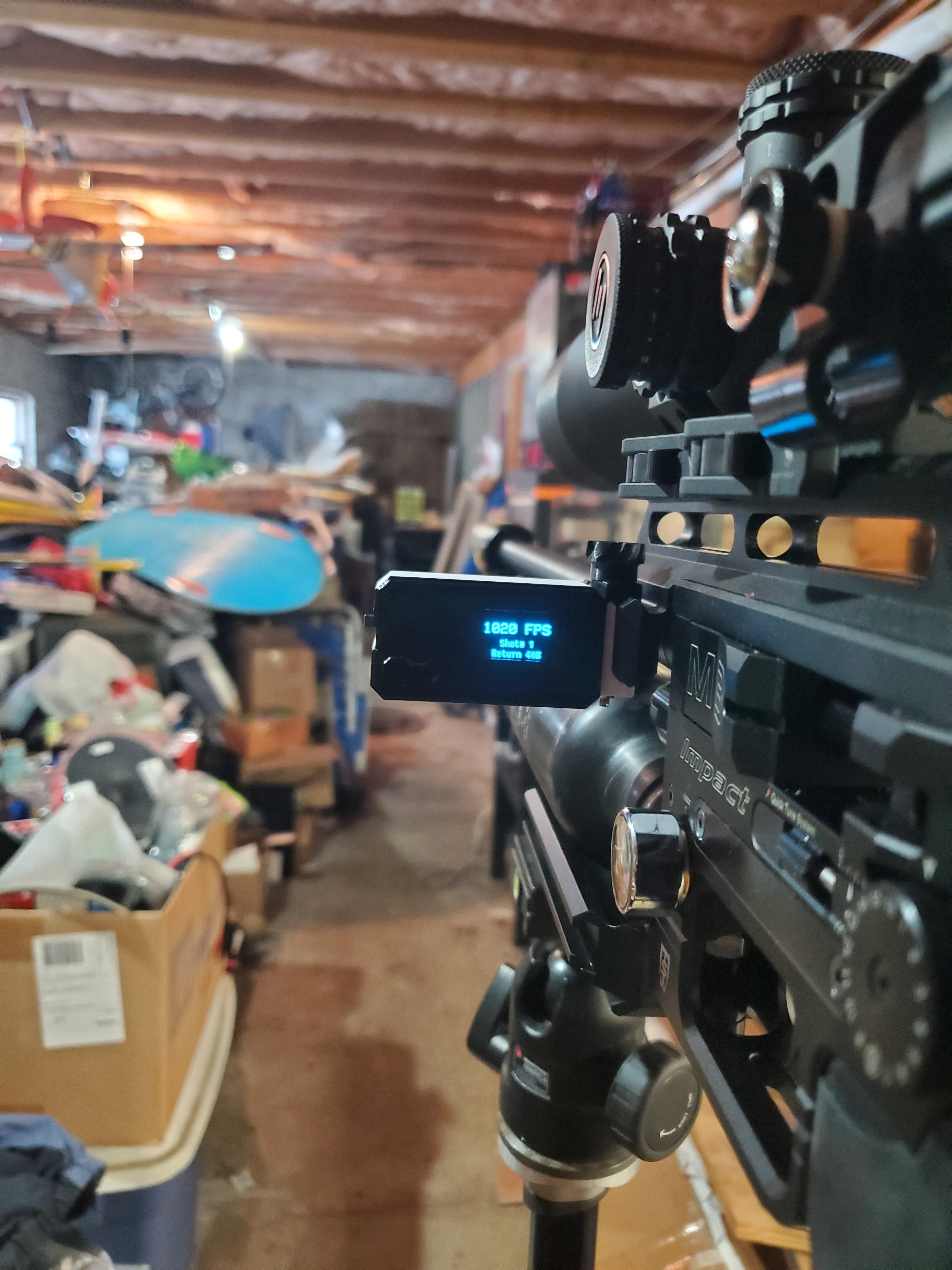

That looks really great and functional! I think it's time for me to invest in and learn 3D printing!I remixed a box to pic rai for the esp32 board to fit a little switch and a 1000mah battery
FX Chrony esp32 pic mount by nalby | Download free STL model | Printables.com
A remixed case to mount the esp32 fx chony display to a pic rail. I used a 40mm M3 screw | Download free 3D printable STL models
View attachment 314175
View attachment 314176
View attachment 314177
View attachment 314178
Upvote 0

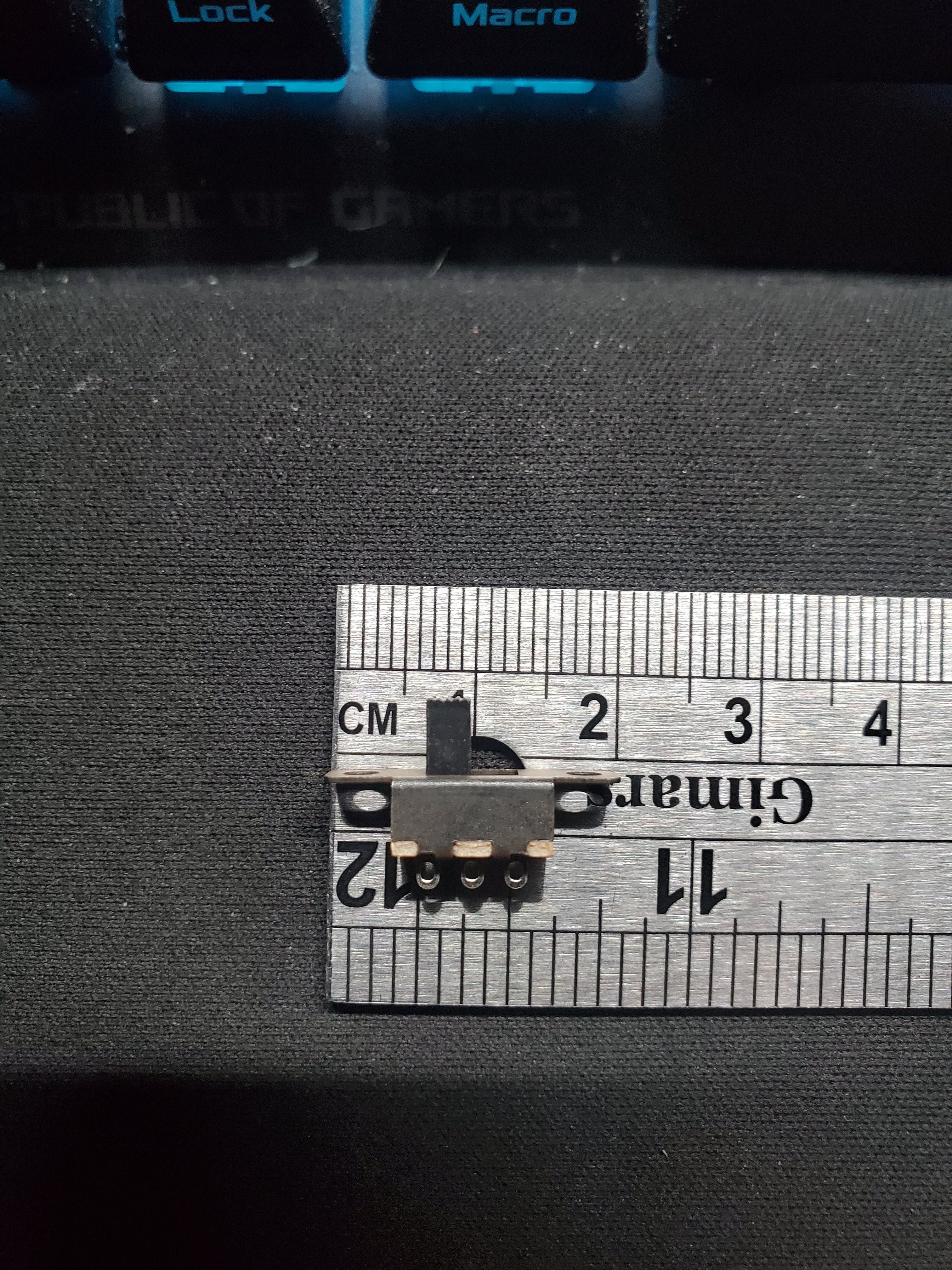

I like that little switch. Where did you find it? Hard to tell online how small the ones on Amazon are.I remixed a box to pic rail for the esp32 board to fit a little switch and a 1000mah battery
FX Chrony esp32 pic mount by nalby | Download free STL model | Printables.com
A remixed case to mount the esp32 fx chony display to a pic rail. I used a 40mm M3 screw | Download free 3D printable STL models
View attachment 314175
View attachment 314176
View attachment 314177
View attachment 314178
Upvote 0
https://www.amazon.com/dp/B099N3HFPG?psc=1&ref=ppx_yo2ov_dt_b_product_details
I've had the sw for ever, These are the same ones I just can't find like 1 or 5
Upvote 0

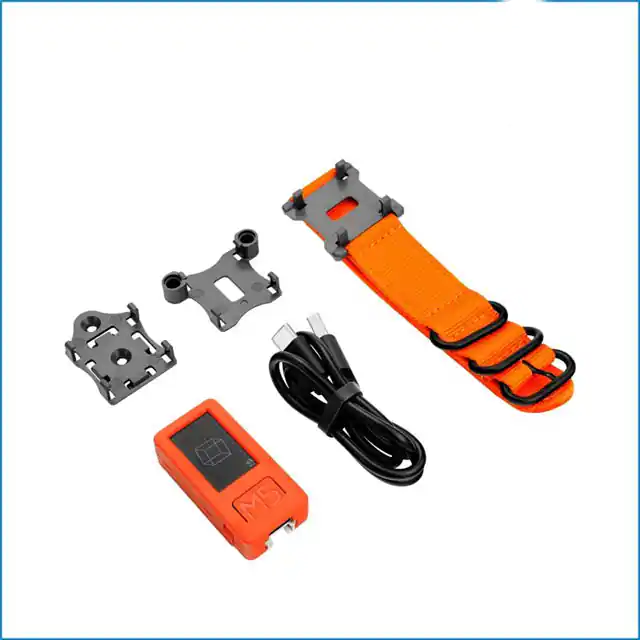

$3 more with a wrist band: https://www.digikey.com/en/products/detail/m5stack-technology-co-ltd/K016-H/15771301
Upvote 0
What's final? I will probably add recording shot strings and displaying the Chrony's battery voltage. As and when these get done you will be able to update the device yourselvesETA to a full and final version so we can trade?
I also have a couple of crap smart watches I want to port the code to.
What do you mean by trade?
2-3 hours? The 1000mAh I linked to is the same size as the PCB
Upvote 0
I am too old and too dumb for learning again the arduino. I can design and print the enclosure, but for electronics I would just buy when its ready

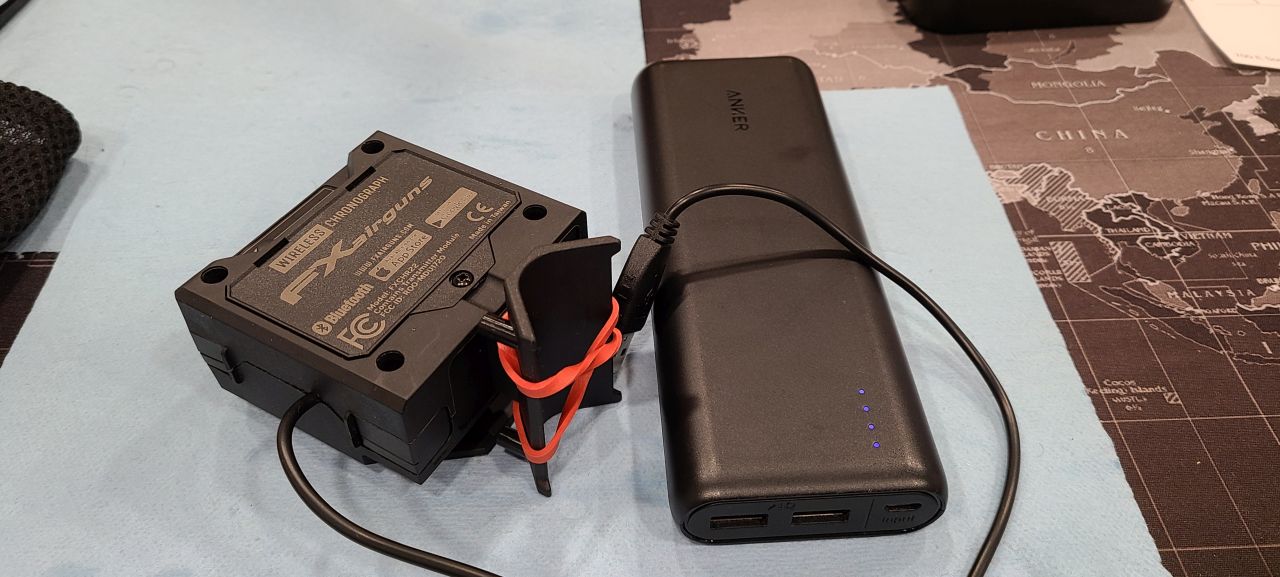

btw, my radar power is taped to a power bank, and there is still one port open.
Upvote 0

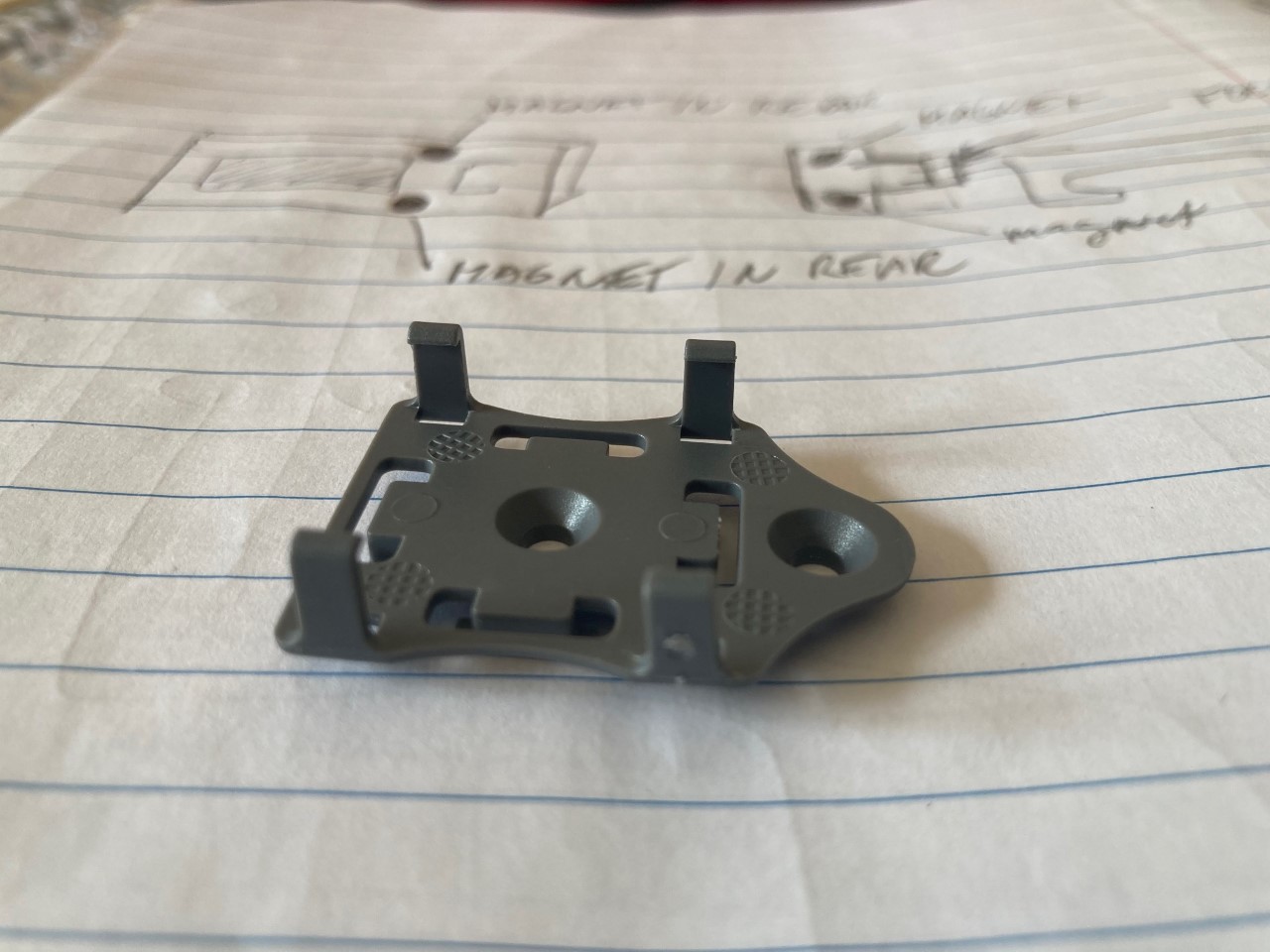

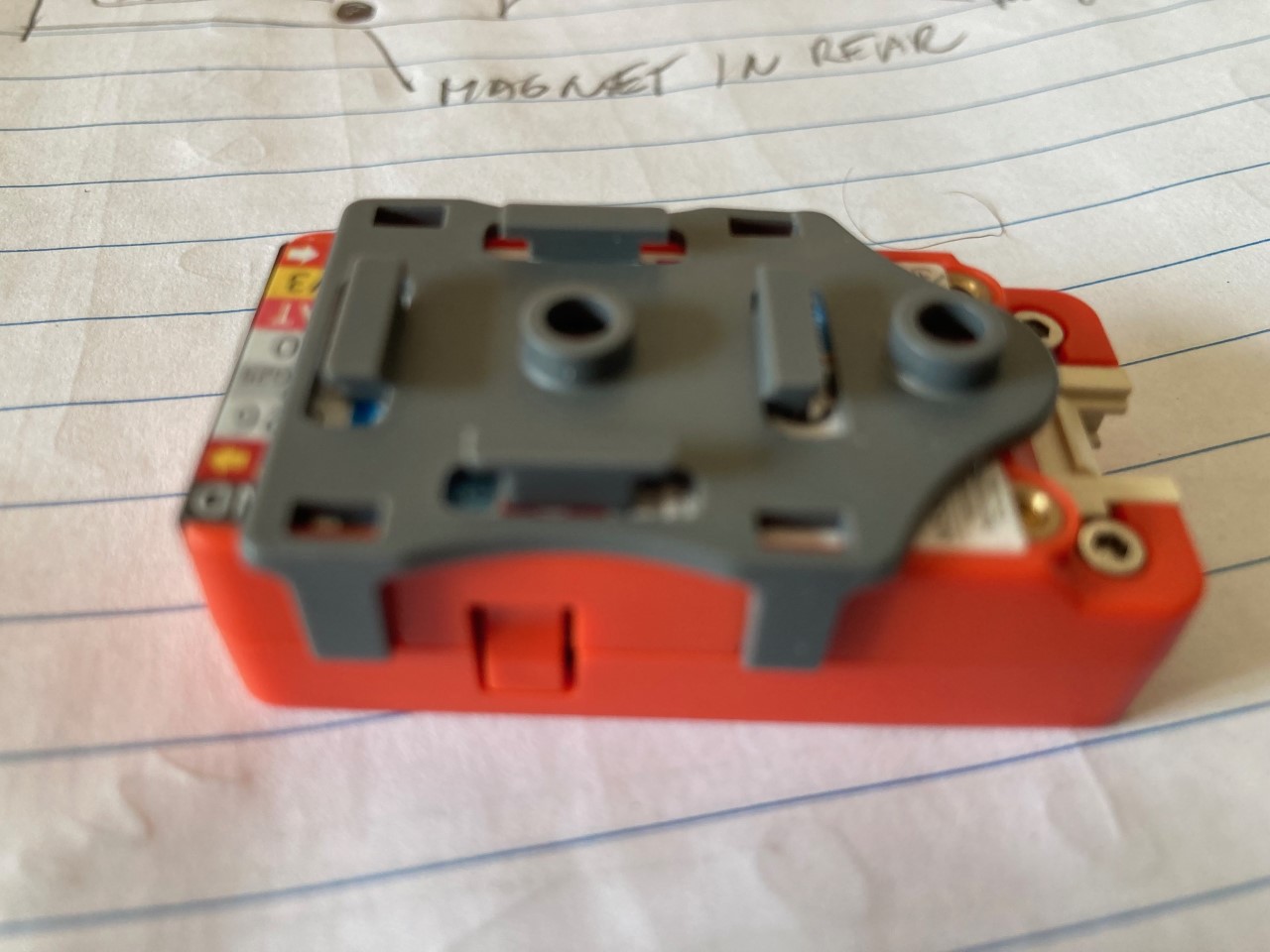

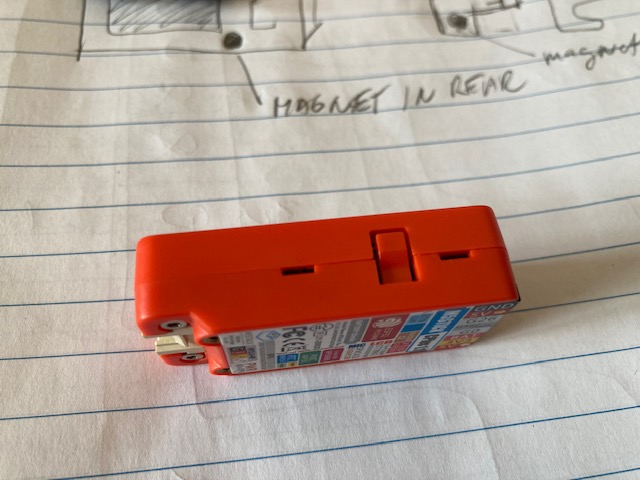

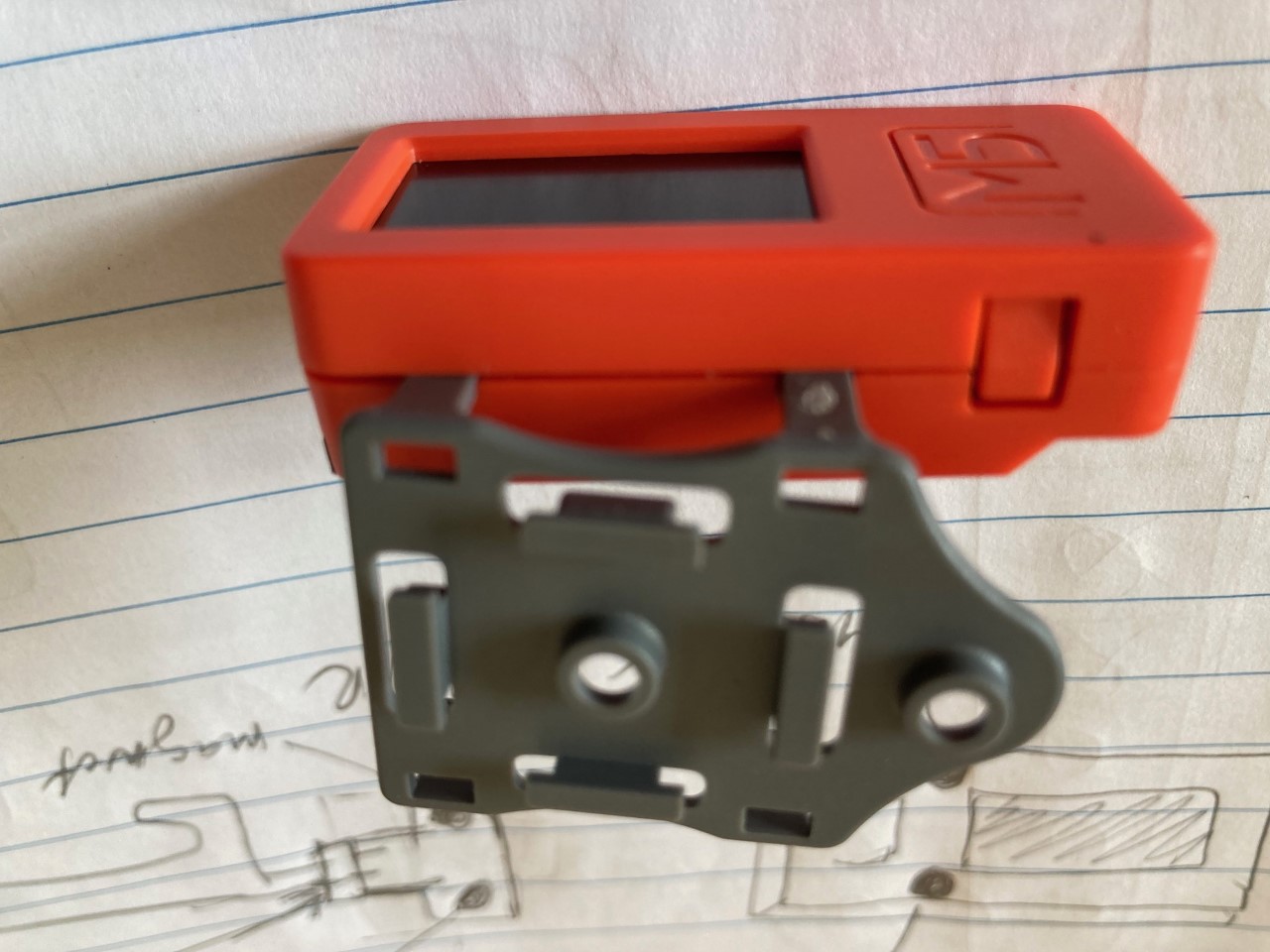

Picked up above set today. I must find some time to set up my MacBook. Mounting kits are made of solid plastic, the one in the middle seems the most robust. It should not be a problem to fabricate mounting kit for skilled 3D designer.
