One of my magazines broke the same small plastic piece.Ok, I spoke too early...
Magazine is broken again! lol Guess what broke off?
Not the spring, it was the little plastic extrusion at the bottom inside the magazine
that stops the pellet wheel rotating. This thing is hopeless!

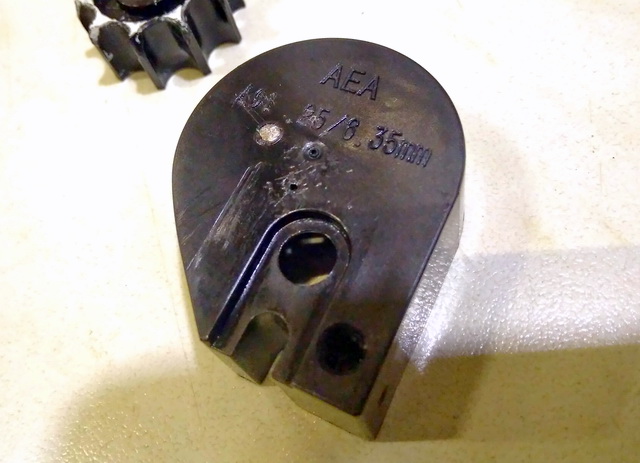

I drilled a larger hole and pushed a 3mm metal pin (6.5mm length), press fit and glued
with two part epoxy. I am not giving up!
You have to be very precise to install a 3mm rod, so I suggest a 2mm.

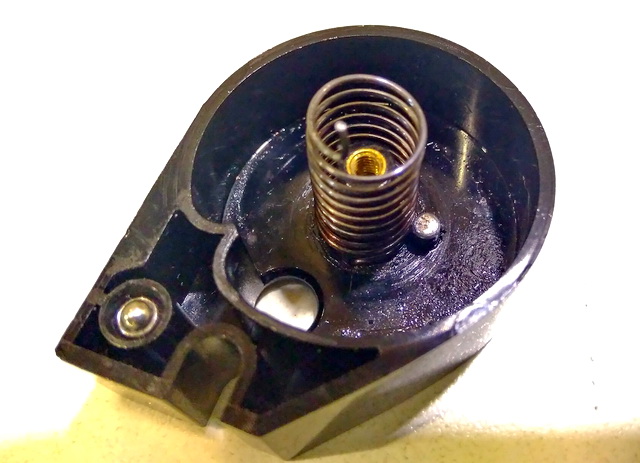

View attachment 443222
View attachment 443223
So I guess the stronger slug spring was too much for this trash.
I am feeling like I am polishing a turd...
Let's see how long this will last.
So the slightly lighter spring on the magazine which still works
has a thickness of 0.7mm, OD of 11mm and 11 turns counting
opposite of the spring pins.
Maybe its called AEA for a reason. Abandon Every Attempt... (to fix it...)
I used it for a while like that by rotating it 2-3 times for more tension.
I gave up on it since I was getting pellets in the trigger area.
