Huben Huben GK1 Pistol Owner Bloopers "You Blew It!"
- Thread starter Ezana4CE
- Start date
Upvote 0

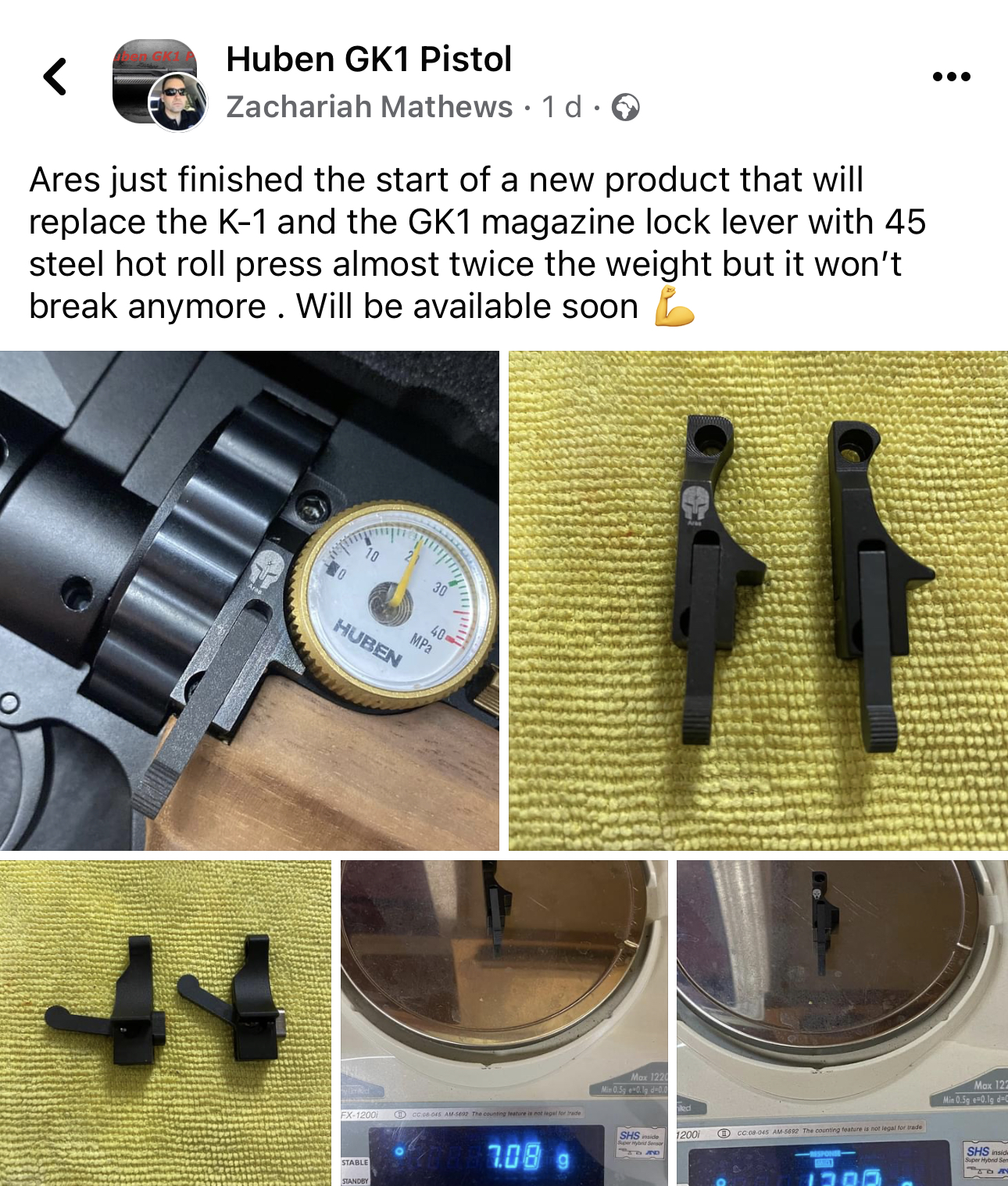

I like how he reduced the travel of the lever. So if it does snap down it won’t have as much impact.
Upvote 0
Dissimilar metal corrosion (electrolytic) is only a problem in the presence of an electrolyte. That lever should be a quality steel. The weight penalty for such a small item would be non-existent.
Upvote 0
Sweat is normally acidic but can be alkaline too, depending on diet and amount of said sweat. Fingerprint/sweat etching will always be an issue if you don't wipe down any metal periodically, but for the amount of time it would take to break down the parts to failure would likely take substantial neglect.
Upvote 0
There really is no problem with the original lever. The problem is with the user, not the gun. These failures are due to shock and shock, over time, will break everything no matter what material is used for the lever. The corrective action is for the user to follow the directions offered by Huben. Let the lever down slowly.
As for the valve spring failure, I suspect the spring failure is due to over travel and the spring is coil stacking. That will fracture the wire over time. I suspect a travel bumper will be required similar to what is used on the FX Impact. I will have to look at the configuration to see if it is possible. Even better would be a compound buffer spring that engages just before the end of travel slowing the valve pin speed gently. I used a similar rig on my custom .45 ACP 1911 colt to prevent slide slam on recoil using heavy loads. It was very effective in allowing the pistol on target sooner.
As for the valve spring failure, I suspect the spring failure is due to over travel and the spring is coil stacking. That will fracture the wire over time. I suspect a travel bumper will be required similar to what is used on the FX Impact. I will have to look at the configuration to see if it is possible. Even better would be a compound buffer spring that engages just before the end of travel slowing the valve pin speed gently. I used a similar rig on my custom .45 ACP 1911 colt to prevent slide slam on recoil using heavy loads. It was very effective in allowing the pistol on target sooner.
Last edited:
Upvote 0
I have put around 1000 25.4gr JSB pellets through my .25 GK1. The power is set to 700 ft/sec. I started to get doubling occasionally. When it happens, it is very fast. It sounds like one long noise. I have no idea what is causing it. It appears that the secondary sear is not catching, but I'm not sure. yet. Has anyone else experienced this? I also experienced my first magazine jam, where one pellet fell into the barrel when indexing. To clear it, I simply took a .22 cleaning rod and tapped the pellet back into the mag. No issue.
Upvote 0
Same thing happened to me. The trigger’s second stage is set too light. On the rear of the pistol, there’s a little cut out into the grip for two little hex screws; the one on the left is for the second stage. Turn it clockwise until you don’t experience the double fire.
*The JSB 33.95 fit more snug in the mag than the 25.4
Last edited:
Upvote 0
Looking for info on a blunder I just did and found this. Anyone accidentally fill their gun to 6,000 psi? I have the cs4-i compressor and I ****ing hate the gauge. What I had thought I set the shutoff to was 5,000, was actually 6,000. I usually watch but I had to grab my reading glasses and a light to make sure I set it right. By the time I found everything the pump had stopped. When I looked at the gun gauge it was past the 40 MPa and pretty much to those letters. I didn't want to waste time loading with that much pressure, nor did I know how the gun would react. So I was forced to dry fire to relieve the pressure back to 5K. Anyone have any ideas on what I should look out for now? It held the pressure and fired fine. Hoping I didn't damage anything but I don't even know what to check for on this gun.I stumbled across this today. This is funny, but informative. Are any of these photos from any AGN members? I wonder how many of these will be sold shortly after jacking them up or getting them back after being repaired. I know I've done it a few times on the K1. Although I haven't experienced failure though. Is it feasible to machine a more durable part made of stronger material that will not snap?
You Blew It!!!
The first thing that you should do after purchasing any air gun, is to read the manual the gun comes with. There you will find proper instruction on how to operate and maintain your gun properly,...www.newenglandairgun.com
Upvote 0
There's nothing ro do but shoot the thing and enjoy it.now. Nothing broke when you dry fired the excess air off, and so you should be alright long term.
