Huben Huben GK1 V3-R Build

[AJ_Roberts]

Getting there

GK1 V3-R .22
Huma Regulator Kit
Huma Moderator adaptor
HW XLK Moderator
Buck-Rail Stock Adaptor
5KU ST-6 Folding Stock
Magpul MOE RL Stock
Holosun 2moa Red Dot



[gxsoon]

That's over $2000 now



[zx10wall]

I like it. Nice accessories. Let's see a shot sting please.



[AJ_Roberts]

That's over $2000 now

I already had the mod and red dot, but yeah not a cheap build, I’m in the UK so it’s a pretty unique build



[wimpanzee]

now you just need a falcon shroud!



[zx10wall]

I already had the mod and red dot, but yeah not a cheap build, I’m in the UK so it’s a pretty unique build

I see. Well, I just setup a GK1 very similarly but for 20 FPE.



[AJ_Roberts]

now you just need a falcon shroud!

Link me up



[zx10wall]

Huma installed and set at 125 bar:

Created: 12/17/24 06:05 AM
Description: Huben V3+ GK1 .22 Pistol
Notes 1: 03029
Notes 2: 280 bar fill
Distance to Chrono(FT): 1.00
Ballistic Coefficient: 0.022
Bullet Weight(gr): 14.66
# FPS FT-LBS PF
29 788 20.22 11.55
28 793 20.47 11.63
27 778 19.71 11.41
26 781 19.86 11.45
25 787 20.17 11.54
24 787 20.17 11.54
23 786 20.11 11.52
22 788 20.22 11.55
21 793 20.47 11.63
20 786 20.11 11.52
19 788 20.22 11.55
18 785 20.06 11.51
17 784 20.01 11.49
16 785 20.06 11.51
15 778 19.71 11.41
14 788 20.22 11.55
13 790 20.32 11.58
12 788 20.22 11.55
11 791 20.37 11.60
10 787 20.17 11.54
9 795 20.58 11.65
8 797 20.68 11.68
7 789 20.27 11.57
6 784 20.01 11.49
5 794 20.53 11.64
4 788 20.22 11.55
3 795 20.58 11.65
2 781 19.86 11.45
1 786 20.11 11.52
Average: 787.6 FPS
SD: 4.8 FPS
Min: 778 FPS
Max: 797 FPS
Spread: 19 FPS
True MV: 790 FPS

Not particularly please with the extreme spread. Could experiment with valve adjustment and or reg pressure to tidy up.



[AJ_Roberts]

That ain’t too bad, I was getting 12fps ES with unsorted RWS Hobby’s 11.9gr over 3 mags, ive only done one shot string, but used a few different types of pellets to see what it liked and the shot count/how many mags before I refill. I got 6 full mags from a 300bar fill, but that’s at poopty UK Sub6 power levels. My reg is also set at 125bar and the final power level is set by the power adjuster



[zx10wall]

That ain’t too bad, I was getting 12fps ES with unsorted RWS Hobby’s 11.9gr over 3 mags, ive only done one shot string, but used a few different types of pellets to see what it liked and the shot count/how many mags before I refill. I got 6 full mags from a 300bar fill, but that’s at poopty UK Sub6 power levels. My reg is also set at 125bar and the final power level is set by the power adjuster

To get that shot count from that little tube (280 bar fill) is pretty dang impressive me thinks.

Yeah Sub6 is neutered way down! I found 125 bar acceptable for mag indexing reliability.



[AJ_Roberts]

Half way through 7th mag it dropped under the reg pressure, I could hear it struggle to index at around 110bar, stopped straightaway and refilled it, so 6 mags gives me a nice safety buffer



[wimpanzee]

Link me up

Kelly at https://krazcool.com/ makes them, I bought one directly. He doesn't seem to list them yet, but you can call and as about them. I thought I had a pic handy but I can't find it, I'll upload one later!



[old goat]

Getting there

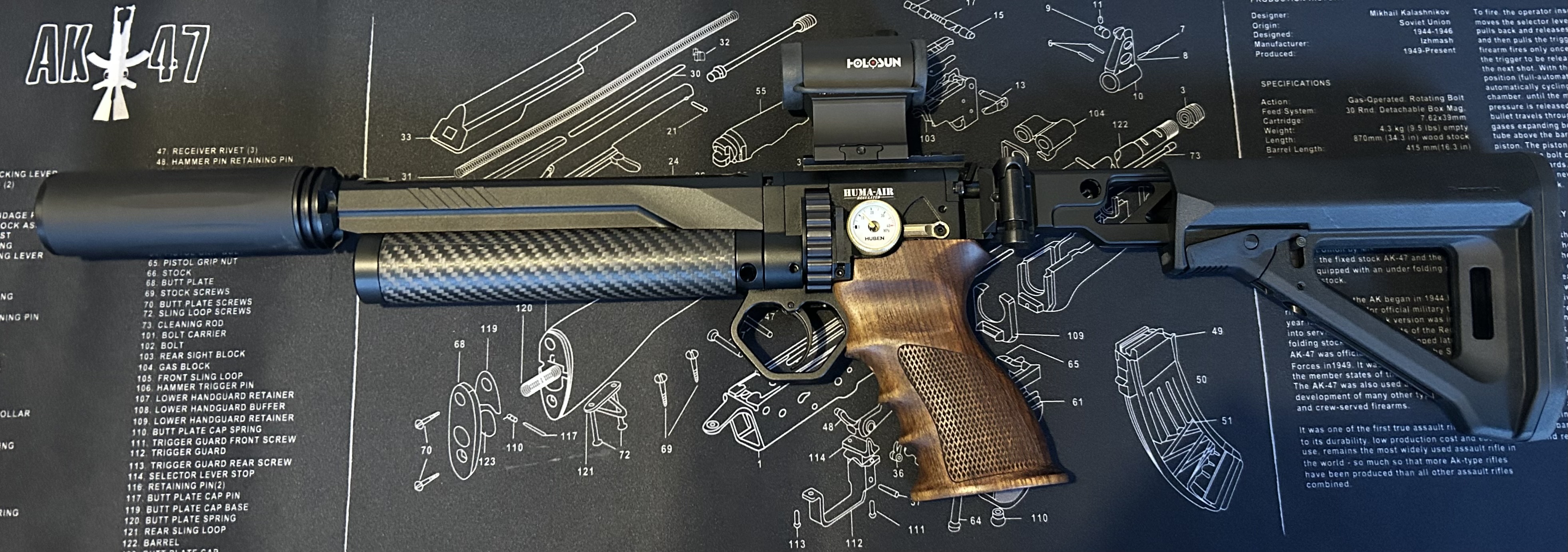

View attachment 521261

GK1 V3-R .22
Huma Regulator Kit
Huma Moderator adaptor
HW XLK Moderator
Buck-Rail Stock Adaptor
5KU ST-6 Folding Stock
Magpul MOE RL Stock
Holosun 2moa Red Dot

Bad a** the best one I've seen so far,



[AJ_Roberts]

Cheers, there are plenty of other as awesome builds on here



[AJ_Roberts]

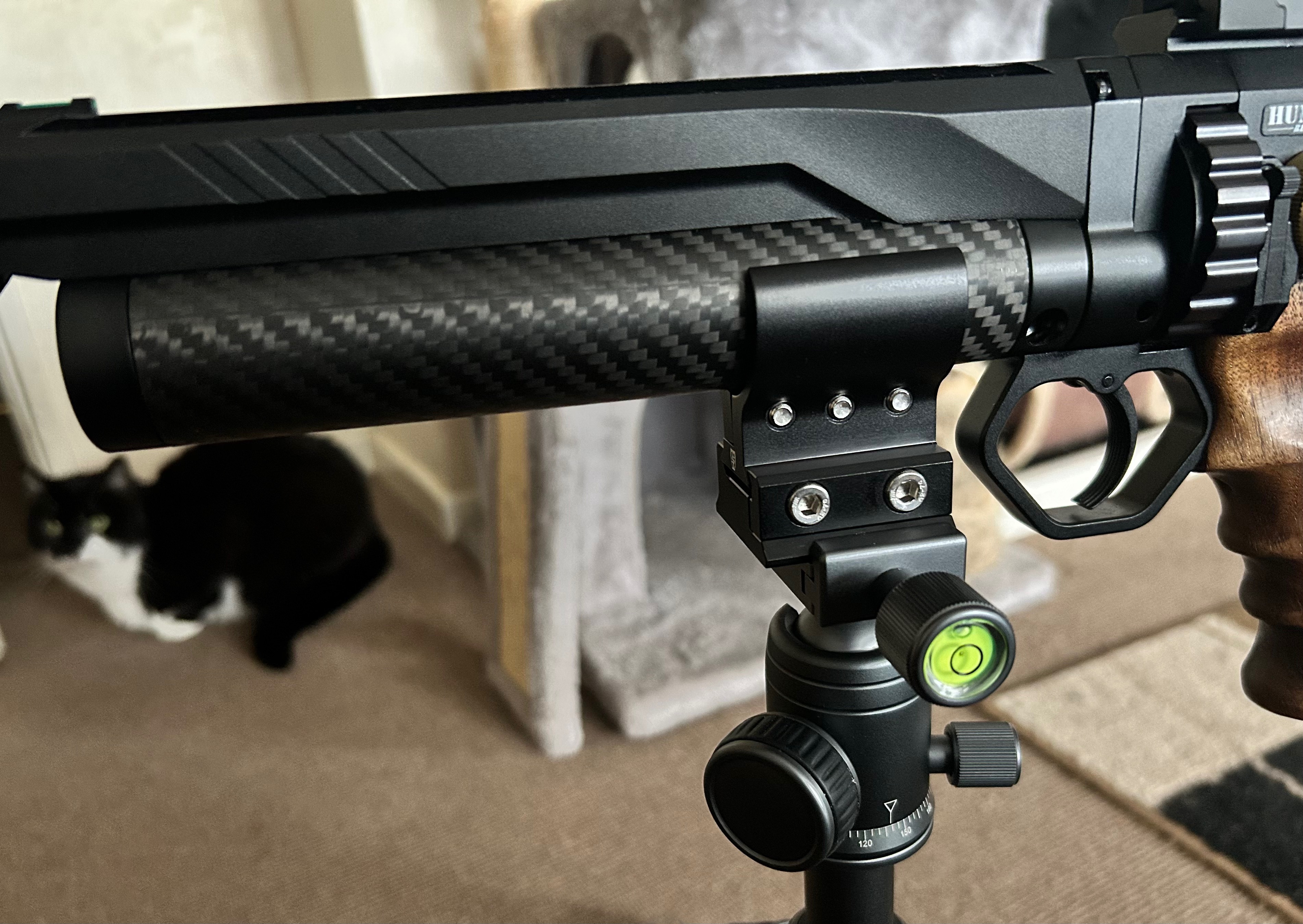

Picked up the Saber Tactical clamp on Picatinny, so I can now use my little tripod, I love using it shooting off tables, being a bit more upright it’s much better for my dodgy back



[airman_o]

Picked up the Saber Tactical clamp on Picatinny, so I can now use my little tripod, I love using it shooting off tables, being a bit more upright it’s much better for my dodgy back

View attachment 521508

is this the 34mm clamp from Saber Tactical? looks like a nice solution as I'm not too fond of the 3D printed items.
the size you have seems to fit nicely!



[AJ_Roberts]

is this the 34mm clamp from Saber Tactical? looks like a nice solution as I'm not too fond of the 3D printed items.
the size you have seems to fit nicely!

Yep, its the 34mm one, it fits perfect



[AJ_Roberts]

Thats it for now



[AJ_Roberts]

Got my buddy on AGF Forum in the UK to make me a fill port plug, it’s the simple things that finish off a build



[elwoodblues]

Where did you get the picatinny scope mount?
