Tuning Huben K1 internal moderator baffle problem

[CoyoteGod]

Does anyone know the correct order of the pieces of the internal moderator baffle for the Huben K1? Inside the stock shroud where the holes are I had a several washers and spacers and one thin o ring fall out. I don't know the order they go back in. Any help would be great. I tried to do it myself using the "this looks like how it should go" and that did not work. Thank you.



[john8]

Greg, opened up moderator, from the breach; 4 spacers, 8 spacers and cones finishing up spacer, cone, oring, cone. Hope that helps you.



[bernieorosz]

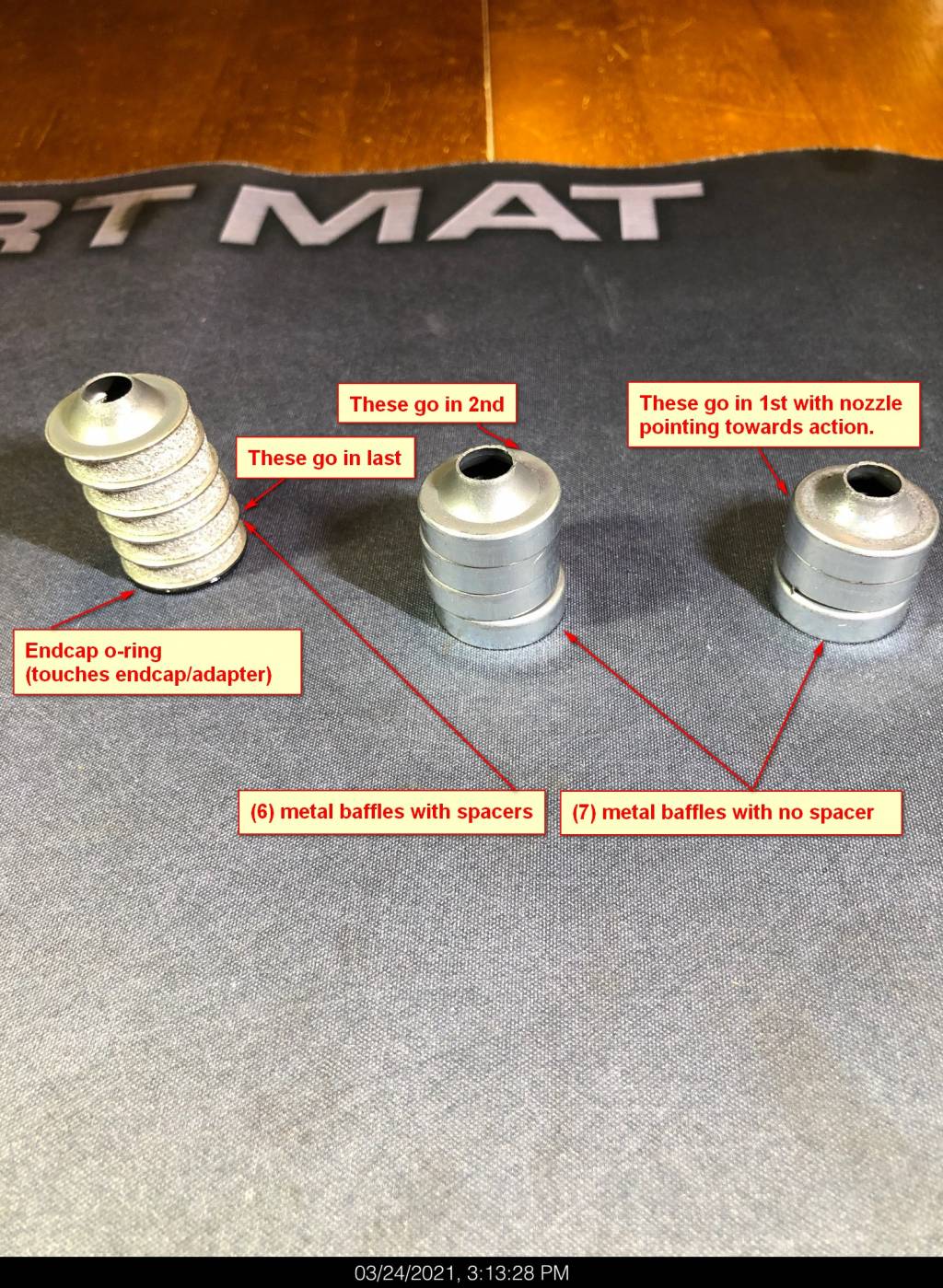

Kelly Schmidt at Kraz Cool Airguns confirmed the below picture I took of baffle/spacers order is accurate. Mine had gotten mixed up after I removed the shroud on my Huben K1 2021 .22, and wasn't sure how to put them back correctly . A picture always helps to visualize.



[S2k626]

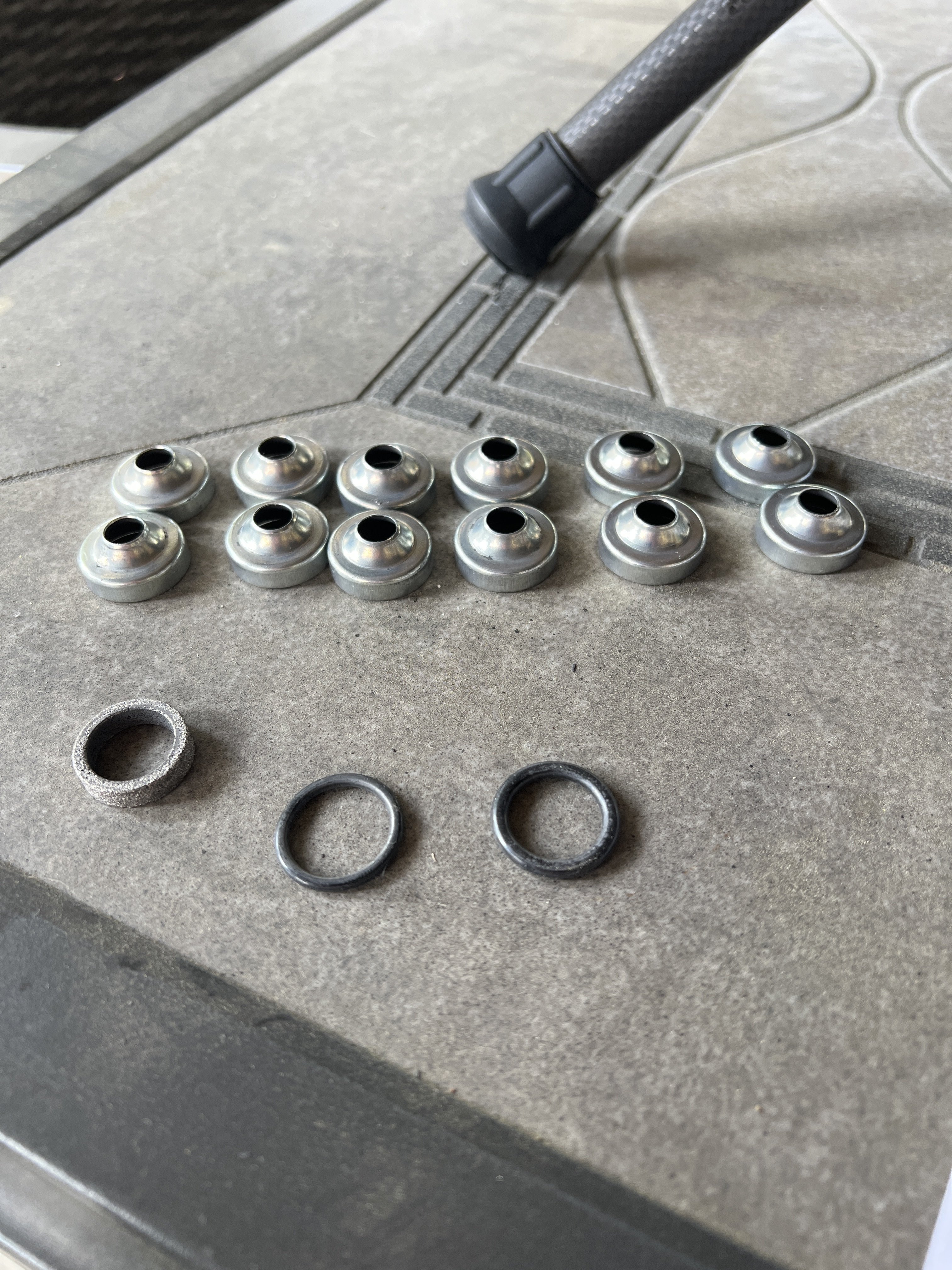

I just accidentally shot out all my baffles too . My 2022 K1 seems to have some different parts than the ones pictured above. All the baffles seem to be the size but there are two different sizes o-rings. Can anyone help?
