Here is an other spin off thread for the Huben pistol where members can share what ammo they have found works good,....... or bad in their hand cannon.
These groups were with the rifle, the k1. I know it's a gk1 thread. I have both. But yeah, that up and down pattern makes me wonder if I'm getting some variable velocities that cause it. I didn't use the crony today. I've already polished my 22 k1 barrel. Didn't help with accuracy but didn't hurt either, but it seemed to make the velocities more consistentThis 254 slug is actually producing a really good group at 100 yards with the unregulated GK1. The narrow up and down pattern at 100 yards is simply the fluctuation of air pressure and speed.
I looked at my bore with a scope. Most lands and grooves look looks good and one is kind of rough but not too bad. So I'm debating on the polish job with this because it is already such a large bore and is limited to ammo choices "off the shelf" without buying a set of dies to tune with. I have polished all of my air rifle barrels, both successfully and also not so successful. One barrel is not accurate anymore because I opened it up a bit too far, but I have a set of dies on the way to hopefully fix that with sizing.
The GK1 doesn't look like a hard gun to machine an aftermarket barrel to fit into if need be...

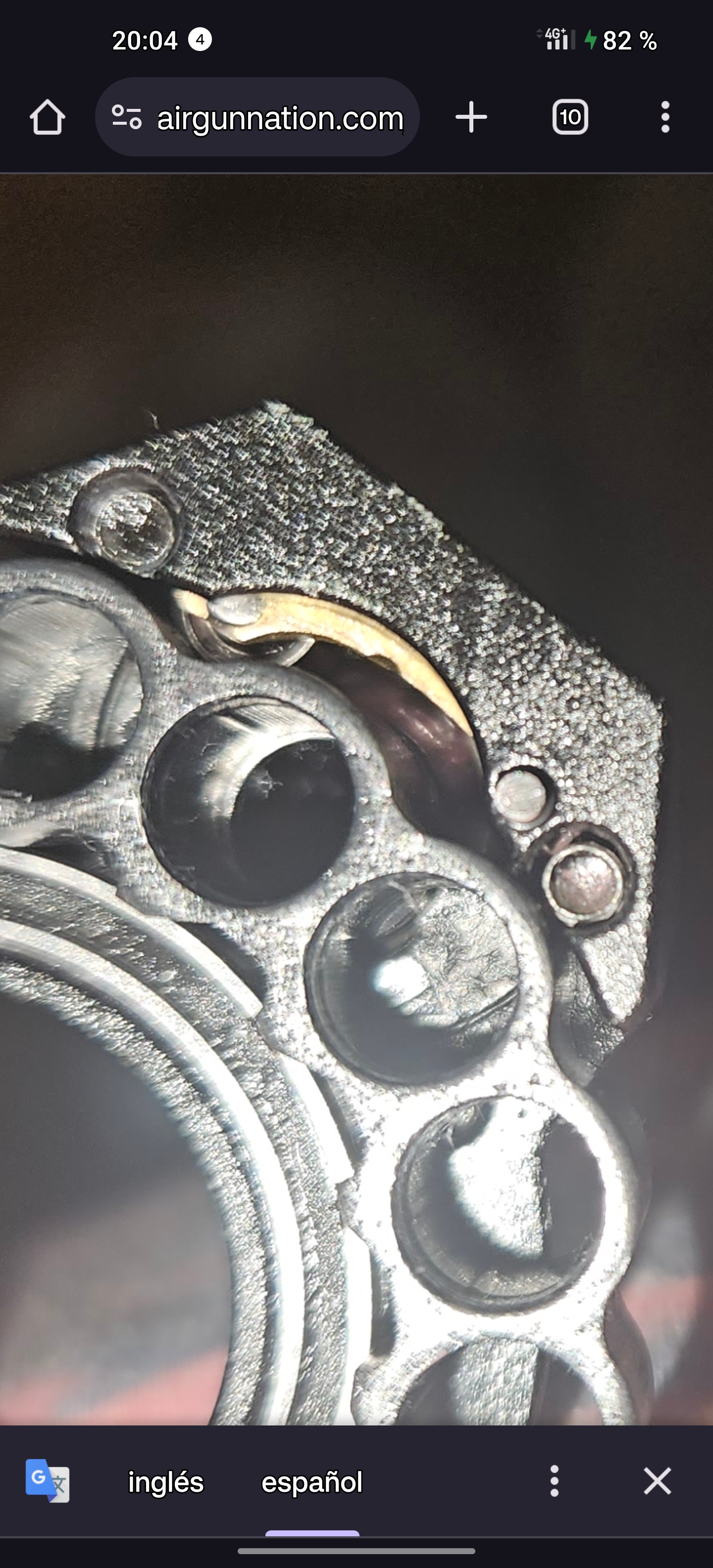

Se aprecia una junta tórica rota en la imagen.Actualización rápida. Desarmé mi 25 k1 para pulir el cañón y cuando lo hice descubrí que tengo un problema de alineación con el cañón y el cargador. En el proceso de intentar solucionarlo ahora. Nunca antes había ajustado la alineación. Cuando lo reúna todo me imagino que se filmarán grupos mucho mejores.

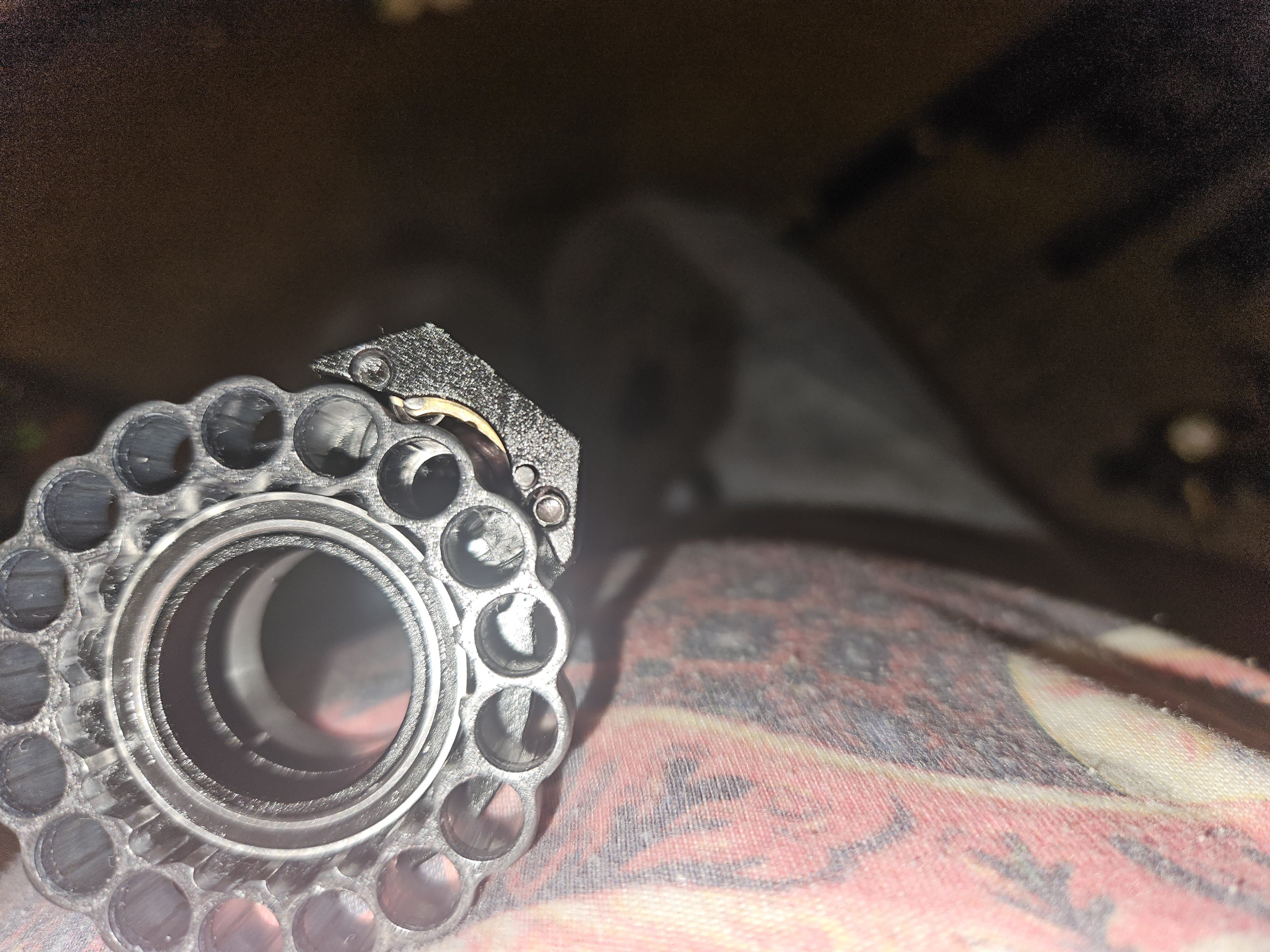

Ok, lo reuní todo y lo probaré nuevamente pronto. Coloque una bala en el cargador y empújela casi completamente hacia adelante, luego colóquela en el cañón con la bala en el cañón para alinearla. Apreté todo, quité el cargador y la bala, luego volví a colocar el cargador. Funcionó perfectamenteView attachment 412841
You need to measure correctly. I used a set of precision pin gauges. The number s were .250" Go and .251" No GO. Please also note that the rear of the magazine bores are beveled to accommodate The oversize lip of the pellet. The front and back of the magazine is NOT the same. I also measured the barrel and the lands were .247 Go and .248 no GO. Now, measure your pellet. The pellet I use has a head diameter of.248" and the skirt is .260".This gives perfect guidance in the barrel and .006" rifling bite for good grip and sealing.Anyone with a v3 notice the mag seems to be smaller and is closer to .253 instead of .254?
I have a machine shop, so having pin gauges is a necessity for me and unaffordable for the normal GK1 user. It only takes a few minutes to make the measurement and most machine shops would check this for free if you asked nicely. I do not think my measurements are off at all and inconsistent with other's observations.@steve-l The problem would be that I don’t have a pin gauge set. Especially for a quality set , they’re well outside my current budget. Do you have any theory why people are having better results with larger diameter slugs? Or do you think your particular GK1 has a more narrow mag/barrel? Seems like ~.2475 (based on your go/no go results) is MASSIVELY off.
Edit- apparently you can buy really good pin gauges individually. Ordered for .247 through .254
Lucky bastard , sometimes I dream about leaving white collar…I have a machine shop
Bernie,Lucky bastard , sometimes I dream about leaving white collar…
But back to the subject at hand, John at NEAG said the same thing as you and advised against slugs for the exact same reason. I wish JSB offered the Monster in .25 to maximize weight while minimizing bore friction

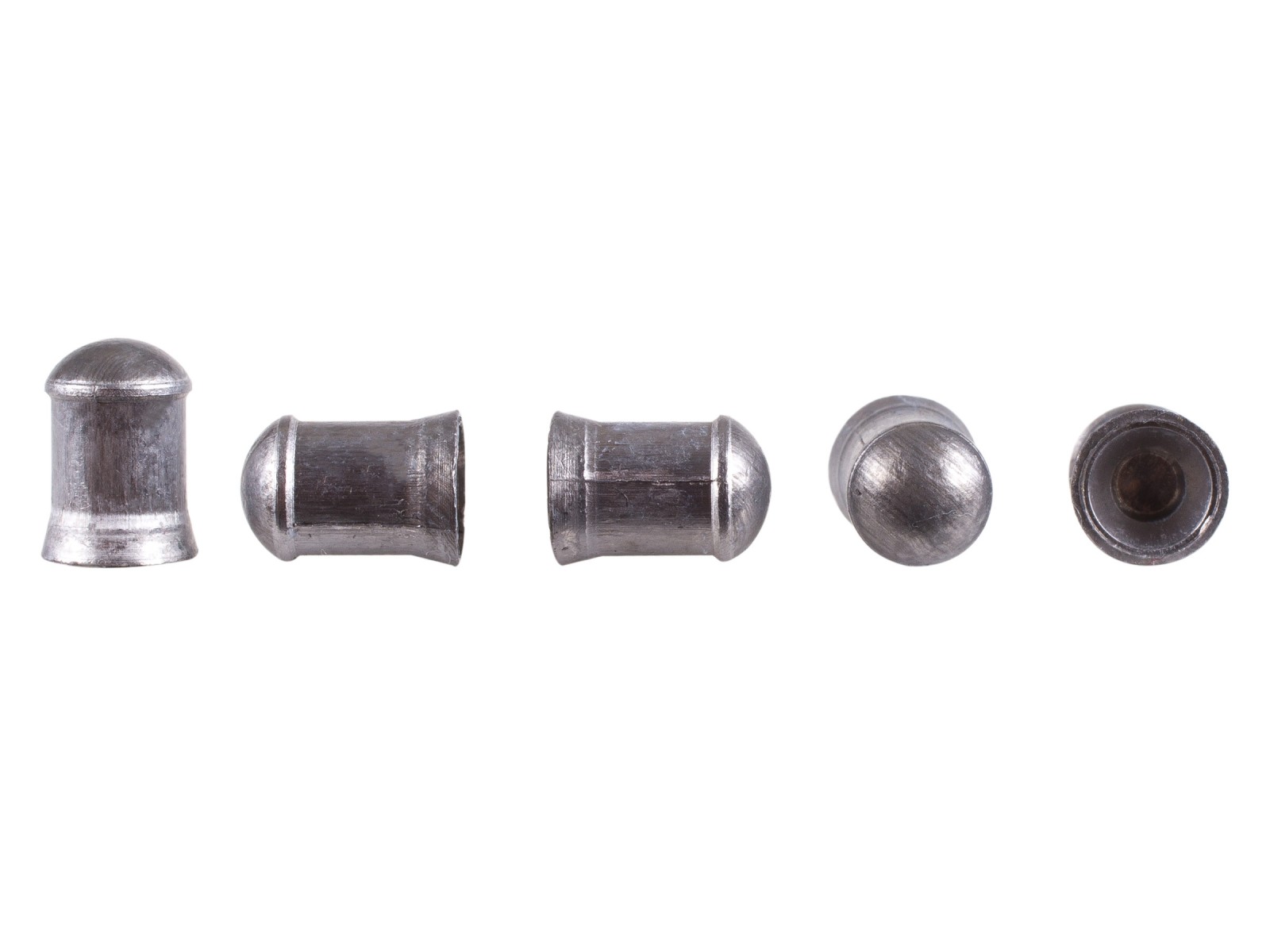

View attachment 414532
Fast twist, if that is indeed the case (and GK reports a different rate), allows heavier slugs to reach a higher stability factor. Diablo pellets are negatively affected by a fast twist rate because RPM declines slower than speed and they can experience dynamic instability, leading to spiraling. This is also affected by the center of mass, pellet length and BC, the latter two of which are higher with heavier projectiles. Higher BC increases the ratio of decline in speed relative to spin, enhancing the likelihood of spiraling. It is most often reported to occur with heavy pellets, such as JSB monsters. GK provides a nice explanation of the conflict between aero and gyro stabilization of pellets:Bernie,
I'm a retired computer professional by trade and a machinist/inventor/mechanic by hobby. My machine shop is pretty complete, but then I'm not married! I think slugs are OK for PCP weapons, but they require drive rings just to avoid excessive resistance. Please also note that 22 rimfire bullets have drive rings for the same reason. Consider the JSB 39.4 gr pellet. They are a great compromise and work well to 100 meters, which is way more than required for a pistol. You may also note that the barrel twist I measured on my GK1 is 1 in 16", which does favor heavier projectiles.
Your info on gyro effect and drag stabilization is correct and your slug dimensions are also correct, but your conclusion is wrong because you are comparing apples and oranges. When I measure the barrel bore with pin gauges, I am measuring minimum barrel diameter. When you slug the barrel and measure slug diameter, you are measuring max barrel diameter or land verses groove. I measured .247 Go and .248 no Go. You measured .253 or .254. Which simply means a .006 diametral difference between lands and grooves. That number I clearly mentioned in my previous posts. Further the JSB 39.4 gr pellet is very happy with a 1 in 18 and 1 in 16 twist in that it does not exhibit spiraling in either my FX Crown or the GK1.Fast twist, if that is indeed the case (and GK reports a different rate), allows heavier slugs to reach a higher stability factor. Diablo pellets are negatively affected by a fast twist rate because RPM declines slower than speed and they can experience dynamic instability, leading to spiraling. This is also affected by the center of mass, pellet length and BC, the latter two of which are higher with heavier projectiles. Higher BC increases the ratio of decline in speed relative to spin, enhancing the likelihood of spiraling. It is most often reported to occur with heavy pellets, such as JSB monsters. GK provides a nice explanation of the conflict between aero and gyro stabilization of pellets:
Regarding the bore size, a previous poster (@Airgun-hobbyist; post 133) slugged the barrel at 0.253. All K1 users report better accuracy and cycling with .253-.254 slugs.
Finally, drive bands on slugs are not necessary for the subsonic speeds of airguns and are certainly not of benefit when shot from a magazine into a barrel, whereupon the bands can get hung up in transition and damaged if the magazine and barrel are not in perfect alignment. As I explained before and I will state again in a PCP weapon you do not have the high driving pressures of a PB weapon. Those higher pressures have no problem overcoming excessive resistance of the bullet. They simply swage the bullet into the forcing cone or rifling in compliance to the barrel size. In a PCP weapon those pressures do not exist and excessive size causes very high barrel resistance and loss of velocity. This is not an issue with a pellet because the rifling graps only the skirt. With a slug though, the rifling grabs a much larger percentage of its length and creates a large resistance. The use of drive bands would reduce this resistance appreciably, just like 22 rimfire bullets do.
They are not really bands, they are cutouts to reduce the contact area with the rifling. The usefulness of this depends on the power level and at high power levels they might make the projectile less accurate by offering less support and making it slightly tilted wrt the bore axis. If or not this actually happens with the K1 or GK1 - someone else with a 100+ meter range would have to pitch in.Finally, drive bands on slugs are not necessary for the subsonic speeds of airguns and are certainly not of benefit when shot from a magazine into a barrel, whereupon the bands can get hung up in transition and damaged if the magazine and barrel are not in perfect alignment.
To be clear, I stated the following:Your info on gyro effect and drag stabilization is correct and your slug dimensions are also correct, but your conclusion is wrong because you are comparing apples and oranges. When I measure the barrel bore with pin gauges, I am measuring minimum barrel diameter. When you slug the barrel and measure slug diameter, you are measuring max barrel diameter or land verses groove. I measured .247 Go and .248 no Go. You measured .253 or .254. Which simply means a .006 diametral difference between lands and grooves. That number I clearly mentioned in my previous posts. Further the JSB 39.4 gr pellet is very happy with a 1 in 18 and 1 in 16 twist in that it does not exhibit spiraling in either my FX Crown or the GK1.
Swaging (/ˈsweɪdʒɪŋ/) is a forging process in which the dimensions of an item are altered using dies into which the item is forced. Swaging is usually a cold working process, but also may be hot worked. A selection of blacksmithing swages. Wikipedia@Steve-I
Swaging is the process of increasing the diameter of something by compressing it longitudinally. The opposite of swaging is drawing (e.g. through a die). The pressures/accelerations/forces in a PB do swage the projectiles, which means that a projectile which might be slightly smaller than the grooves diameter has its OD increased to the grooves diameter, creating a better seal or contact. The pressures in a PB can do this to a solid slug, but the pressures in an air gun can only do this to a skirt-shaped back of a projectile. In practice, sealing is not that important beyond a certain point. Contact with the grooves is important-ish for accuracy.
Otherwise I'm gravitating towards thinking that for target shooting with a .25 GK1, one would only ever need two sets of ammo: Altaros in 6.45mm (the 6.46mm version is too much) and plain .25 JSBs or similar; everything else is pointless.
For practical purposes, the AVS slugs in 254 (and likely others in that size) perform just as well as Altaros in the K1. This hammerless (Huben) platform just doesn’t have the accuracy of a conventional high-end slug shooter , which is where the Altaros can shine. At best, the K1 rifle can shoot 2-3moa with Altaros. Anything better that you might see is a function of cherry picking.@Steve-I
Swaging is the process of increasing the diameter of something by compressing it longitudinally. The opposite of swaging is drawing (e.g. through a die). The pressures/accelerations/forces in a PB do swage the projectiles, which means that a projectile which might be slightly smaller than the grooves diameter has its OD increased to the grooves diameter, creating a better seal or contact. The pressures in a PB can do this to a solid slug, but the pressures in an air gun can only do this to a skirt-shaped back of a projectile. In practice, sealing is not that important beyond a certain point. Contact with the grooves is important-ish for accuracy.
Otherwise I'm gravitating towards thinking that for target shooting with a .25 GK1, one would only ever need two sets of ammo: Altaros in 6.45mm (the 6.46mm version is too much) and plain .25 JSBs or similar; everything else is pointless.
