Something I wanted to add... I have a DONNYFL Sumo and a Shogun and my neighbor is Neil Clague who has made me a few LDC's. My boys and I did some testing one day with all of the moderators I own(6) and although displacement, baffles and internal components are all important, we had a hard time finding any reason why some LDC's worked well on certain guns and not on others. We tested all of the LDC's on 5 different PCP's, 3 .25cal and 2 .22 cal. with very mixed results. My point being, there is a lot more to it than displacement, chambers, baffles, vent holes, density of materials and internal materials. Some single chamber LDC's worked great on some guns, while some multiple chamber designs worked better on others. The guns design, caliber, power, etc. has a lot to do with it too. It really is a complex subject. I can't explain it but I definitely heard it. I just had STO make me one of his tricked out LDC's that should be here next week. He tested them thoroughly and although they are short and light, they are supposed to be very quiet and accurate because of the way the internals reroute the gasses like a silencer for a powder burner. I can't wait to try it out! With all of that being said, Donny, Neil and STO are all great guys and make great products, the products just perform differently on various models of guns. Just something else to think about.

Stoti

Upvote 0
Indeed... this is a complex study! And internal volume is quite clearly NOT the ultimate determinant of a moderator's ability to quiet report.

I just did a SPL test of the same three moderators on my Red Wolf .22HP, at LOW power, with 17.9 gr pellets, and got these results:

Shogun (16.1 ci volume) 91 db

Huggett (7.9 ci volume) 93 db

Tatsu (8.6 ci volume) 96 db

So, considering the results that I got with my Bantam Sniper .22, it would appear that the relative performance of different moderators is largely dependent on the individual rifle that is being used. Moderators have varying relative performance, depending on what rifle they are tested on!

I tore open the Shogun and Huggett moderators and found that the Huggett had three distinct disc-separated chambers, while the Shogun had five chambers, but in an all-in-one design.

And, the first of the Huggett's three chambers is ventilated to the outside via screened grills. So, it would appear that the ventilation of the first chamber (and the disc-separated chambers in the Huggett), likely have a lot to do with moderating the report - more so than just the total internal volume of the moderator.







Upvote 0
The Huggett has a complex, 3-chamber design, with the first chamber ventilated to the outside of the moderator:



The Shogun is a much simpler design, with five chambers and no ventilation holes on the body of the moderator.



Given that the Huggett is nearly as quiet as the Shogun (93 db on my Red Wolf .22HP vs. 91 db), or even quieter than the Shogun (89 db vs. 91 db on my Bantam Sniper .22), but with only half the internal volume... it is clear that the design of the Huggett plays a very significant role in its ability to moderate the report of an air rifle.

Upvote 0
Donny's are not a single chamber design. The internals, when in place create distinct chambers, just a different design. When I'm talking about a single chamber design, I'm talking about a large empty void. What really surprised me was that on my Crown the silencer that worked best was one of Neil's that is nothing more than a large, single chamber with some(very little) material around the interior wall. It worked better than his multiple chamber design or Donny's multiple chamber design by far. That same design performed poorly on all of our other guns and the multiple chamber designs performed great. Can't explain it. The LDC that STO just made me is by far the most complex internal design I've seen in an air gun silencer. He did some very high tech, in depth testing that I didn't even understand. The result... small, light, quiet and accurate. Oh, it's cool looking too! Could be a game changer.

Stoti

Upvote 0
Donny's are not a single chamber design. The internals, when in place create distinct chambers, just a different design. When I'm talking about a single chamber design, I'm talking about a large empty void. What really surprised me was that on my Crown the silencer that worked best was one of Neil's that is nothing more than a large, single chamber with some(very little) material around the interior wall. It worked better than his multiple chamber design or Donny's multiple chamber design by far. That same design performed poorly on all of our other guns and the multiple chamber designs performed great. Can't explain it. The LDC that STO just made me is by far the most complex internal design I've seen in an air gun silencer. He did some very high tech, in depth testing that I didn't even understand. The result... small, light, quiet and accurate. Oh, it's cool looking too! Could be a game changer.

Stoti
Click to expand...

Again, confirms that this is quite a complex subject and not easily simplified.

I'd like to know more about the STO moderator? Can you link to a site that shows it?

Upvote 0
I would agree with that 100% The internals of the Hugget look similar to the Hatsan QE LDC and it's absolutely worthless. The differences are the discs and the vent holes. I'm guessing the vents do play a major role in it's effectiveness.

I might have to drill some vent holes in one of my silencers and see what happens. Why not?

Stoti

Upvote 0
I would agree with that 100% The internals of the Hugget look similar to the Hatsan QE LDC and it's absolutely worthless. The differences are the discs and the vent holes. I'm guessing the vents do play a major role in it's effectiveness.

Stoti
Click to expand...

Yep! It is amazing how comparable the Huggett is to the Shogun, but at only 1/2 the internal volume. The vents (and, possibly, the discs as well) must be the mojo!

AND, the first chamber in the Huggett has a screen, then felt, then another screen surrounding the chamber. (I wasn't able/willing to get all of the 1st chamber lining out of the body of my Huggett for the photo.)

I am clearly a fan of the Huggett at this point, but the STO that you mentioned has piqued my interest!

Upvote 0
Here you go. Had to copy and paste. This is his most recent post.






  • So measurement-wise, I went with the suppressor industry standard which is 1.6 meters off the ground, and muzzle 1 meter from the mic. This is done with two tripods, one holding the pickups the other justifying the muzzle of the gun. This assures things are the same every time. Consistency is close to godliness, and if your data is a mess good luck getting anything useful from it. The gun is my FX Crown .22 shooting Crossman Premier HPs, and while I didn't chrono the Crossmans it spits JSB 18.13s at 874fps with +/-3FPS on average. Each configuration was fired 5 times. Six configurations total were tested and they are as follows:

    Shroud Collapsed
    Shroud Extended
    Copper Gas Diode (copper references color, not material)
    Silver Gas Diode
    Clipped Conical Flow-Through
    Foam



    Here is what a typical sound data sampling looks like:
    1541448464_4751026475be0a3100b5063.59267595_Shroud Extended.png

    Aside from having exceptional sampling resolution, 250MSa/s that is to say 250000000 samples per second making it able to sample very very brief sound occurrence, it also can provide other interpreted data such as the most prevalent frequency, the overall length and shape of the event, etc. It is very handy, particularly when developing moderators rather than just comparing them. As you can see each sample has a LOT of data in it, multiple channels, the full spicy chalupa. The result is that, rather than a typical sound meter which is sampling one event one time, each value I present below represents multiple simultaneous samplings of each event (a shot), that event is then repeated (five times per configuration, five shots), and it all is recorded. The result is that there is an immense amount of data generated here, and then has to be post-processed, which is all ultimately distilled down into a single average of the multiple samplings of multiple events. Because my calibration is well out of date, rather than then converting to decibels which would be wrong, I just left them as unit-less numbers. This is perfectly fine for the purposes of this comparison, since I doubt anyone else is running a Bruel & Kjaer to produce assuredly accurate numbers anyway. I realize it is all a bit complicated, but hopefully the single value makes it easy and simple. Side note, these aren't powder burners, so there is no first round pop, and because regs are imperfect on the first shot after storage the gun was cycled to “warm it up” prior to testing.

    Less handy were the two el-cheapo meters I had running. I've seen a lot of people taking measurements on airguns and posting it on youtube with these inexpensive meters. When last I did this it was with firearms, and years ago, so I thought maybe just MAYBE newer meters had the resolution and range to measure airguns. Several reviews on the new meter I picked up even said that it "worked great on airguns," one even claimed it compared favorably to an "expensive German meter" on airguns. While I can't speak for every meter out there, having done the testing I can now confidently say that this is not the case on this meter at least, and that while the meter will pop SOME number in response to every shot, and they're remarkably consistent, whatever it is reading isn't the muzzle report. How do I know this? Because every single configuration was within margin of error of each other. That meter claimed every configuration was about 97db average. EVERY. SINGLE. ONE. I don't know what it was reading, but it sure wasn't the muzzle. *shrug*

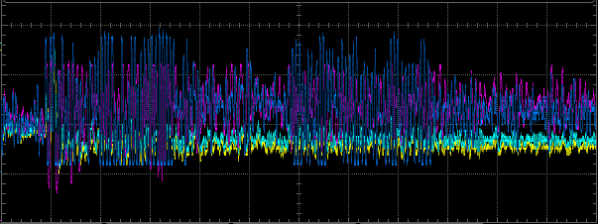

    1541448482_5976873255be0a3221d3185.78665363_Shroud Retracted.png


    Shroud Collapsed – 728
    Pretty much what you'd expect here, or rather if you own a Crown, exactly what you've come to know and love. That predictable loud bark. This is easily the loudest test in this series. And it is quite messy, again as you'd expect, because there really is no damping or anything of the sort. Presumably that pressure wave can ricochet up and down the shroud as many times as it wants puffing out the muzzle bit by bit. I'm guessing, just guessing, that the brake and shroud cap act as one in the collapsed position, so there really is nothing here just a reflective tube at both ends. It is possible that by modifying the action end of the shroud stop some significant gains could be seen here, so it isn't just a big sounding tube. Dampers like this could be designed for dual effect, to both eat barrel vibration (improve accuracy) and sound. This might be worth exploring, along with perhaps venting the rear of the Crown shroud…… or alternately replacing the stock shroud entirely with a lighter weight carbon fiber one that is an integral part of the entire sound dampening and accurizing strategy.

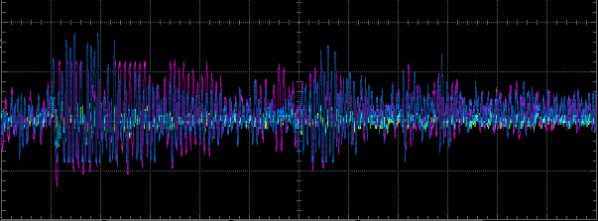

    1541448493_13081927155be0a32d1886b9.90343687_Shroud Extended.png


    Shroud Extended – 312
    Again what you'd expect. It is considerably quieter than the shroud collapsed both because of greater muzzle-forward volume, and it tapers more rapidly because the brake now can act as a choke point between the two chambers as the pressure wave bounces forward and backward. Notice the secondary spike in there. A little napkin math correlates this with the speed of sound traveling the length of the shroud. Cool stuff huh? It is possible, given a longer sampling time, we'd have seen more descending spikes tapering off.

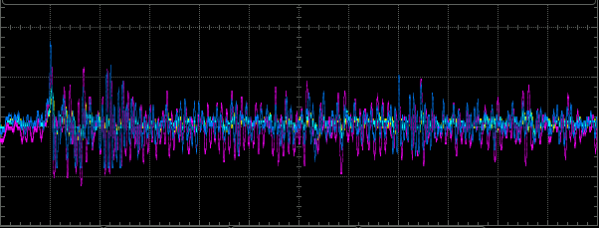

    1541448505_15058730525be0a339578ea5.94365287_Clipped Conical.png


    Clipped Conical Flow-Through – 346
    So this was kind of a flow-through outer shell take on the suppressor industry standard of the clipped conical baffle. The clipping diverts flow laterally, making it quieter than your typical symmetrical conical baffle, however it comes with POI shift as I discovered….. in fact over 4 MILs of “repeatable” POI shift. There were two problems with this though, the first that is in pellets this kind of POI shift is destabilizing so it'll cost you some accuracy (unacceptable), and second the crown's shroud is free rotating so any repeatability is also thrown out the window. Hence I didn't do a second pure clipped conical design, because whats the point? Speaking of whats the point, after looking at the numbers you'd have to ask whats the point of this design? It is quieter than the shroud extended, but not by a lot. Given that it is physically the longest design tested by a few milimeters, and has the most baffles, I think we can pass on this conical baffle design for further exploration. It is easy to machine though, so I can see why it is popular.

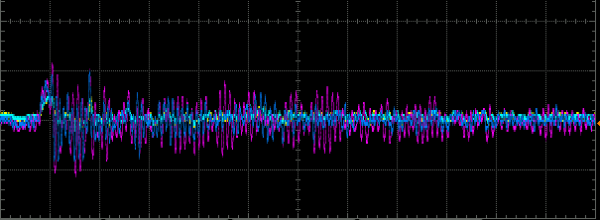

    Foam Fill – 204

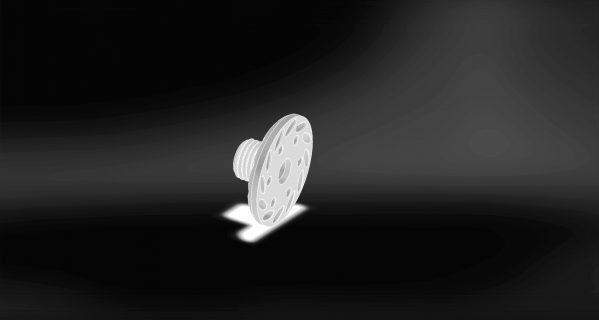

    Now things are getting interesting. This is my attempt at good performance analogue for the all-too-common foam/felt hair curlers and washer baffles design. It is a relatively thin layer of foam constrained toward the outer surface of the suppressor and exposes maximum surface area, more than the Weilrauch's design. The muzzle end uses the same cap design as all the others, and the threaded rear uses the same flow-through design. To the ear, both my friend and I agreed this design could be the quietest of all six tests. It is hard to tell with these things, so we both were eager to see the numbers, but we both bet that this would win…. somewhat to my chagrin. Looking at the pressure wave, it is very obvious how it peaks very strongly and cleanly initially, and tapers off very quickly. This could be thought of as the visual equivalent of a clean sound moderator, pop and done. We'll get back to this, it becomes important later.

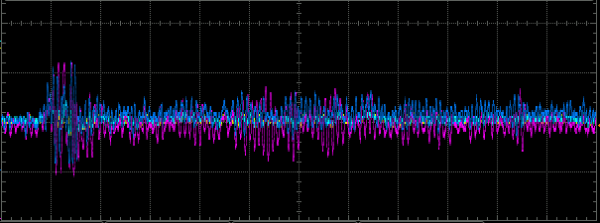

    1541448537_9131102545be0a35944cec1.67739067_Cu gas diode.png


    Gas Diodes
    Cu – 192
    Ag – 194
    I combined these, as they're identical designs in essentially identical materials. (just differing color) In essence, they should be the same, and testing bore that out. It is always nice though when something pans out, in this case repeatable manufacturing being repeatable and performing consistently. By now you've seen that the numbers are lower, so the moderator is in fact quieter! All my crazy scheming worked. Why then did we both think the foamie was quieter? Remember when I said the human ear is really bad at judging sound pressure level? Well that certainly has something to do with it, your ear just can't tell what is louder than what very effectively, in much the same way your eye can't easily judge how heavy a cow is but a scale can do it accurately all day every day. There is another element I think is at play here though. The foamie had a higher initial spike, with no complex architecture to retard it, however once that passed through it tapered rapidly. The gas diode conversely shows that it is doing EXACTLY what it is supposed to be doing: extending the length of the event by holding that pressure and releasing it slowly. This means it produces sound for longer, which is a good way to fool an ear into thinking something is louder. A hammer hitting a nail doesn't sound that loud, but make something that loud continuous and you'll find it deafening. While that is an extreme example, it illustrates the point quite nicely how something which is quieter but lasts a little longer can sound about the same or even slightly louder than something which is technically louder than it is.

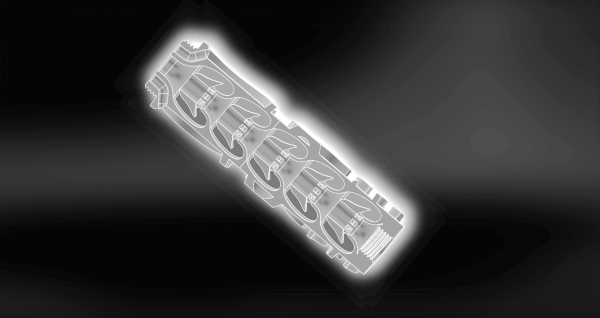

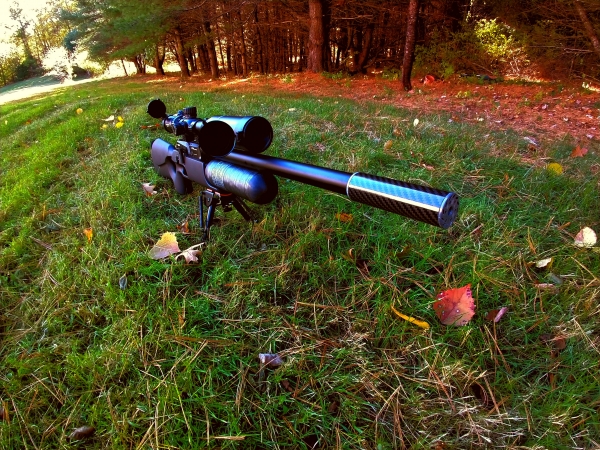

    So there it is, in its full spicy glory. As with everything in life and science, the answer only raises more questions, more avenues of inquiry. But for now I've accomplished what I set out to do, and to my pleasure and surprise the countless hours of designing and testing and revising all built on a harebrained idea borrowed from the eccentric genius Nikola Tesla from a century and a half ago.



  • Author




‹ 1 2



<form action="Paste from WordPaste as plain textKeyboard shortcut Ctrl+Shift+VUndoKeyboard shortcut Ctrl+ZRedoKeyboard shortcut Ctrl+YSelect AllSpell Check As You Type▼BoldKeyboard shortcut Ctrl+BItalicKeyboard shortcut Ctrl+IUnderlineKeyboard shortcut Ctrl+UStrikethroughCopy FormattingKeyboard shortcut Ctrl+Shift+CRemove Format





Upvote 0
Different guns put out different sound power-spectrums.

Different moderators have different attenuation @ frequency curves.

Therefore, it is no surprise that moderators do different things for different rifles.



Why not run an FFT on the captured sounds and see what frequencies are present in the discharge and what frequencies are attenuated by how much as you swap moderators.

You won't see anything in the time domain.

Upvote 0
Different guns put out different sound power-spectrums.

Different moderators have different attenuation @ frequency curves.

Therefore, it is no surprise that moderators do different things for different rifles.



Why not run an FFT on the captured sounds and see what frequencies are present in the discharge and what frequencies are attenuated by how much as you swap moderators.

You won't see anything in the time domain.
Click to expand...

That would be interesting to see - the different frequency response curves. And I wonder how minor changes in frequency might show up as different SPLs.

Upvote 0
Hi DHart, thanks for taking the time to dig into these cans and doing the write up, VERY interesting read.

I realize everyone on the internet is an expert, but I have a nitpick or rather a warning: be extremely cautious around dB numbers from cheap meters and phone apps. I've watched people get in trouble over this numerous times in the firearms industry. They tend to share two problems. The first is simple calibration. While many of the meters you buy are somewhat calibrated, your phone is most certainly not. The numbers can't be compared to anything directly, including to those off another identical phone. There are a large variety of different reasons for this, starting with the fact that the phone mic isn't calibrated in the first place and ending with it's measurements will vary with how much pocket lint you've gotten in there. :p The second one is potentially the bigger issue: resolution. Your phone, and the mic itself, both don't have the kind of resolution necessary to reliably sample what is essentially an air driven explosion. As I learned from testing a high surface area moderator (the analogue to foam/felt/cloth/etc) they produce a high initial spike, but settle out more quickly. This, both to lower resolution devices such as a phone and to our ear, will sound quieter even when it is in fact louder. Meanwhile a design which blunts the peak sound impulse more effectively, but produces sound for microseconds longer will be "measured" by a phone and our ear as louder.

So yeah, just something to keep in mind. My intention really isn't to take a poop on the work you've done, I love science and testing and I really appreciate the time you've put into this. Goodness knows I learned something about these cans and how they're designed and perceived, just experience tells me to be cautious in regards to both your subjective ear "measurement" as well as what phones and cheap meters spit out. They lie. ;)



WOW! Thank You for posting! VERY INTERESTING read!

I to would like more info on the STO design.

Mark
Click to expand...

I've got a thread going on it over here: https://www.airgunnation.com/topic/fx-crown-bespoke-moderator-tesla-gas-diode/page/2/#post-383443
Whatever hasn't already been covered, ask away I guess. :p At this point, I've gotten enough interest in it I'm going to keep tweaking it. I can definitely improve its efficiency.
