are there any options to the HW 90 pump and gauge . i really have a fascination with the tunability of the HW 90 . Would a hand pump with the correct fitting work ?
Thank you Stan in KY
Thank you Stan in KY
HW 90
- Thread starter beerthief
- Start date
A motorcycle shock pump . I thougt you asked this a few months back ?
Also. Look at the UK stuff on that punp set up they use.
Looks like the kits are now sold out...
www.bestfittings.co.uk
Was a cheaper ready to go alternative on a slimjim pump kit
Also. Look at the UK stuff on that punp set up they use.
Looks like the kits are now sold out...

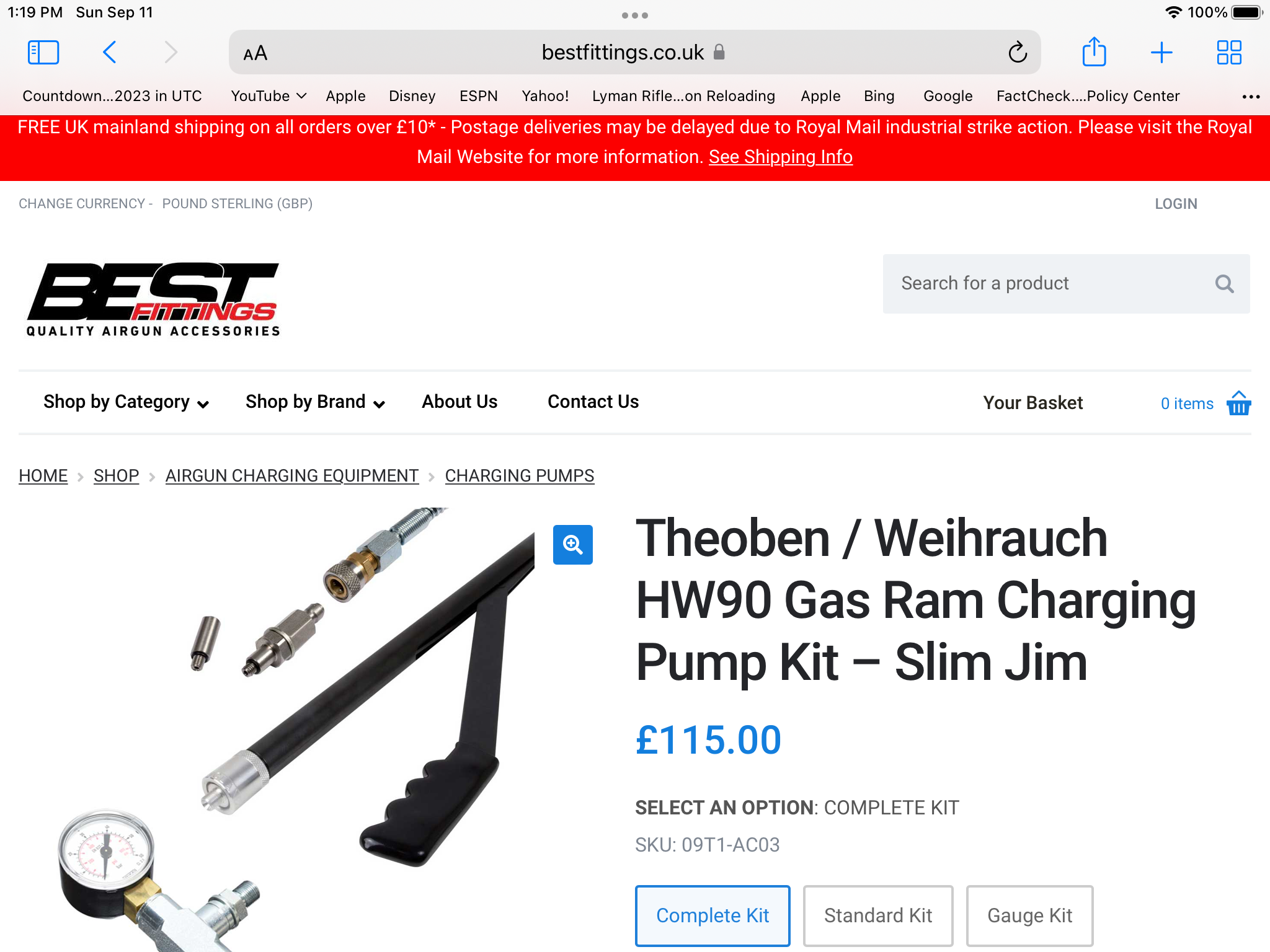

Theoben / Weihrauch HW90 Gas Ram Charging Pump Kit – Slim Jim – Best Fittings
www.bestfittings.co.uk Was a cheaper ready to go alternative on a slimjim pump kit
Upvote 0
No prob. Its good for me cause i guess i drleayed my info on this so im looking and saving again for these times..
Anyway thete were 2 rams . I think a lower pressure and higher .
Im still looking for that example , but does yours have the pressure info on it ?

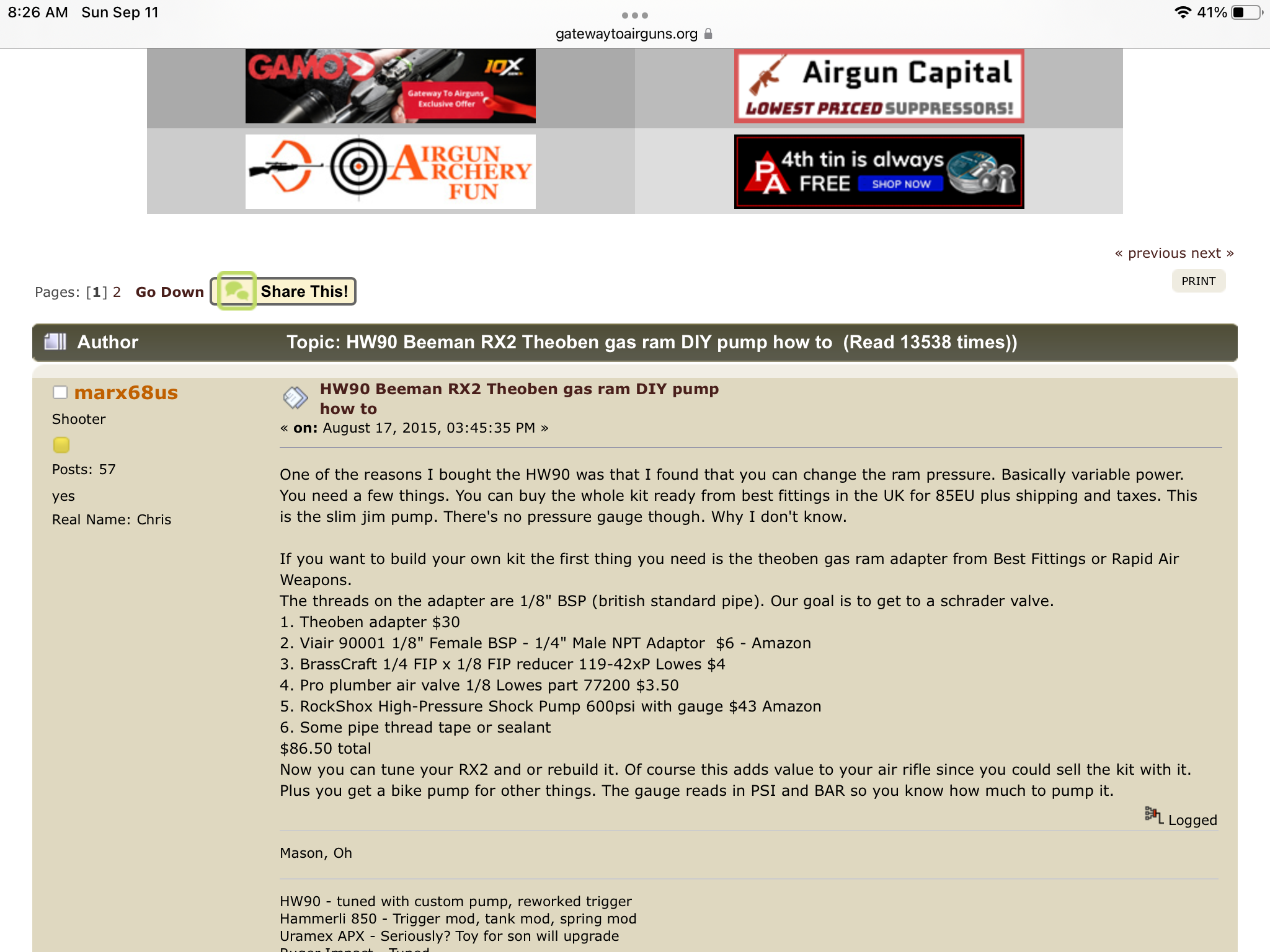

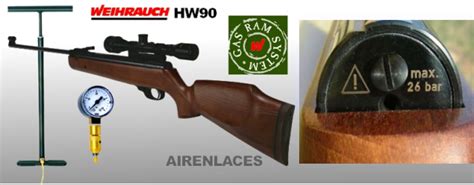

Like showen here
This may help on local hardware
Weihrauch Owners Club-HW90 charging
What all do I need to charge my HW90 on my own. I picked up a Rock Shox 600psi hand pump and a theoben adapter. The theoben adapter does not screw in
www.tapatalk.com Last edited:
Upvote 0
I guess if your pcp pump can squeeze under 30bar in a pump or hold your mouth right it can work . I think guys get a bit easy to use with a pump that not shooting more then you need in to get a closer to fine tune .
https://www.airgunnation.com/threads/hw90-tuning-discoveries.1144871/
I wish i had not lost that ram info .. serms im not getting it back soon or easy..
www.airgunnation.com
https://www.airgunnation.com/threads/hw90-tuning-discoveries.1144871/
I wish i had not lost that ram info .. serms im not getting it back soon or easy..
Tuning - HW90 tuning discoveries
Well, I finally bought a HW90. There have been several posts about low power, hard cocking, weight and general tuning questions. I decided to bite the pellet, buy one, and figure out what’s going on. So I ordered a new .25 from AoA. I also ordered a Weihrauch HW90 pressure gauge and a .22...
www.airgunnation.com Upvote 0
Maybe some good info here but its french them 2 posts for sure with the pictures
www.forum-airguns.com
Où trouver une WEIHRAUCH HW 90?
Bonjour à tous, fraichement réinscrit après avoir repris le tir à la carabine à plomb, j'aimerais renouveler mon matériel qui vieillit un peu. J'ai envie de pra
www.forum-airguns.com Upvote 0
I acquired that stuff 35 years ago. A Theoben pump a gauge from Beeman but I think Mycapt (Ron) suggested a good setup he bought from a bicycle shop. Reasonably.
The gauge used in conjunction with a chronograph can be indicative of seal performance. A good diagnostic test.
The gauge used in conjunction with a chronograph can be indicative of seal performance. A good diagnostic test.
Upvote 0
I translated this with the iPhone and a lot of it was how Mundilar don’t sell the HW90 because of trigger or safety issues. Does the euro version have a different trigger/safety because I have not heard of any issues.Maybe some good info here but its french them 2 posts for sure with the pictures
Où trouver une WEIHRAUCH HW 90?
Bonjour à tous, fraichement réinscrit après avoir repris le tir à la carabine à plomb, j'aimerais renouveler mon matériel qui vieillit un peu. J'ai envie de pra
Upvote 0
Just to add one more thing on the shock pump is be sure its at least a 500 psi (34) one cause a 300psi (20+/-) dont make the rams max bar pressure of 28 ( if needed)
Upvote 0
Lawyers and retarded people have ruined everything. Mundilar probably caved to the possibility of stupid people and greedy lawyers. There's only one trigger on that gun and it's fine. The range of adjustments isn't as wide as a Rekord. It's an excellent Gun and trigger. Usually overcharged from the factory. That gun is best in 22 maybe 20. That's what I had. It's the Weihrauch flagship breakbarrel for a good reason.
Whatever you do, don't get it in 177
Upvote 0
It's frigging huge and heavy. That's my only problem with that rifle. Other than that it's an excellent rifle
Upvote 0
They should have made it HW95 size. It's a sporting rifle. Who wants a 9 lb sporter? I say the same thing to Air Arms. ...................Anchors.
My 2 cents ain't worth a dime.
My 2 cents ain't worth a dime.
Upvote 0
HW95 wouldn't last with the HW90 standard performance, let alone its potential. That's why Weihrauch did their homework and did the 90. My HW95 didn't even last with it's own factory innards. The gun has just too little material, especially at the front stock.
Lest you Karl talk about a HW90/5 that was detuned / scaled down to 15 fpe, but then it wouldn't be a HW90 in any sense.
As to who wants a 9 lb sporter? Me and myriad others. Most quality sporters are in fact in the 9 - 10 lb. range: HW77, HW90, HW97, LGV, LGU, D48/52, D54/56, Theobens, all of AA's springers etc. They simply shoot better and last better.
Lest you Karl talk about a HW90/5 that was detuned / scaled down to 15 fpe, but then it wouldn't be a HW90 in any sense.
As to who wants a 9 lb sporter? Me and myriad others. Most quality sporters are in fact in the 9 - 10 lb. range: HW77, HW90, HW97, LGV, LGU, D48/52, D54/56, Theobens, all of AA's springers etc. They simply shoot better and last better.
Upvote 0
I’m running mine at 19 bar it’s loving 2 pellets 18gr Jsb and a 16 gr HN 22 cal. I will say it’s NOT my shoot every night rifle. That goes to HW 50. Or HW95. I will be getting it out in August. Getting it ready for the September squirrel smack down
Upvote 0
I have a pump sitting here doing nothing. It’s the thin tube ones.. no gauge. I used a crony and feel.. disliked the 90 at anything over 16 ft lbs and really did not like the gun.. sold it ..
Upvote 0
I consider a sporter something you would want to carry up into the woods. Hunting or just plinking. Those target guns aren't very good for that. IMO. Most guys only shoot them from a bench. Hardly even shoot off hand. I could carry one if I wanted to believe me. I'm 63 but in very good shape. Run 2 miles twice a week, weightlift 2 or 3 times and have a physical job as well. I never saw a squirrel or deer hunter on the mountain or even in a stand with a bull barrel rifle.
Have you noticed how many guys would mess their pants in public for a chance to buy a Fenman or Evo? Even in a beech stock!
You must be a beast! I don't know anybody that has wrecked their HW95 for it being under engineered. Might be. The HW50 is considered a little so, but if I wear mine out I'll consider it money well spent and definitely repair it or buy another.
When I bought my Sirocco 35 years ago I also handled an Eliminator and thought Lordy that thing is a boat anchor. I don't want one. They're very pretty but I just don't favor the big girls.
Upvote 0
D48/52's have been carried up into the woods since they first appeared in January 1987 - they are working horse hunting guns through and through, not target guns.
The D54, the heaviest of the heavy bunch, and more of a target gun than the 48/52, has been and is used by many hunters world wide who indeed head for the hills with theirs. Many of the D54's Medina tunes today go for hunters.
The HW90 is decidedly not a target gun - it's like the purest hunting springer there is, on a point-by-point comparison. The HW77 took the FT circuit by storm, but thousands of 77's saw action in the bush, too, and still do.
The Theoben magnums were made for one thing only: hunting. You'd be laughed off the shooting line on a target range with one.
For the record, off the quick list I provided, I have a D52, a D54, and an LGV. I'd like to get an early HW77K next.
90 % of the time I shoot standing offhand, and carry each of these guns into the woods and back, almost year round (midwinter is kinda slow in this department). All of my heavy spring guns have excellent balance and handling, which makes them feel much lighter than the stated heft. They are easy to get around with, believe or not.
I used to think heavy airguns are just not that usable in the real world. Buying quality German springers after the failed HW95, and seeing how they performed, I was cured of that notion. Believe me, I know how it feels to be a lightweight gun proponent, and I also know it's not the end-all, be-all.
The D54, the heaviest of the heavy bunch, and more of a target gun than the 48/52, has been and is used by many hunters world wide who indeed head for the hills with theirs. Many of the D54's Medina tunes today go for hunters.
The HW90 is decidedly not a target gun - it's like the purest hunting springer there is, on a point-by-point comparison. The HW77 took the FT circuit by storm, but thousands of 77's saw action in the bush, too, and still do.
The Theoben magnums were made for one thing only: hunting. You'd be laughed off the shooting line on a target range with one.
For the record, off the quick list I provided, I have a D52, a D54, and an LGV. I'd like to get an early HW77K next.
90 % of the time I shoot standing offhand, and carry each of these guns into the woods and back, almost year round (midwinter is kinda slow in this department). All of my heavy spring guns have excellent balance and handling, which makes them feel much lighter than the stated heft. They are easy to get around with, believe or not.
I used to think heavy airguns are just not that usable in the real world. Buying quality German springers after the failed HW95, and seeing how they performed, I was cured of that notion. Believe me, I know how it feels to be a lightweight gun proponent, and I also know it's not the end-all, be-all.
Upvote 0
There doesn't seem to be many places to buy the HW90 gauge in the USA, Airguns of Arizona is the only place I've seen so far and it's out of stock. I'm not certain on the fittings.
