HW/Weihrauch Hw95 .20 piston seal replacement

[camd]

Picked up a used 20 cal 95 yesterday in very good condition and came with a few thousand pellets most ftt and a tin of barracudas.
I headed straight to the range and mounted an old nikko stirling I had on another gun and sited in. Barracudas, ftts and jsb all grouped well.
Chronograph showed 7fps variation over 10 shots (699-692) 6 shots were 698.
I noticed it was a little gritty to cock accompanied with a honking noise. Firing cycle very twangy but no loss of sit picture.
Fully stripped the gun degreased an relubed and cocking feels like a completely different gun.

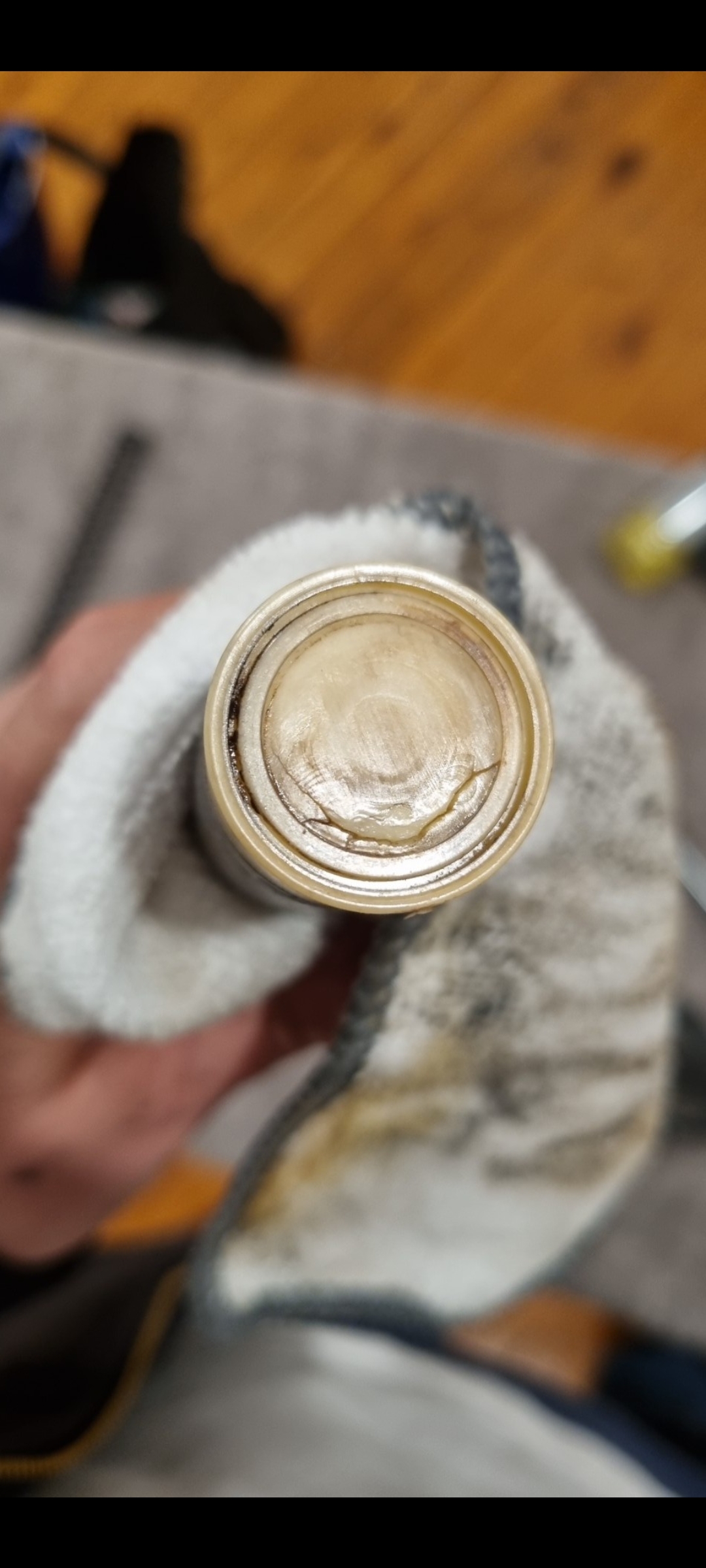

The seal looks worse for wear but is giving really consistent results.

Do I change the seal? If so should I go the red concave seal or green eco seal from custom air seals?

Cheers



[maxtrouble]

I suggest replacing the seal. Vortek seals are highly rated.



[camd]

I suggest replacing the seal. Vortek seals are highly rated.

The vortek seal in my hw50 after a tin of pellets is showing great results. I'm leaning towards the Aussie seals because I'm in aus, quicker and cheaper.



[Hateful McNasty]

Or arh , but may require fitting of his seal.

Ya, looks like a typical hw factory seal

Notice the transfer port mark that been stamping into that seal ..

Probly from slamming . Could be caused by poor seal, breech seal or I'll fitting / loose or too lite of pellets or dry fireing a lot ..

One of my old factory seals ..

Piston Seals

Maccari Custom Airgun Shop. Airguns and related accessories. Springs,tune kits,gunstocks,Beeman, Rws, Webley and many others. Sales and service

www.airrifleheadquarters.com



[jccams]

I suggest replacing the seal. Vortek seals are highly rated.

I second this, no sizing required.



[Sqwirl57]

Another vote for a Vortek seal



[A.G.R]

Vortek fit and are the best .. Aussie seals are bigger and softer creating drag.

ftt should net 14 to 15 ft lbs.



[bdzjlz]

Picked up a used 20 cal 95 yesterday in very good condition and came with a few thousand pellets most ftt and a tin of barracudas.
I headed straight to the range and mounted an old nikko stirling I had on another gun and sited in. Barracudas, ftts and jsb all grouped well.
Chronograph showed 7fps variation over 10 shots (699-692) 6 shots were 698.
I noticed it was a little gritty to cock accompanied with a honking noise. Firing cycle very twangy but no loss of sit picture.
Fully stripped the gun degreased an relubed and cocking feels like a completely different gun.
The seal looks worse for wear but is giving really consistent results.

Do I change the seal? If so should I go the red concave seal or green eco seal from custom air seals?

CheersView attachment 485316

Vortek vac seal all of the way



[camd]

Vortek Shipping at $72 aud....hard to justify



[Hateful McNasty]

Never used vortek so can't say good or bad on one .. .lol.



[Hateful McNasty]

Vortek Shipping at $72 aud....hard to justify

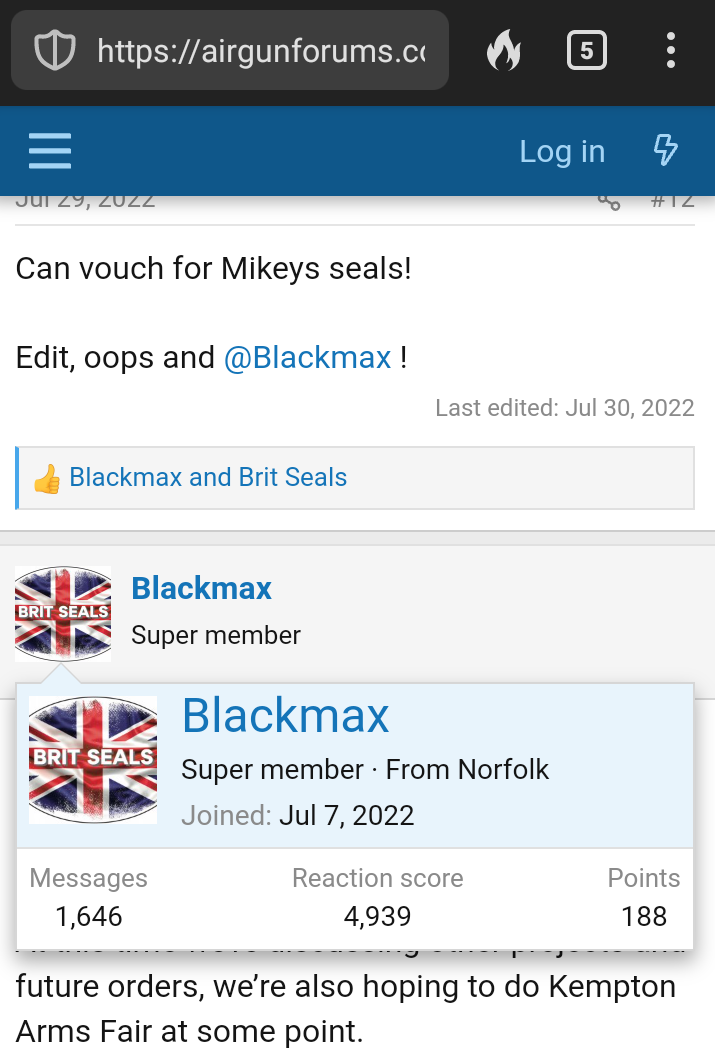

Where's nsw at .. like new south Wales? If so try to get with this guy off the UK forums


I think he's still around but guys there also say vortex is there choice alot ..

Or just drop another hw factory deal in cheap and use up the spring you got then just do a good time with all fresh new ..

( Oops.. NSW is Australia not uk ..sorry ,,)



[maxtrouble]

Vortek Shipping at $72 aud....hard to justify

I live close to Vortek HQ. The seals cost $17 USD. I am placing an order this week as a matter of fact.

HW50/97/95 R-series Piston Seal

Vortek precision machined seal for Weihrauch/Beeman HW50, 57, 97,95,97,98, Marksman 55 & 70 CNC precision machined High-Temp Molybdenum Disulfide blend polyurethane.Permanently Lubricated: Manufactured from a high-temp Molybdenum Disulfide, impregnated Urethane cast bar material. Sized and...

vortekproducts.com

Rate quote to Australia is about $40.

Want me to send you one? PM me.



[Hateful McNasty]

I live close to Vortek HQ. The seals cost $17 USD. I am placing an order this week as a matter of fact.

HW50/97/95 R-series Piston Seal

Vortek precision machined seal for Weihrauch/Beeman HW50, 57, 97,95,97,98, Marksman 55 & 70 CNC precision machined High-Temp Molybdenum Disulfide blend polyurethane.Permanently Lubricated: Manufactured from a high-temp Molybdenum Disulfide, impregnated Urethane cast bar material. Sized and...

vortekproducts.com

Rate quote to Australia is about $40.

Want me to send you one? PM me.

That's still hard to swallow...

How much in a bubble envelope and some stamps ? May take longer but ..
.lol. I can wait a week for a 40$ savings .

For that shipping regardless I think I could suffer with the local cas seals. I really don't see anymore complaining on them then any other ..



[A.G.R]

Easiest option.

WEIHRAUCH 26MM AIR RIFLE PISTON SEAL - CustomAirSeals

WEIHRAUCH 26MM PISTON SEAL FROM HIGH QUALITY MATERIAL ON SPECIALISED CNC EQUIPMENT. THE PURPLE MATERIAL IS MOLYBDENUM DISULFIDE IMPREGNATED AND PERMANENTLY LUBRICATED AND IS RATED TO 1000 BAR

www.customairseals.com

that being said use a bit of pre load on top hat.



[Hateful McNasty]

Easiest option.

WEIHRAUCH 26MM AIR RIFLE PISTON SEAL - CustomAirSeals

WEIHRAUCH 26MM PISTON SEAL FROM HIGH QUALITY MATERIAL ON SPECIALISED CNC EQUIPMENT. THE PURPLE MATERIAL IS MOLYBDENUM DISULFIDE IMPREGNATED AND PERMANENTLY LUBRICATED AND IS RATED TO 1000 BAR

www.customairseals.com

that being said use a bit of pre load on top hat.

Funny I never noticed that 1000bar rating on a piston seal before ..



[Star7]

The seal needs replacing but given the unreasonable shipping, Britseal or local option for sure!

I just bought a new HW80. After less than 200sh the seal is going, going, GONE!
it ain't the age or the mileage; it's the Weihrauch



[camd]

Easiest option.

WEIHRAUCH 26MM AIR RIFLE PISTON SEAL - CustomAirSeals

WEIHRAUCH 26MM PISTON SEAL FROM HIGH QUALITY MATERIAL ON SPECIALISED CNC EQUIPMENT. THE PURPLE MATERIAL IS MOLYBDENUM DISULFIDE IMPREGNATED AND PERMANENTLY LUBRICATED AND IS RATED TO 1000 BAR

www.customairseals.com

that being said use a bit of pre load on top hat.

I ended up going with the green more traditional CAS seal



[Hateful McNasty]

I ended up going with the green more traditional CAS seal

Looking at your shipping options and all that. I woulda just cut the chase and went local seal .. lot of folks like them cas seals so can't be all that bad vs any other ..lol

Edit ..

Did not think but still got the same issue I guess .. has had the 33mm Gamo piston seal I can't get here so same problem .

What I also thinks funny is cas has usa shopping like amazon and eBay bit don't offer the Gamo seal here . It a only order from home shop Australia.

Go figure and why is that ?



[Sicumj]

When I rebuilt my HW 85 I used the green seals from ARH. I was having trouble with velocity and was advised to try the Vortech seal. I use them exclusively now. No sizing just put them in and let it set awhile. Shoots very hard and consistent. Mine is a 20 cal also.



[camd]

Vortek fit and are the best .. Aussie seals are bigger and softer creating drag.

ftt should net 14 to 15 ft lbs.

Abit 30 fps slower than the original seal
