Kral Information Thread. “Contribute what you know “

eyeball & measuring stick....about 1/2"

and about the spring info, i'm looking for power not shot count.
this gun will be used exclusively for night pesting on my farm (tractor gun)....
i'm curious what his results were with the spring @ 2.5"
power increased ?? because with my stock spring maxed out it does just over 850fps with cpd 14.3gr.
With the right spring you can get those crosmans going in the 950s or so. I had my np03 doing 900 with 18s at one point, shot count was too low for me though.

Port the barrel and valve holes and up the fill pressure a few hundred psi, you'll get there. I'll get you some spring measurements after work.

  • Like
Reactions: gendoc
Haven't broke anything yet! Well, besides the bank account!
Lmao tell me about it! My cheap kral has turned out to be a pricey rig and nothings arrived yet.







Last edited:
i've got a12lb and a 15lb spring coming to try.
at least i can cut off excess lbs as needed, but its trial and error.
i'm just looking for 900fps with 18.1gr jsb........:sneaky:
Lighten the valve spring, port to around .160-.170, heavy hammer spring, start at 3500 psi fill... might get over that 900 with 18s.

i can't see no good, i have close up vision in only 1 eye about 60%
but i can see a deer @ 100yrds perfect
thats why i'm a hunter not a paper shooter
That sucks, I'm on my way there myself I feel. Always had great vision, but the close up stuff like little part numbers are starting to get blurry. Probably time for readers...

Canadashootingsupply.ca has the shorter np01 and np02 barrels in stock if anyone is interested.

Np01 barrels are 10.75"
Np02 barrels are 12.6"

They will still make decent power with the other mods, and you can tuck the barrel in the np03 shroud and add an air stripper and Mrod baffles. Adds no length to the gun, but will lower power a bit.

I did use a 12.6" barrel on my first go at my kral jumbo, and still made 840 fps with JSB 25.39. Just had porting and a heavy spring.

Canadashootingsupply.ca has the shorter np01 and np02 barrels in stock if anyone is interested.

Np01 barrels are 10.75"
Np02 barrels are 12.6"

They will still make decent power with the other mods, and you can tuck the barrel in the np03 shroud and add an air stripper and Mrod baffles. Adds no length to the gun, but will lower power a bit.

I did use a 12.6" barrel on my first go at my kral jumbo, and still made 840 fps with JSB 25.39. Just had porting and a heavy spring.
Wait. That’s a .25 cal you’re talking right. ?

Unless you slinging them .22 redesigns

That sucks, I'm on my way there myself I feel. Always had great vision, but the close up stuff like little part numbers are starting to get blurry. Probably time for readers...
i'm just describing the only working eye i have.....the other is zero efficient.
i have had to learn how to shoot lefty, it seems i am better that way :sneaky:

  • Like
Reactions: Dr. Kralenstein

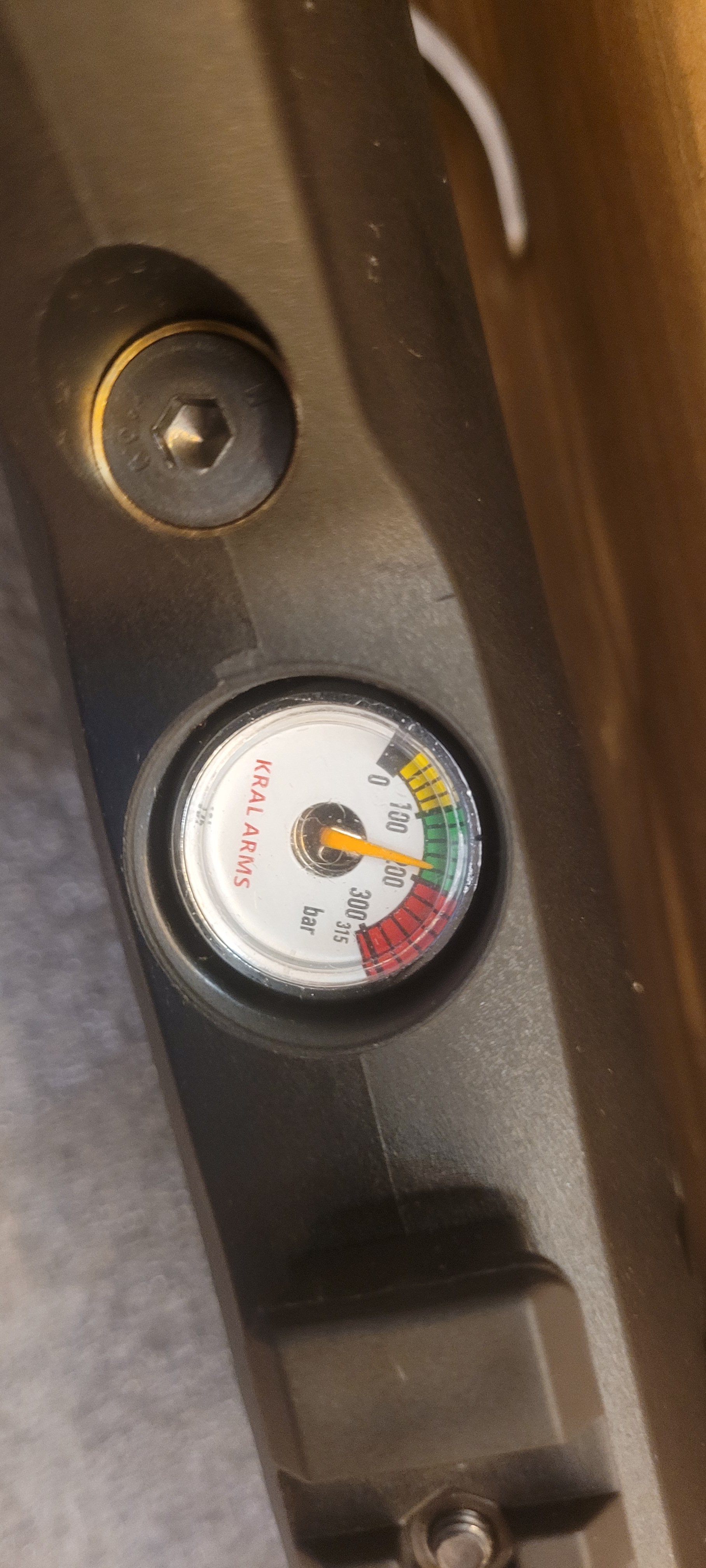

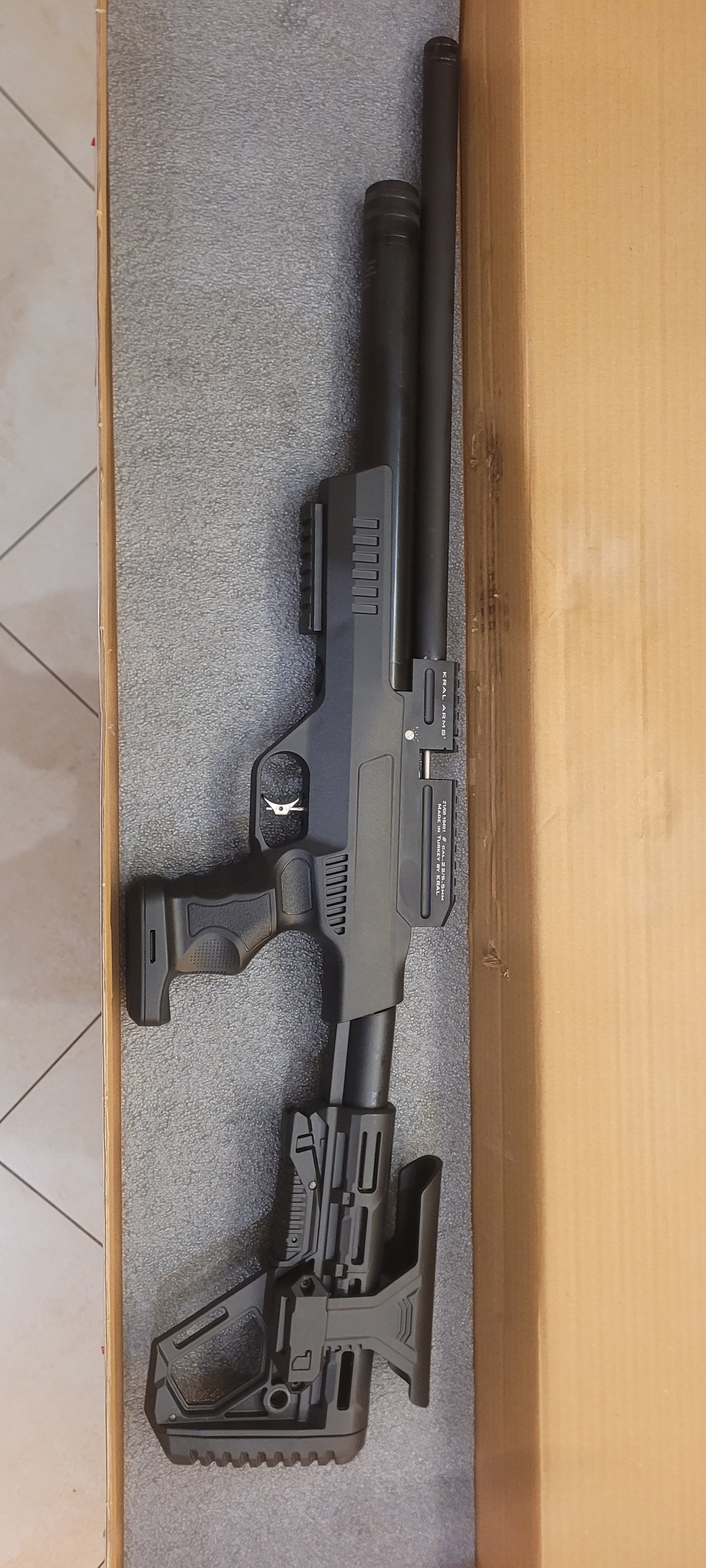

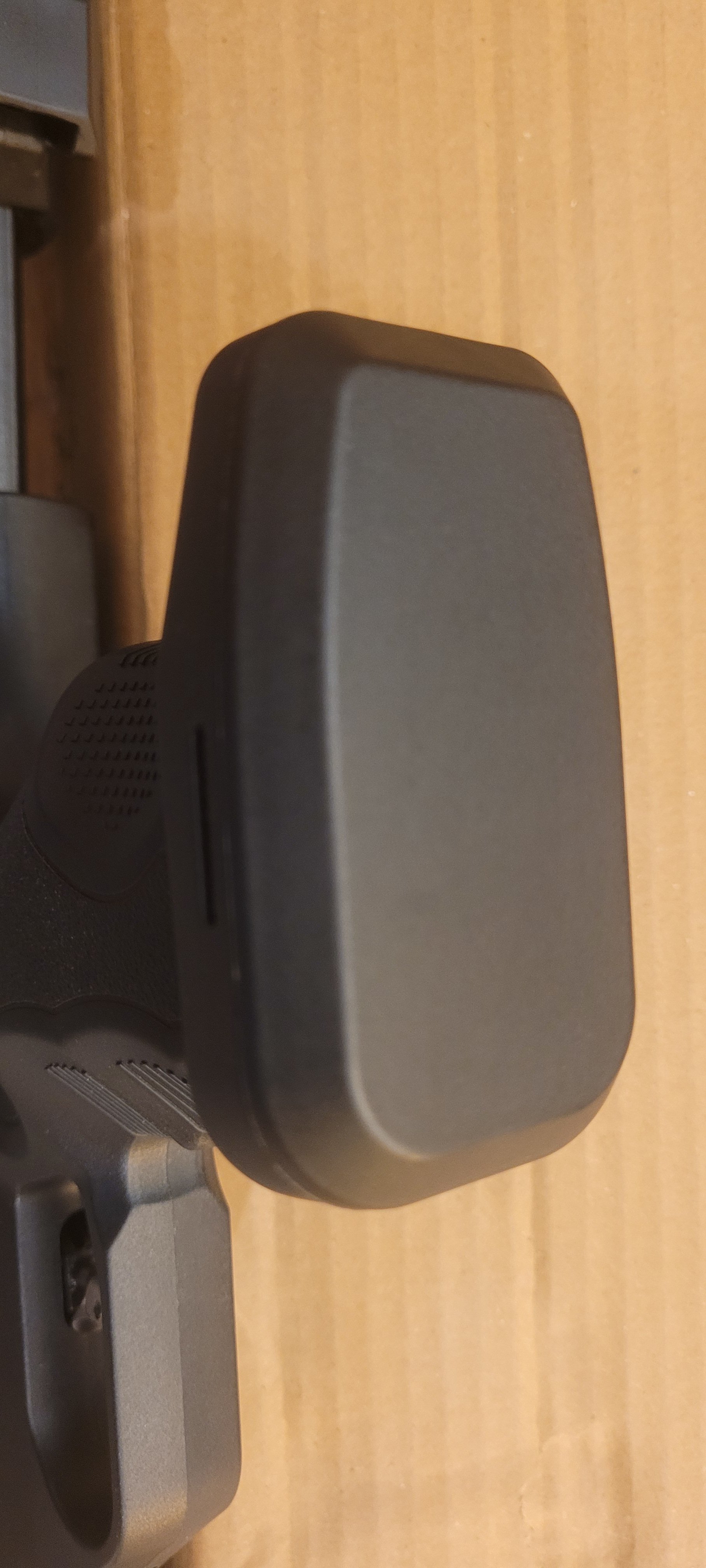

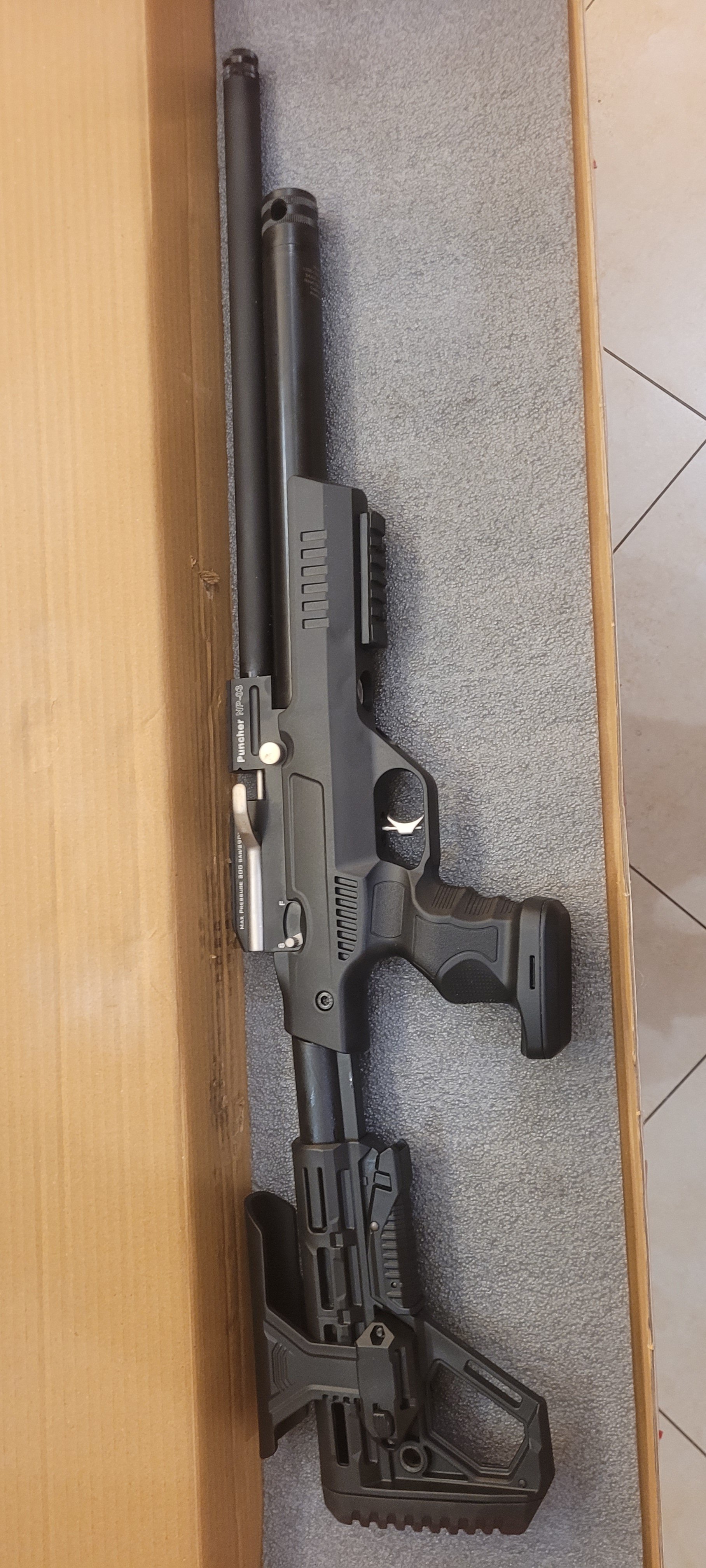

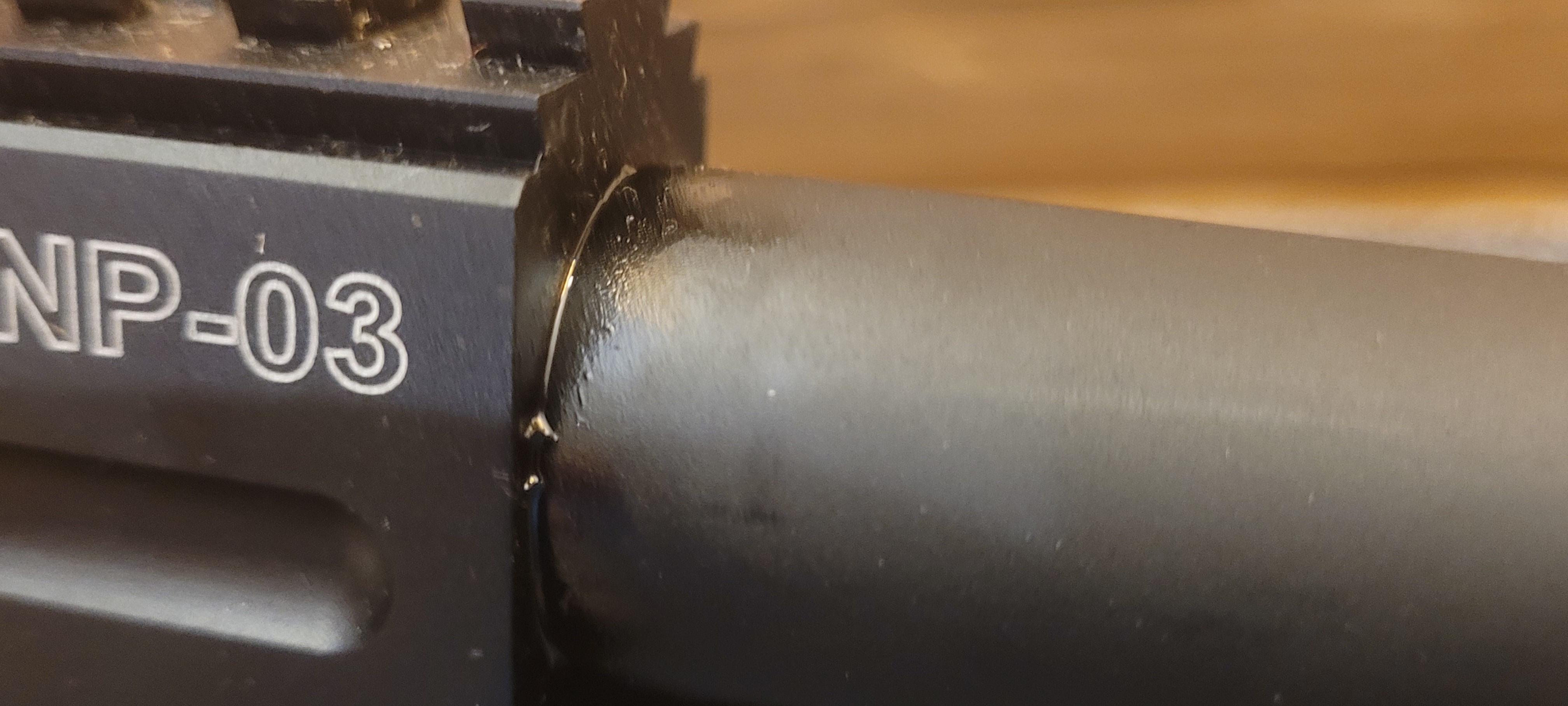

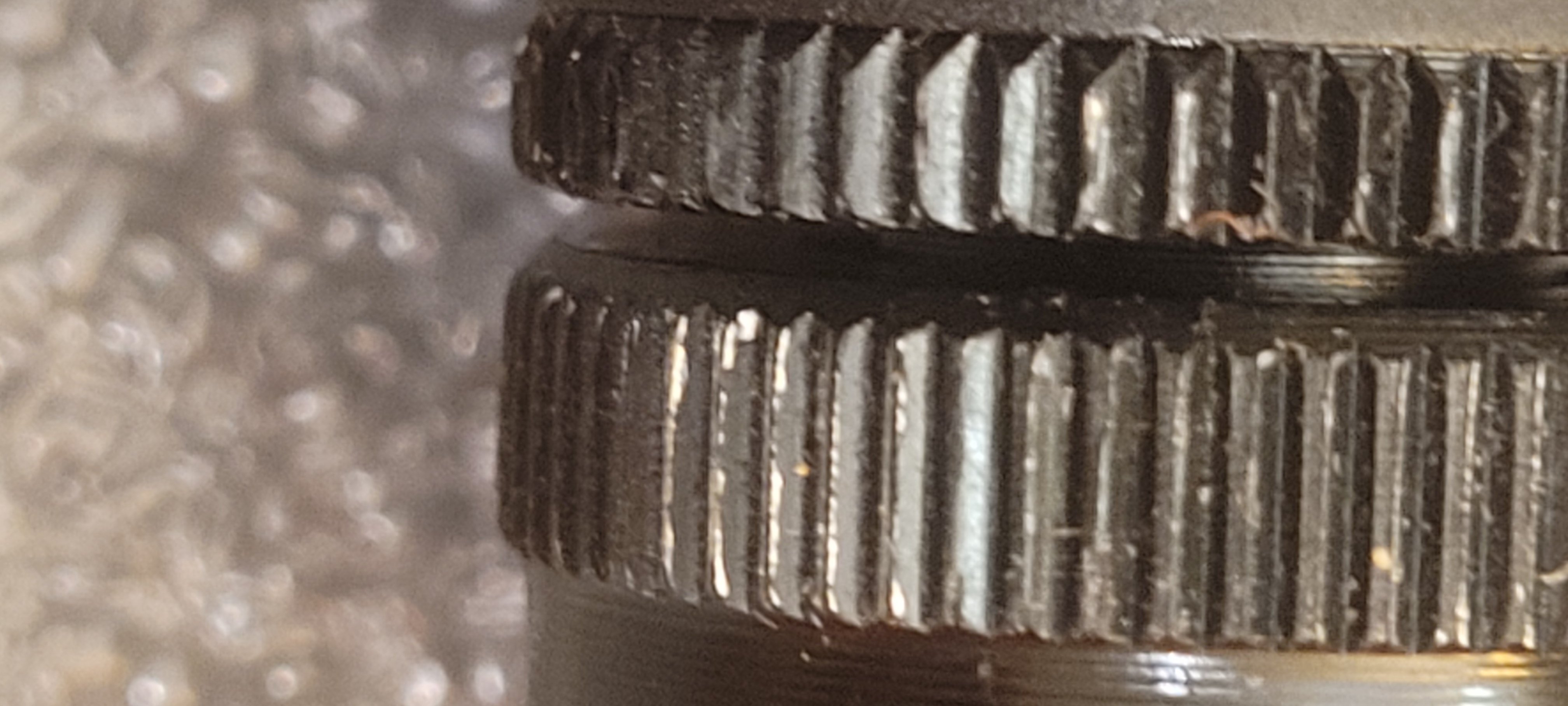

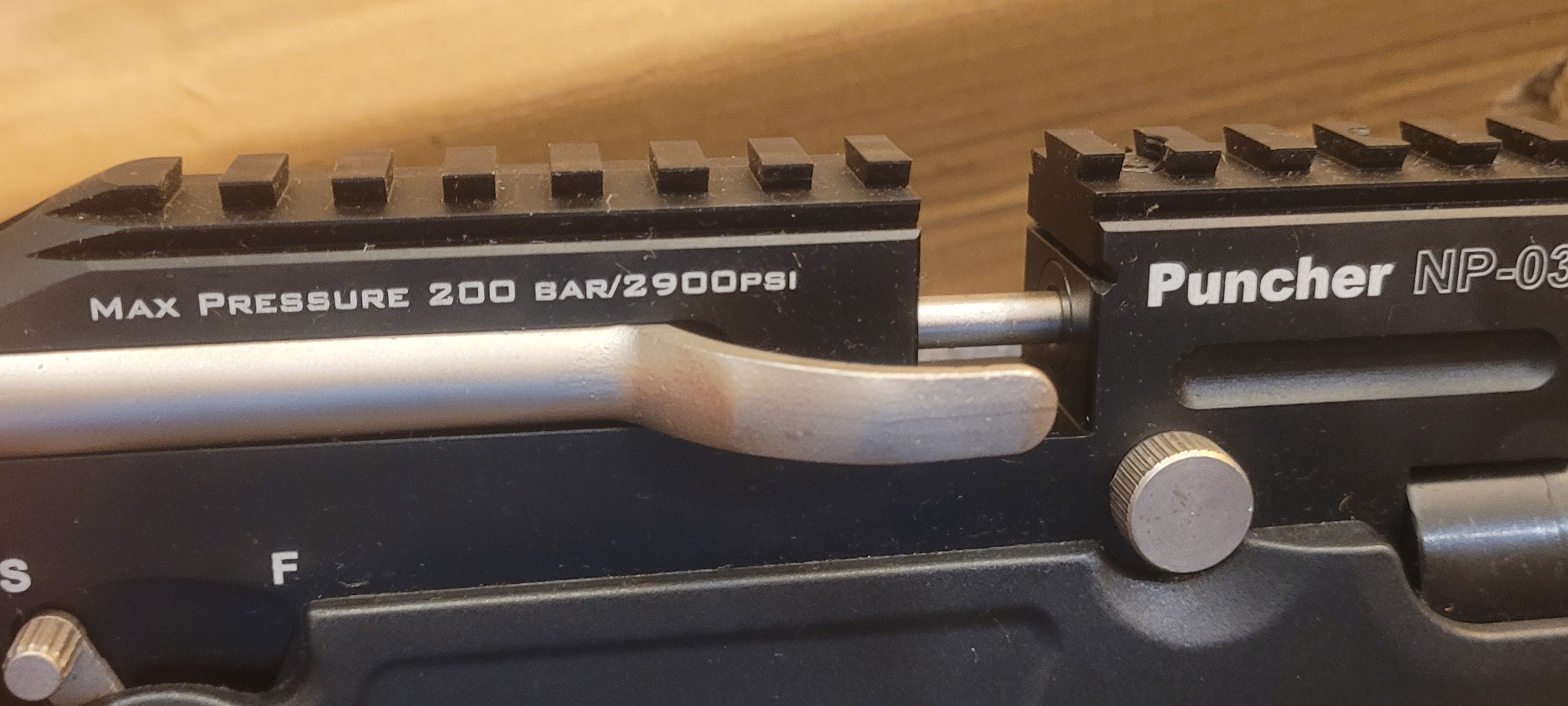

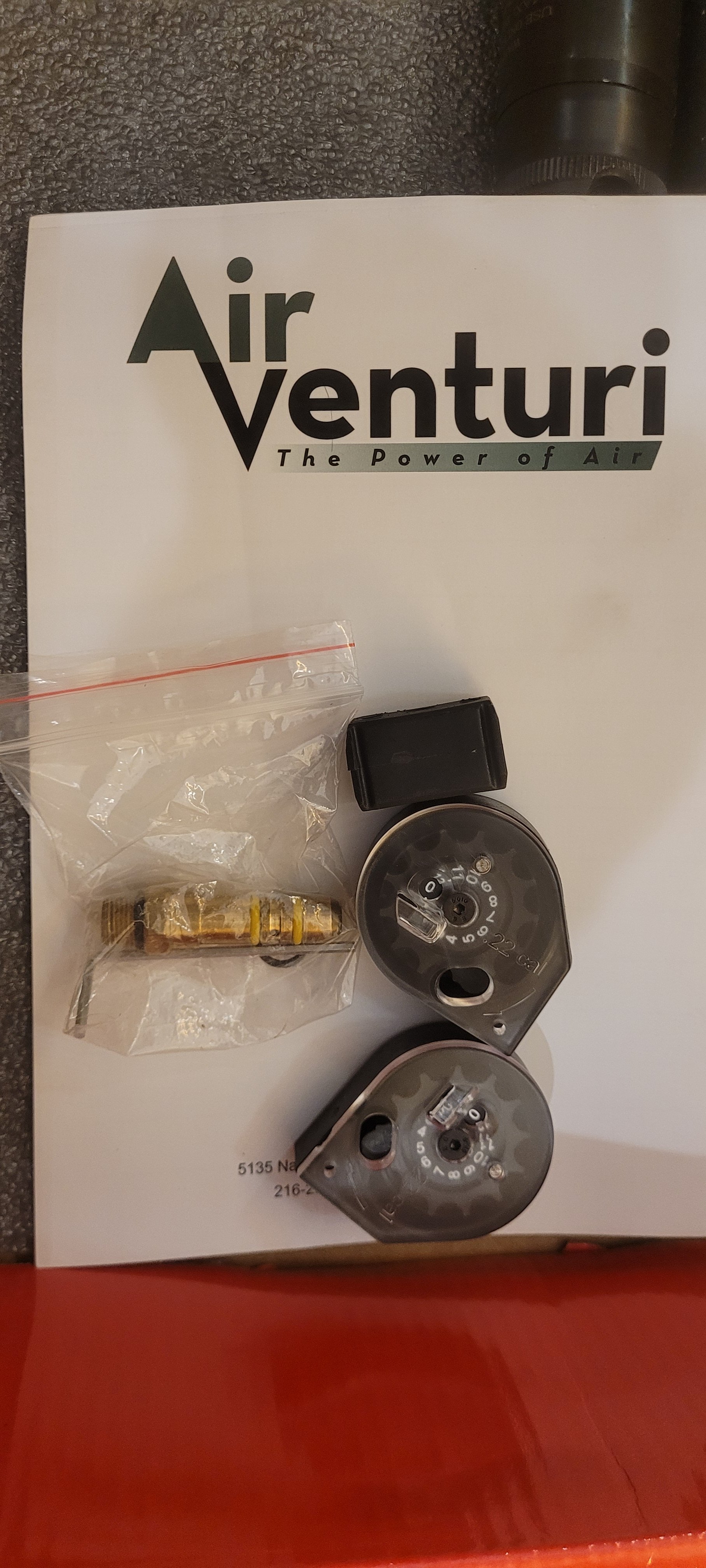

My Pyramid Air refurb np03 .22 was on my porch when I got home. Didn't have a 'brand new' vibe but no marring or real signs of use. Had areas of lubrication and overall a solid feeling little gun. Even has air in the tank. Super happy with this thing and can't wait for the parts to start being delivered.

My cats damn near hit the ceiling when I dry fired it in the house 😆
