Snowpeak Leak in my PP 750 Pistol ?

Jump to latest Follow Reply
airgunmike56

airgunmike56

Member
Aug 4, 2018
2,365
1,638
Odessa,Texas, United States
Went ahead and ordered a new regulator (huma)as I am in there might as well improve it a little , I can feel the small leak coming out the hole where the air probe goes , Replaced gauge oring , to easy still leaking , Thought I would just order a o ring kit and valve for it , Nope there all over in the UK , Just wondering why no US based oring kits for the PP750?
Mike

  • Like
Reactions: markhooper

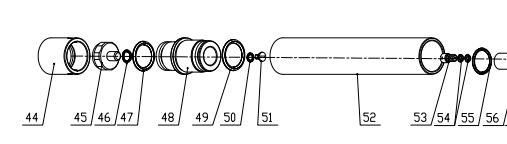

The fill port O-ring #50 is a common source of leaking in SPA PCPs.



It is too soft so it eventually extrudes into the gap formed by the flat on screw #51. Replace it with a 90 durometer. The OEM size is a M1.5x5 but a -008 works equally well in this application.

  • Like
Reactions: airgunmike56, RAMJET66, markhooper and 1 other person
Upvote 0
airgunmike56 said:
Went ahead and ordered a new regulator (huma)as I am in there might as well improve it a little , I can feel the small leak coming out the hole where the air probe goes , Replaced gauge oring , to easy still leaking , Thought I would just order a o ring kit and valve for it , Nope there all over in the UK , Just wondering why no US based oring kits for the PP750?
Mike
Click to expand...
Wes at Airgun archery fun in Canada likely has anything you need for the pp750.. he's a great guy and very good
Mark

  • Like
Reactions: RAMJET66
Upvote 0
nervoustrig said:
The fill port O-ring #50 is a common source of leaking in SPA PCPs.

View attachment 552689

It is too soft so it eventually extrudes into the gap formed by the flat on screw #51. Replace it with a 90 durometer. The OEM size is a M1.5x5 but a -008 works equally well in this application.
Click to expand...
nervoustrig
Thanks a million, 1st gun I ever fixed a leak on and I have been in the PCP sport over 20 years , I usually just send them off to get fixed ,,, May try and fix my vulcan ll next,, Got the Vulcan ll 177 fixed also, I am on a roll , Right state of mind, Right tools and the right orings ,, I just plain lucked out ,
Mike

Last edited:
  • Like
Reactions: nervoustrig
Upvote 0
nervoustrig said:
The fill port O-ring #50 is a common source of leaking in SPA PCPs.

View attachment 552689

It is too soft so it eventually extrudes into the gap formed by the flat on screw #51. Replace it with a 90 durometer. The OEM size is a M1.5x5 but a -008 works equally well in this application.
Click to expand...
Do you have a link to the document you cropped the image from?
I'm having difficulty finding an exploded view of the PP750 and the newer PP750L...

Upvote 0
