Leshiy 2 - 3D print

[towle]

Hi

Kunne godt tænke mig at Printe denne fil

 View attachment L2speedloader_177.1621173504.stl

Hi simon

..or you could beta test the new version, only one 4 x 16mm countersunk screw needed, will self thread in the upper disc tower

Edit: 4 x 20mm

View attachment L2speedloader_3disc_flat_top_177.1631631829.stl



[simon1402]

mange tak prøver jeg



[wcjake423]

Good looking L2 speedloader! I'd love 3D print it for .22

Small suggestion, instead of .177 or .25 sign make a placement for Neodymium Magnet - 1/2" OD x 1/8" ID x 1/32" thick
https://www.kjmagnetics.com/proddetail.asp?prod=R8201

Thanks



[towle]

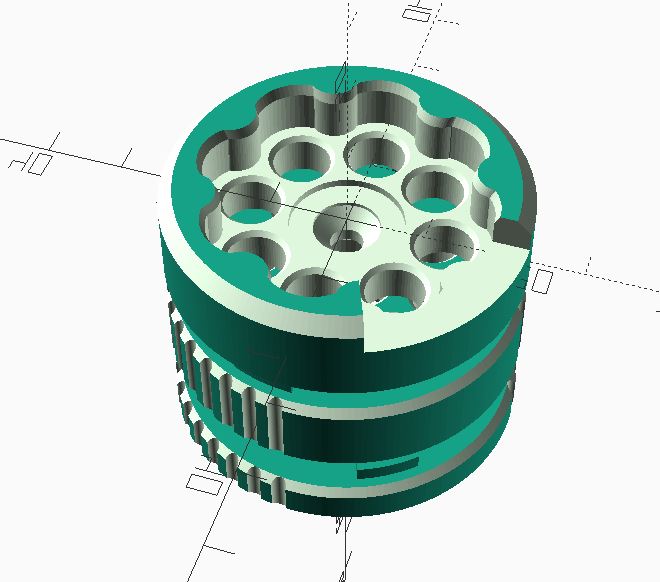

New 2 disc nut-less version
flat top surface for the magnet folks
knurled sides for better grip
4 x 16mm countersunk screw (standard length), do not cut threads, hold the 2 parts together, ad pressure to the screw as it turns and it will self thread and keep the proper friction like a lock nut
also print the loader for speed loader, will make filling the loader much easier

View attachment L2speedloader_2_disc_airgunnation.20.1631644626.stl

View attachment L2speedloader_2_disc_airgunnation.22.1631644627.stl

View attachment L2speedloader_2_disc_airgunnation.25.1631644627.stl

View attachment L2speedloader_2_disc_airgunnation.30.1631644627.stl

View attachment L2speedloader_2_disc_airgunnation.177.1631644627.stl



[towle]

New 3 disc nut-less version
flat top surface for the magnet folks
knurled sides for better grip
4 x 20mm countersunk screw (standard length), do not cut threads, hold the 3 parts together, ad pressure to the screw as it turns and it will self thread and keep the proper friction just like a lock nut

printing time listed is layer height 0.24 at slow 35mm/sec

View attachment L2speedloader_3disc_flat_top_20.1631645084.stl

View attachment L2speedloader_3disc_flat_top_22.1631645085.stl

View attachment L2speedloader_3disc_flat_top_25.1631645085.stl

View attachment L2speedloader_3disc_flat_top_30.1631645085.stl

View attachment L2speedloader_3disc_flat_top_177.1631645085.stl



[towle]

Have you thought or tried to make the top layer having a recessed hex shaped hole that would accept the nyloc nut so that the nut is below the surface. Then a 3/4” x 1/8” cylinder magnet could be glued over top. This would be used to remove and hold the magazine plate for loading the magazine. Makes The Whole process a one handed operation. I also use the magnet to attach the speed loader to a steel washer I attached to the gun, in this case to the Eagle Vision scope rings.

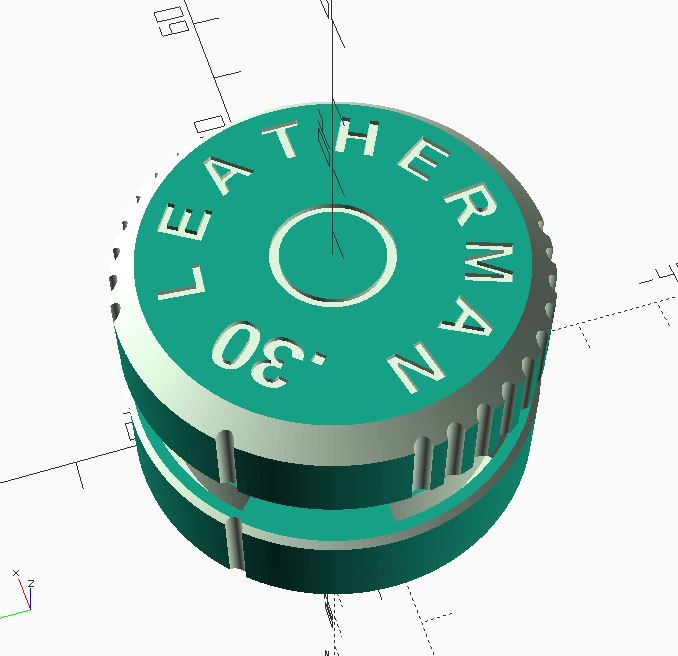

Special version for you

View attachment L2speedloader_leatherman_version.1631645822.stl



[wcjake423]

Thanks a lot!

Ready to print .22, but I've noticed on my PrusaSlicer previewer that two of eight holes at the bottom part are closed.

Also, is it possible to move a vertical positioning cut on front side, in front of the shooter when the speedloader is on the L2

Thanks again!



[towle]

Thanks a lot!

Ready to print, but I've noticed on my PrusaSlicer previewer that two of eight holes at the bottom part are closed.

Also, is it possible to move a vertical positioning cut on front side, in front of the shooter when the speedloader is on the L2

Thanks again!

You are welcome


Cut on the front side on the edge, yes

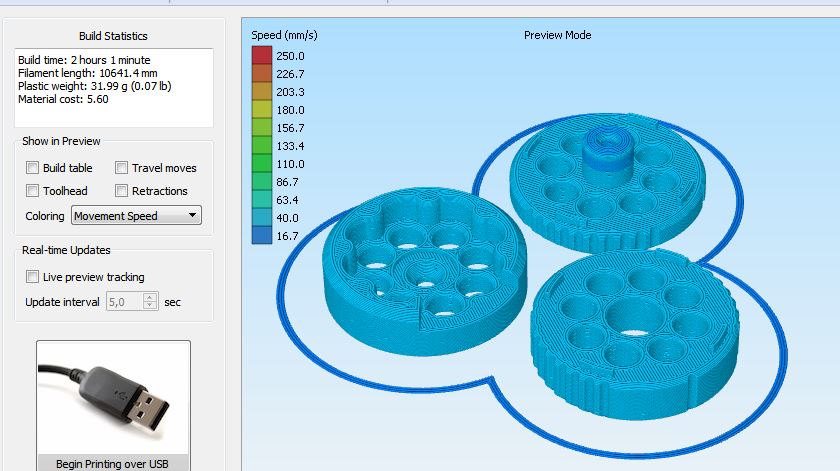

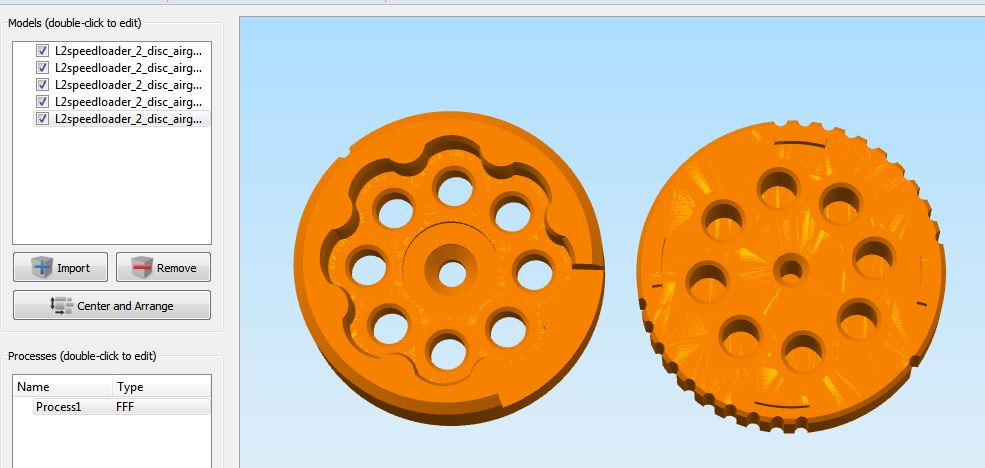

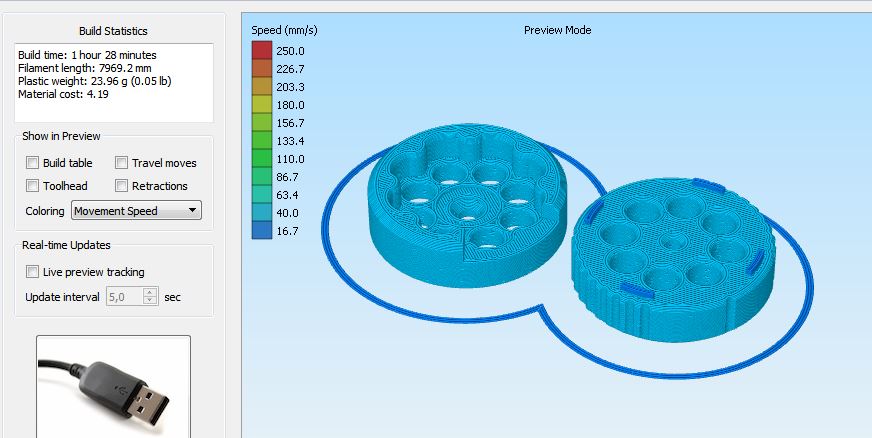

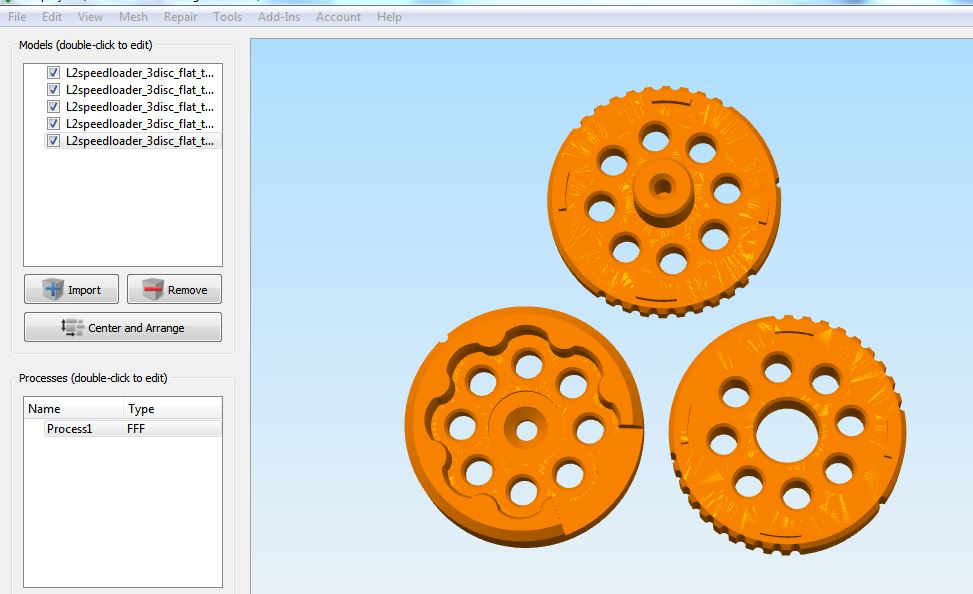

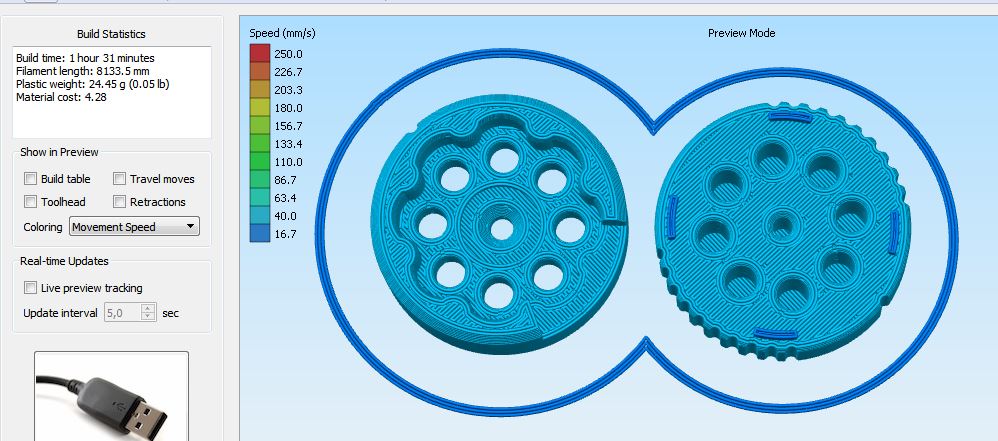

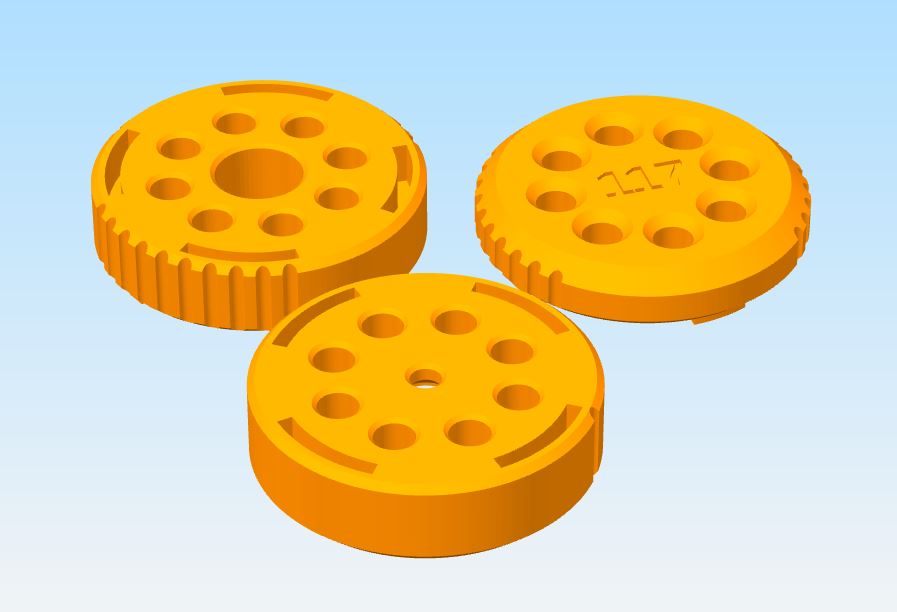

PrusaSlicer preview huh?, strange, here's how it look in Simplify3D before and after slicing, the 2 and 3 disc version, all 5 stacked



[wcjake423]

Interesting!



[simon1402]

hi you have to split them and repear them in prusa

reaper right mouse button



[wcjake423]

Yes, I did. Thank you!

Printing it now



[wcjake423]

Hi towle,

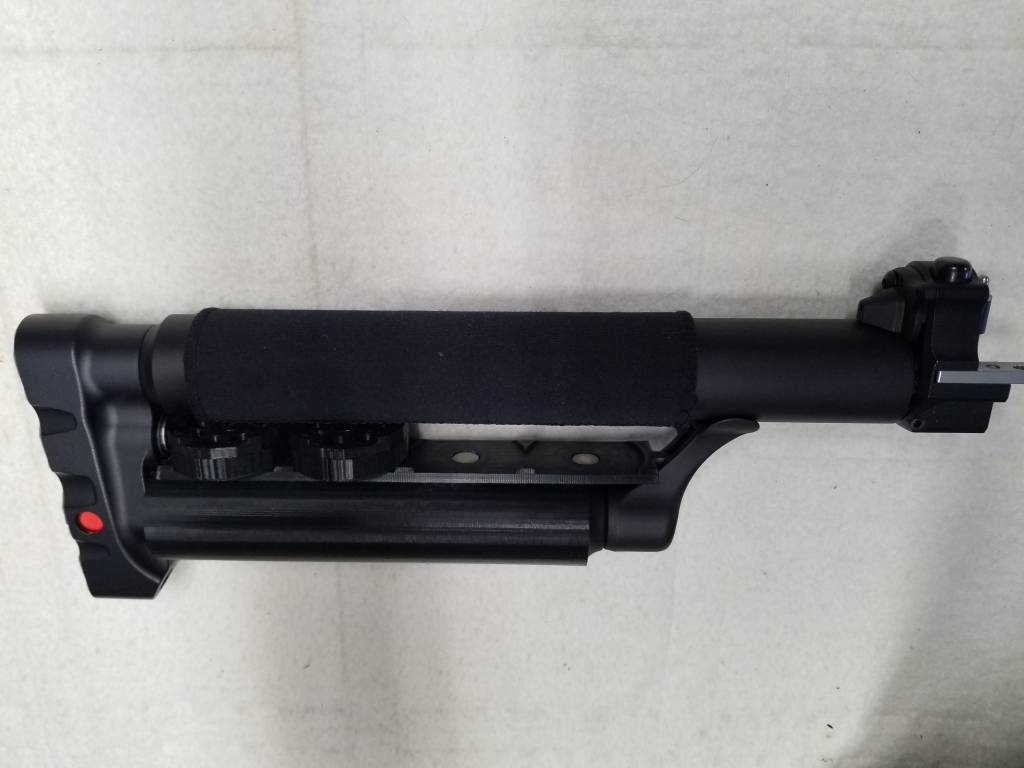

I've modified a little your "New 2 disc nut-less version" as small in size as possible to feet a new 4 magazine holding rack integrated with a bottom air tank.

Thanks a lot!



[towle]

Hi towle,

I've modified a little your "New 2 disc nut-less version" as small in size as possible to feet a new 4 magazine holding rack integrated with a bottom air tank.

Thanks a lot!

You are welcome! - looks great! - please share your mod

About the two missing holes with Prusa software slice

As far as I know the Prusa software is or was based on slic3r, when sliced with the original Slic3r, no problems found

https://slic3r.org/



[wcjake423]

Thanks a lot!

Good to know about Slic3r.

I'll post my designs shortly.



[wcjake423]

Here you go:

View attachment L2-TOP-RACK-MAG-HOLDER.1633884880.stl

View attachment L2-BOTTOM-MAG-HOLDER-TUBE.1633884901.stl

Thanks,

Jake



[wcjake423]

Hi towle,

Here are .22 modified your "New 2 disc nut-less version" speedloader. 10x3 mm magnet on the top.

View attachment L2-TOP-LOADER-10MM-HOLE.1633886706.stl

View attachment L2-BOTTOM-SPPEDLOADER.1633886719.stl

I hope you like it.

Thanks



[wcjake423]

And

View attachment L2-PELLET-LOADER.1633892617.stl



[towle]

Hi wcjake423,

Thank You for posting!, great idea placing the mags tucked away between the tubes!, a bit too late for me to go that road with 40 version of the 2 and 3 disc already printed but I'm sure others will be interested, cant have too many versions to choose from!

Would also be great with some grip designs for the L2 if you or anyone else is up to it, OpenScad is not the right tool that and is the only 3d proggy I know a little about

Happy Shooting!



[towle]

https://www.youtube.com/watch?v=pO2xRzw6yFs



LenaTo's post, files and printing info back at page 3, thank you for sharing!



[wcjake423]

Hi Towle,

I'm trying to make a 2 disc nut-less version speedloader body as small as possible in diameter using a Tinkercad.

It's very slow and takes crazy amount of time. Could you please, as the creator, move the locking position pins and holes inside the pellet placement space?

Thanks a lot,

Jake
