Diana Let's see your Giss guns.

Jump to latest Follow Reply
MDriskill said:
John Whiscombe's amazing limited-production guns used the original Giss patent system, with pistons moving toward each other. Some of those met or considerably exceeded 12 FPE. IIRC some of them had multi-stroke cocking that even allowed shooting at different power levels.

More info and pics here:

Whiscombe Air Rifle Why?

Interesting, why noboby post information about this rifle, Where to buy? Specs? pics? why nobody ?
www.airgunnation.com www.airgunnation.com
Click to expand...

No different power levels, only the Dual Magnum and P1/HW45 do that. Multiple strokes were required but had to achieve final stroke (2-3 pending model) to engage trigger mechanism and could not be fired before that.

  • Like
Reactions: Bandito, Singleshot and MDriskill
Upvote 0
MDriskill said:
John Whiscombe's amazing limited-production guns used the original Giss patent system, with pistons moving toward each other. Some of those met or considerably exceeded 12 FPE. IIRC some of them had multi-stroke cocking that even allowed shooting at different power levels.

More info and pics here:

Whiscombe Air Rifle Why?

Interesting, why noboby post information about this rifle, Where to buy? Specs? pics? why nobody ?
www.airgunnation.com www.airgunnation.com
Click to expand...
Interesting read. Thank you for posting.

  • Like
Reactions: Bandito and MDriskill
Upvote 0
DualMagMike said:
No different power levels, only the Dual Magnum and P1/HW45 do that. Multiple strokes were required but had to achieve final stroke (2-3 pending model) to engage trigger mechanism and could not be fired before that.
Click to expand...
Thanks Mike, I corrected my previous post. I seem to be full of disinformation this week! :(

Last edited:
  • Like
Reactions: Bandito and DualMagMike
Upvote 0
MDriskill said:
John Whiscombe's amazing limited-production guns used the original Giss patent system, with pistons moving toward each other. Some of those met or considerably exceeded 12 FPE. IIRC some of them had so much power, that the cocking action required multiple strokes.

More info and pics here:

Whiscombe Air Rifle Why?

Interesting, why noboby post information about this rifle, Where to buy? Specs? pics? why nobody ?
www.airgunnation.com www.airgunnation.com
Click to expand...
Stalled...nothing out there being produced and offered to us consumers.

  • Like
Reactions: Bandito
Upvote 0
MDriskill said:

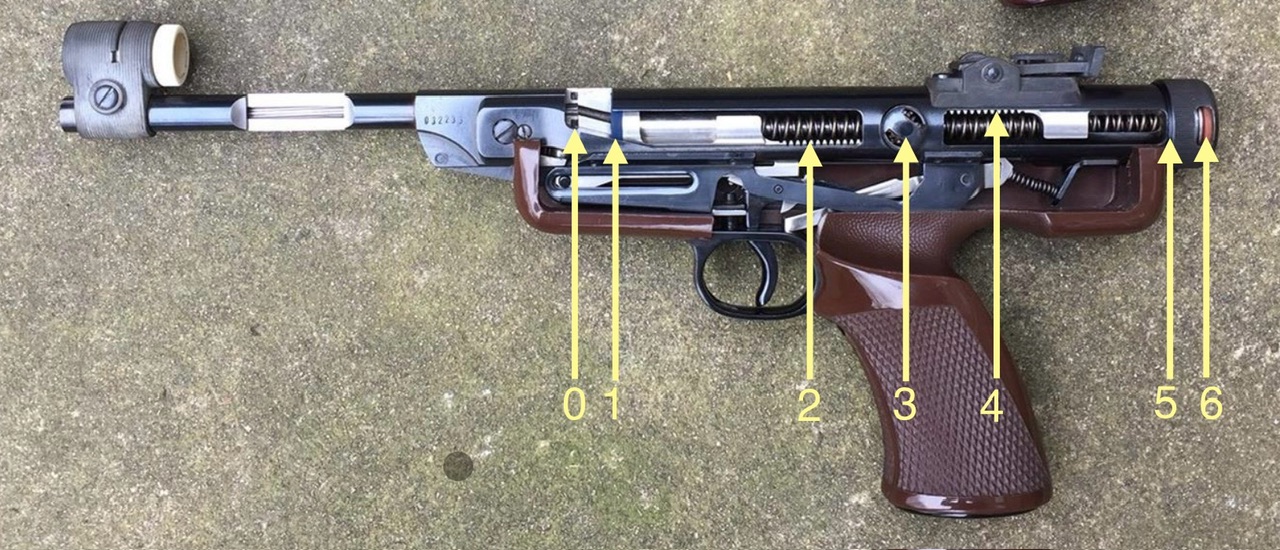

I shamelessly ripped off this image of a factory cutaway model 6 pistol from Danny Garvin's fabulous "Vintage Airguns Gallery" site. It shows the workings of the "Giss system Dianas" very well:

0. Breech seal and transfer port
1. Blue seal on face of front piston
2. Straight rack teeth, on both sides of the bottom half of the front piston
3. Controller cogs, on both sides of the receiver tube
4. Rack teeth on top of rear piston
5. Blue bumper on face of rear piston
6. Metal piston spacing shims and red end cap pad

View attachment 456805

Note also the gun has doubled mainsprings, one inside the other and wound in opposite directions, to reduce vibration.

(So anyway - how cool would it be to own this thing...!?!? I have a hot flash of envy every time I see this pic...!)
Click to expand...
Amazing pieces of equipment.
I wonder why Diana stopped producing them?

  • Like
Reactions: Bandito and Singleshot
Upvote 0
I would assume they fell away because of power. That's what seems to sell these days. While admittedly I get bored shooting over and over at short range, i can appreciate the quality and function of these pieces. I also don't have any places in my area that shoot competition or i'd probably be hook line and sinker in on that.

  • Like
Reactions: Bandito
Upvote 0
muddydogz said:
I would assume they fell away because of power. That's what seems to sell these days. While admittedly I get bored shooting over and over at short range, i can appreciate the quality and function of these pieces. I also don't have any places in my area that shoot competition or i'd probably be hook line and sinker in on that.
Click to expand...
So start a match but be patient. Lots of talkers but most seem afraid of competition. It's crazy. Our group of about a dozen regulars have improved as a group a ton in the last year. We keep pushing each other and exchanging ideas. Targets that won a year ago leave you in the bottom half now. Lots of fun and challenges.

  • Like
Reactions: Bandito and Nitrocrushr
Upvote 0
Compressorguy said:

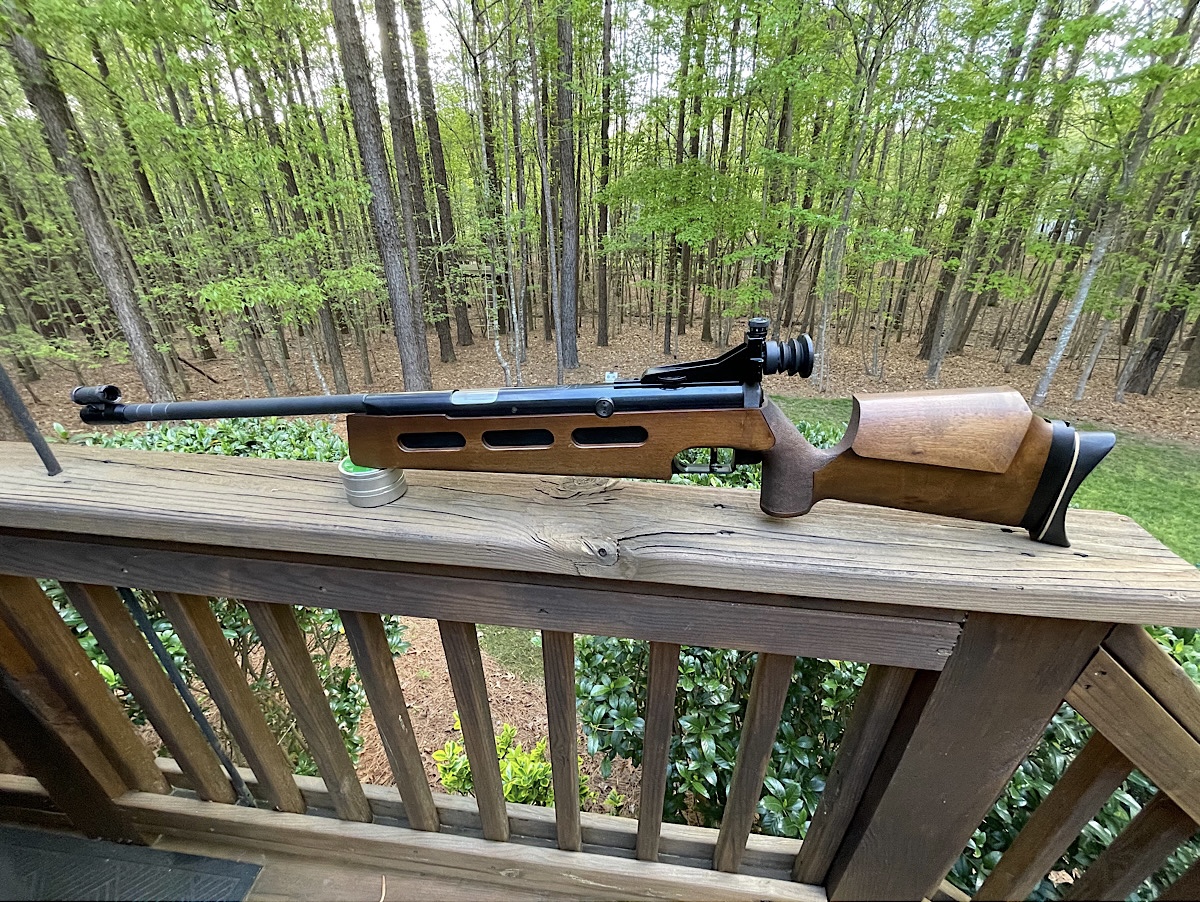

Dians D75 T01, amazingly accurate and dead still shot cycle

View attachment 456447
Click to expand...
i see the Champions Choice pellets , they get them from H&N I ask last time i was there, next week i should go there again , taking a limited amount of cash and no cards hahaha

  • Like
Reactions: Bandito, Compressorguy and JEFFPPC
Upvote 0
D60, absolutely the best trigger I’ve ever shot. 540 fps with 7.33.

I’m going to try the coin on edge test!!








  • Like
  • Love
Reactions: muddydogz, Bandito and specie
Upvote 0
.20calguy said:
I finally clicked on this thread out of curiosity.
What is a giss gun?
10 meter competition rifles according to pics I'm seeing?
Click to expand...

Fully recoilless guns as opposed to sledge type systems which are listed as semi reoilless. Dual opposing pistons cancel recoil, predominately 10M guns both rifle and pistol and mostly Diana, Whiscombe used the same "type" system.

  • Like
Reactions: .20calguy
Upvote 0
DualMagMike said:
Fully recoilless guns as opposed to sledge type systems which are listed as semi reoilless. Dual opposing pistons cancel recoil, predominately 10M guns both rifle and pistol and mostly Diana, Whiscombe used the same "type" system.
Click to expand...
Yes I remember them bringing that technology back in the Robert Beeman days.
Is giss an acronym?

Upvote 0
