Why is it so costly? Is there a cheap hook up for it? Is there another product that will mimic the performance with less cost? General use, making spring guides and other airgun parts?
tim
tim
Let's talk Delrin.
- Thread starter Hw9720
- Start date
i guess it depends what kind of production you need .. i can get a couple of foot long 1" rods on amazon for about 12 bucks acetal/copolymer/delrin .. pretty sure its all about the same thing .. brass now, youre getting pricey lol ..
Upvote 0
There are alternatives:
www.alro.com
Alro Plastics - Tecaform® HPV 13
Alro Plastics offers Tecaform HPV 13, a homopolymer Acetal with an internal PTFE lubricant and low coefficient of friction, excellent PV values, toughness, wear resistance and machinability.
Upvote 0
MSC is where I have gotten mine.. I have always gotten round rod and then just machine to fit in the mill and lathe
Upvote 0
It has been a few years but I used to get it for a pretty good price at McMaster Carr in Cleveland.
Upvote 0
"Sur-Seal PTFE-0.50x12-RD PTFE Teflon Rod, 1/2" Diameter x 12" 12.18 than add shipping and tax and that's more than a dollar an inch.
It looks like prices run on Delrin .50 cents to a dollar a INCH
That still seems high to me.
tim
Last edited:
Upvote 0
Closer to 40 cents/inch. Think about it this way though, it costs $3 to make a guide and 40 cents to make a top hat
Upvote 0
Delrin is just a trade name or name brand if you prefer. Actual is the base material. If you look for that you'll probably save some money. The company I work for use to sell it. Most of the time you can get it in black or white. In rod we stocked it from .250 diameter up to 3" diameter. Check with Laird plastics they will probably still have it. Hope this helps.
Upvote 0
PET-P is a good alternative. to Delrin / acetal. Low cost and similar properties.
PTFE has great self-lubricity but is quite soft in comparison.

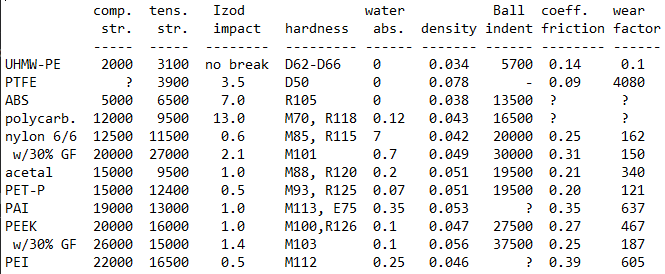

Here's a table of common plastics I compiled a while back...
Sources:
http://sterlingplasticsinc.com/materials/
http://www.matweb.com
www.polytechindustrial.com
PTFE has great self-lubricity but is quite soft in comparison.
Here's a table of common plastics I compiled a while back...
Sources:
http://sterlingplasticsinc.com/materials/
http://www.matweb.com
Plastic Stock Shapes | High Performance Injection Molding & Plastic Manufacturing | Ensinger Precision Components
As a Master Distributor of high-performance polymers, Ensinger Precision Components provides premium plastic stock shapes for your unique needs.
www.polytechindustrial.com Upvote 0
Sorry, my OCD is kicking in...
NOT Delran, its Delrin, Polyoxymethylene (POM), acetal resin.
It's not expensive and it's not as good as PEEK and that's pricey!
NOT Delran, its Delrin, Polyoxymethylene (POM), acetal resin.
It's not expensive and it's not as good as PEEK and that's pricey!
Upvote 0
Everyone knows what he is talking about… theres no need for you to validate yourself here.. or try to make someone look bad or lesser… so you can spell.. big deal
