HW/Weihrauch ***Made Butt stock for HW 44***

[lwm211]

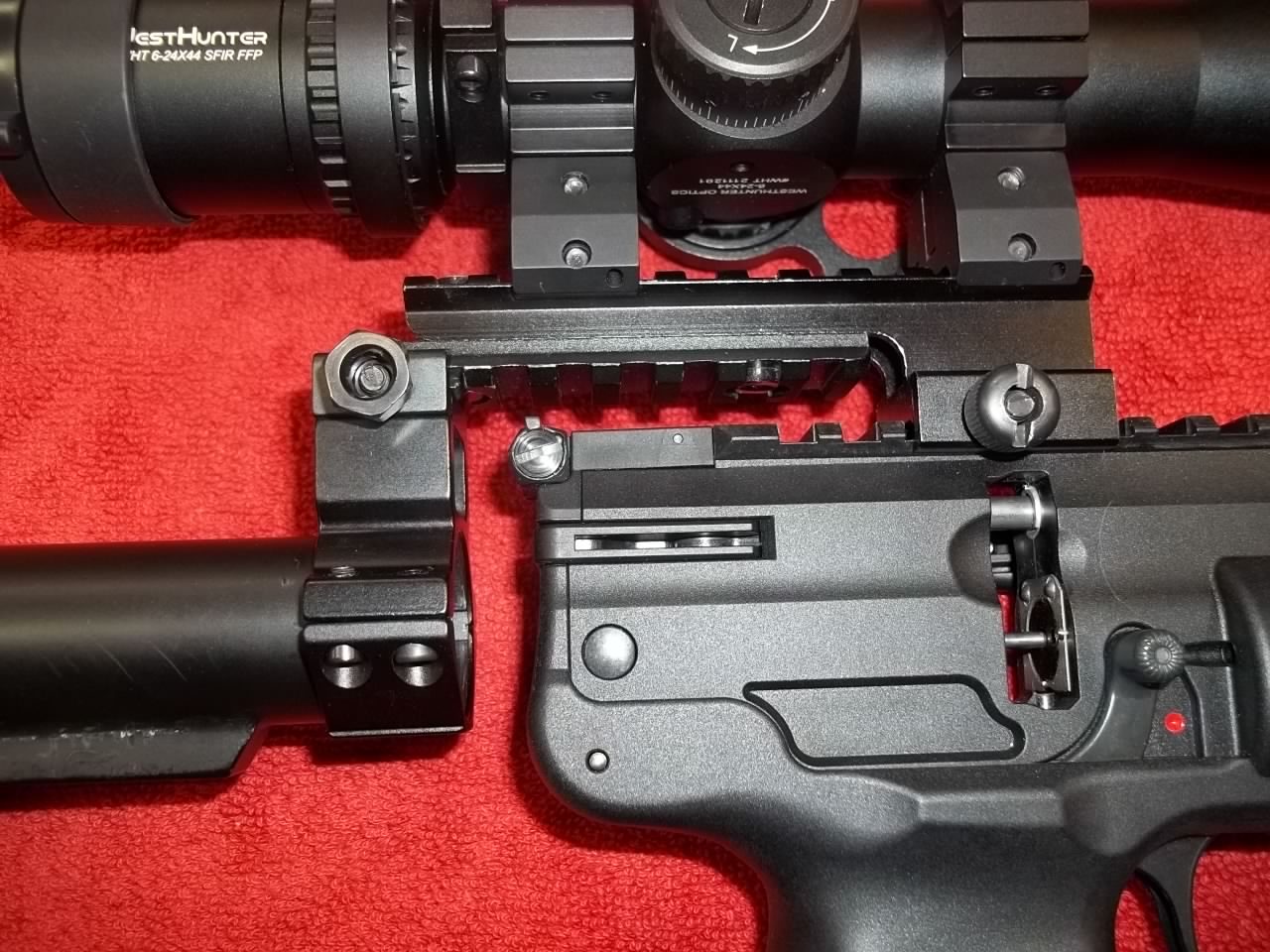

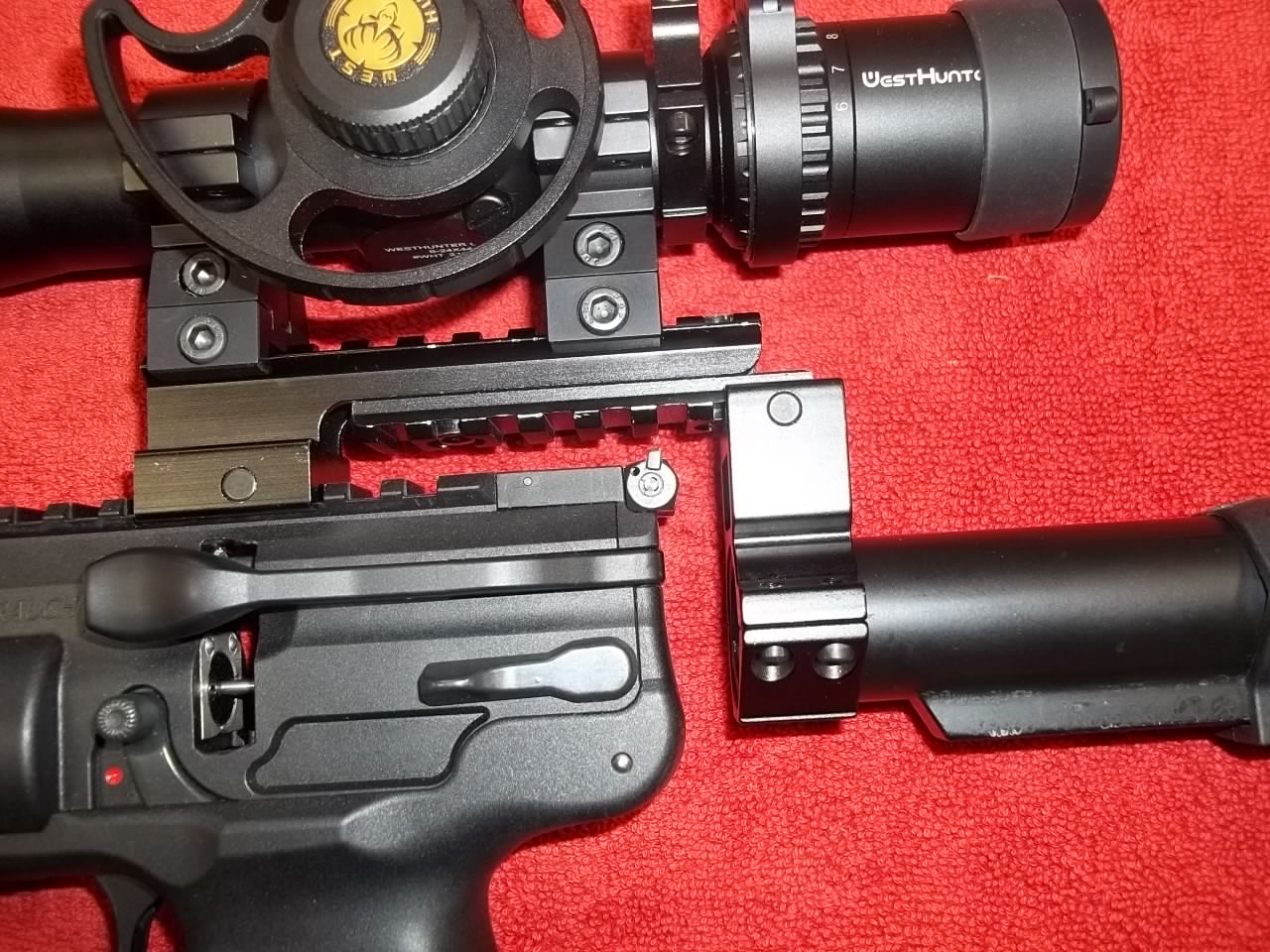

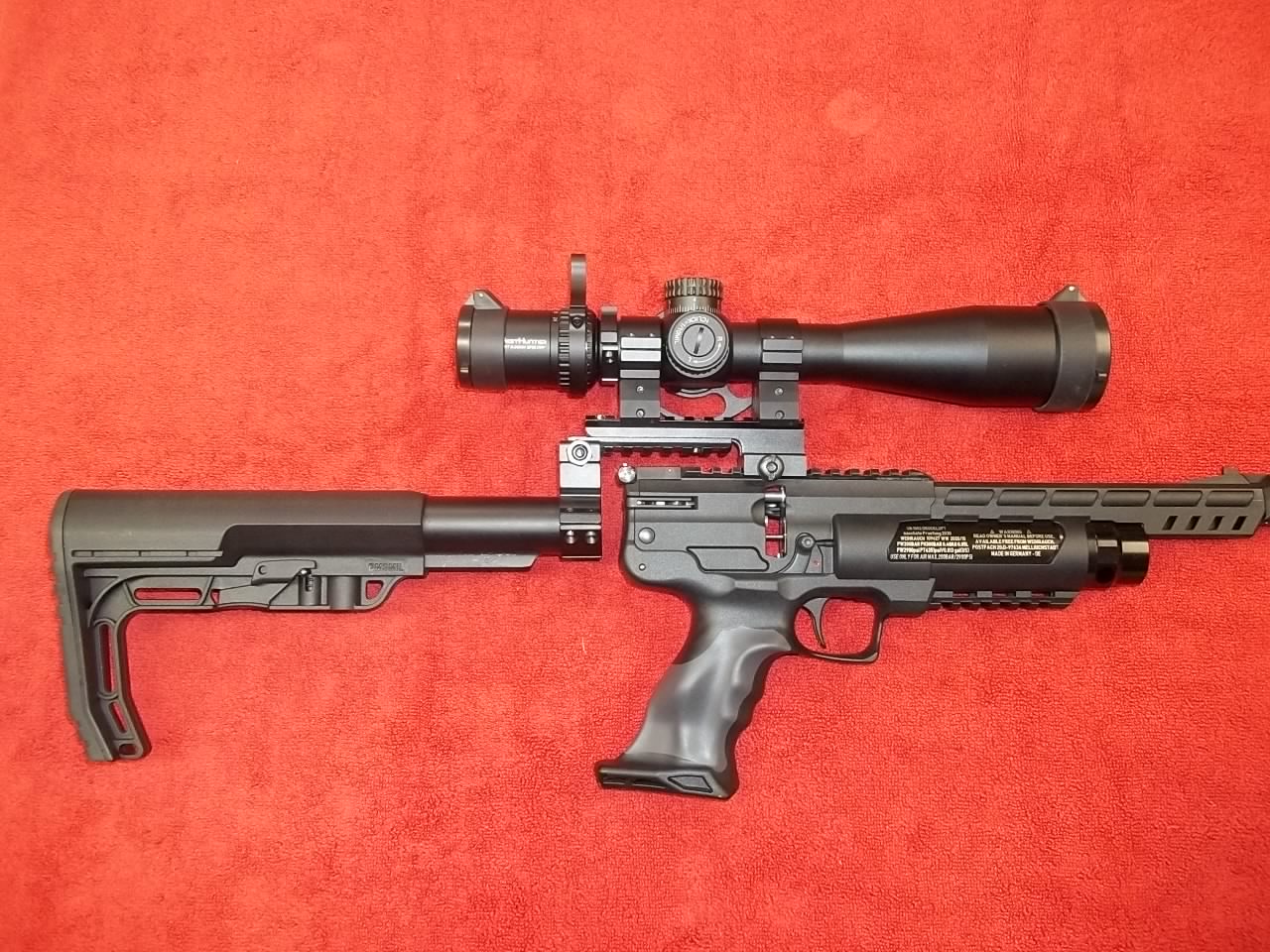

Going thru my parts yesterday decided to see if my HW 44 butt stock idea would work. Parts of adapter consist of
#1- Weaver scope extension 1/2" high riser base adapter,(tried low profile base it had to much flexibility),
#2- Screwed inverted piece of picatinny rail to bottom of extension.
#3- 30mm scope ring high placed on buffer tube inverted (fit tube perfect)
#4- AR style buffer tube and butt stock.
It all works great. Scope/ Dot eye window height can be adjusted by using different height scope rings on buffer tube and on scope.

​

​



[jarmstrong]

she looks looks Frankie's sister



[jarmstrong]

I ordered these pic rail covers , to use with the pic rail riser, to put under the bottom of the air tube, for a front support surface

ERGO FULL LONG TEXTURED RAIL COVERS – 2 PACK – ERGO Grips

1/2" Tactical Extension Riser Base Adapter Mount For 20mm Picatinny Weaver Rail | eBay

1/2" Profile Extended Riser Mount ,Picatinny Rail ,14 Slots, Total length 145 mm/ 5.71". Quick Detachable Design allow instant attach & detach action. Type: 145mm Scope Riser Mount Base. 145mm Scope Riser Mount Base 1.

www.ebay.com



[davelarson]

Nice job on your HW44 stock. They are amazingly accurate pistols.
And with a stock they hold their own with a lot of rifles in accuracy.
Fantastic airguns for certain.



[scopecreep...]

Very cool. Better yet I believe I have all the parts.



[aroundlocks]

Great looking pistols
Shows what you can do with imagination .
I chose the easier option 3d printed stock by bob p.

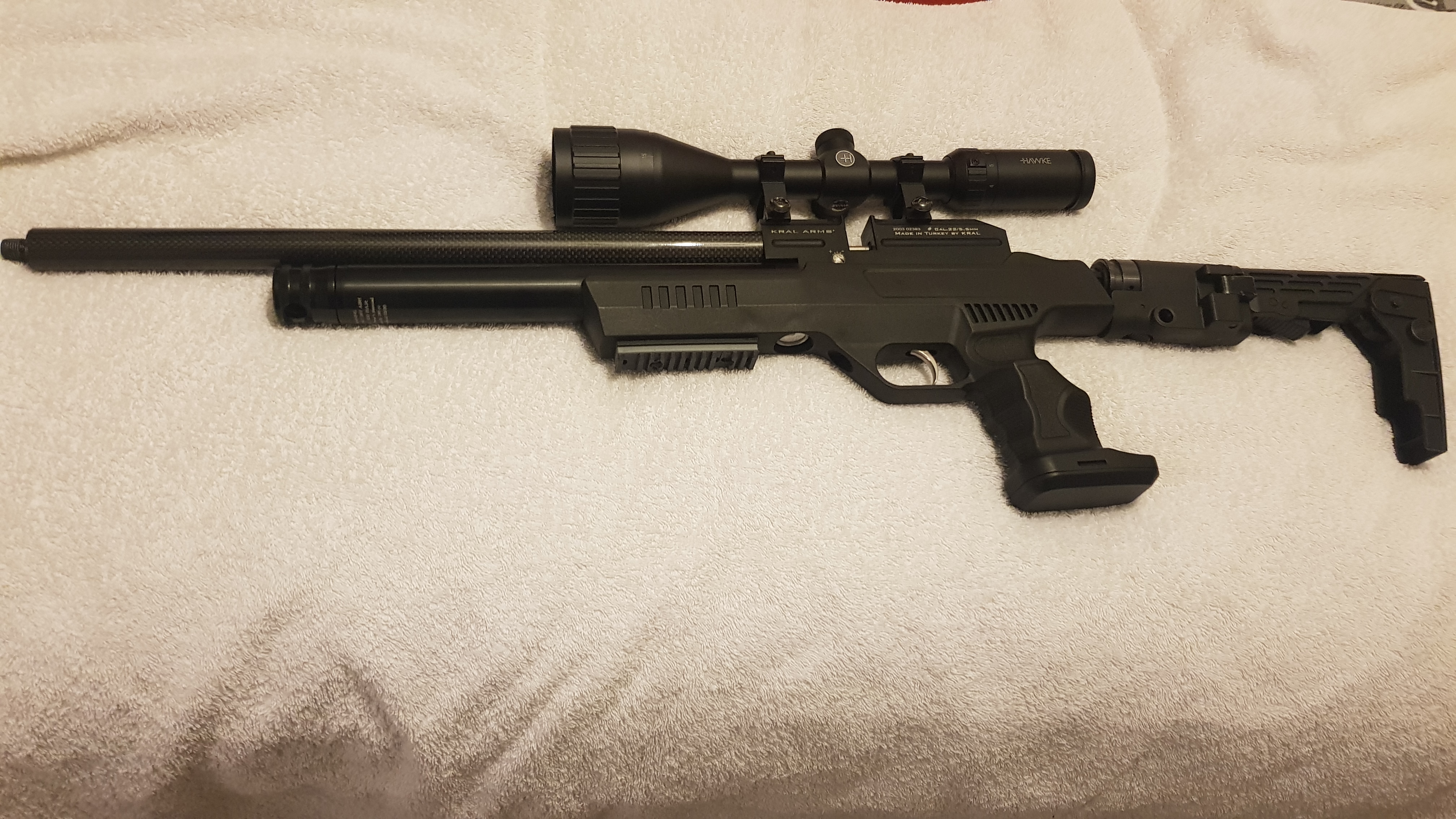

But I did put a folding stock on my kral np03 if that counts.
You cant fault the hw44 in any department it is a great pistol.



[SDstephan]

Great looking pistols
Shows what you can do with imagination .
I chose the easier option 3d printed stock by bob p.
But I did put a folding stock on my kral np03 if that counts.
You cant fault the hw44 in any department it is a great pistol.

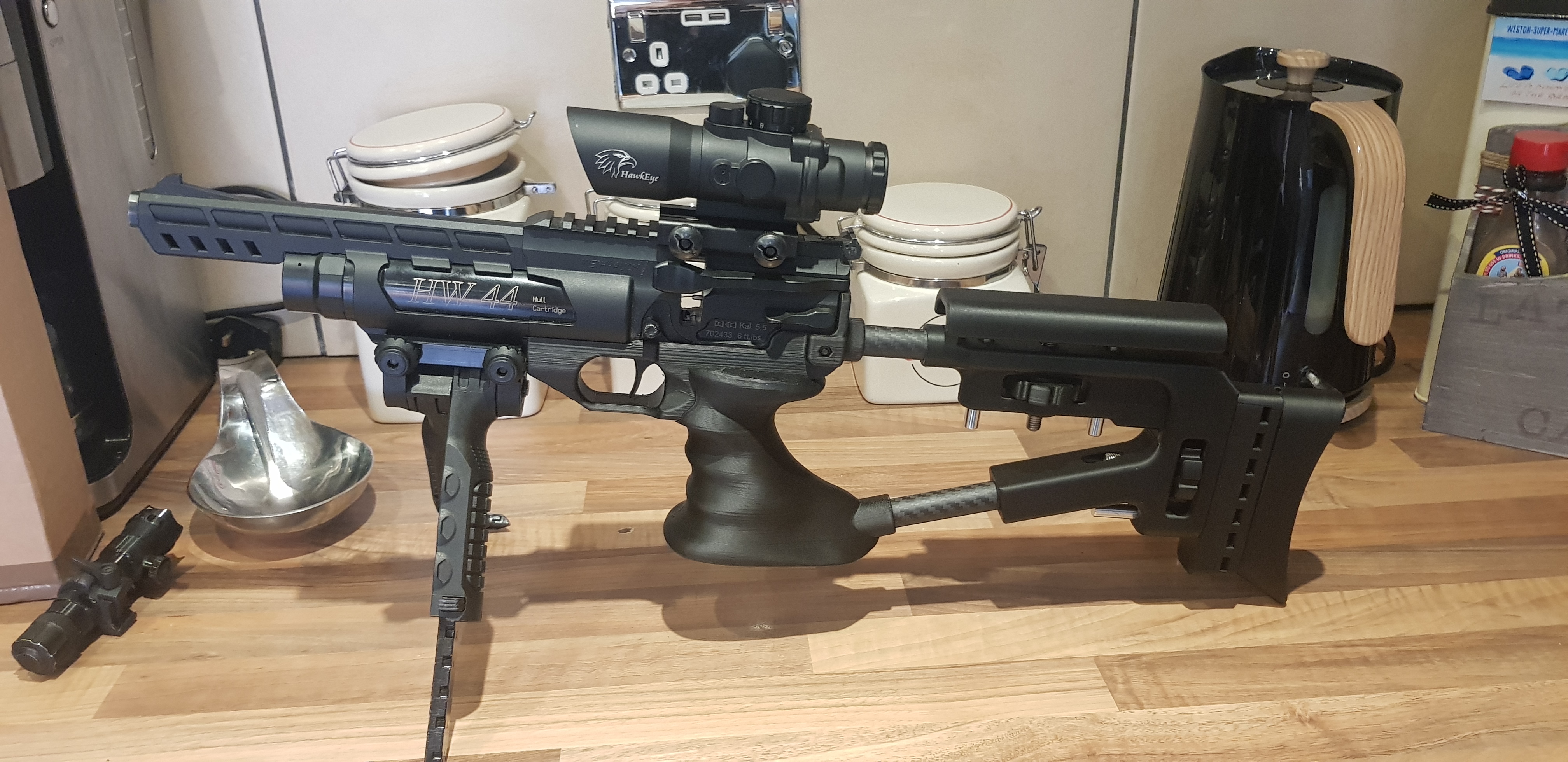

View attachment 397424

I'd love one of Bob P's stocks and even his single shot loader, unfortunately he won't sell to anyone out of the country.
I even asked a UK business partner to contact him on my behalf and he never responded.



[jarmstrong]

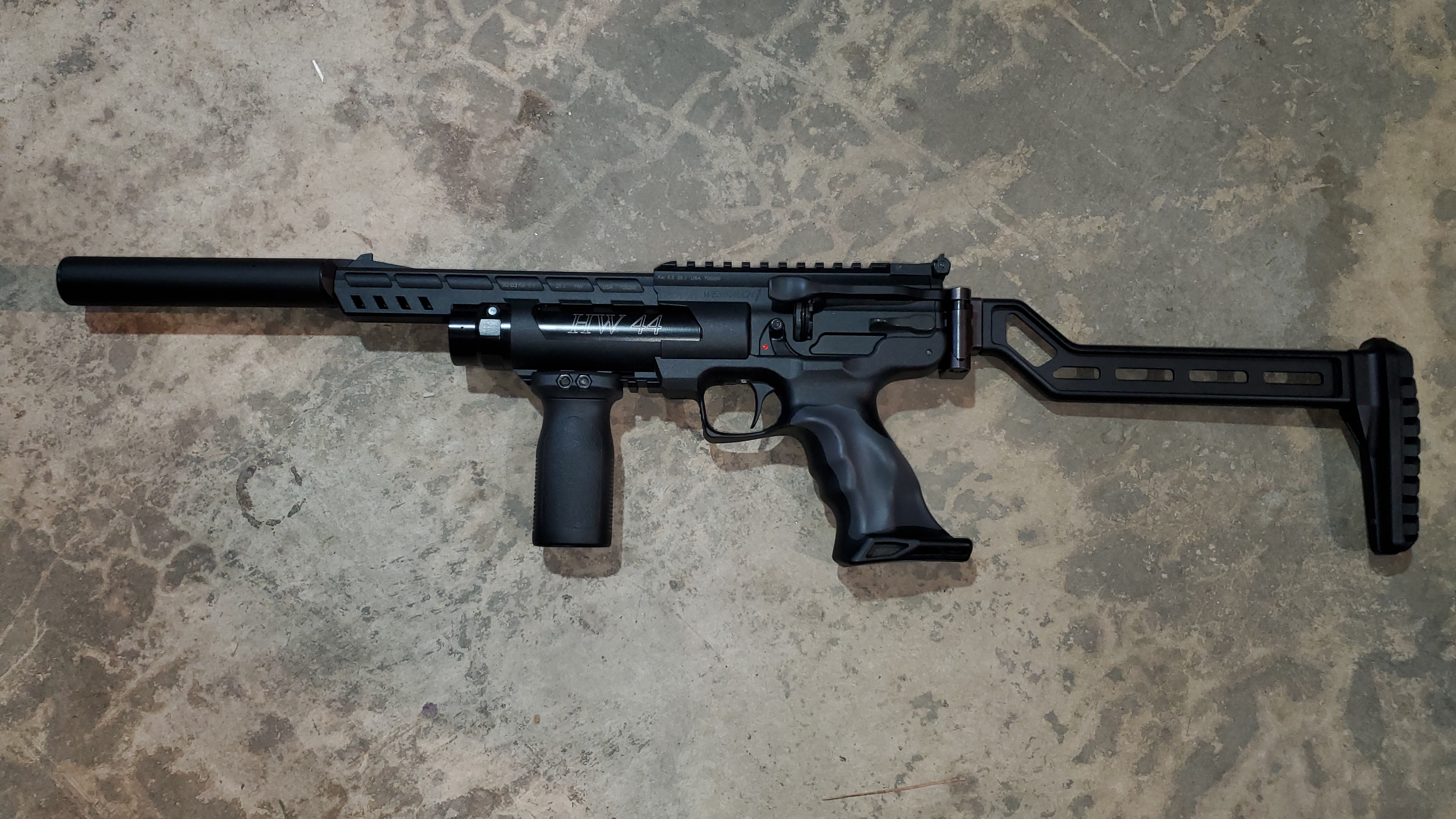

I also tried to purchase a bob p stock from England, but no way was found, so I bit the bullet and ordered the Rinks stock, paid my money and waited the many months. Mean while I went with the Frankie stock to let me play till the Rinks arrived.
A HW 100 bp K carbine size came through the classifieds after I had bought the 44 and had Rinks on order,,, it was hard not to buy it. The HW 100 or 110 in the K model is what I wanted but I could not find one. So I went the pistol to carbine route,,, .
310 mm barrel in the mail for me now,,, I like my little HW 44 carbine



[FelixS]

Going thru my parts yesterday decided to see if my HW 44 butt stock idea would work. Parts of adapter consist of
#1- Weaver scope extension 1/2" high riser base adapter,(tried low profile base it had to much flexibility),
#2- Screwed inverted piece of picatinny rail to bottom of extension.
#3- 30mm scope ring high placed on buffer tube inverted (fit tube perfect)
#4- AR style buffer tube and butt stock.
It all works great. Scope/ Dot eye window height can be adjusted by using different height scope rings on buffer tube and on scope.

View attachment 396776View attachment 396777View attachment 396778View attachment 396779

​

​

Brilliant creativity! If I can't find a way to attach my stock closer to the gun, I will go this route. Thanks!

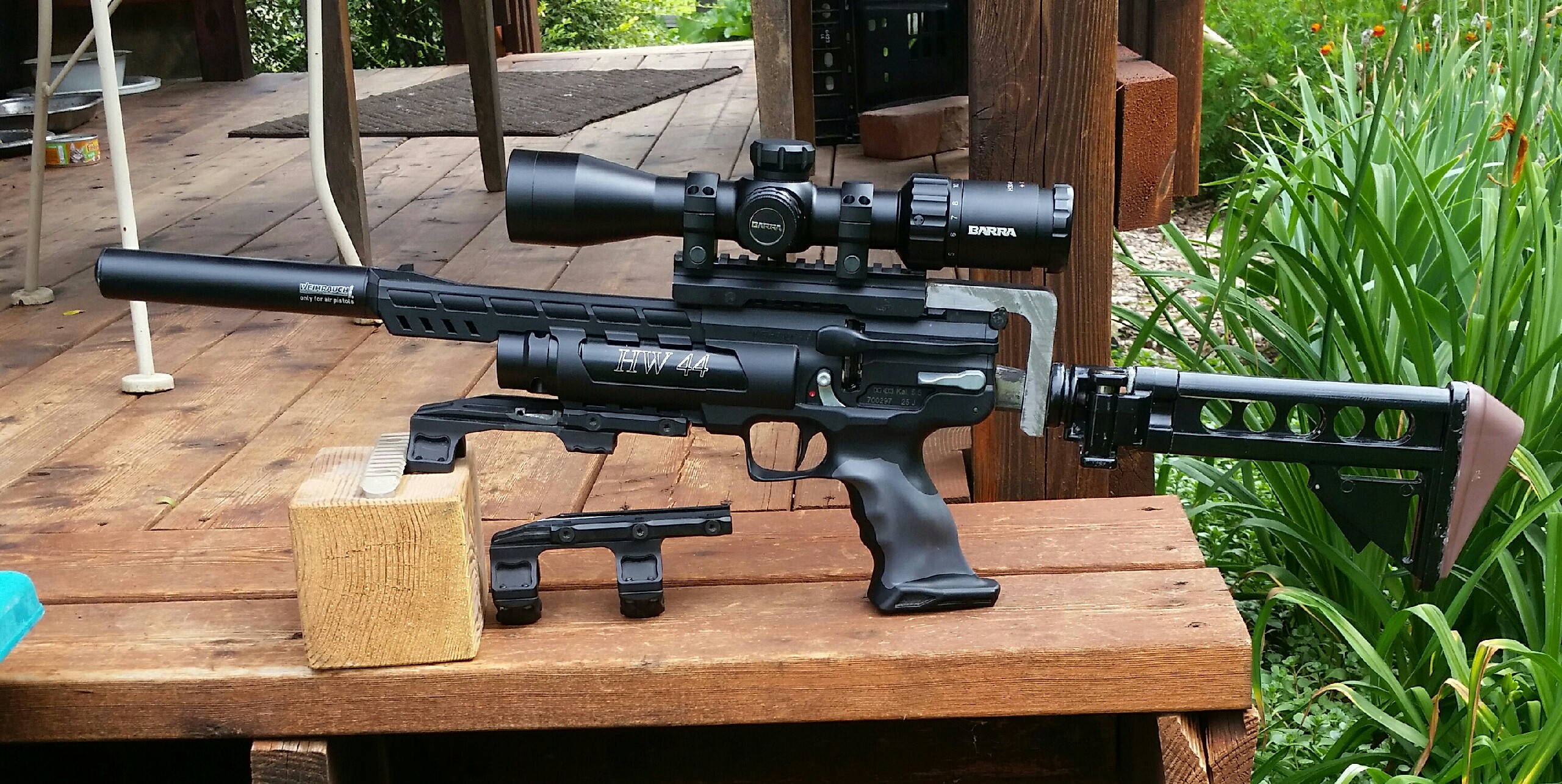

Here is a mock-up of what I am trying to achieve:



[h2okenny]

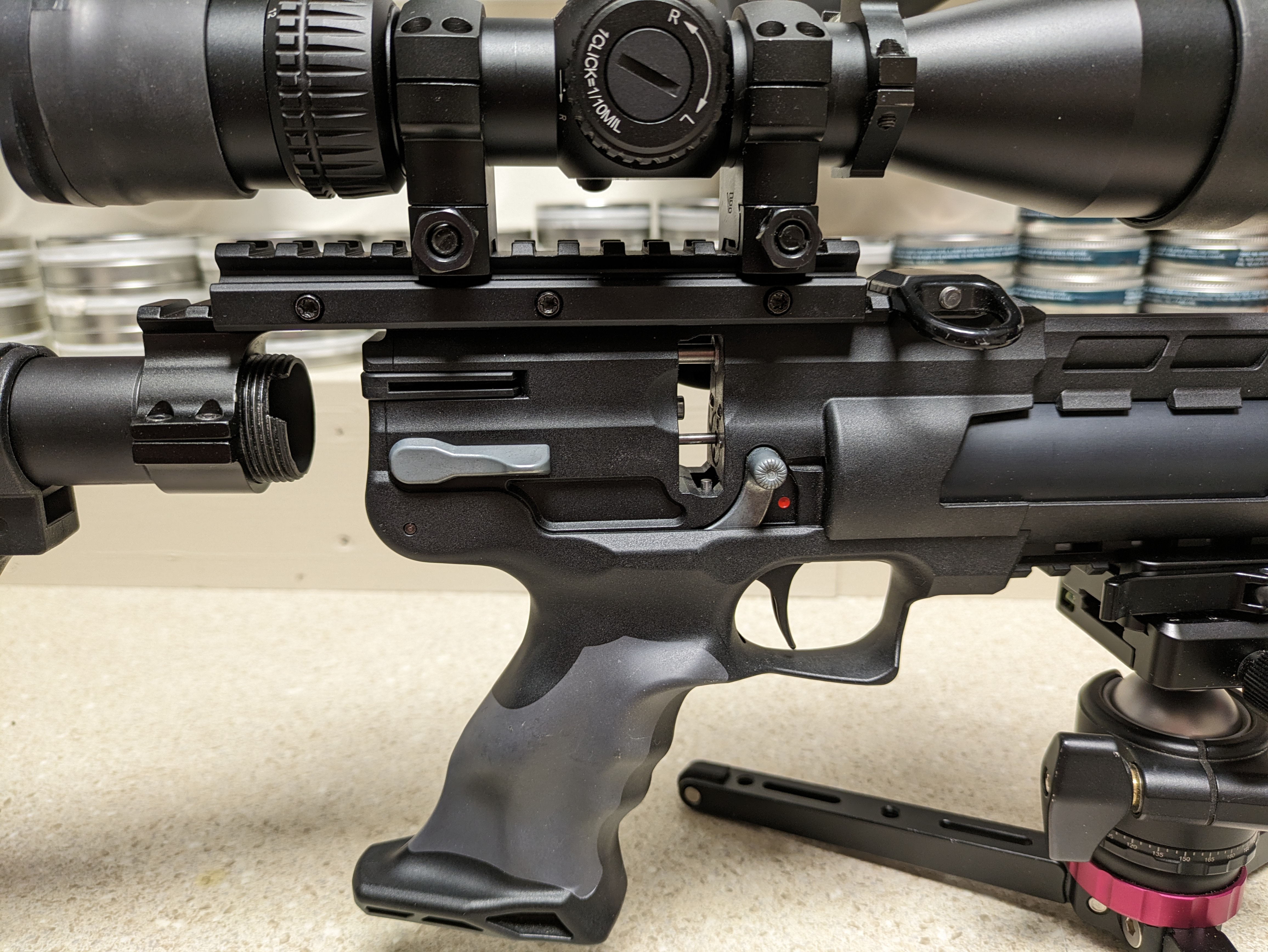

Leon's idea was brilliant! Here's a slightly different method to his version. It works great. Like Leon, I already had everything on hand. I had to remove the rear sight, but it makes for a very solid mount. Since this picture was taken I've trimmed off the exposed threads and plugged the buffer tube just to dress it up a bit.



[jarmstrong]

that is so easy and low cost,,, effective



[FelixS]

Now why didn't I think of that?



[h2okenny]

Now why didn't I think of that?
View attachment 441205

That's exactly what I said when I saw LWM211's post!!!!! Super simple and inexpensive.
