Kral Arms My latest project

[Dr. Kralenstein]

While waiting on parts for my other Kral build , I decided to build another Kral!

I came across this Rambo pump action breech block from Canada shooting supply, and had an old cut down gen 1 marauder stock that was meant for a bottle project.

I inletted the stock for the kral action, which went surprisingly well. The tube channel is the same size, and the rear trigger guard hole in the stock lined up with the hammer spring set screw threads. Gauge dropped right in! I just had to move the front action screw up about 1/2" to get to the original Kral lug hole.
Rocking an NP03 air tube, and I removed the NP03 style trigger and drilled/tapped the trigger block piece that drops the sear so I can attach a standard rifle trigger. I may do that on my other np03 build thats going rifle. Right now it's just got a 5-40 screw for a trigger lol. Will go up to 6-32 for the trigger post.

Waiting on an Np02 barrel for it, and then making a moderator that will clear the air tube. OAL will be around 35" when done. Currently it sits just shy of 31"



[Rvaughn]

That’s awesome dude! That thing is begging for a reflex sight, open sights or something made for a quick target acquisition.

That’d make a heck of of rabbit gun!



[Dr. Kralenstein]

That’s awesome dude! That thing is begging for a reflex sight, open sights or something made for a quick target acquisition.

That’d make a heck of of rabbit gun!

Thanks brother! I may have to try something like that, I just tossed my old Sniper 3-9x32 on there for reference and to make sure I got a good sight picture/height/cheek weld. It comes up PERFECT.



[Dr. Kralenstein]

That’s awesome dude! That thing is begging for a reflex sight, open sights or something made for a quick target acquisition.

That’d make a heck of of rabbit gun!

Took you up on the idea of a quick acquisition sight system and tossed on an old red dot I had collecting dust.

Sure makes it more fun! It's not the prettiest optic, but it'll work for now.

The target was at 10 meters standing. Would definitely make a great rabbit gun as you said. Those dummies will let you get vewy vewy close!



[Rvaughn]

Took you up on the idea of a quick acquisition sight system and tossed on an old red dot I had collecting dust.

Sure makes it more fun! It's not the prettiest optic, but it'll work for now.

The target was at 10 meters standing. Would definitely make a great rabbit gun as you said. Those dummies will let you get vewy vewy close!

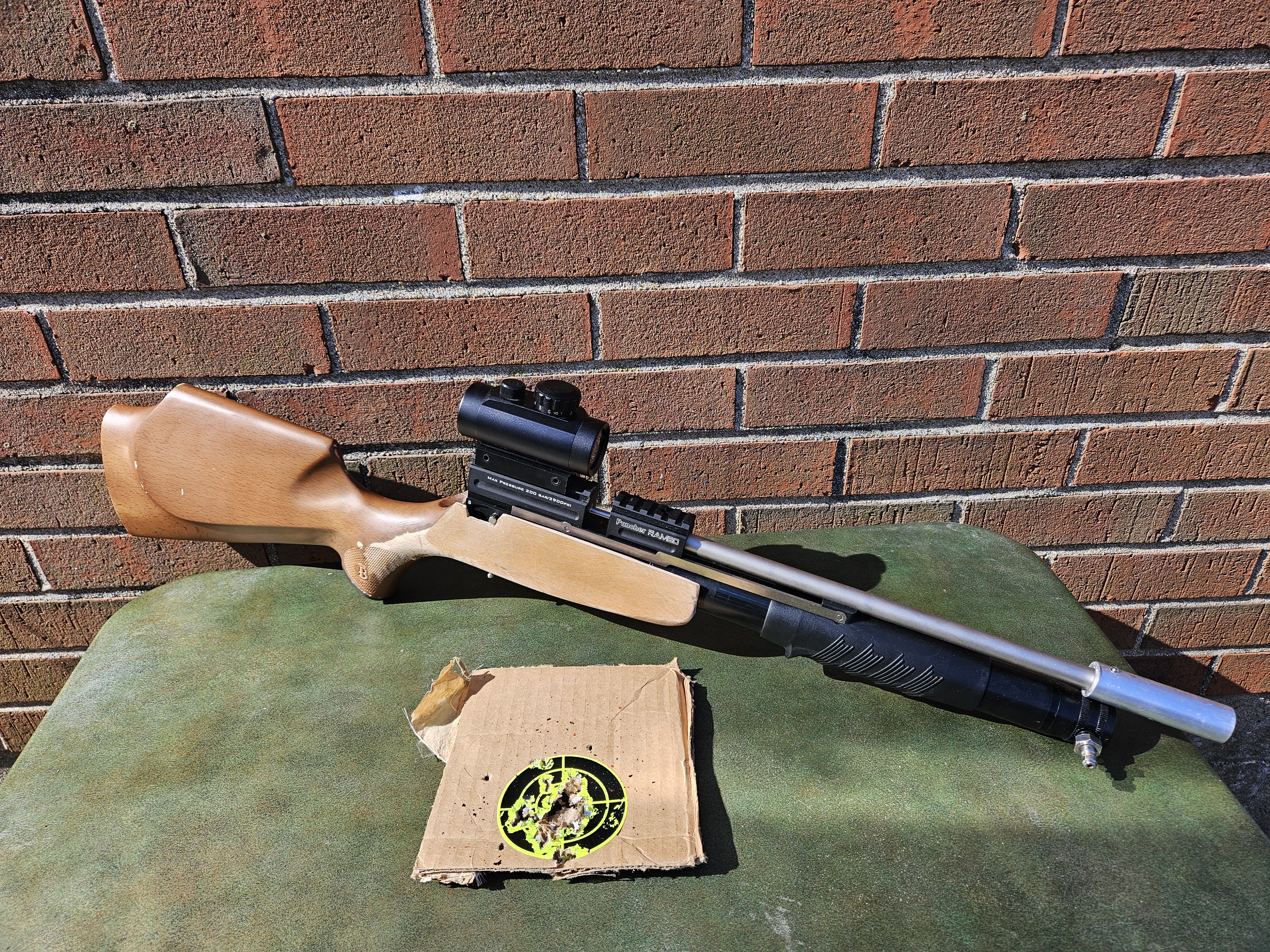

View attachment 443965

Haha! Vewy vewy close… and then they take off and stop 20yds away as if they’re now invisible lol..
They are easy pickings for sure!

Look like a fun gun!



[aroundlocks]

Looking at it in that wooden stock makes me think of np02 .
That would be a serious bit of kit if it could be plumbed into the npo2 stock and bottle.
And how compact it would be dr hmm
Just think of the shot count lol
love your experiments dr keep em coming



[Dr. Kralenstein]

Looking at it in that wooden stock makes me think of np02 .
That would be a serious bit of kit if it could be plumbed into the npo2 stock and bottle.
And how compact it would be dr hmm
Just think of the shot count lol
love your experiments dr keep em coming

It's currently using an np03 tube and cut down mega barrel to 13.5"

I do wonder if I could get it to use an np02 tube? I need the length of the tube, but I already know the cocking linkages arms would need to be shortened and welded back together, and the pump grip to be trimmed at the front and back. As it sits, the pump handle is just a bit too forward for me.

Do you happen to know the length of the np02 air tube?



[aroundlocks]

I have one
220mm mm from front of gauge back to the block.
I got you thinking
Your correct about pump grip" I can see it in my head now .
At your shoulder it would be perfect for cocking and very steady
And np02 stock set back from tube a fair bit might help you out and block drop straight in more or less



[beerthief]

I think i could
'waste " a lot of pellets with that gun !!



[Dr. Kralenstein]

So roughly 8.6 inches. The np03 tube is right at 12 inches. So using my basic math skills, I have 3.5" difference in length, which falls about a quarter inch into the pump grip.

Problem is, the fill port would be back another inch or so. If have to butcher some stuff up pretty good to get it right. Hmmm....



[Dr. Kralenstein]

I think i could
'waste " a lot of pellets with that gun !!

Oh you'll fly right through them. About 50 shots at 650 with 16ish grains. I've went through a 200ct tin of norma GT this morning in less than 30 minutes.



[beerthief]

Rambo ‹ Puncher PCP ‹ Air Rifles ‹ Kral Arms

www.kralarms.com



[Dr. Kralenstein]

Rambo ‹ Puncher PCP ‹ Air Rifles ‹ Kral Arms

www.kralarms.com

Yep, that's the original rifle. I bought just the action block from Canada shooting supply, and used my np03 tube and the cut down barrel. I may change up the stock and move the trigger back to the middle of the action, shorten the length of pull and give it a pistol grip and SVD type stock.



[Privateer]

Nice build there Mate! Manny got me into a small build mode from a Carbine he did.
I'm kind of copying his build but with a .22 Gen 1 RainStorm. Threading parts arrived so it's time to thread the muzzle on the cut down barrel.



[aroundlocks]

Hi dr
Kral np02 barrel is very short 11 1/2 inches but still very accurate.
Some pics so you can see better



[Dr. Kralenstein]

Hi dr
Kral np02 barrel is very short 11 1/2 inches but still very accurate.
Some pics so you can see better
Just wondering if the pump grip would wrap around np02 tube

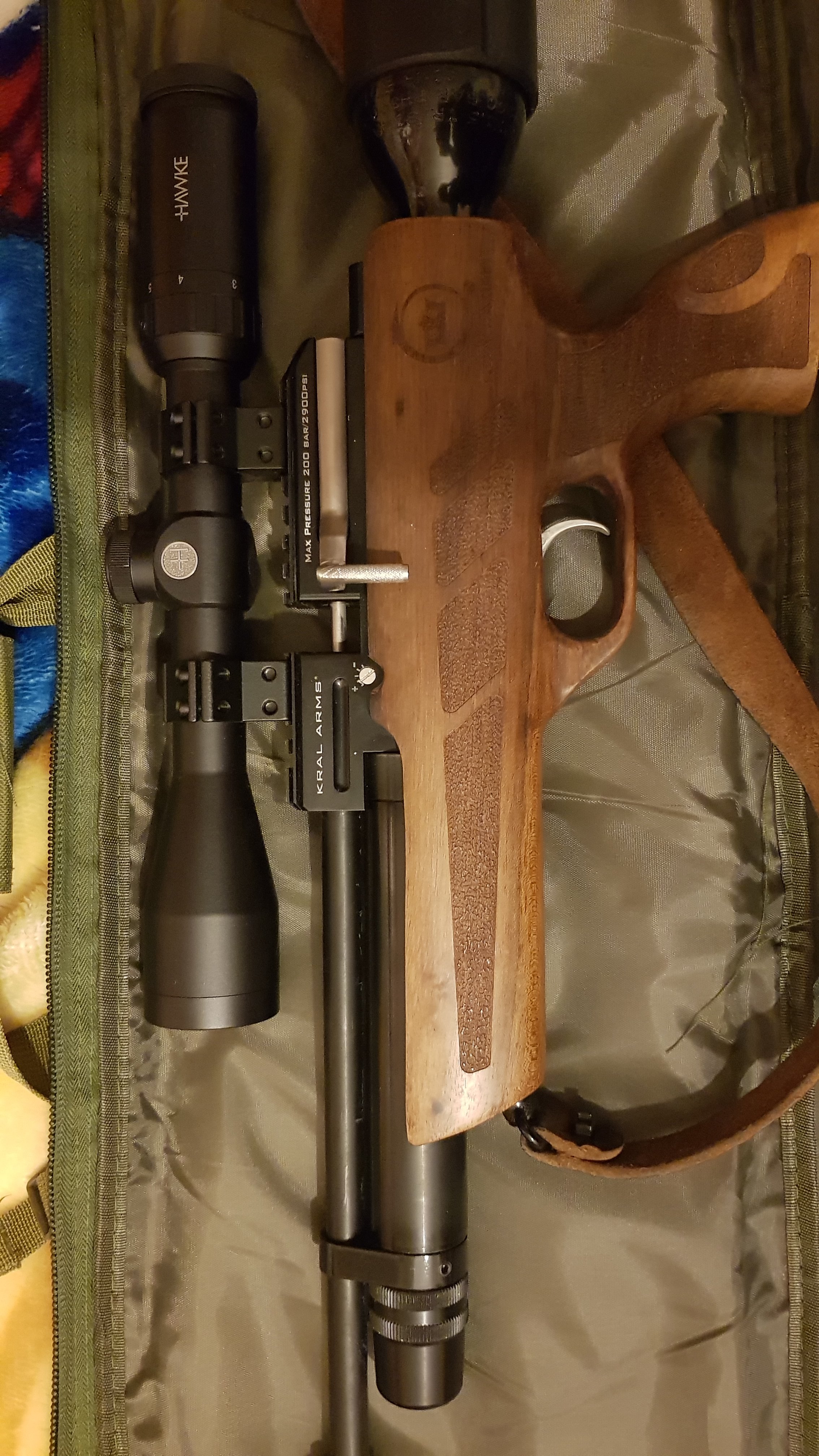

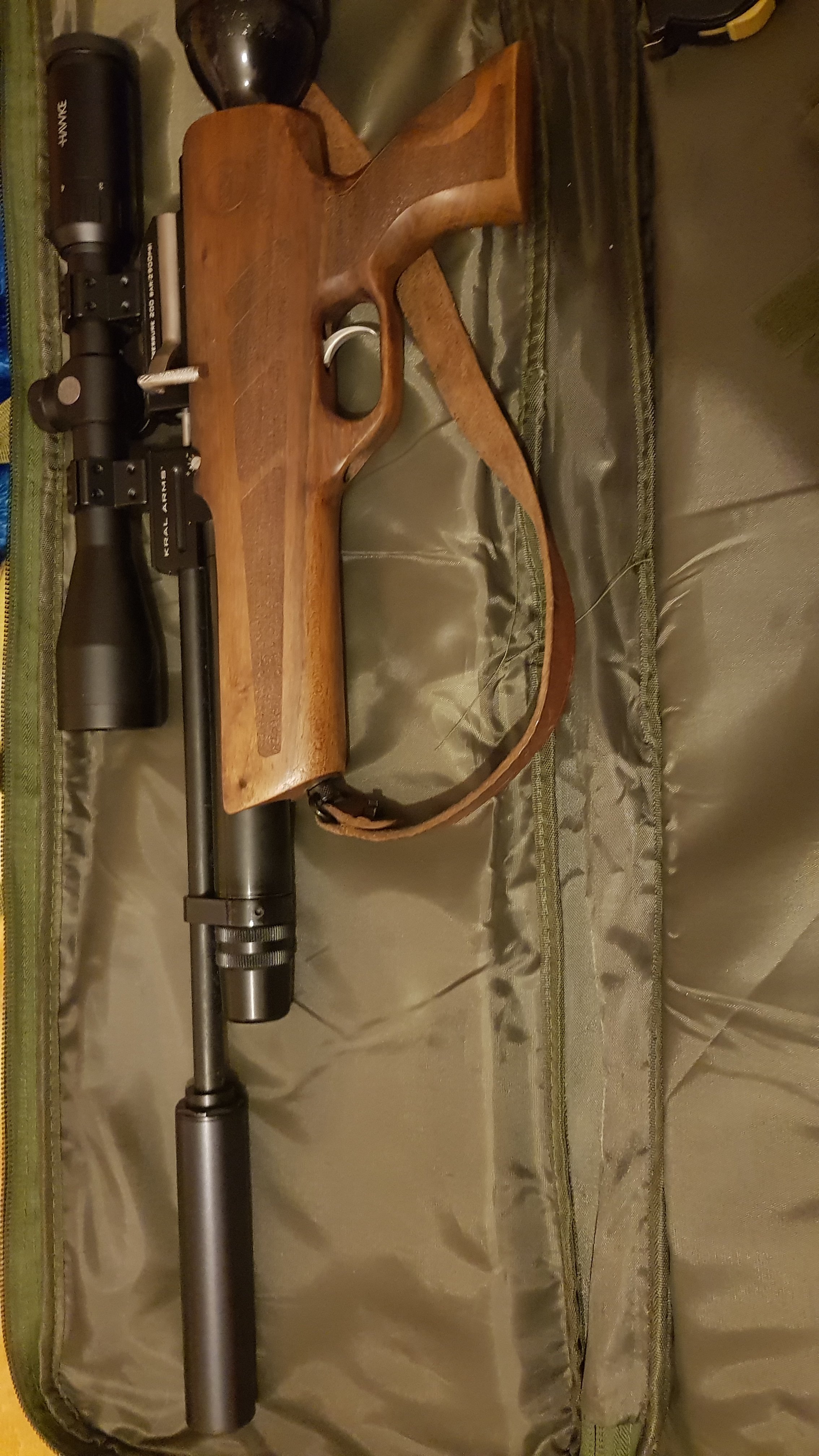

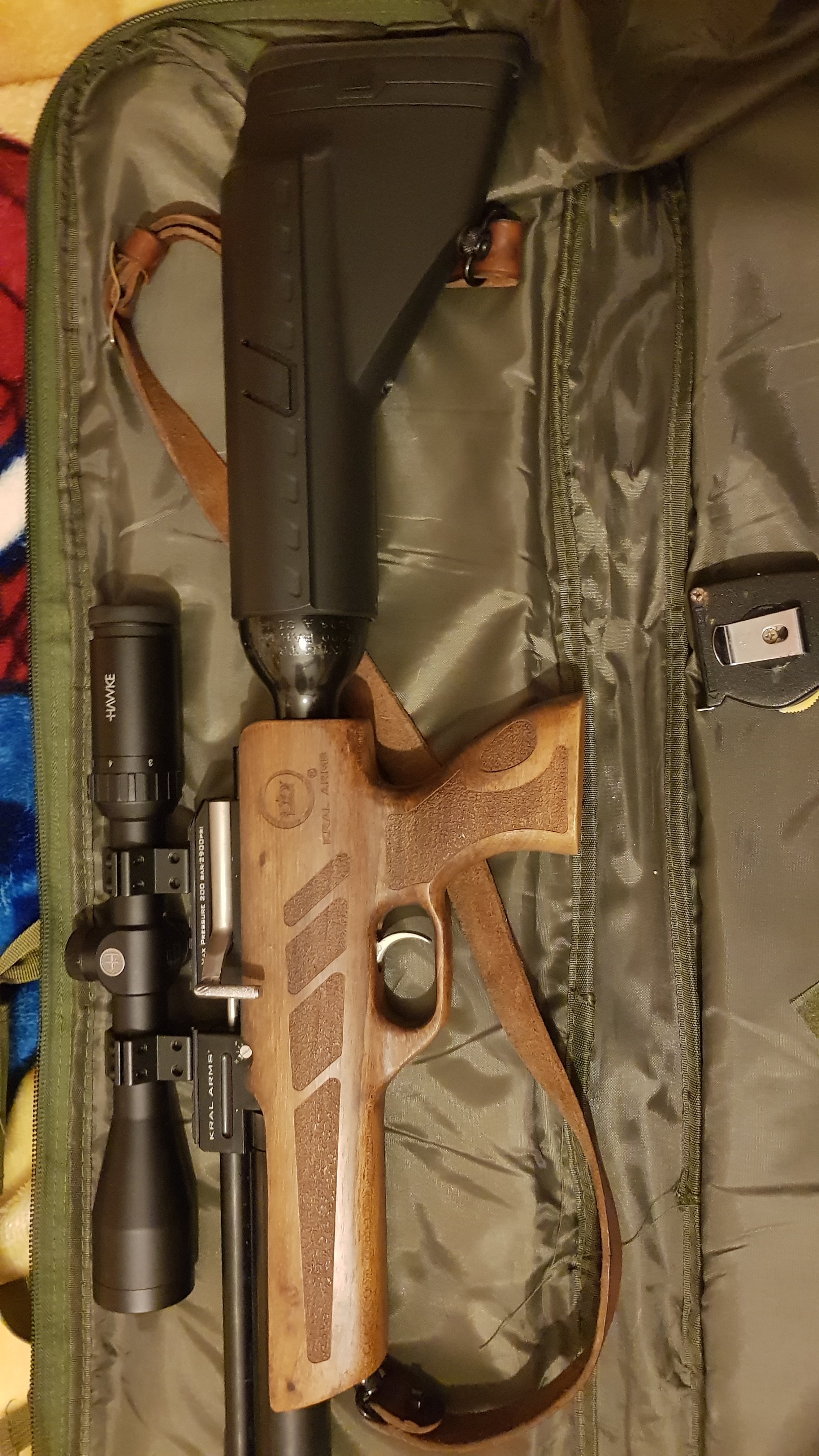

View attachment 444012

View attachment 444013

View attachment 444014

Tube diameter is all the same across the kral puncher line. The np02 has a 13" barrel. If you have the 11.5" barrel, then it's the np01 barrel on there. Remember if you're measuring from the end of the breech, there is still almost 2 inches inside the breech that is barrel length.

I have np01,2,3 barrels and jumbo barrels in my stable. Kral guns are very much like Legos. If custom manufactures would realize this, these guns could be making them tons of money.



[Privateer]

Isn't the Kral's a lot like the Evanix RainStorm?



[aroundlocks]

Hi dr
Yes you are correct about barrel I just remembered I swapped barrel a while back for np01 for testing purposes .
Looking at Rambo stock its very similar to np just cut back more?



[Dr. Kralenstein]

Isn't the Kral's a lot like the Evanix RainStorm?

Very similar. I think kral copied them in the beginning, and them revised them after having issues with the trigger and valves. The 2018+ puncher line is pretty rock solid now.



[Dr. Kralenstein]

Hi dr
Yes you are correct about barrel I just remembered I swapped barrel a while back for np01 for testing purposes .
Looking at Rambo stock its very similar to np just cut back more?

Yep, cut it just in front of the gauge. They have a few breech blocks left at canadashootingsupply.ca

I don't think it will clear the tube and fill probe without a lot of modification.
