Crosman Need a 2240 Measurement Please---

[ray1377]

Hi All

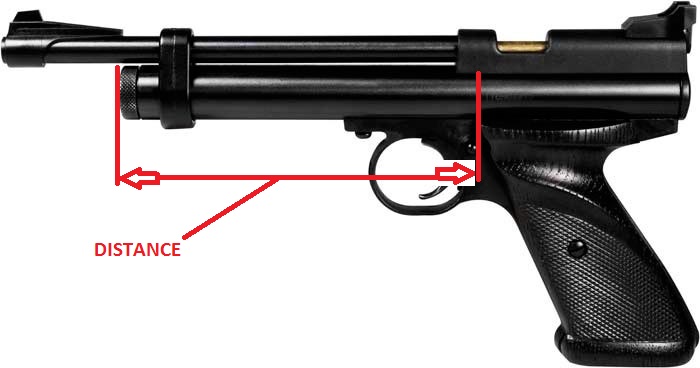

I'm in need of a measurement off a factory stock 2240. I need to know the distance from the end of the co2 screw on cap back to the center of the exhaust port hole in the pressure tube. Can someone help me?

Thanks
Ray



[marflow 777]

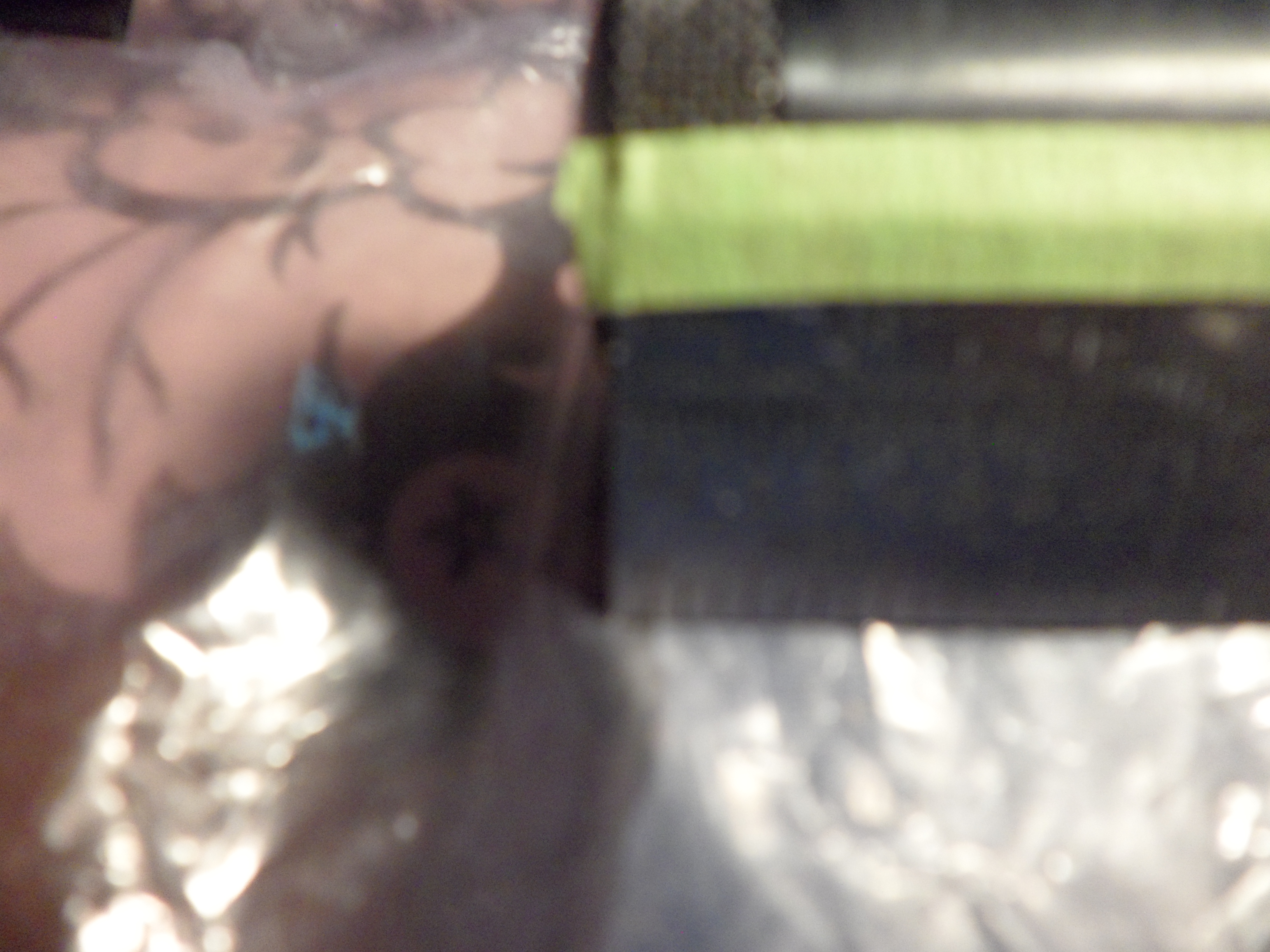

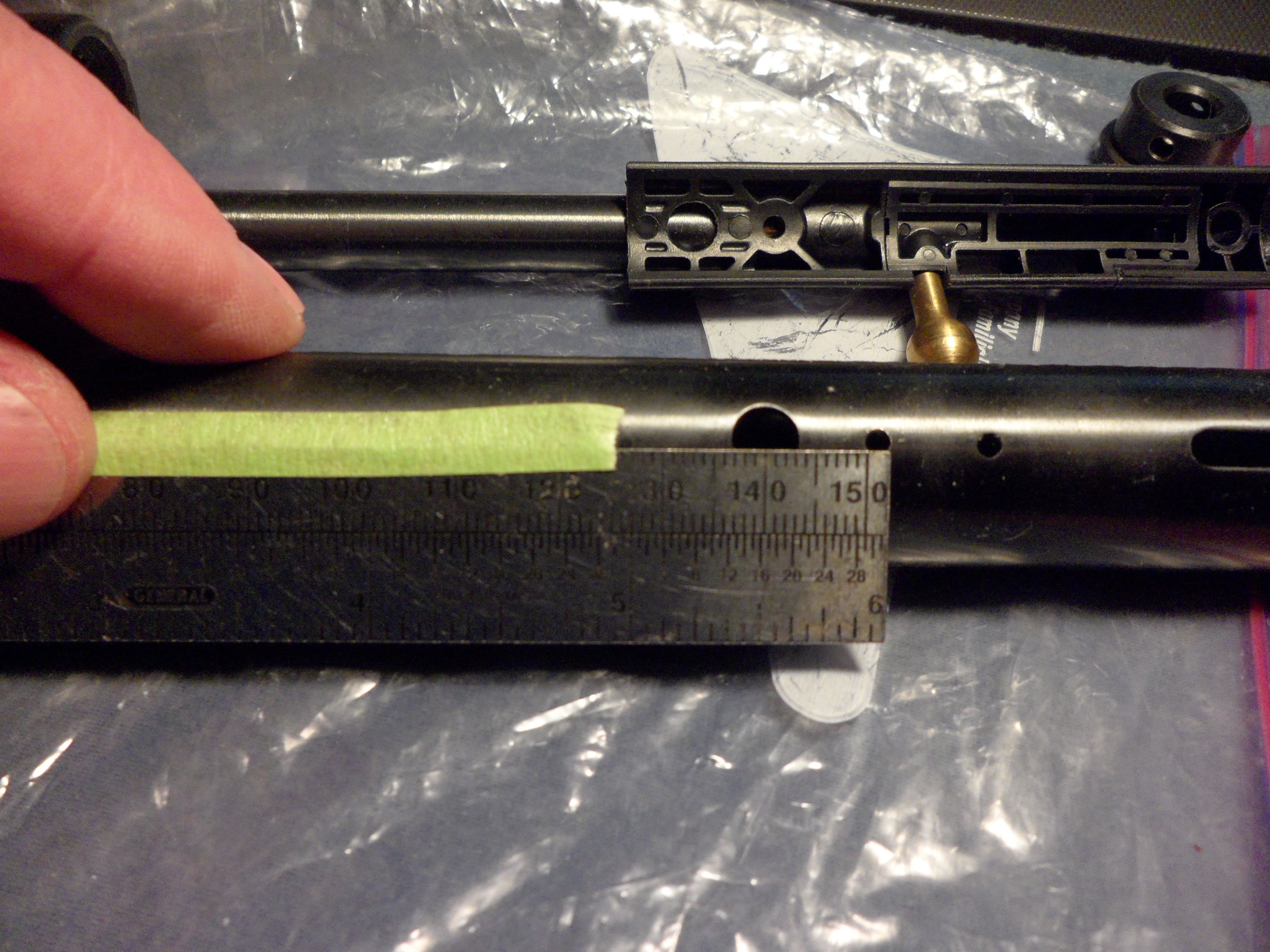

140mm from center the front edge of knurled cap screwed in without cart



[ray1377]

140mm from center the front edge of knurled cap screwed in without cartView attachment 419336View attachment 419337

Man thanks a bunch. I appreciate it.
Ray



[Felinis]

142 mm +- 1mm.



[.20calguy]

Man thanks a bunch. I appreciate it.
Ray

Just for fun, would you elaborate on what your project is?



[ray1377]

Just for fun, would you elaborate on what your project is?

Sure, I'm rounding up all the stuff to make myself a 2240 stubby
Ray



[marflow 777]

Alliance Hobby
so let me spend some of your money
short steel breech
a new tube smooth powder coated or not
it is a start



[ray1377]

That would be nice but i'm still straining after the wife spread all that Christmas cheer, LOL
Probably gonna modify with what I have on hand at the moment. But thanks anyway.
Ray
