FX New panthera gun HELP!!!

Jump to latest Follow Reply
S

shrive81

Member
Oct 13, 2024
43
51
Yucaipa California
Hey guys

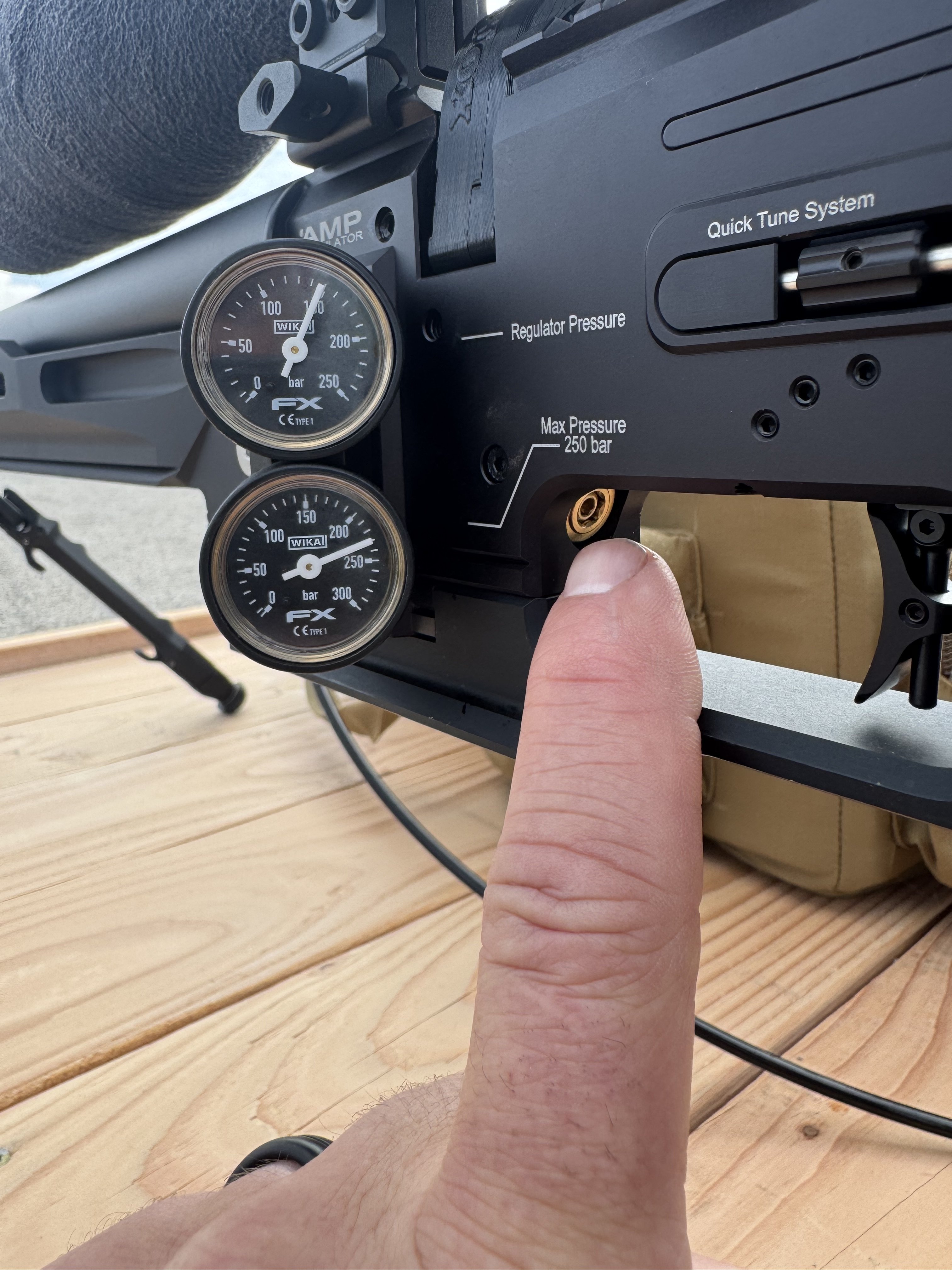

Need some help I am setting up a brand new panthera and noticed when I adjust the regulator pressure to 150 or above it starts to leak and bleed air around the regulator adjustment….. where my finger is pointing…. From what I understand that isn’t normal but wanted to see if I’m missing something before I send this gun back to Utah airguns to be fixed it states doing this the second I shot it for the first time and adjusted the regulator pressure…. Any help would be awesome


Thanks


shrive81 said:
Hey guys

Need some help I am setting up a brand new panthera and noticed when I adjust the regulator pressure to 150 or above it starts to leak and bleed air around the regulator adjustment….. where my finger is pointing…. From what I understand that isn’t normal but wanted to see if I’m missing something before I send this gun back to Utah airguns to be fixed it states doing this the second I shot it for the first time and adjusted the regulator pressure…. Any help would be awesome


Thanks

View attachment 509492
Click to expand...
Sounds like you need to rebuild the regulator, the O rings inside the regulator housing have given out.

Upvote 0
Yep. Sounds like a bad oring on the reg adjustment screw. I had that happen to my Impact after several years of use. Wasn’t that bad of a job to replace the orings. If yours is new though and under warranty might as well send it back. Don’t be discouraged though. The Panthera is an awesome rifle. I have one and really like it a lot.
Kenny

  • Like
Reactions: JaceSpace1369
Upvote 0
Kgphotos said:
Yep. Sounds like a bad oring on the reg adjustment screw. I had that happen to my Impact after several years of use. Wasn’t that bad of a job to replace the orings. If yours is new though and under warranty might as well send it back. Don’t be discouraged though. The Panthera is an awesome rifle. I have one and really like it a lot.
Kenny
Click to expand...
Yeah it was the first shoot session of the gun so kinda sucks but it’s all good I can send it back

  • Sad
Reactions: JaceSpace1369
Upvote 0
Not meant wrong in any way, have one myself, but If you have a Panthera or pretty much anything recently made by FX you will do yourself a favor by learning how to service them yourself, otherwise there's a half decent chance you end up having the gun sent out more than you actually get out and shoot it...

You're looking at replacing o ring(s) number 7 as seen on on page 5, which go on part 8 found on that same page;


You'll find out how to degass these on youtube.

Last edited:
Upvote 0
Vince said:
Not meant wrong in any way, have one myself, but If you have a Panthera or pretty much anything recently made by FX you will do yourself a favor to learn how to service them yourself, otherwise there's a half decent chance you end up having the gun sent out more than you actually get out and shoot it...

You're looking at replaceing o ring(s) number 7 as seen on on page 5, which go on part 8 found on that same page


You'll find out how to degass these when browsing youtube.
Click to expand...
thanks yeah i an totally new but you are correct i need to learn how to service the gun just was hoping i wouldnt have to do that on the 1st day LOL thank you for the diagram

Upvote 0
Upvote 0
Vince said:
Not meant wrong in any way, have one myself, but If you have a Panthera or pretty much anything recently made by FX you will do yourself a favor by learning how to service them yourself, otherwise there's a half decent chance you end up having the gun sent out more than you actually get out and shoot it...

You're looking at replacing o ring(s) number 7 as seen on on page 5, which go on part 8 found on that same page;


You'll find out how to degass these on youtube.
Click to expand...
Great advice for sure. Hopefully your hand eye skill is better than mine. I found the amp reg an utter nightmare to work on. They will all fail at some point so that skill is a good one to develop. Still trying to decide myself to hang in there or completely break away from the platform. My last FX has 2 amp regs and the future gives me nightmares thinking about 2 to deal with. Lol

Upvote 0
