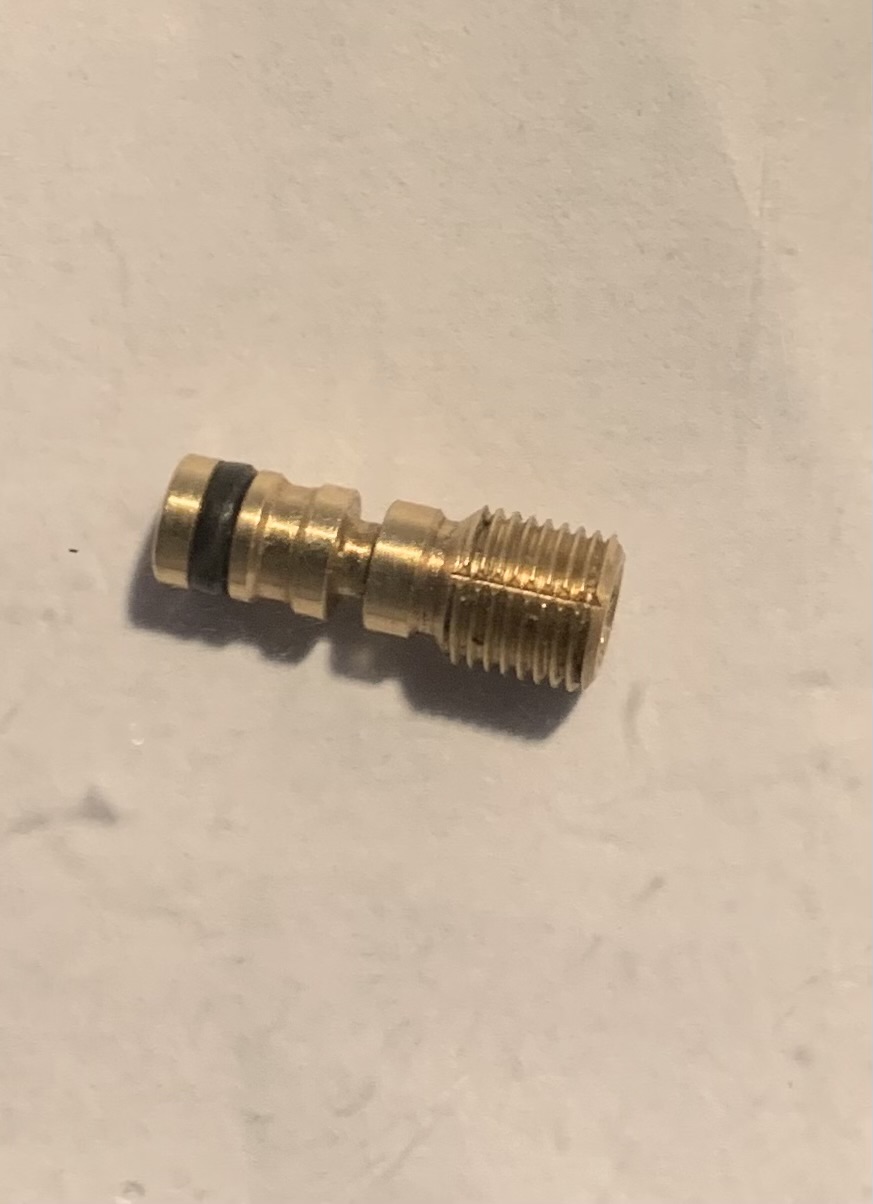

Tried a search...NOTHING. Anyone have the size, hardness, or source for adjust screw o-rings?
Thanks for help.
Thanks for help.
FX O-rings for FX Regulator Adjust screw?
- Thread starter Laeljon
- Start date
You might give Utah airguns a call and ask to speak to a repair tech. I did just that a few days ago and the guy I spoke with was helpful.
Upvote 0
I'll say it again, EVERY airgunner should have a caliper!!! In the time it takes to post here you could have had the correct size. If you ordered o-rings from the industrial suppliers (Mcmaster-Carr, The O-ring Store, etc.) You can try different durometer ratings for a price that's probably LESS than what one oem O-ring would cost.
Upvote 0
Hi,
You should go to the FX Sweden website and under the Support heading you can download the parts diagram for any FX rifle as well as all the o-rings and their sizes. You can also go on the internet and find complete o-ring kits for any FX rifle from Ebay. Both of these items help when playing with the indsides of your rifle.
To answer your original question those o-rings are 2x1 NBR 90. They pretty much need to be cut to get them off. To put new ones on I found the AMP regulator kit from Bagnal and Kirkwood (UK supplier online) that has the Sub12Airgunners (You Tube Channel) "witches hat" makes getting the o-rings on doable. Without the "witches hat I had no success just trying to roll them on. NBR 90 is a very stiff material.
Hope this helps.
Cheers,
Greg
You should go to the FX Sweden website and under the Support heading you can download the parts diagram for any FX rifle as well as all the o-rings and their sizes. You can also go on the internet and find complete o-ring kits for any FX rifle from Ebay. Both of these items help when playing with the indsides of your rifle.
To answer your original question those o-rings are 2x1 NBR 90. They pretty much need to be cut to get them off. To put new ones on I found the AMP regulator kit from Bagnal and Kirkwood (UK supplier online) that has the Sub12Airgunners (You Tube Channel) "witches hat" makes getting the o-rings on doable. Without the "witches hat I had no success just trying to roll them on. NBR 90 is a very stiff material.
Hope this helps.
Cheers,
Greg
Upvote 0
An FYI about reseal kits-the FX branded kit for my Royale I bought from Utah Air did not include either the outer or inner regulator seals, Not sure about other kits.
Upvote 0

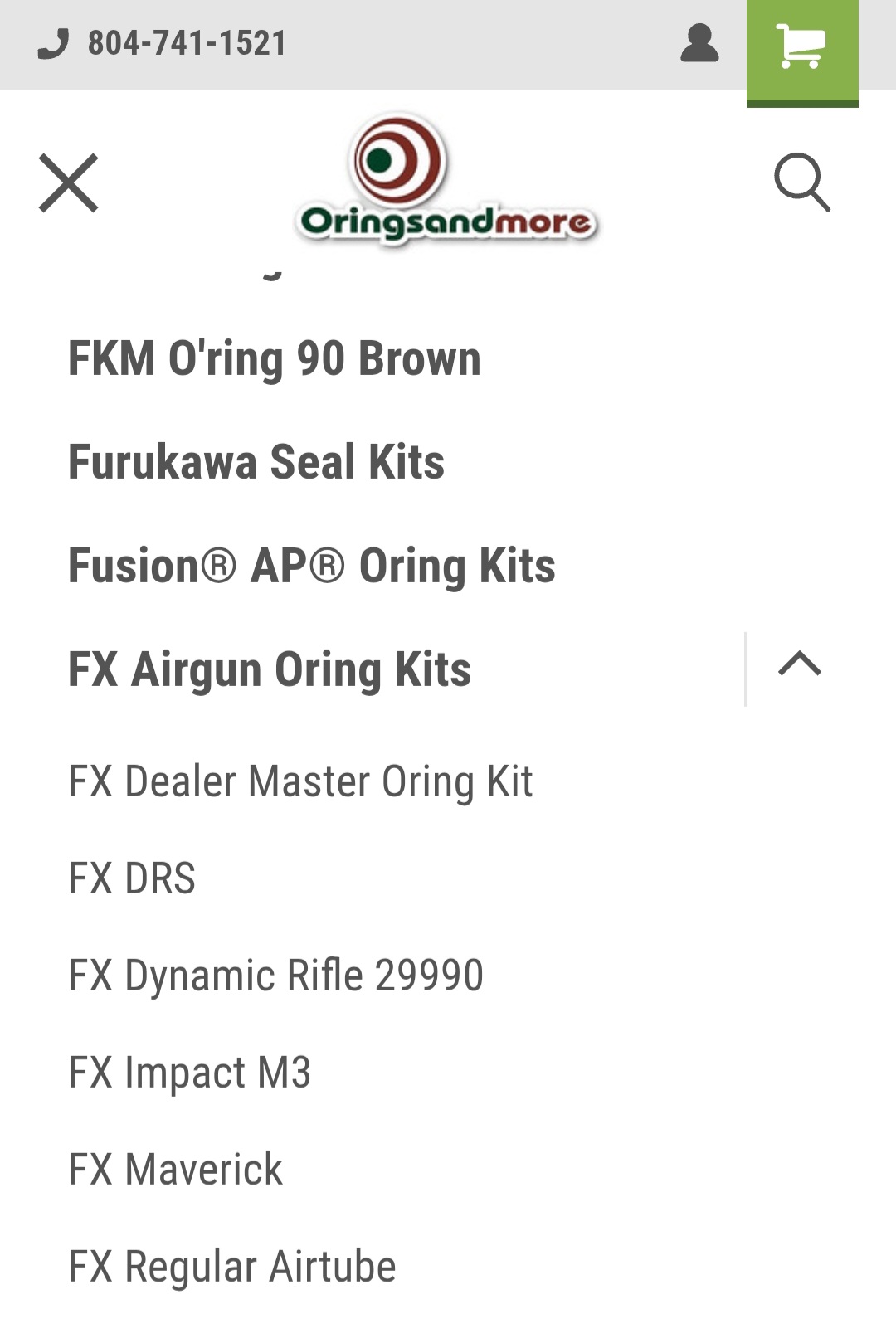

Orings and More | Metric Orings and Hydraulic Seals
Stocking distributor of metric o-rings and seals in various materials and sizes. Metric Orings in Buna 70 & 90, Silicone, Viton and EPDM material.
www.oringsandmore.com Upvote 0
Dunno what rifle you are working on but I think all the AMP series regs have the same orings. Here is a Wildcat diagram with oring sizes listed by FX.
Upvote 0
They don't even list them or show them in this diagram....I had a replacement reg adjuster. Just don't need a 100 O-Rings. Seems to be the only way to order.
Upvote 0
Oops sorry here is another diagram that shows FX spec for those orings. A25 in the parts list. @Scotty1 already posted the specs but if you want to see it directly from the horses mouth the FX parts diagrams are nice to have handy. A pack of 100 is probably one a few bucks, even if you have to pay for shipping Im telling you right now it would be much more if you bought 2 from an FX retailer. They normally charge like $5-10USD for each oring plus shipping.
Upvote 0
If you're going to order those you might as well get the others needed if you pull the regulator out for a rebuild. Very cheap and you'll have a lifetime supply. There's the one that's just inside the regulator body, that seals the piston shaft to the ID of the regulator body, 10X4 I think. It also fits the piston itself. Then the PITA one down in the body of the action that seals the external of the regulator body against the action. If needed I can find the size of each.
Upvote 0
Thank You! Been looking for this diagram. I have had my FX Impact and Wildcat apart before and reassembled . Both airguns are working fantastic.
Upvote 0
FYI, there is a really cool search function on this site and it could have come up with this little tidbit.
I've been digging deeper into the FX Mavericks o-rings and I've found that there are serious errors in both the online schematic AND the schematic they send with o-ring orders.
The schematic sent has different hardness's i.e. NBR90 instead of NBR70, this makes sense except one is several mm thicker than possible in it's location. The on-line schematic has the old durometer numbers but the right sizes. Numbers below correspond to the online schematic.
13) 10.0 x 1.5 NBR90 inside Regulator hole at bottom of threads
18) 7.5 x 2 NBR70 Regulator Body
20) 4.0 x 1.5 NBR90 End of Piston
23) 4.0 x 1.5 NBR90 Inside Regulator Body
25) 2.0 x 1.0 NBR90 (2x) Adjustment Screw, suggestion heat in boiling water slip on first one, then second one, or if you have a witches hat it’s easier. Installing the adjusting screw in upside down in a clamp or the gun makes it easier to get the little suckers on. Also lube them with real synthetic oil.
The online schematics may be corrected by now.
I've been digging deeper into the FX Mavericks o-rings and I've found that there are serious errors in both the online schematic AND the schematic they send with o-ring orders.
The schematic sent has different hardness's i.e. NBR90 instead of NBR70, this makes sense except one is several mm thicker than possible in it's location. The on-line schematic has the old durometer numbers but the right sizes. Numbers below correspond to the online schematic.
13) 10.0 x 1.5 NBR90 inside Regulator hole at bottom of threads
18) 7.5 x 2 NBR70 Regulator Body
20) 4.0 x 1.5 NBR90 End of Piston
23) 4.0 x 1.5 NBR90 Inside Regulator Body
25) 2.0 x 1.0 NBR90 (2x) Adjustment Screw, suggestion heat in boiling water slip on first one, then second one, or if you have a witches hat it’s easier. Installing the adjusting screw in upside down in a clamp or the gun makes it easier to get the little suckers on. Also lube them with real synthetic oil.
The online schematics may be corrected by now.
Upvote 0
As Gerry said, you gotta have a good caliper. Failing that, for anything FX, call Newman Buck. His company is Cape Fear Airguns, and he has a web site.
Upvote 0
You can call Utah Airguns or Cape Fear Airguns or watch the videos on Youtube by FX or 910airgun and they will tell you the size and type you need.
Upvote 0
