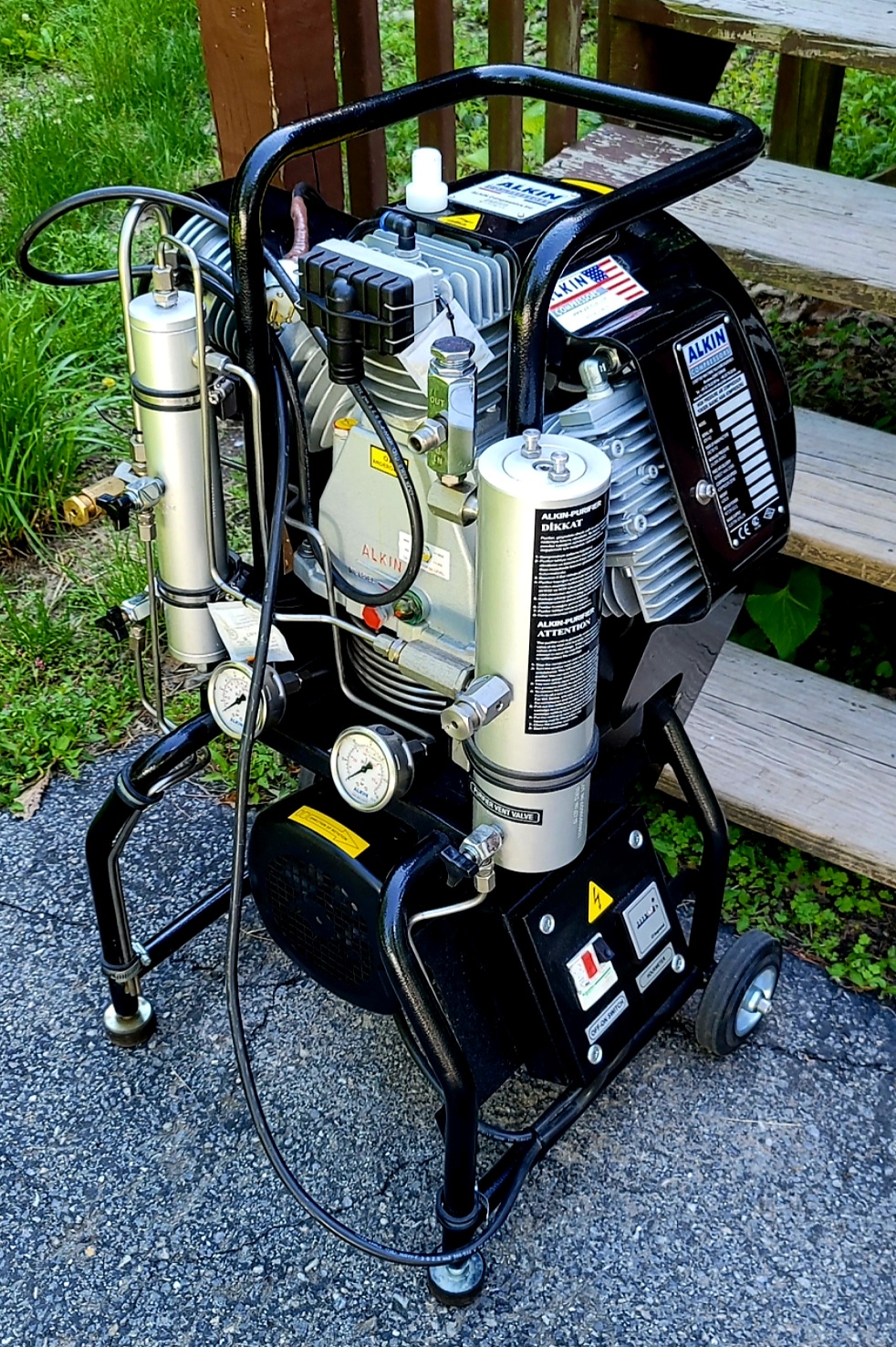

Here's my 220v manual model. Great machine. Still amazed how quickly it fills my tanks. Guppy from 0-4500 7 mins
Upvote 0
Sure! Go for it!Hey that's a great picture! We would love to use that for our Instagram! Do we have your permission to share the photo?
- [email protected] is my email if you have any questions or concerns
I want to know as well. If I only put 15 hours on the machine in 1 year. Do I still need to complete an oil change? And should I change my filter's also?My 2004 W31 Horizontal model just hit 55 original hours. I’m the third owner, I believe. Second owner was Gene and Rodger the owners of Airtanksplus.
I did all my own wiring. Years ago when I built my garage I ran #8 wire from the sub panel to an empty four square box, planning for an air tool compressor one day. That never happened, so the space I had in the sub panel went towards the Alkin, and all I had to do was put it the correct wall plug. I then took a 25’ #12 cord, cut off the ends, and put on the correct plug terminals and matched that up to the compressors cord also.
My Alkin rests on a four wheel construction cart rated for 350 lbs and it puts in in the perfect height for service, and the cart is big enough to hold the compressor and one 88 cu ft tank on the top, and under on the low shelf I store all pcp related items. My Alkin’s hose end is custom done by Gene at ATP, with a CGA347 end along with a valve shut off, pressure manometer and bleed screw, so I don’t have to bleed the air out of the hose to disconnect the tank, but I do anyway.
I do have a question for Maher, the Alkin rep that’s posting on this thread-
What’s best to follow when it comes to oil changes and filter replacements- hours in use or the amount of time the air filter and oil are within the Compressor? It it like a car, where it’s 7,000 miles or 6 months, whatever comes first? I replaced the air filter cartridge at like 44 hours and it’s been just over a year and now I have 11 hours on that filter. I know based on the replacement schedule my hours are way low to change the filter but like I said, it’s been over a year.
Thank you, Maher
My 2004 W31 Horizontal model just hit 55 original hours. I’m the third owner, I believe. Second owner was Gene and Rodger the owners of Airtanksplus.
I did all my own wiring. Years ago when I built my garage I ran #8 wire from the sub panel to an empty four square box, planning for an air tool compressor one day. That never happened, so the space I had in the sub panel went towards the Alkin, and all I had to do was put it the correct wall plug. I then took a 25’ #12 cord, cut off the ends, and put on the correct plug terminals and matched that up to the compressors cord also.
My Alkin rests on a four wheel construction cart rated for 350 lbs and it puts in in the perfect height for service, and the cart is big enough to hold the compressor and one 88 cu ft tank on the top, and under on the low shelf I store all pcp related items. My Alkin’s hose end is custom done by Gene at ATP, with a CGA347 end along with a valve shut off, pressure manometer and bleed screw, so I don’t have to bleed the air out of the hose to disconnect the tank, but I do anyway.
I do have a question for Maher, the Alkin rep that’s posting on this thread-
What’s best to follow when it comes to oil changes and filter replacements- hours in use or the amount of time the air filter and oil are within the Compressor? It it like a car, where it’s 7,000 miles or 6 months, whatever comes first? I replaced the air filter cartridge at like 44 hours and it’s been just over a year and now I have 11 hours on that filter. I know based on the replacement schedule my hours are way low to change the filter but like I said, it’s been over a year.
Thank you, Maher
Hi Dave,My Alkin is just at one year old and has 37 hours on it (I shoot a lot lol).
It’s been flawless and so efficient and quiet.
I top off my big bottle from about 3000 to about 4200 and it only takes something like six or eight minutes, all I know is it’s so fast you don’t leave the filling station!
And Aydin and the guys are more than helpful, they either answer the phone or call me back the same day.
The maintenance is quite easy really.
One thing that I noticed is that when I changed the oil it was pretty dirty after the 30+ hours in that first year of use.
Maher, I’m wondering if I should have changed the oil a little sooner, maybe at 15 hours?
It wasn’t horribly dirty, just not the honey color of the new oil.
And I also am wondering about when I bleed off the moisture, I open the bleed valves for about 5 or 10 seconds and get a little blast of moisture, but then the air pressure dies off even though the bleed valve is still open, is that normal?
Thanks for such a great compressor, wished I would have bought this first!

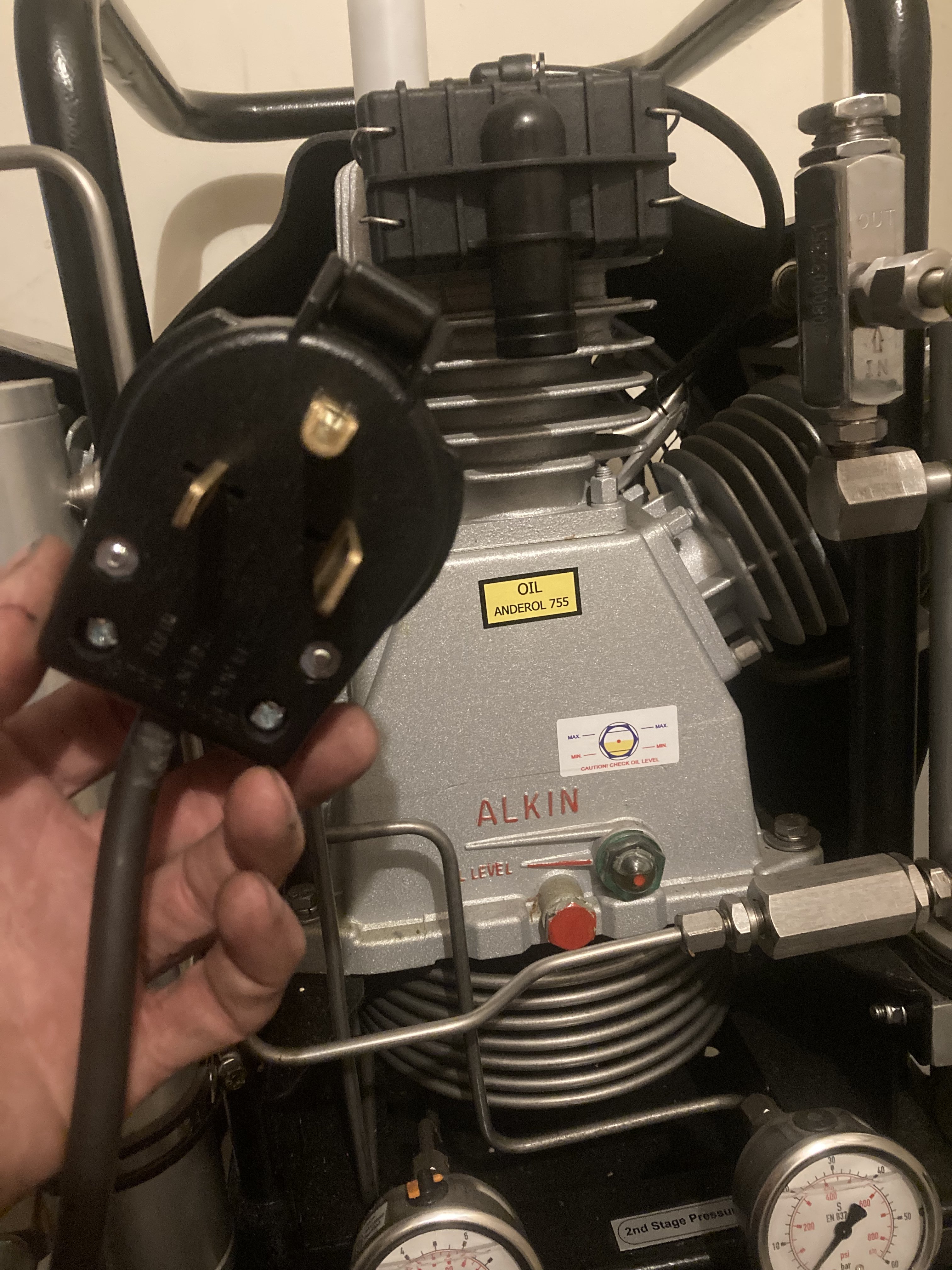

I can say nothing negative about my Alkin compressor.View attachment 271754
And could you elaborate on the timeline for which models are old or new?Hi Bigragu,
The new models are 250 hours or annually the older ones are every 100 hours our annually for oil changes. The filter should be changed along with the oil when you do the oil change.
Dave- to answer your question about the pressure drop when you do a manual moisture purge- yes- that’s going to happen. It’ll happen anytime you open the moisture or oil catch purge knobs. It’s no different than if an air line came loose on it’s fitting. It’s like a leak, so you will hear the compressor bog down as you release pressure.My Alkin is just at one year old and has 37 hours on it (I shoot a lot lol).
It’s been flawless and so efficient and quiet.
I top off my big bottle from about 3000 to about 4200 and it only takes something like six or eight minutes, all I know is it’s so fast you don’t leave the filling station!
And Aydin and the guys are more than helpful, they either answer the phone or call me back the same day.
The maintenance is quite easy really.
One thing that I noticed is that when I changed the oil it was pretty dirty after the 30+ hours in that first year of use.
Maher, I’m wondering if I should have changed the oil a little sooner, maybe at 15 hours?
It wasn’t horribly dirty, just not the honey color of the new oil.
And I also am wondering about when I bleed off the moisture, I open the bleed valves for about 5 or 10 seconds and get a little blast of moisture, but then the air pressure dies off even though the bleed valve is still open, is that normal?
Thanks for such a great compressor, wished I would have bought this first!
I can say nothing negative about my Alkin compressor.View attachment 271754
@ Wolfgang- is your crank case vent a closed loop design from the factory or did you install that hose yourself so as to minimize odors?
