Old crosman powermaster

[ajdavis912]

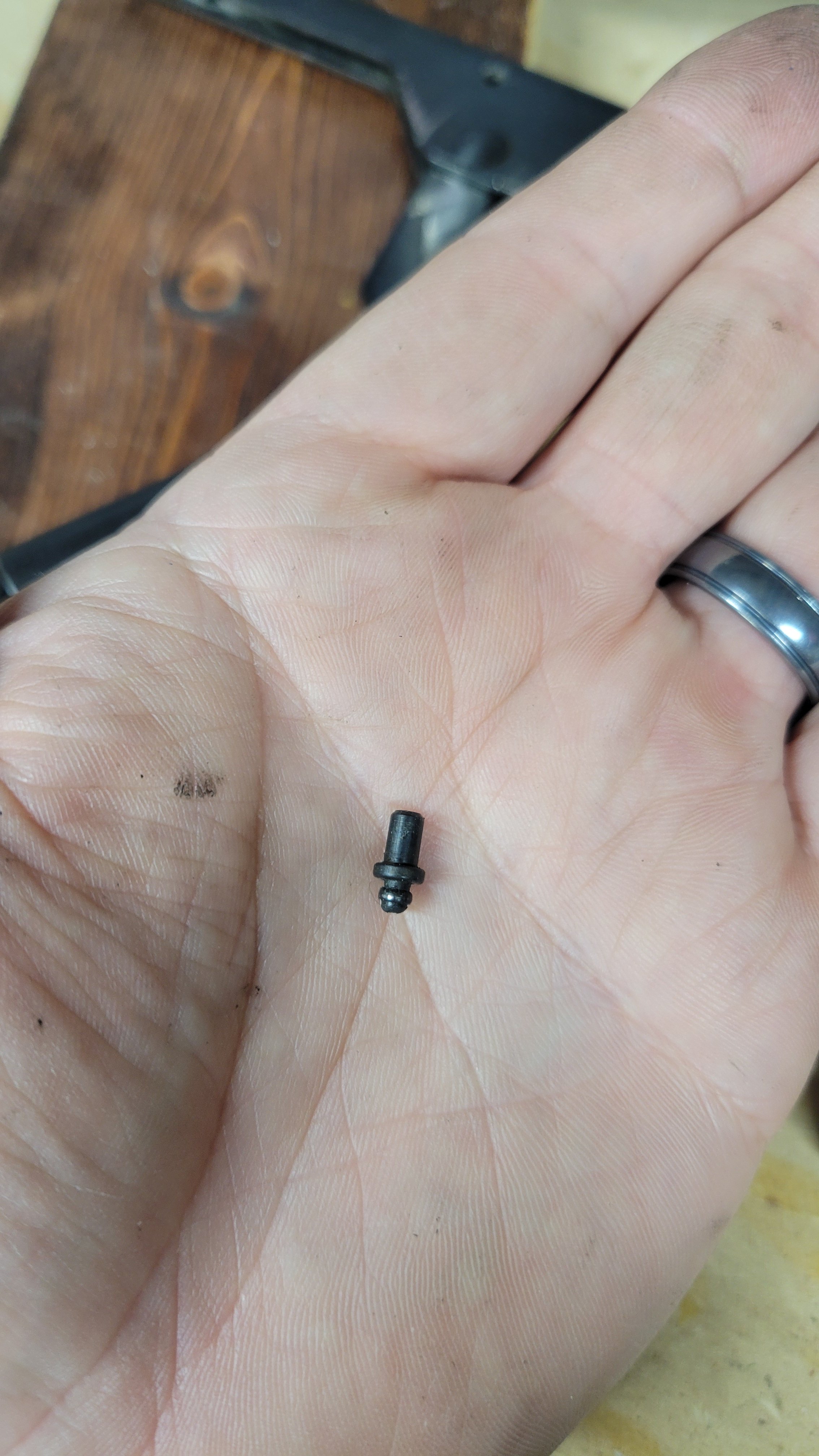

Does anyone know what this tiny piece is and where it goes? I have a schematic but can't seem to find it...maybe the pin for the hammer? I have a 1st or 2nd variant powermaster 760. Thanks in advance.



[Treefrog]

That goes in the left side of the barrel behind the breech. It's perpendicular to the bore. If you look there you'll see the spot for it. There should be a spring that goes behind it into the left-side receiver. It keeps more than one BB being carried forward by the bolt (I think). It's part #760-018

More pics, please....

J~



[ajdavis912]

That goes in the left side of the barrel behind the breech. It's perpendicular to the bore. If you look there you'll see the spot for it. There should be a spring that goes behind it into the left-side receiver. It keeps more than one BB being carried forward by the bolt (I think). It's part #760-018

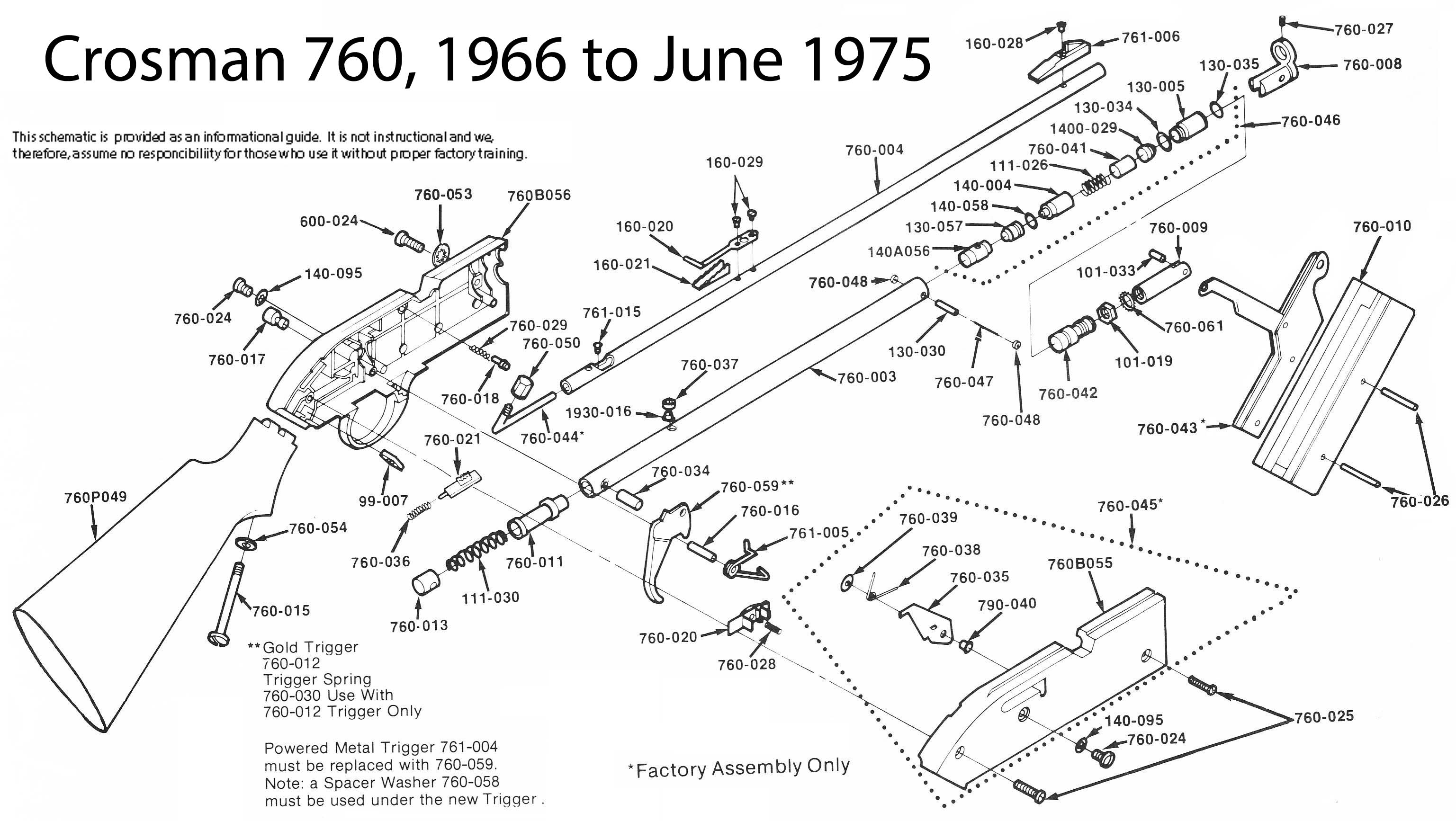

View attachment 349673

More pics, please....

J~

I see it...thanks so much for your help! Your pic is much better than the one I am using!
