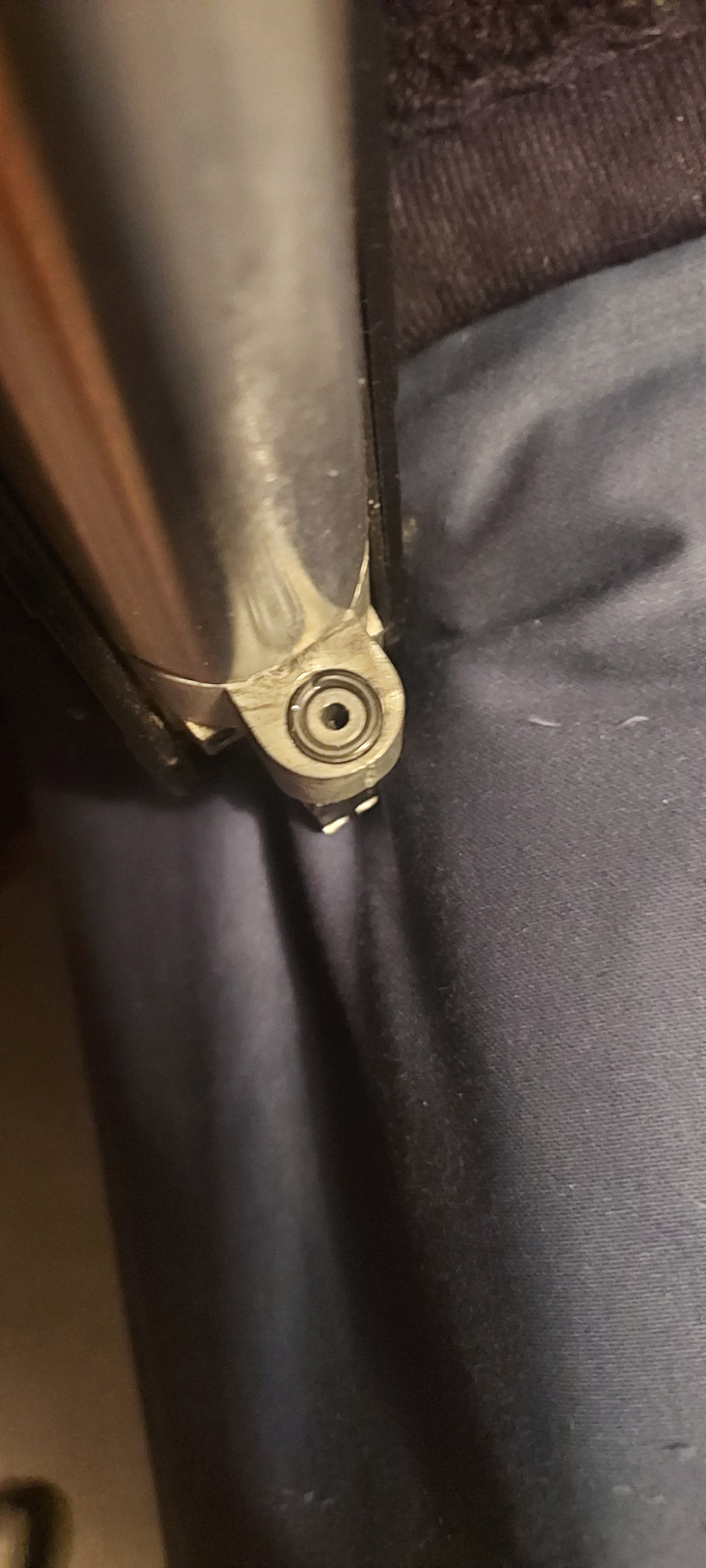

Doing maintenance and spotted a poopy o ring!
Wondering if anyone already has the info for this little bugger
Thanks in advance
Wondering if anyone already has the info for this little bugger
Thanks in advance
P17 seal?
- Thread starter iAMzehTOASTY1
- Start date

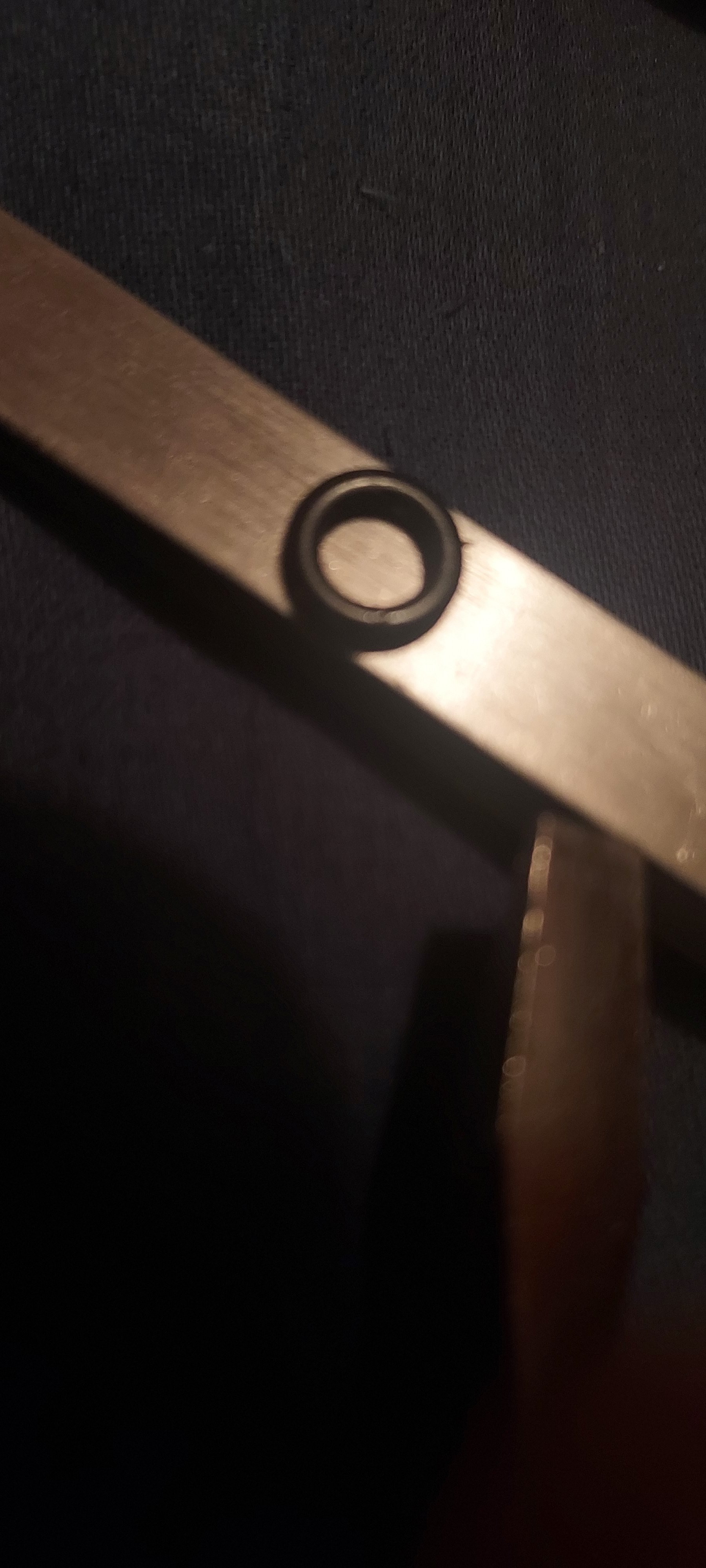

Use some calipers to measure the dimensions and order a pack from Mr O-Ring online for like next to nothing
Upvote 0

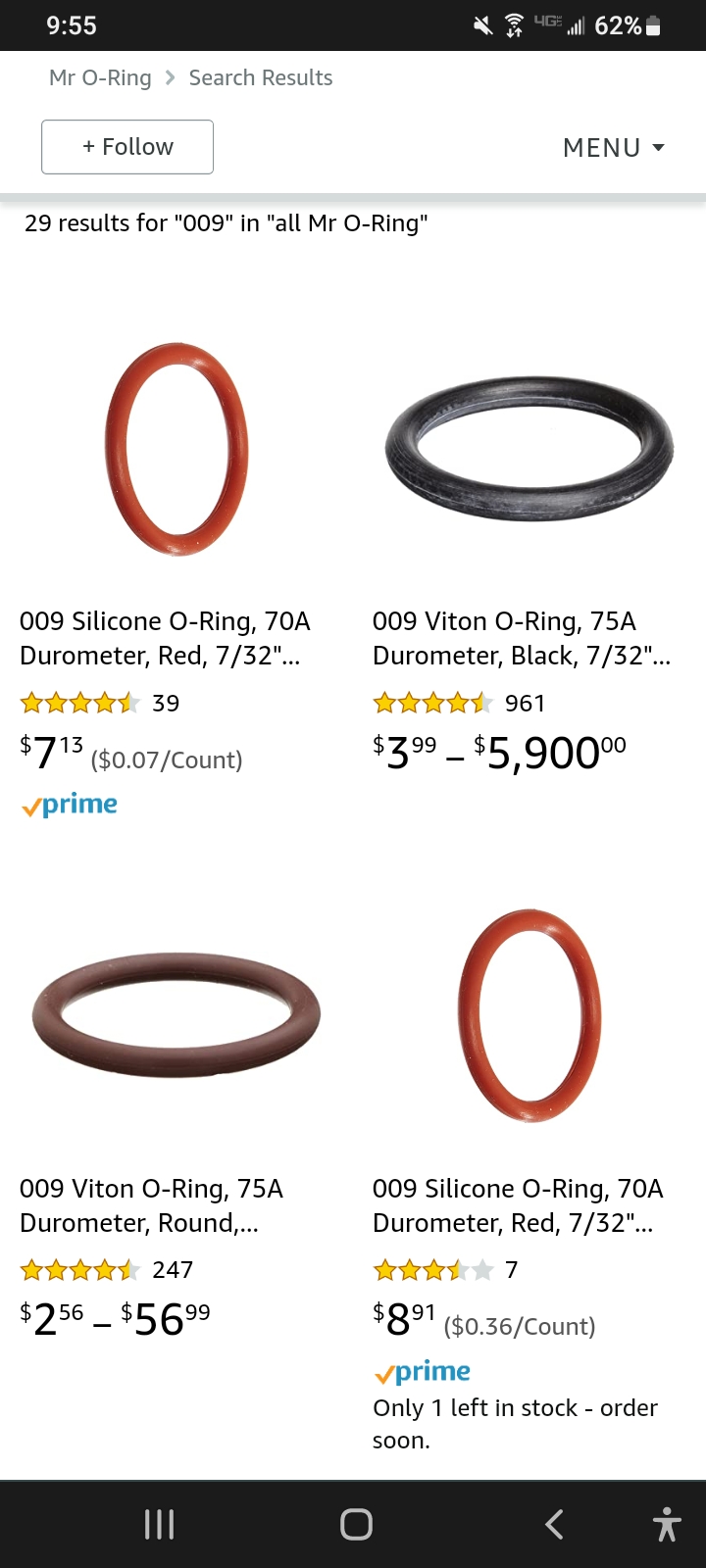

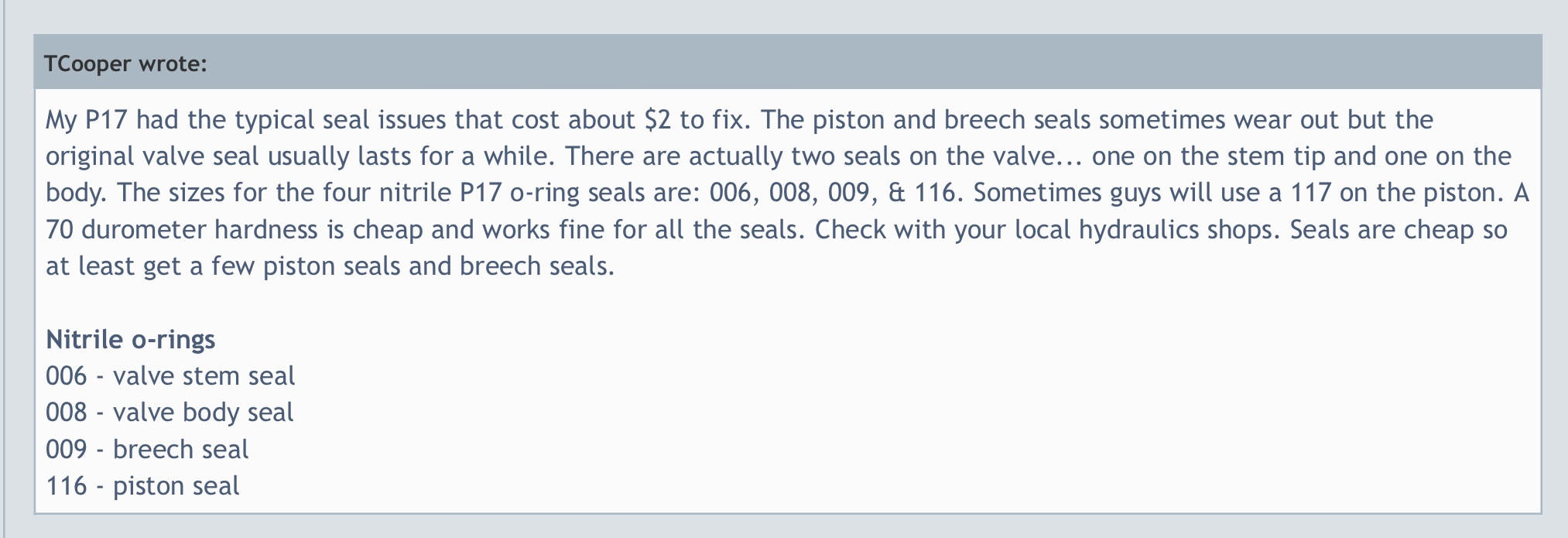

From my saved parts list found on line It’s a 009 ring. 7/32 ID. 11/32 OD. 1/16 Wide. 70 durometer
Upvote 0
Upvote 0
Either Buna-N or polyurethane.
Neither Viton nor silicone are especially good for this application.
Neither Viton nor silicone are especially good for this application.
Upvote 0
I've put "X" rings in a couple of my pistols. They stay in place and hold up very well.
Also...no "fluffing" (leaking) of the toilet paper either. There's four sealing points, rather than two, with an o-ring.
Mike
Also...no "fluffing" (leaking) of the toilet paper either. There's four sealing points, rather than two, with an o-ring.
Mike
Upvote 0
Silly cone i can see but viton or buna no prob.. ( for me)
What's the Difference Between Buna vs Viton O-rings?
When it comes to selecting Buna vs Viton for your sealing applications, material needs will be determined by its intended application. Learn more here.
www.manuf-rubber.com Upvote 0
For static O-rings, Viton has worked fine for me but in dynamic applications it hasn’t lasted as long due to accelerated abrasion loss.
Last edited:
Upvote 0
Well i dont imagine the china manufacturer used the best available. Probably sticks in cheapest bulk available that run.. Poor rural area guys like me just stick in whats locally available and go . Maybe a trip to big town find better .. ether way it'll wotk well or it dont..
Upvote 0
It's a plinker
prolly scoot on down to the hardware store and give the older guys some guff and such until they realize I'm there to shop and not just BS this time around
prolly scoot on down to the hardware store and give the older guys some guff and such until they realize I'm there to shop and not just BS this time aroundUpvote 0
