Parallax Wheels - pictures of "the spread"

[cavedweller]

so if i read this right , you have different scope wheels for different temperature days ? or maybe hours ?

i have two methods... snap on rings set up at different temp points is the most efficient and although i cant swap during a match i can decide my temp range before the match and snap it in place. Or the maestro design dual pin indicator which you can move up or down to adjust.



[p.nickerson]

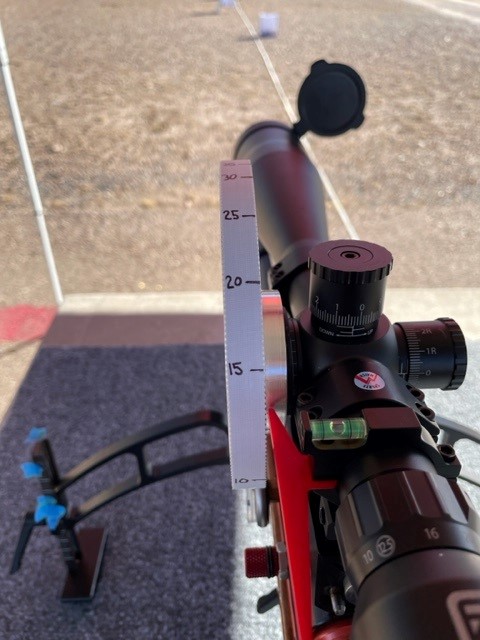

Here's some of the distances I've completed so far on my new Falcon X505-FT scope. I'm liking the spacing from 45-55 yards.
I still need to get back to it and fill in the rest of the distances. Weather permitting this time of year.
It'll be interesting to see how many single yards I can fill in between the major marks I have on the wheel in the pictures.
I'll update when I get it done.
And.....Thanks JD!......Great job on the new aluminum magnetic wheel!

View attachment 416241 View attachment 416242

I have seen the Falcon scopes advertised but I don't see them much in use and their ranging seems to be a great idea for Hunter Field Target. I use a Sightron and the 50 - 55 yard ranging is about 2 degrees on the wheel. How do you like the Falcon overall.



[Bobbybeef]

I’m uncertain about this as the occular rings job is only to properly focus the reticle for the specific user? Frankly I’m not sure ?

Move your ocular 1/4 turn which only affects the cross hairs range something then put it back it will range different I did this weekend at the Cajuns I had ranged the scope wheel for my eyes then changed for my son to shoot and I saw the difference this is on an Aztec Emerald.



[cavedweller]

Move your ocular 1/4 turn which only affects the cross hairs range something then put it back it will range different I did this weekend at the Cajuns I had ranged the scope wheel for my eyes then changed for my son to shoot and I saw the difference this is on an Aztec Emerald.

I'll give it a try.... i'm fascinated now..



[dan_house]

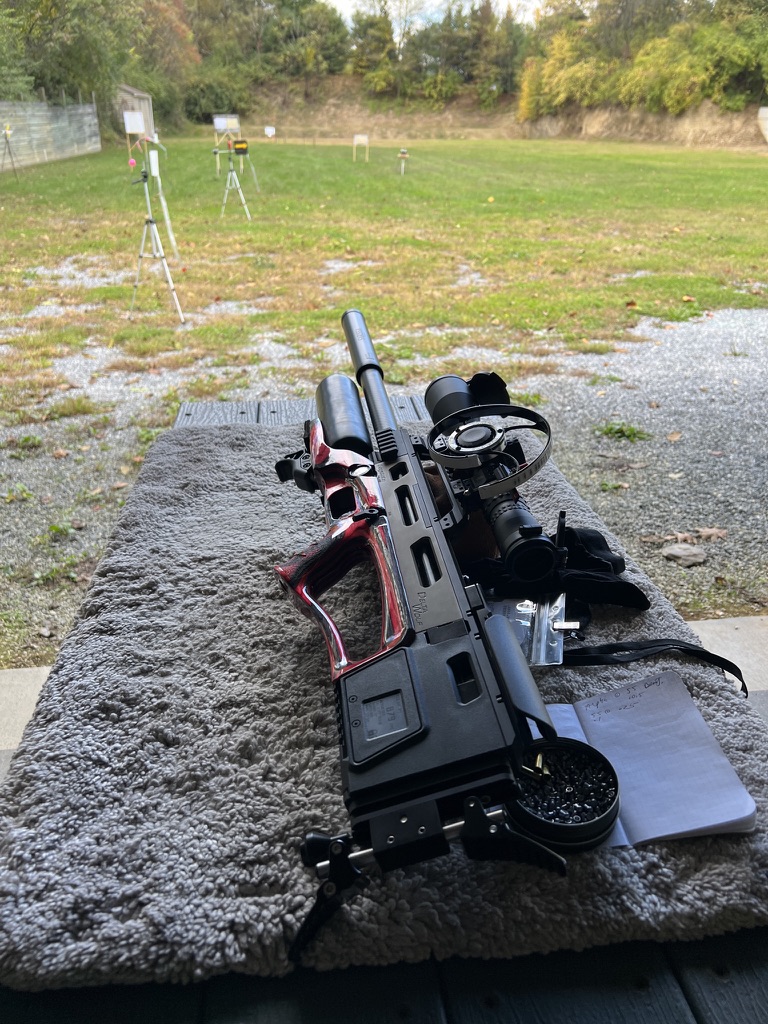

Next is a Nightforce NX8 - using a JD Garland Nautilus wheel - set up at 86 degrees F
and yes i will Definitely post some better pics.
View attachment 405878

My NX8 only has about 120-130 degrees of rotation between 10 -60 yards...... but the numbers on this wheel in the pic seem to be a lot further (farther?) apart

Love the NX8 scope --it'll resolve a 1/2 yard and the reticle is fantastic-- but the numbers all squashed in that close is aggravating. Tried commas, hatchets, wheels....



[cavedweller]

I have seen the Falcon scopes advertised but I don't see them much in use and their ranging seems to be a great idea for Hunter Field Target. I use a Sightron and the 50 - 55 yard ranging is about 2 degrees on the wheel. How do you like the Falcon overall.

Nice surprise
I have an Element Titan 3-18 x 50 with the 34 mm tube body and this particular Titan focuses down to 10 yards
AND
look at this spread on my 6” wheel:



[nomojo65]

Cavedweller, probably missed it but what do you use for tape and how do you keep it dry?



[cavedweller]

Cavedweller, probably missed it but what do you use for tape and how do you keep it dry?

I use a high quality medical tape @3/8” non stretchy then after getting my final number markings I cover them with a clear tape like a book binding or gorilla tape @3/8”
But there are lots of ways to do this and some folks spray them with a clear polyurethane



[cavedweller]

Cavedweller, probably missed it but what do you use for tape and how do you keep it dry?

These printed numbers are from Rowan Engineering via AOA
