parts diagram for hw44 please

[pfatter]

Hi, i have an oring coming out at the magazine area, would anyone have a diagram for the hw44?

thanks in advance,



[pfatter]



[biohazardman]

HW-44 manual with diagrams and a link for a teardown if you need it. Have fun. ;^)

Sorry just noticed diagram is not in English. Still it has part numbers so should be helpful.

https://weihrauch.co.uk/uploads/files/WW-Luftpistole-HW-44-04-2018.pdf

https://www.airgunforum.co.uk/community/index.php?threads/how-to-strip-the-hw44.290569/



[pfatter]

So what exactly is that seal for? I can’t see it on the diagram.



[biohazardman]

I really can't say as I have not had mine apart yet. Expect you will have to disassemble it to figure it out.



[pfatter]

Kinda not expected this since I only bought it a month ago on here.

Where would I buy orings from?



[pfatter]

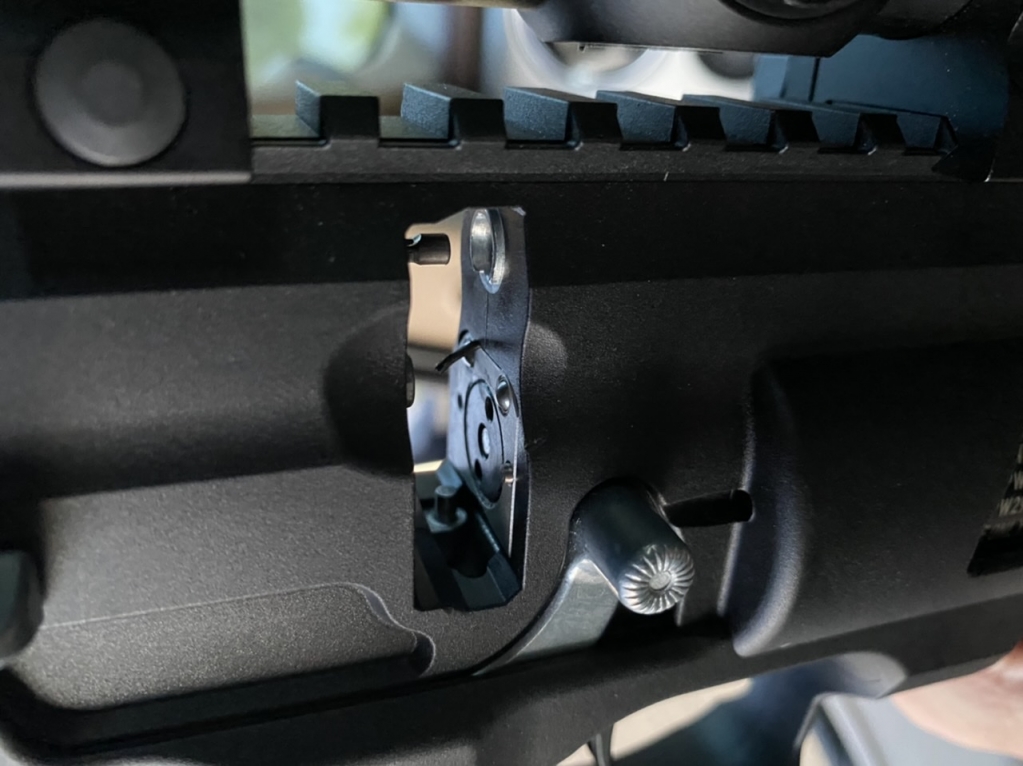

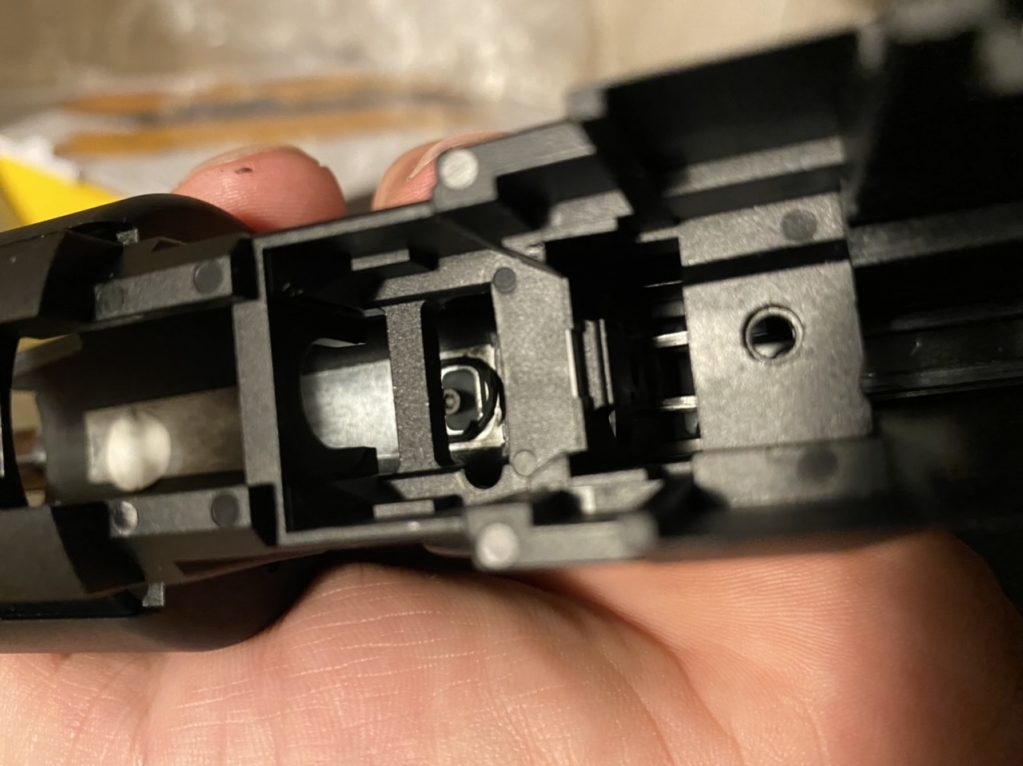

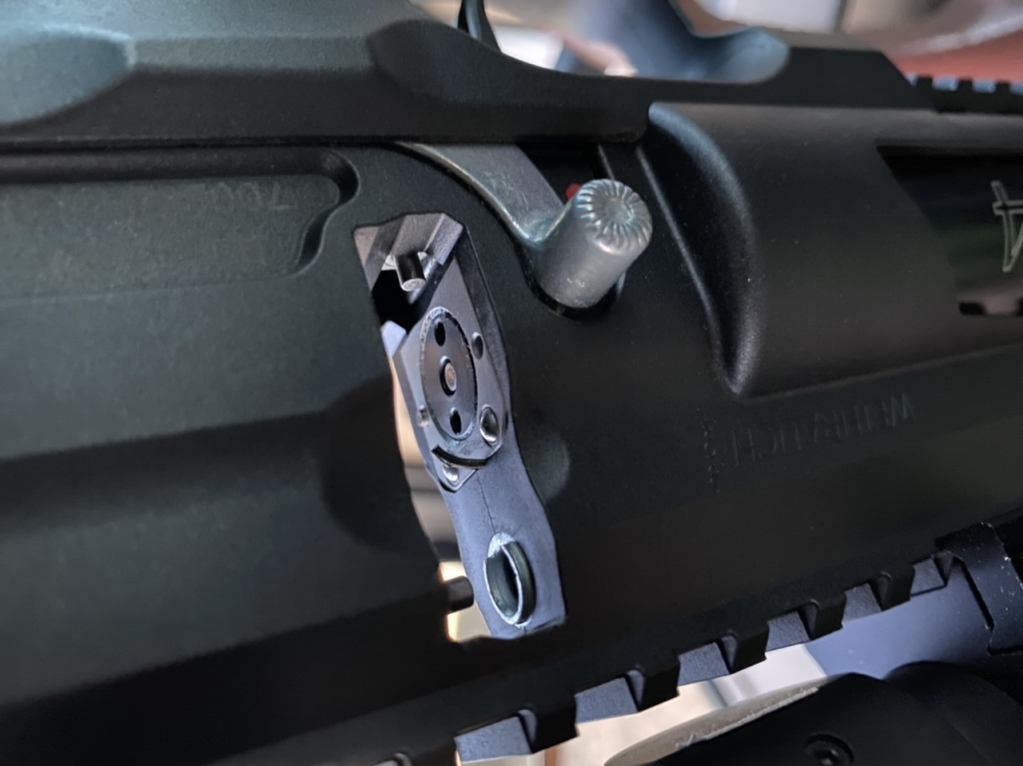

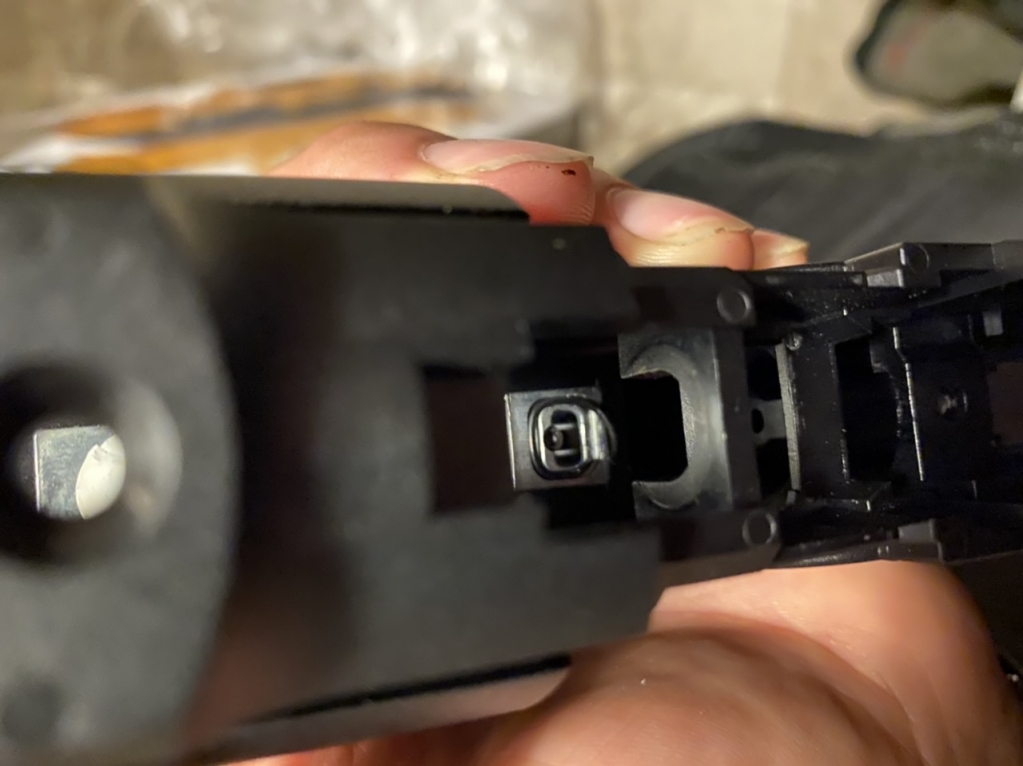

ok, just opened it up and found that the oring on the parts diagram is 6.2905 part number, number 7 on the diagram to the left.

where would i get that from the quickest way? live in USA.



[Bikekat]

Hi, i have an oring coming out at the magazine area, would anyone have a diagram for the hw44?

thanks in advance,

I also am trying to work my way through my weihrauch HW 44i need a dood diagram and help



[Pfddi]

Here is where you can get o-rings: https://www.oringsandmore.com/
Take the o-ring off and take a set of calipers/micrometer and take the measurements that are on the site to select the correct size. My guess is that it will be a BUNA 70 and not a 90, but you can get a couple each and try.
