PCP compressor Filter

[Lynx]

Yes there small filter should be ok unless you are filling with air 95% humidity

So I assume you have such a convoluted set-up because you fill bigger tanks or at higher pressures, correct? Or, obviously, both.



[rc4fun]

I have a 9l tank and have moderately high humidity in my basement and I kind of go for overkill. But I don't put ice in my water..
4400PSI



[88turbocoupe]

Yong Heng family of compressors emit burnt motor oil smoke in compressed air. After a few fills air from SCUBA tank starts smelling like motor oil, so activated charcoal is used inline to absorb fumes and smoke.

that's a 1st mine don't



[Ta-Ta Toothie]

Read #35 & 36 to get an understanding of why pre filtering is not efficient and not worth the effort.
https://www.airgunnation.com/threads/moisture-in-pcp-airguns.1321274/page-2#post-1839752

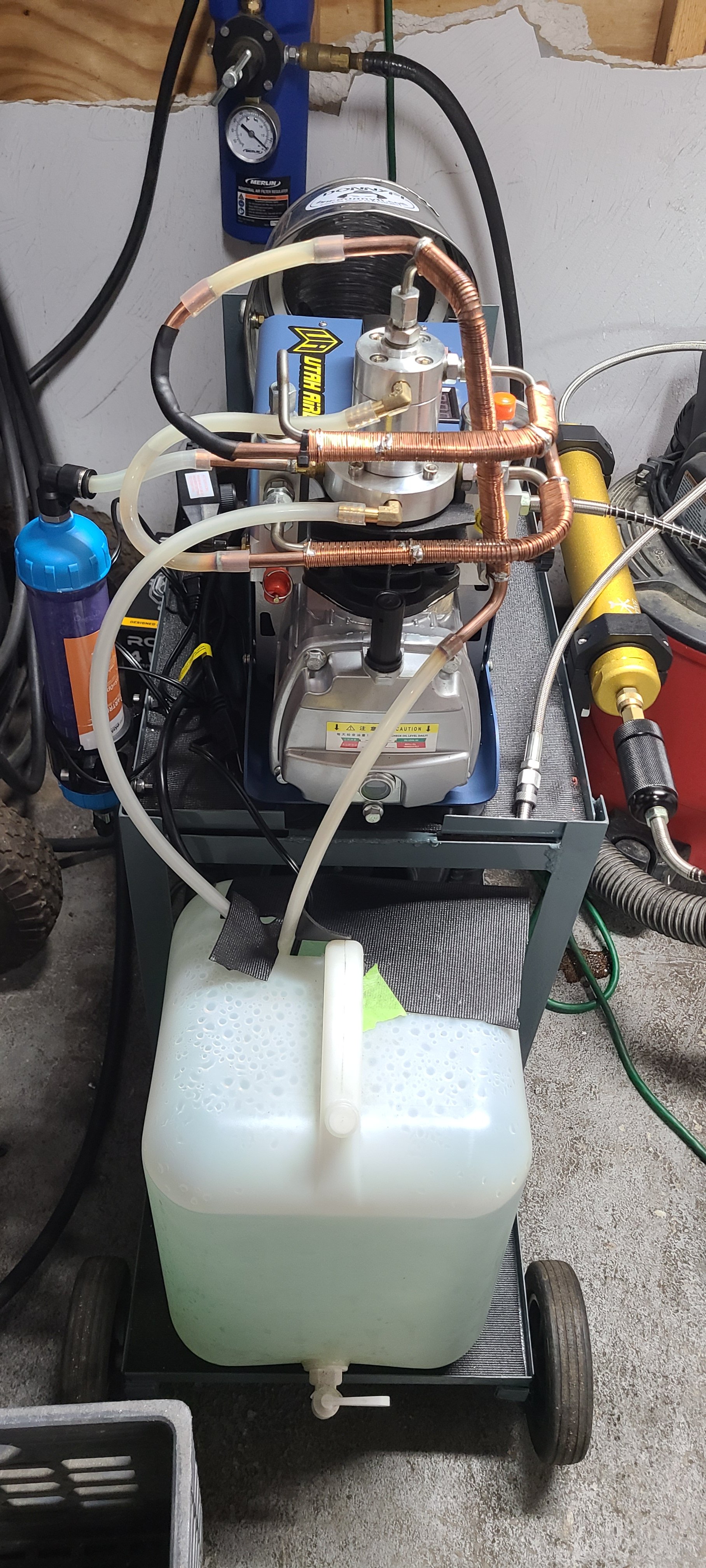

Regardless of what was said, I can tell you having a large pre-filter does work for the correct setup. I have no visible water vapor when I purge on my GX-E-5k1 using Silica Beads. Before i installed my pre-filter, I had moisture every time I purged. Being the compressor is very low rpm may have something to do giving enough dwell time for it to be effective. Your mileage may very.



[Mlydon]

In reading about the alpha filter from top air gun, and talking to Joe B, it seems that it’s important to blow the hoa air out of your filter as soon as you finish filling, otherwise the sieve just fills up with water…..



[Chris_K]

In reading about the alpha filter from top air gun, and talking to Joe B, it seems that it’s important to blow the hoa air out of your filter as soon as you finish filling, otherwise the sieve just fills up with water…..

That's because his Alpha filter has a water trap and condensate drain built into it. Most of the basic tube filters housings don't have this feature.



[Mlydon]

Someone up above had been saying they left their filter pressurized….
