Picatinny Clamp For 480cc Carbon Fiber Bottles

[heavy-impact]

I saw a similar item in another thread and decided to design and print my own. I've been through many iterations and settled on this one.

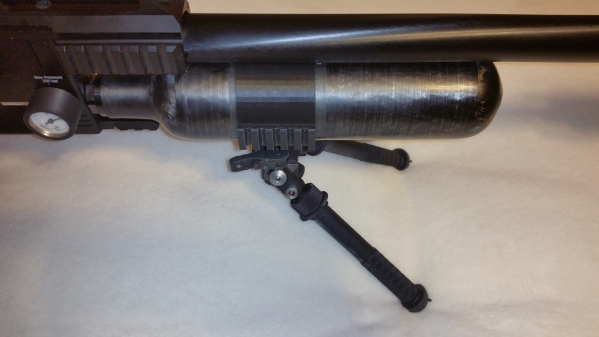

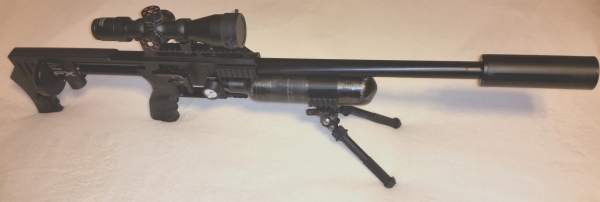

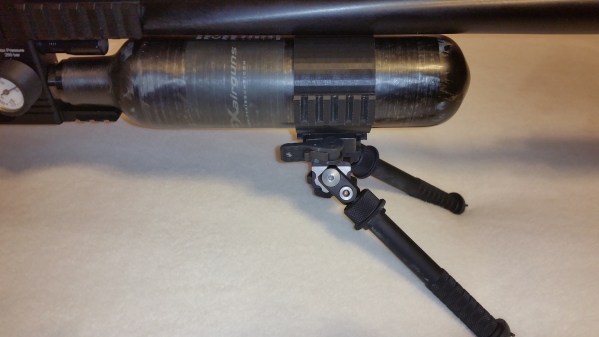

6 lugs matching the spacing on my Impact. The Atlas bipod attaches dead center. The bottle gets a little bigger towards the receiver and the center of the label is about as far back as the clamp can go without putting too much stress on the part. Sorry about the bad lighting, this is just a quick and dirty show and tell. With the resolution and density these take about 8 hours to print. I'll try printing one in ABS for a matte finish like my wika gauge covers.



[Insanity]

I only print ABS and I print at a medium speed. When I print solid i print at 90-95% as I use a 15% overlap that prevents it from swelling on my printer. If you like send me SLT file and ill rip a fast one out to see the quality. I print a standard 1mm shell for this i will print 10% in fill 0% overhang for support and fast as a prototype for visual.



[Bigragu]

Nice!!!



[Bigragu]

Doesn’t that rifle already have a pic rail just before the bottle?



[Bobr]

They look good and i like the gauge covers to



[heavy-impact]

Doesn’t that rifle already have a pic rail just before the bottle?

Yes but I'm retired and I need something to occupy my time. I suppose people could use these on any gun with a 480cc CF bottle.



[heavy-impact]

I only print ABS and I print at a medium speed. When I print solid i print at 90-95% as I use a 15% overlap that prevents it from swelling on my printer. If you like send me SLT file and ill rip a fast one out to see the quality. I print a standard 1mm shell for this i will print 10% in fill 0% overhang for support and fast as a prototype for visual.

I appreciate your offer and I thank you but I'd rather work it out on my own. When I get it down pat and have a few on the shelf I may sell some to make pocket change... if there's any interest in them.



[ackuric]

GJ, I personally never cared for how close the pic rail on the impacts were to the trigger.



[steve-l]

The biggest issue is the limited clearance between the bottle and shroud. On the Crown the clearance is just slightly greater than 1mm or .0394". It is hard to get plastic of any variety to be strong enough at that clearance and the clamp must not touch the shroud..........good luck!!



[heavy-impact]

The biggest issue is the limited clearance between the bottle and shroud. On the Crown the clearance is just slightly greater than 1mm or .0394". It is hard to get plastic of any variety to be strong enough at that clearance and the clamp must not touch the shroud..........good luck!!

That's what it is and should work on a crown with no problems. Spreading the load over 49mm. I wouldn't lift a truck with it but I don't see a bipod being a problem.



[steve-l]

The biggest issue is the limited clearance between the bottle and shroud. On the Crown the clearance is just slightly greater than 1mm or .0394". It is hard to get plastic of any variety to be strong enough at that clearance and the clamp must not touch the shroud..........good luck!!

That's what it is and should work on a crown with no problems. Spreading the load over 49mm. I wouldn't lift a truck with it but I don't see a bipod being a problem.

I agree, but not for a shoulder strap.



[tscktran]

Very nice, thanks for sharing.

T



[CmdCtrl]

excellent! I have a 5 lug version sitting in my tinkercad. I was just waiting to get the bottle dimensions from a buddy but his bantam is back for repairs, again.



[steve-l]

excellent! I have a 5 lug version sitting in my tinkercad. I was just waiting to get the bottle dimensions from a buddy but his bantam is back for repairs, again.

Mine is 61.25mm.



[Bigragu]

Just received my remake of this bottle clamp holder from Heavy Impact. What an awesome job! He made mine to fit over the extra thickness of the bottle due to the embossed Hatsan logo, which put my new clamp at midpoint of the bottle. Great job, Heavy!! Thank you much!!



[heavy-impact]

Just received my remake of this bottle clamp holder from Heavy Impact. What an awesome job! He made mine to fit over the extra thickness of the bottle due to the embossed Hatsan logo, which put my new clamp at midpoint of the bottle. Great job, Heavy!! Thank you much!!

Show us a picture when you have the time.

Thanks



[Imold]

Nicely done, what was print time on it?



[heavy-impact]

Nicely done, what was print time on it?

About 8 hours since I used high resolution and 50% infill.



[Bigragu]

James, I’ll post a pic of your beautiful work when I am freed up from the Xmas holiday craze. Maybe tomorrow or Thursday



[Multicoat]

It's a good idea if you want a flashlight or battery pack attached.
Seems like the bottle is quite strong on my Impact, but I wouldn't trust the bipod connected to it. If that thing gets dinged or something around the hole of the block get messed up you'd have to buy a new Impact...

Probably better off with the Utah Airguns clip on extension or the Kraford and Lypt trigger guard.
