Tuning Please guide me about Delta Wolf. 22 hp tuning

mubhaur

Member
Nov 8, 2015
2,368
1
1,205
53
Karachi, Pakistan
Hi
I have previously had started a thread on this matter. Now I have moved on with the help of Delta Wolf users.

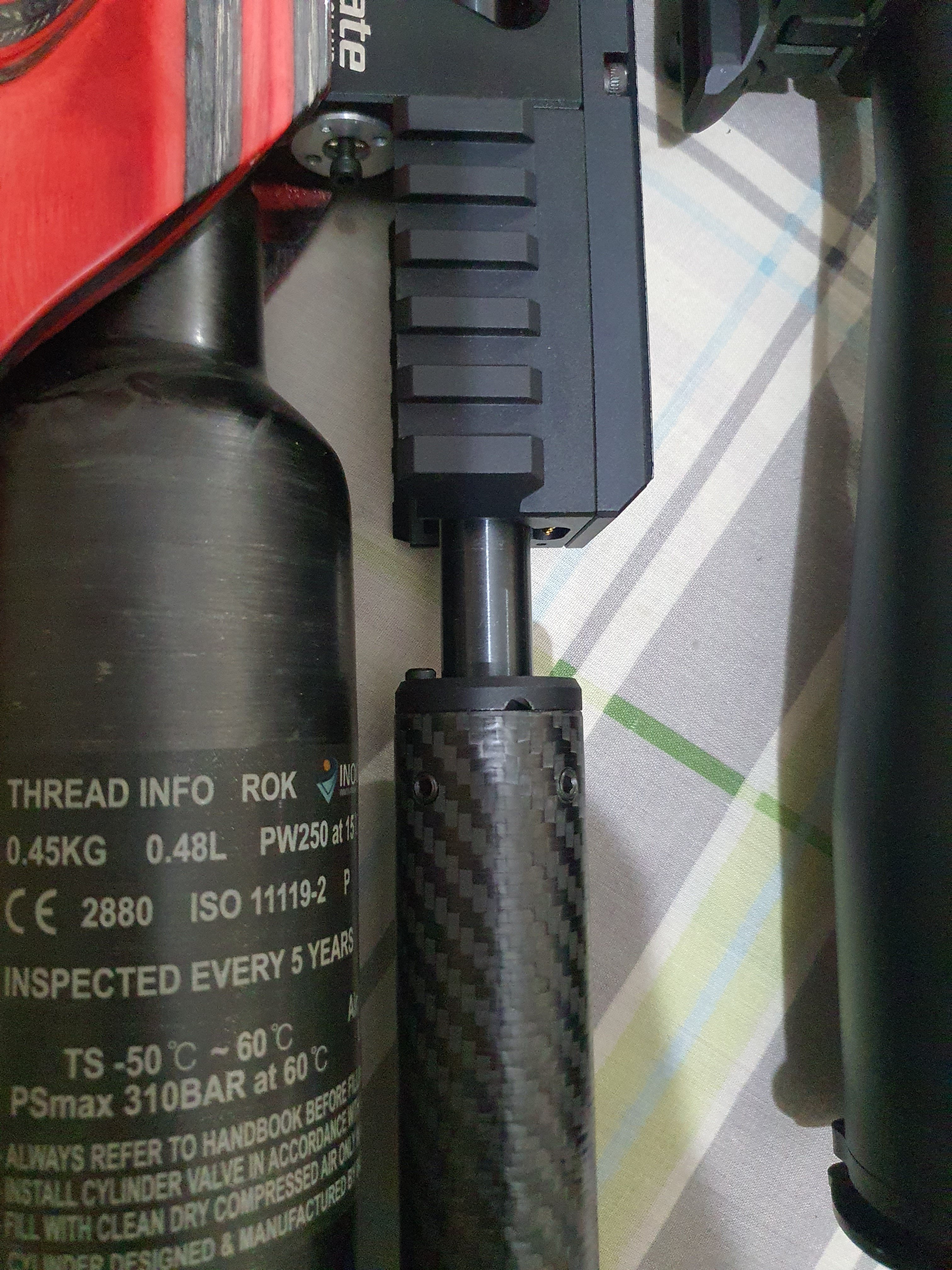

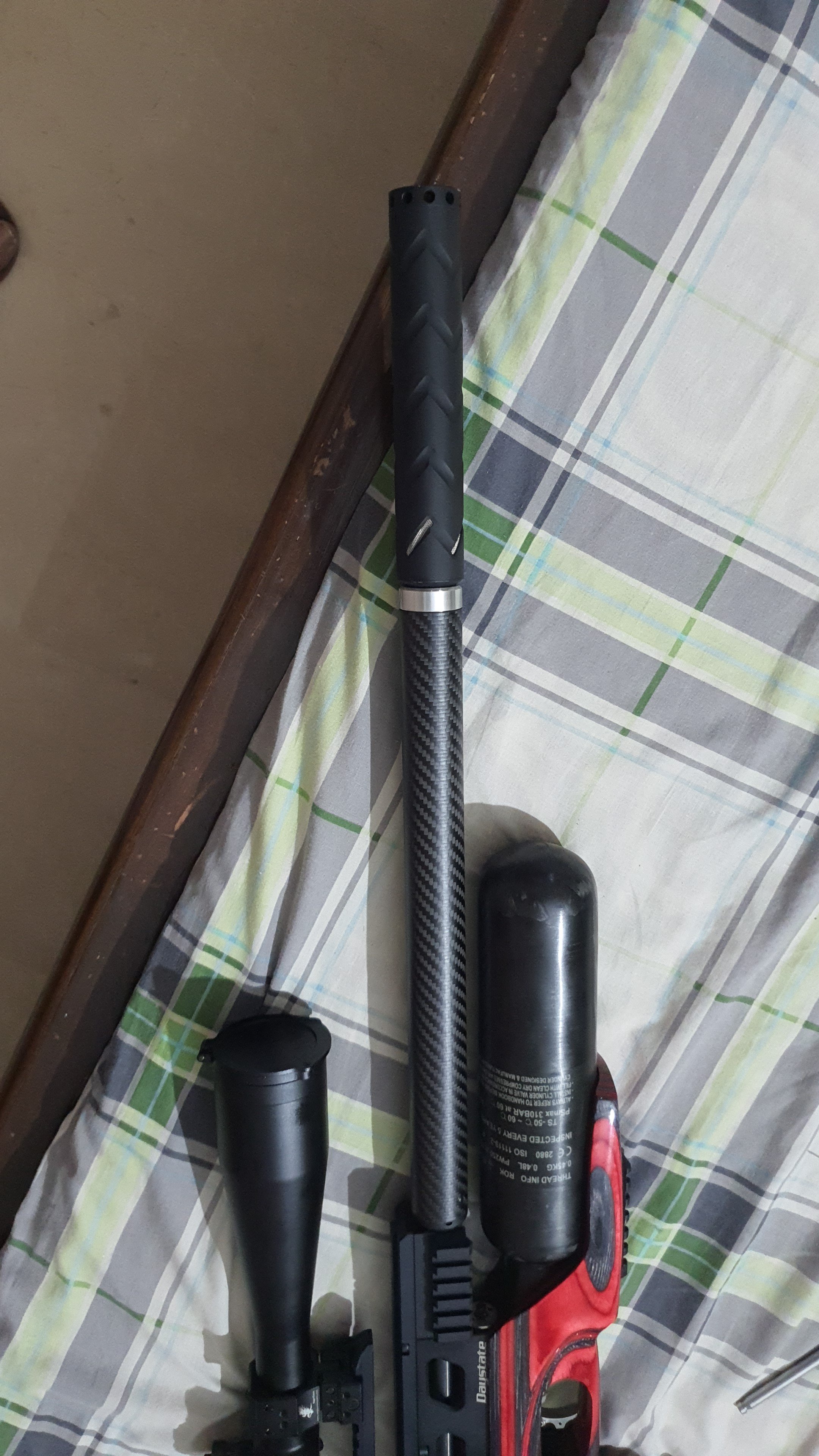

I have made a proper muzzle brake to send the air pressure Backward in the shroud.

I am focusing on .22 redesigned 25 grain pellets.

Since I need to shoot accurately upto 100 yards, I understand that velocity should be around 950fps.

I have tried two approaches of tuning. One is using the factory mode but keeping the regulator pressure just as much as is required to achieve the required fps.

Then I tuned using manual settings of reg, voltage and dewel time.

My settings in manual way are as following.

Reg 142
Hammer 2715
Voltage 75

On these settings the gun is consistent and reasonably accurate at 24 yards producing 935fps.

In every 8 shots it gave a big flyer.

Then I removed the barrel, polished it and perfected the crown.

Unjustified big flyers vanished.

Still the clean one hole accuracy that I need, is still missing.

It doesn't stand with my Impact M3 and my RAW HM1000X .22 at 24 yards indoor.

I need suggestions to improve the accuracy.

Regards,

Umair Bhaur
