Post pics of how you set up your FX Chrono...

[KevinWood44]

Aside from the obvious....
- Rubber bands around the mod
- On a tripod
- FX Carbon Fiber mount

How else you are guys attaching them?

I'm looking for an option when a tripod can't be used.



[athlon_oved]

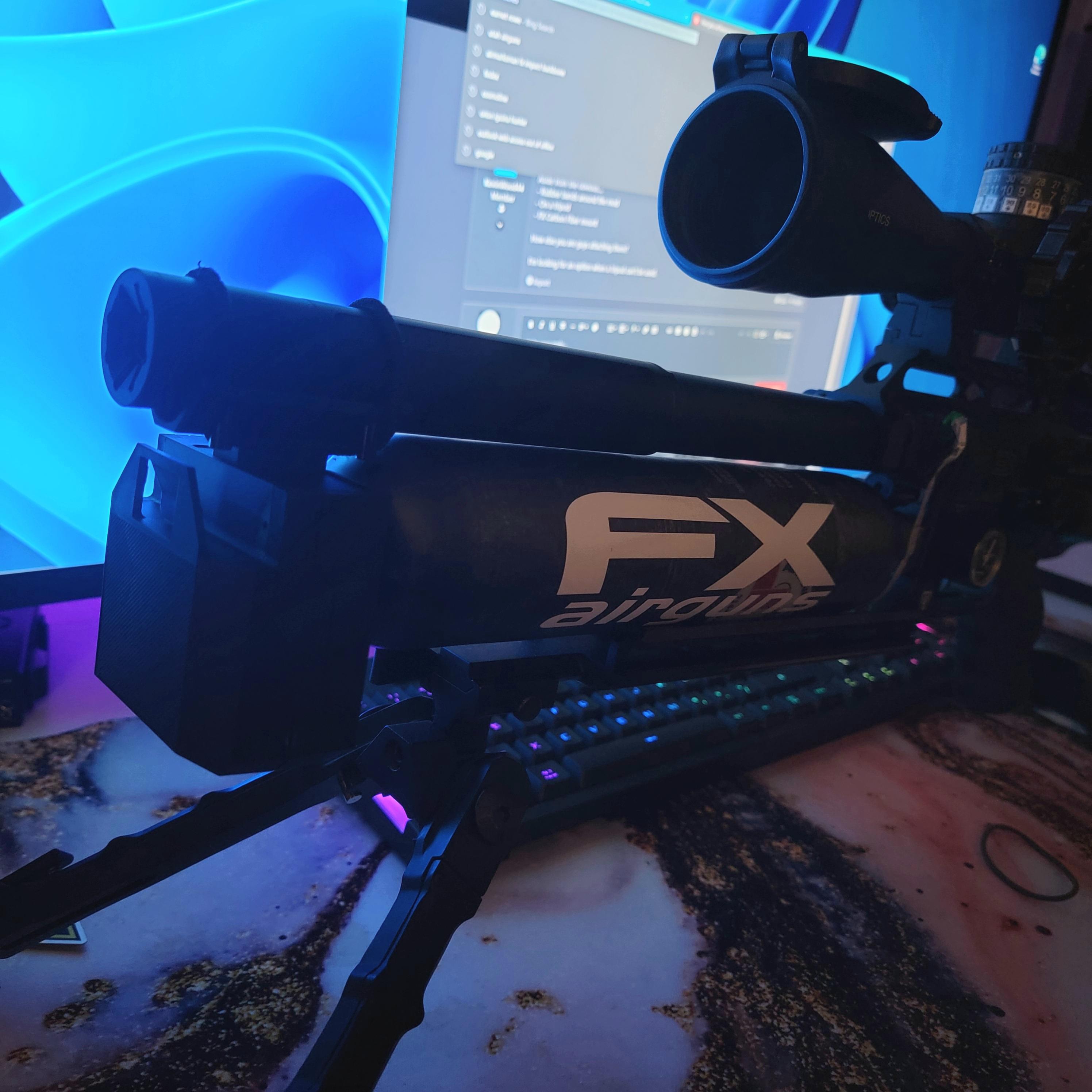

took one of the wifes black hair bands



[KevinWood44]

View attachment 306405
took one of the wifes black hair bands

I like where that is placed, nice and close to the bottle/rail but I am trying to avoid hanging it from my moderator. So I was hoping someone would have made something that can snap on to the pic rail (where you have your bipod)



[athlon_oved]

Yea I understand that. I had the same thought at first because I thought it was gonna change my poi but it didn't all the way out to 175 yards, so I leave it there. It might be that it's a 500mm with a dfl koi.I do have the carbon fiber sleeve in there as well. The things are so light and easy to use so I leave it on all the time.



[bigHUN]



[Bramezy]

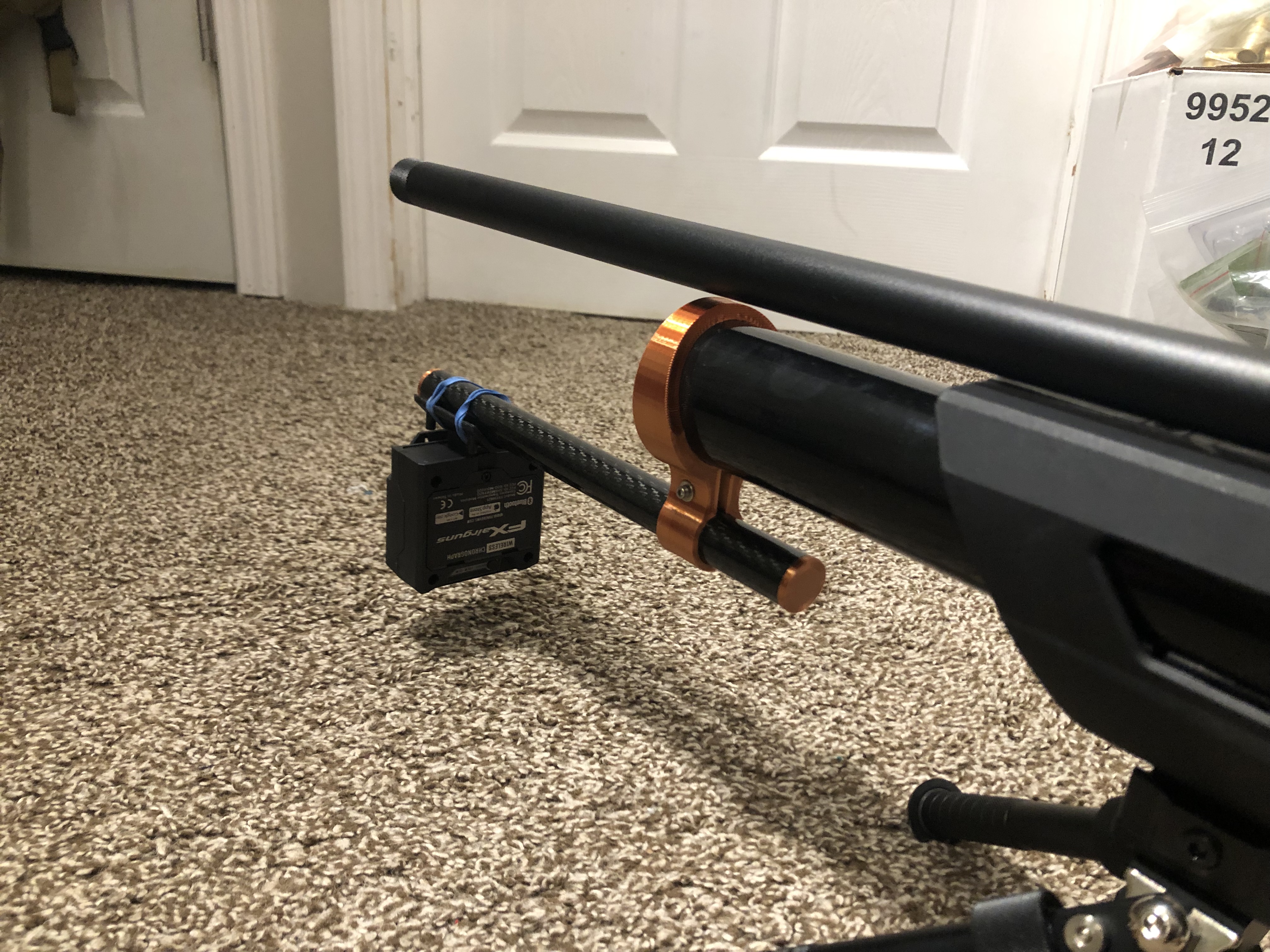

3d printed bracket for the bottle and ends for the carbon tube. Made several for each gun i have and just swap the FX around as needed and slide the bracket off.



[srtmat]



[Max115]

Here is my DIY setup for the FX Chrono. It is removable.



[Bramezy]

View attachment 306459

i like that threaded seat for it. car to share the file?



[starlingassn]

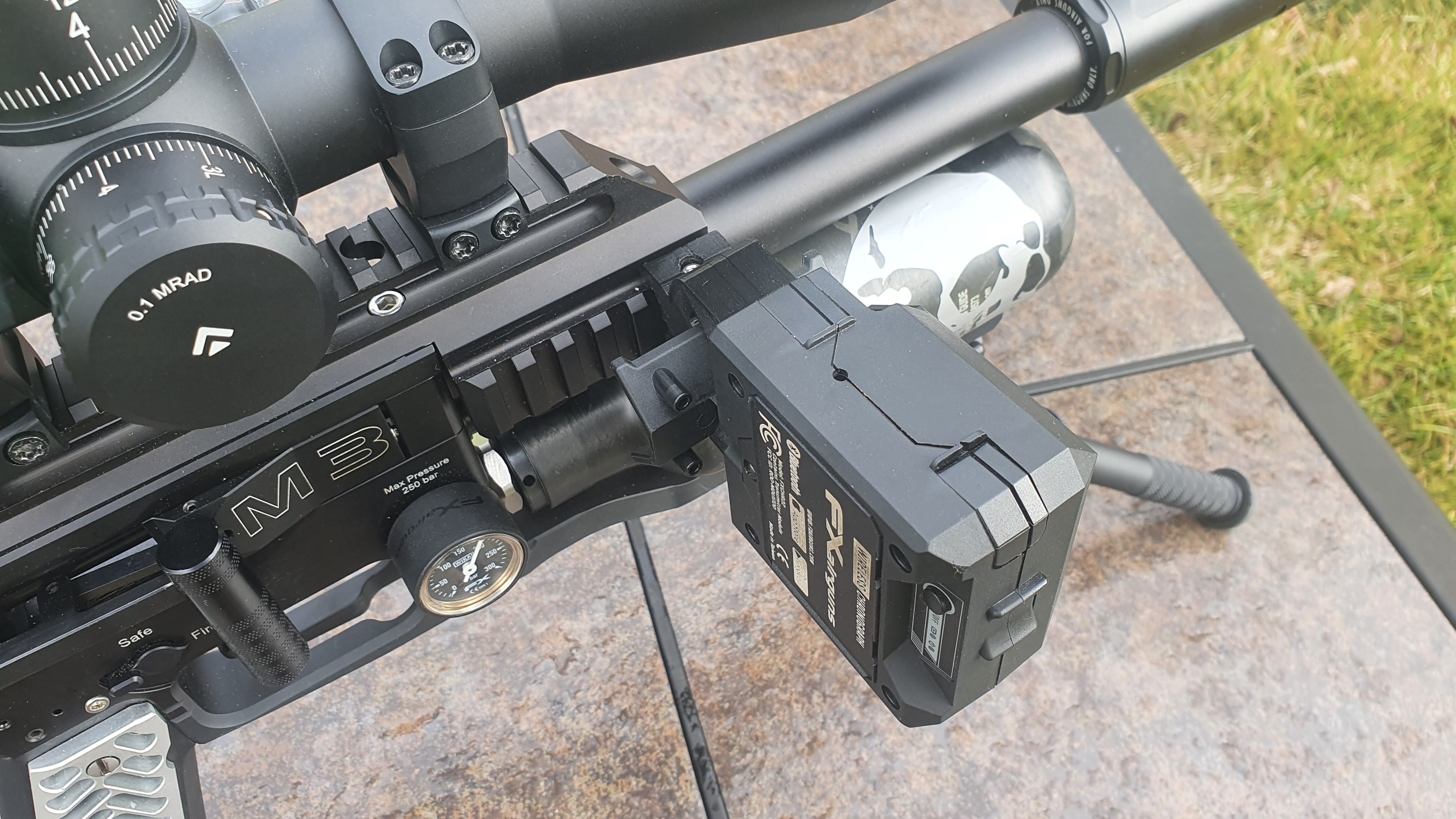

heres the best way ive found for attaching the fx chrony.

midwest elite airgun picatinny mount.
im sure other people make them by now,
but thats where i got mine.

best thing ever for the fx chrono IMO!

slides right on the side picatinny rail on my impact,
has a screw to tighten it on the rail,
but i took mine out and its just a friction fit on the rail,
takes 2 seconds to pull it out of the case and put it on the gun ready to go.



[Dustykicks]



[srtmat]

i like that threaded seat for it. car to share the file?

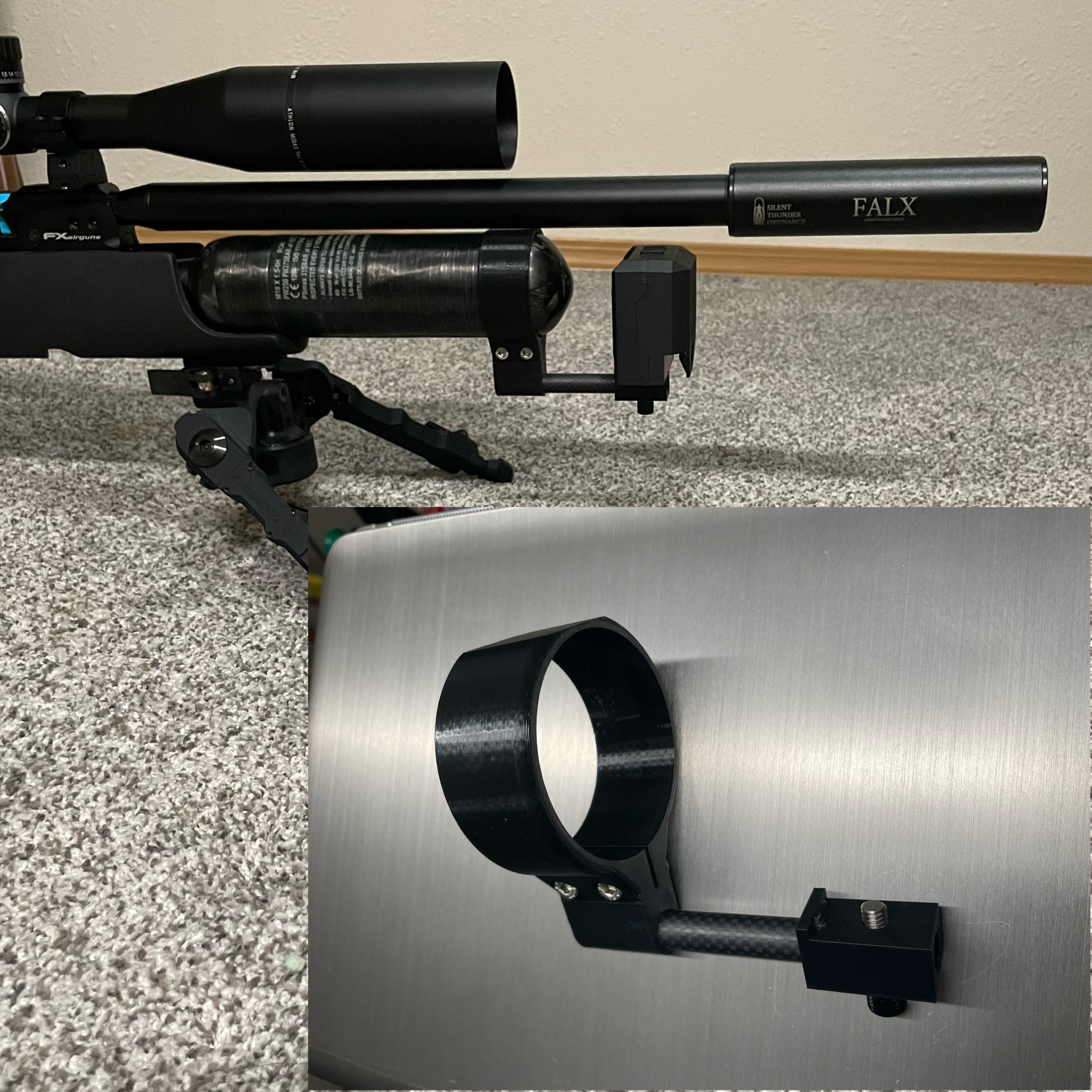

FX Chrony mount block by srtmat

Block for mounting FX Chronograph

www.thingiverse.com

61mm Bottle adapter by srtmat

I printed this pretty much solid. I needed to sand/mill off some material at the top of the hoop in order to get it to slide between my bottle and barrelThe bolt and nut pockets are made for 5mm fasteners.

www.thingiverse.com

The carbon tube was from some extra .25 fx liner sleeve I had.



[Dustykicks]

FX Chrony mount block by srtmat

Block for mounting FX Chronograph

www.thingiverse.com

61mm Bottle adapter by srtmat

I printed this pretty much solid. I needed to sand/mill off some material at the top of the hoop in order to get it to slide between my bottle and barrelThe bolt and nut pockets are made for 5mm fasteners.

www.thingiverse.com

The carbon tube was from some extra .25 fx liner sleeve I had.

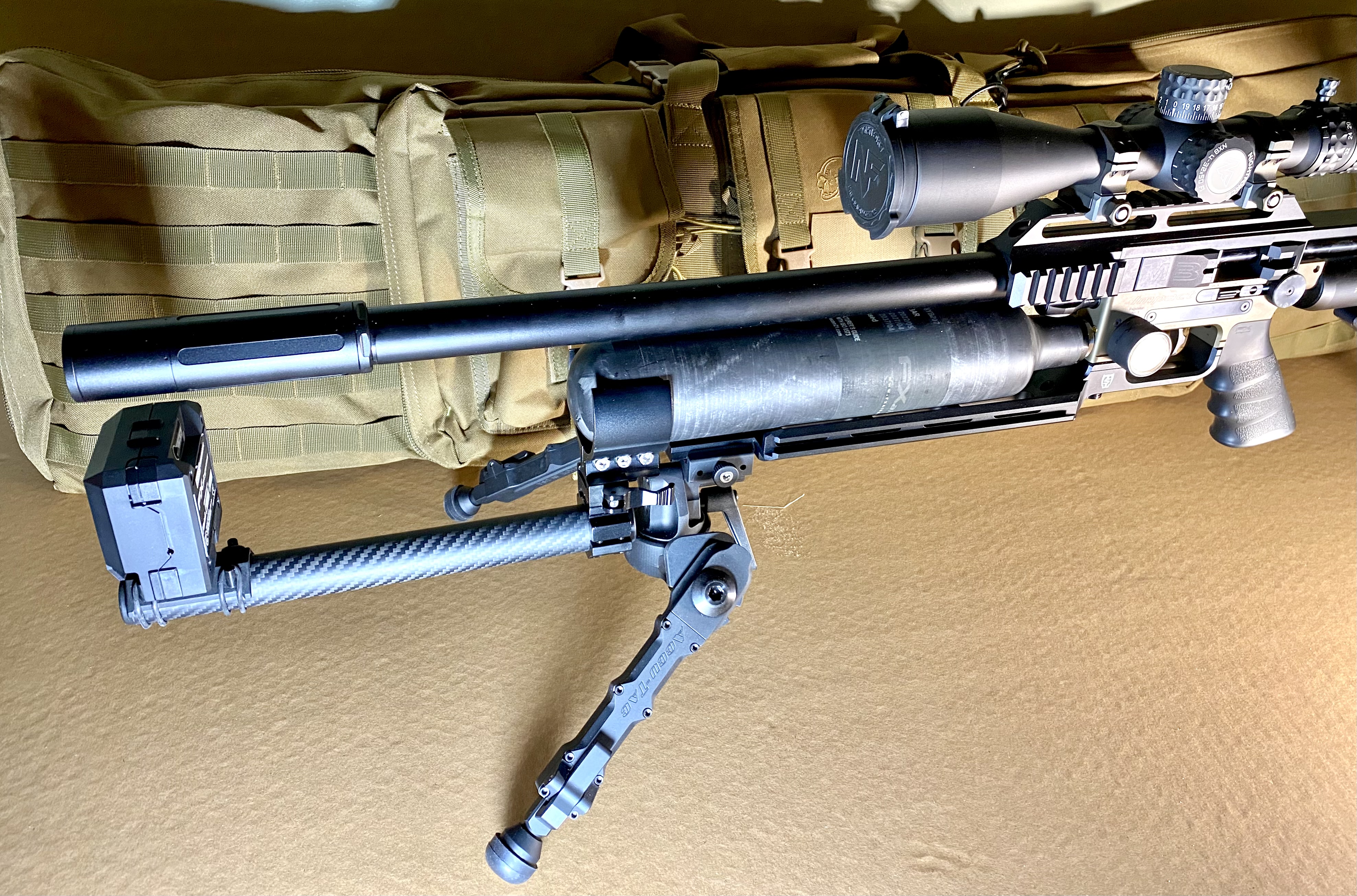

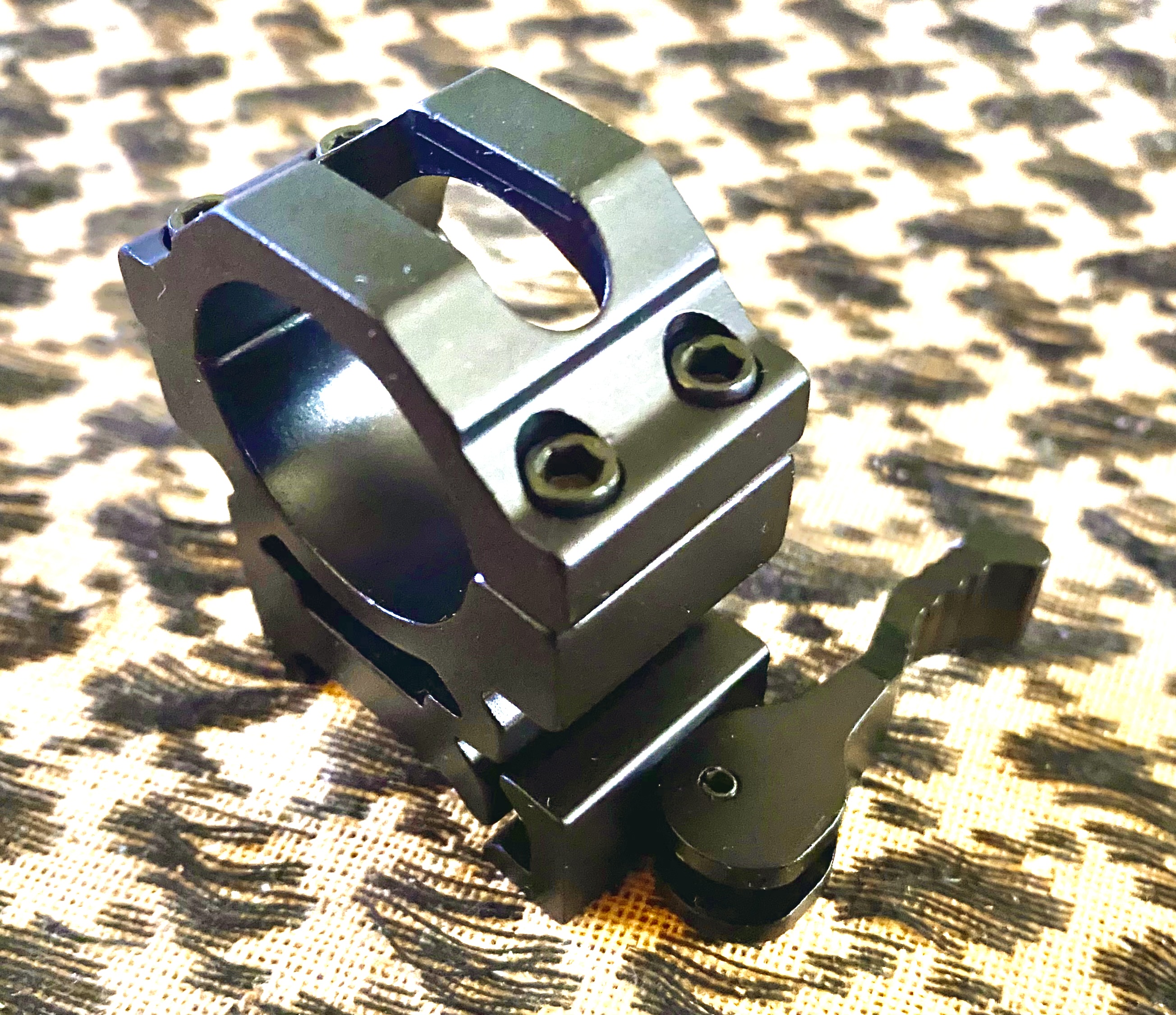

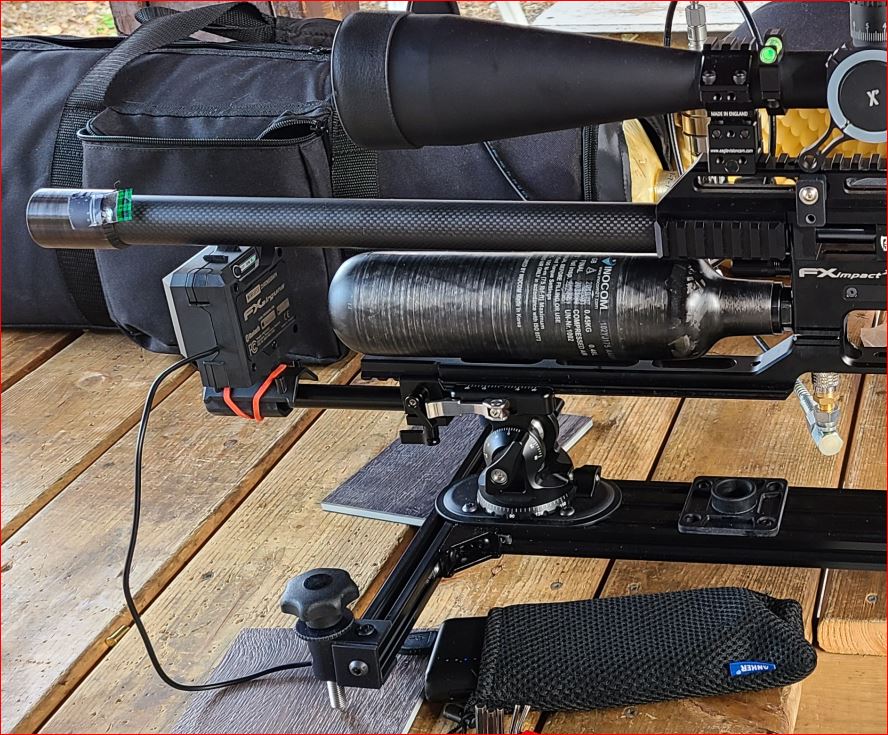

The set-up is a cheap, clamp-style 1” scope ring, mounted to the Picatinny section of the Saber Tactical Arca rail. The carbon tube is 26mm with end caps.



[rcs9250]

View attachment 306445

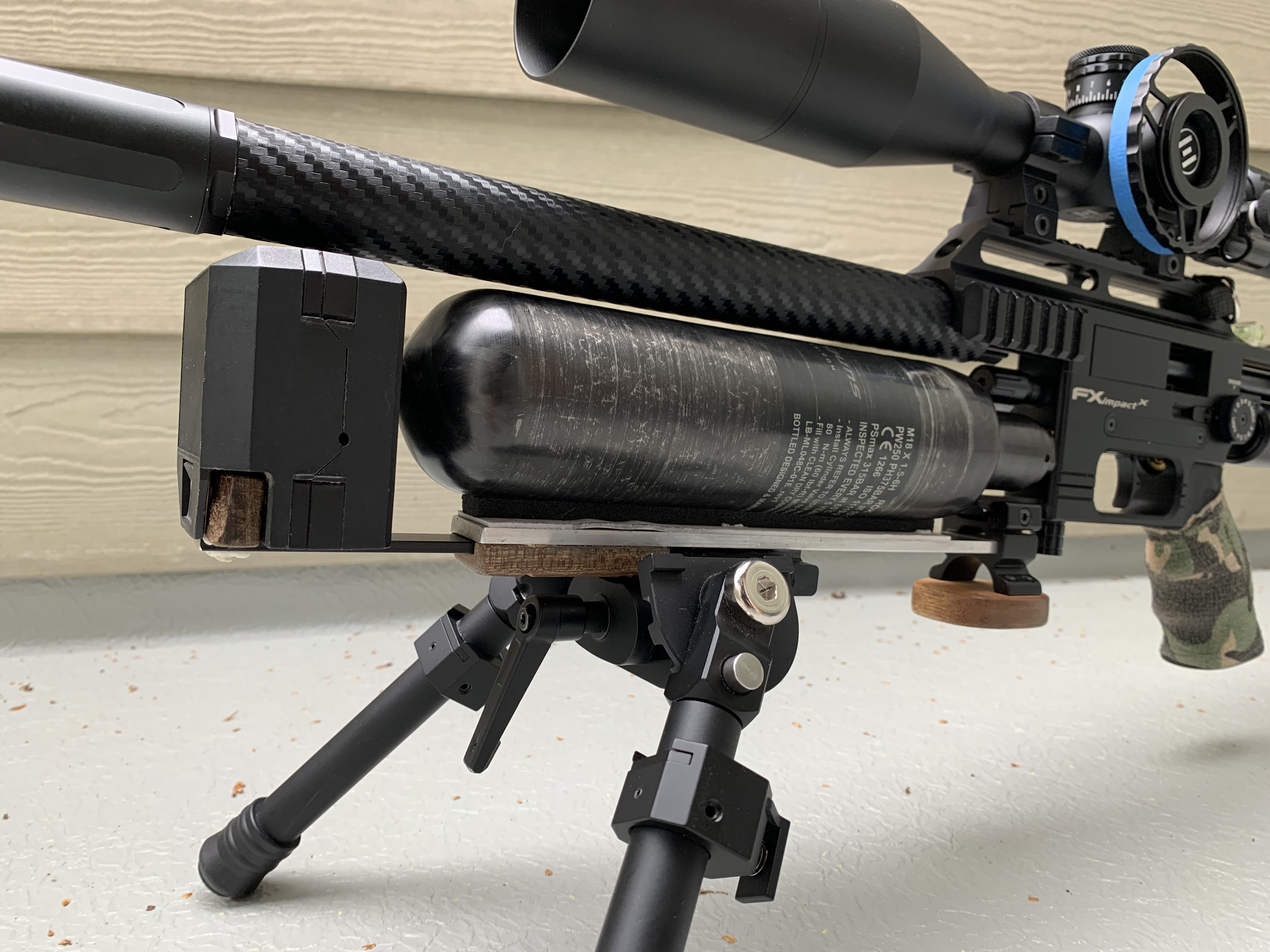

Nice work with the 80/20 material. Looks good.



[Dustykicks]

Nice work with the 80/20 material. Looks good.



[srtmat]

https://www.amazon.com/uxcell-Aluminum-Diamond-Knurled-Camera/dp/B08XXFX14X?pd_rd_w=uKsas&content-id=amzn1.sym.3cb9b85f-43ef-4d4b-94d0-0a8efe2194e9&pf_rd_p=3cb9b85f-43ef-4d4b-94d0-0a8efe2194e9&pf_rd_r=TMNJHD9M6BA7FT1TTWVT&pd_rd_wg=Dh4K3&pd_rd_r=71370dfa-b078-41f4-b35e-65e6a0caa69b&pd_rd_i=B08XXFX14X&psc=1&ref_=pd_bap_m_rp_38_i

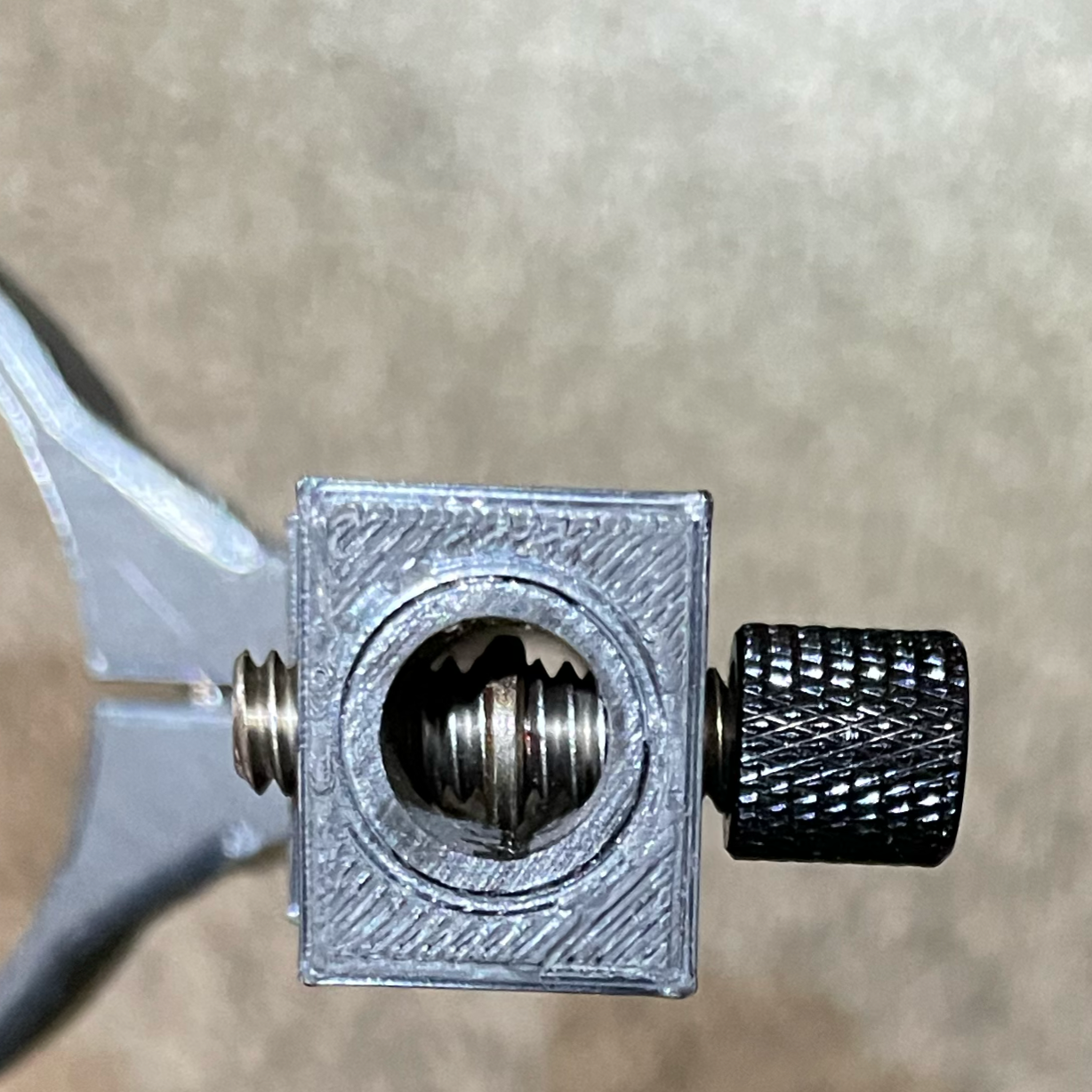

Here’s a link to the knurled thumb screw knobs from Amazon.
I turned down a nut and loctited it in the center of the 1/4-20 trended rod to keep the screw from coming out. A little file work and a c-clip would work too.



[JungleShooter]

Wow, you are all quite creative — nice job!

I'll be getting the chrony around Christmas, so I better start getting a mount ready for it.

Matthias



[jcdavis1281]

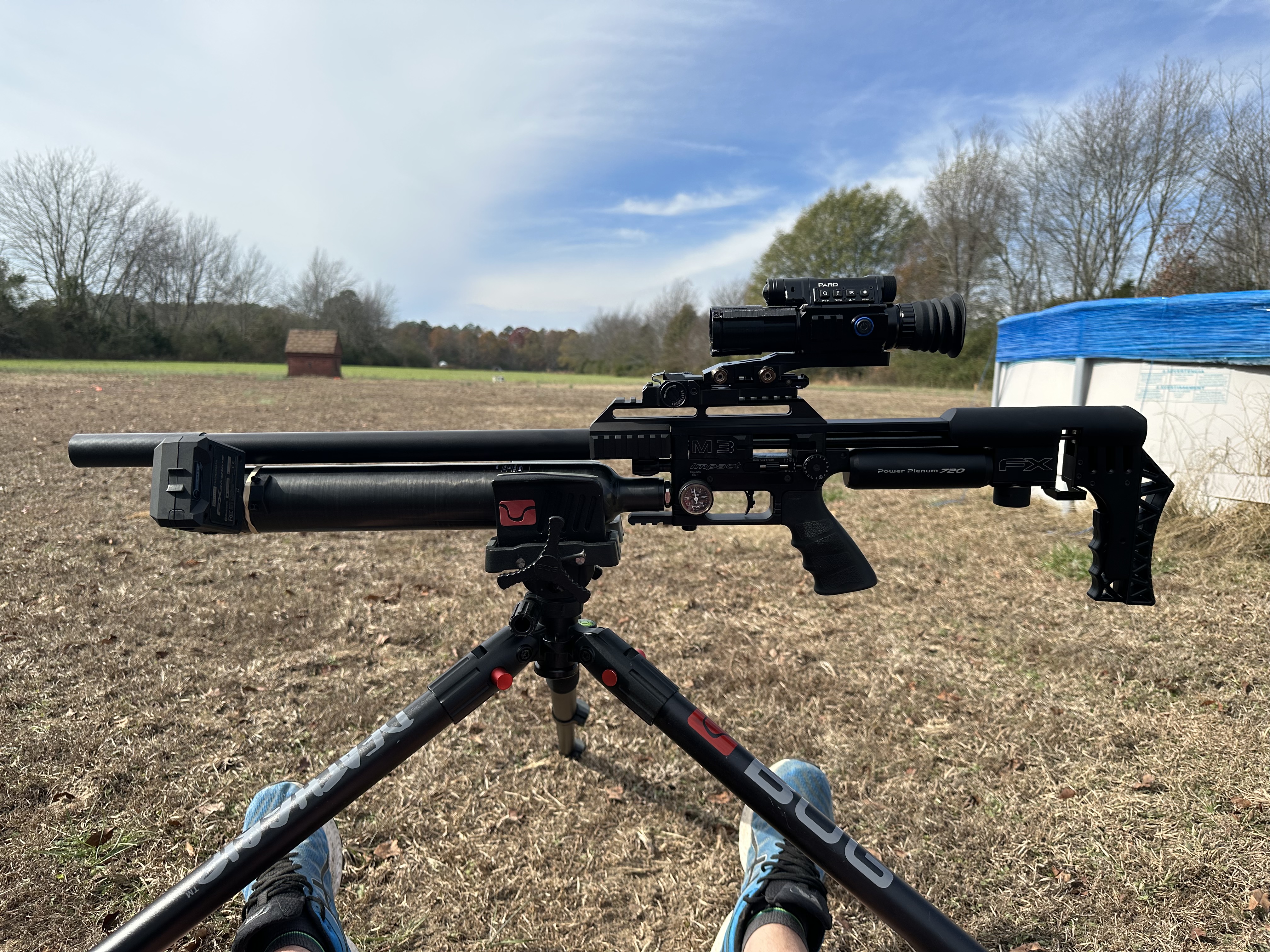

Here is my set up.



[Bald]

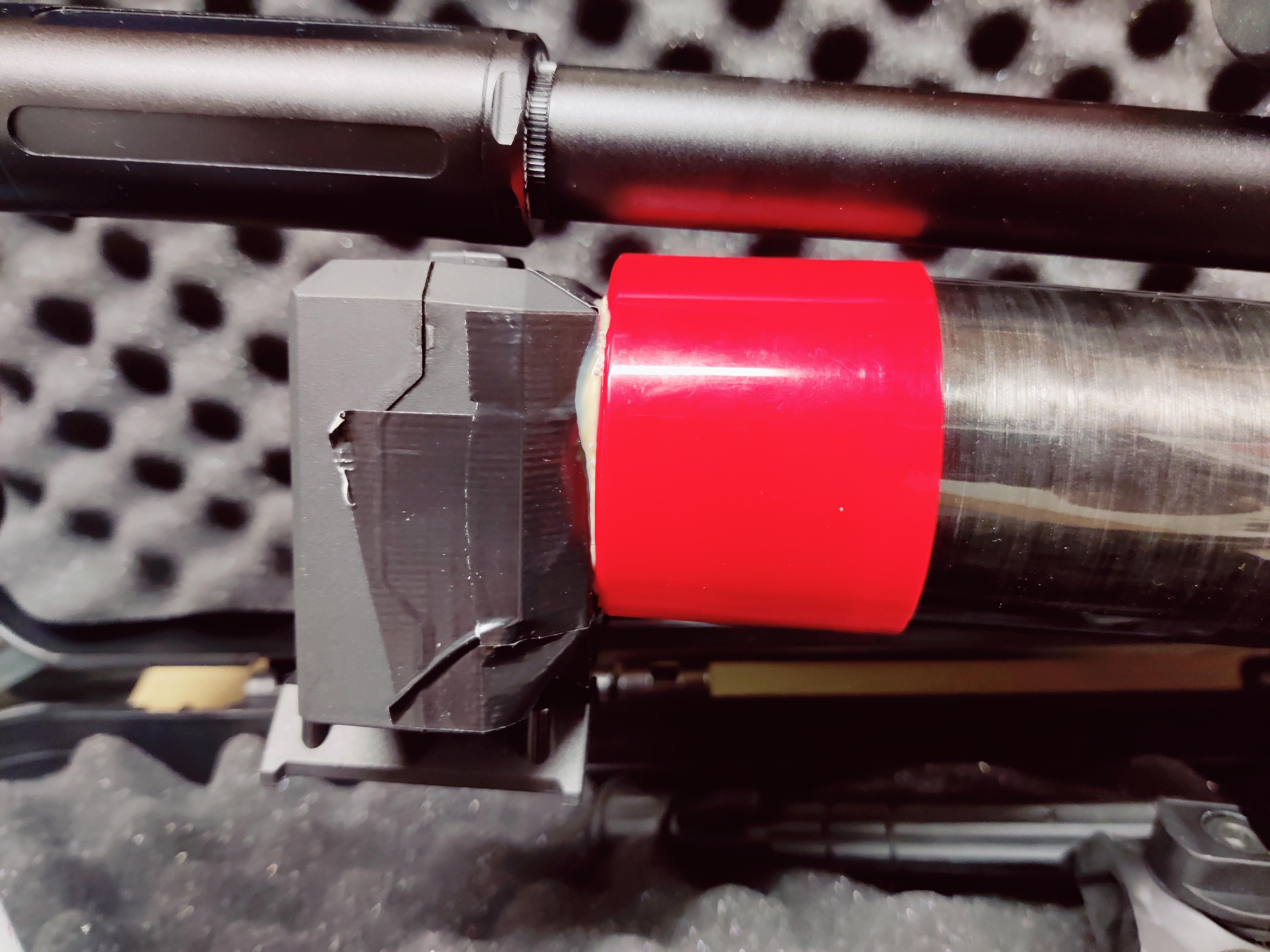

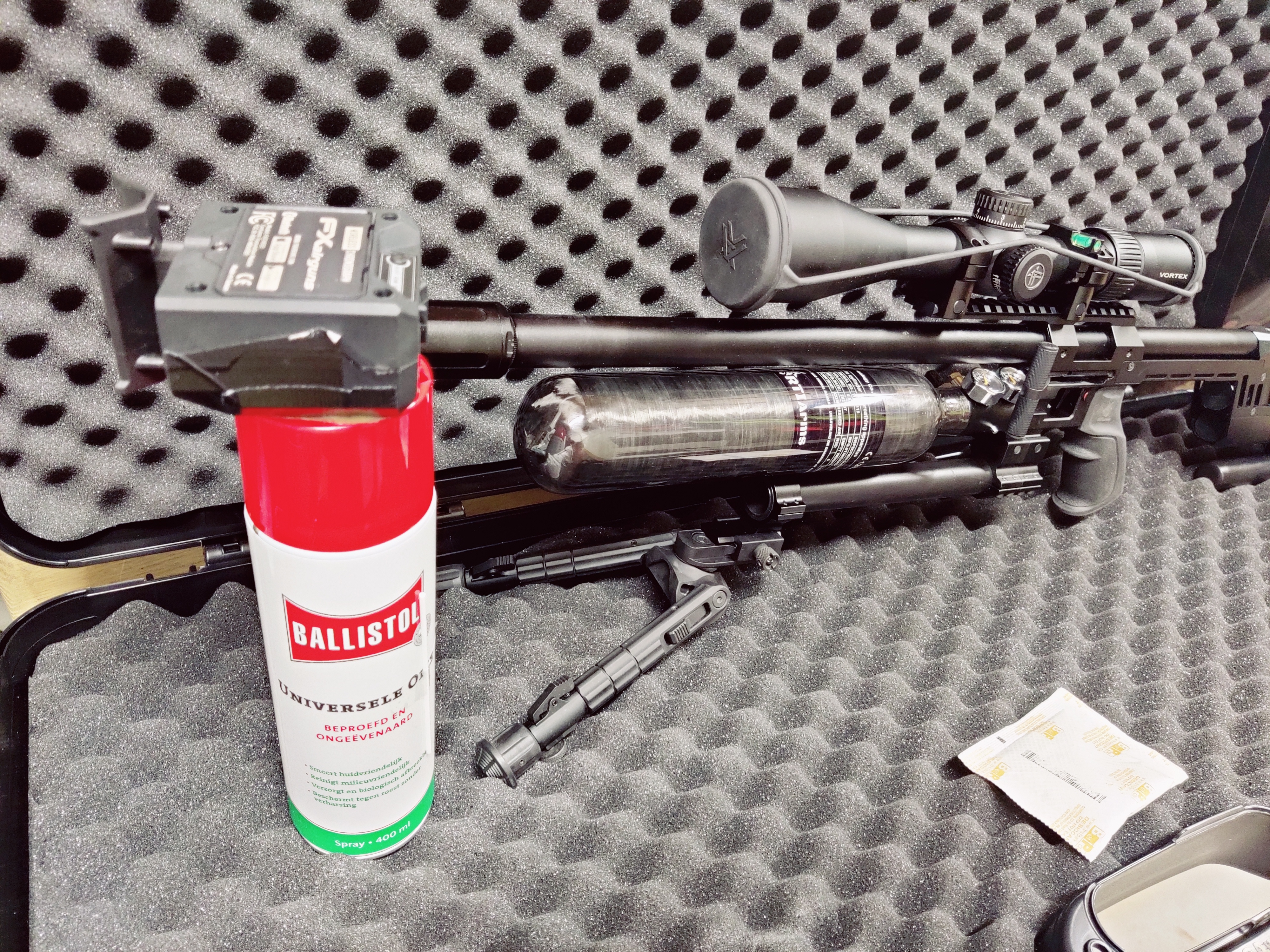

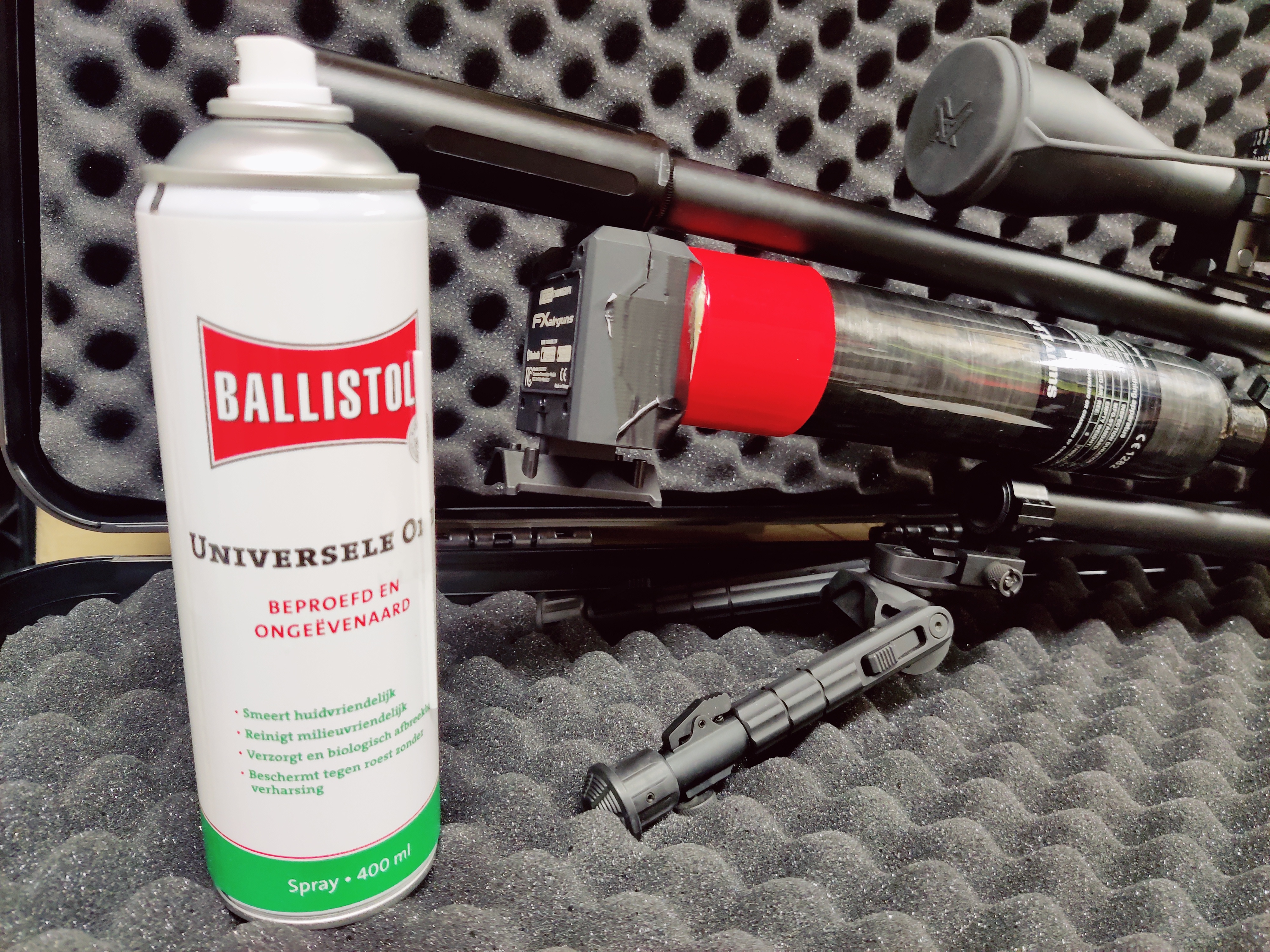

Pulled of the cap from my ballistol spray can. The cap fits perfect over the carbon bottle of my prophet. Put some duct tape on the back of the chrono and glue it on the ballistol can.



[FLbushman]

View attachment 306459

Real professionally designed and made!
