PP700 Shooters

John in ma

thanks for the heads up on the check valve will take a look. Another question I have removed the main valve and rotating breech. My question

part #20 (movable connector screw) is just a plug or acts as a restricter? should it be bottomed out?

part #45 (valve body screw) how tight to make?

Thank you for the folks much appreciated



But I am still plagued with a slow leak, albeit it is taking about 2 hours now to leak down. All mating surfaces are good, the pistol fires fine just cant stop that slow leak.












Have you checked the pressure gauge? Most slow leaks I've found have been due to a loose, or bad O-ring, in the pressure gauge.



Kindly 'Ol Uncle

So I finally pulled the oring from the back half of the tank as suggests by HUMA. Sure enough the minute I start to fill the tank air was pissing out the threads. Now one would think replace huma oring so I did, and I made sure that when screwing on tank end that the regulator was all the way back. Start to fill air leaks out, So enough I put the rear o-ring back in.

So I decided to try something else.

I installed Huma set to 140, put in and left rear tank o-ring in.
The delron seal between tank and factory regulator is .081 thick, and as well does not fill the entire diameter it sits in. It has about a thousand or two space, I machined one flt the circle tightly in diameter and I increased the thickness to .085. I put all belville in same direction and cranked down the factory reg screw, this bridges the 2 regulators and with no pin the old one really does nothing now. Did a little valve work, Filled tank to capacity, took her over to my gunsmith to do some chrony and see if it is still leaking.

NO leaks! and after a few minor hammer spring adjustment she hitting an average 736fps w a benjamin 14.3g, ,this pistol now rocks, I did not need to leave the o-ring out, bridging the regulators seemed to do the trick and gave it a lot of power I was only getting 650s before with the same pellet and hammer spring settings. The delron made a much better seal at .085 than the factory and increasing diameter a bit helped seal the edges of old reg. The bark is not overly loud but enough to warrant a ldc.

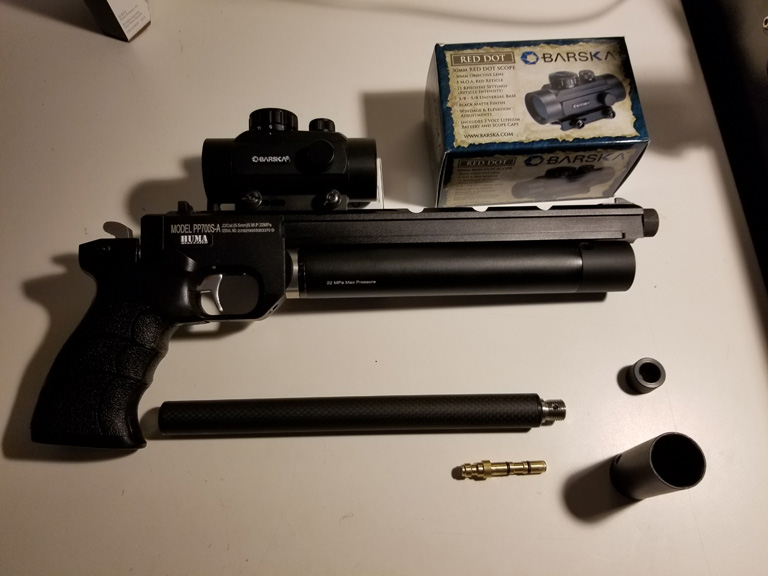

Where can I purchase a LDC that will work with the stock barrel shroud. Mine came with a factory adapter but have not found out what threads are. Or if you know of a kit, I do not want to go to the carbon fiber barrel shroud like on JSAR site I had that setup didnt like prefer stock shroud to use with LDC.

Thank you

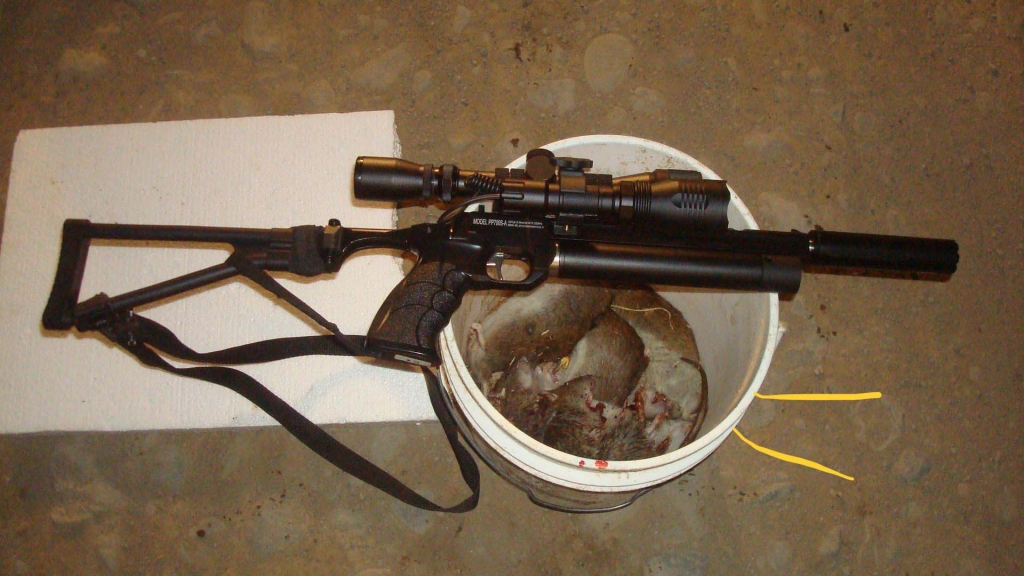

I got my adapter and LDC from DonnyFl. The Tanto makes my pp700sa very quiet.



That’s fantastic! I sure wish that I could partner up with you on those rat shoots Luis. I sure am enjoying mine. It’s still in pistol form. I haven’t made or bought a stock for it yet. I hope to soon. As of now I have recrowned the barrel twice. I did a much better job the second time than the first. That metal seems really soft . Anyway, I’m shooting around .5-.75” at 30 yards with JSB RS 7.3 pellets rested and a scope on 9x. I’m pretty happy with that. Sometimes I can get a small group so I know it’s capable. I’m getting 55 shots on a fill. I haven’t chronied it since that last time I reassembled the pistol and dialed the hammer spring tension up. I’m guesstimating is around 650-680 fps.
