We're stating what we would do, not what you should do...difference.
Notice he said "I'd", not "You should...".
If you're not comfortable, there is nothing wrong with returning the unit and requesting a refund or replacement.
-Matt
Upvote 0
Pyramid Refurbished Air Tank.
- Thread starter Chief Ten-Beers
- Start date
We're stating what we would do, not what you should do...difference.
Notice he said "I'd", not "You should...".
If you're not comfortable, there is nothing wrong with returning the unit and requesting a refund or replacement.
-Matt
Tested to 7500psi...
Hydro testing is destructive on carbon fiber bottles. The fibers are not made for hydro testing, they are static, not dynamic like steel or aluminum.
Go buy a "new" one.
Hydro testing is destructive on carbon fiber bottles. The fibers are not made for hydro testing, they are static, not dynamic like steel or aluminum.
Go buy a "new" one.
Upvote 0
This is very false, because its a carbon fiber wrapped tank with aluminum shell, and they 100% are required to be tested every 5 years.
Upvote 0
I think that the 2007 white paper you posted is woefully out of date and even though you got the 5 year retest date right, you are wrong that it has to be hydro tested. Hydro testing is destructive to CF bottles, they have a 15 year life due to the TESTING performed. Ultrasonic testing is a safe alternative and is non-destructive on CF bottles.
It is also incorrect that you have to have your bottles tested every 5 years as a matter of law or enforcement, the DOT code does not apply to those not in commerce.
The USN challenged the DOT for extensions and the industry for a change in testing methods and in 2012, the final rule was released.
Upvote 0
Specifically the wording in blue; all pressure vessels with high pressure gasses must be inspected and tested every 5 years, steel, aluminum and CF are all included.
Private ownership and non-DOT transportation are exempt.
Upvote 0
Hydro testing Carbon Fiber Tanks
I apologize for making this my first post but find myself in need of some information. I purchased an Omega carbon fiber 4500psi tank a few years back and haven't been shooting much due to life getting in the way. When I looked at the manufactuer date it was a bit over 6 years old. I took it to...
www.airgunnation.com Upvote 0

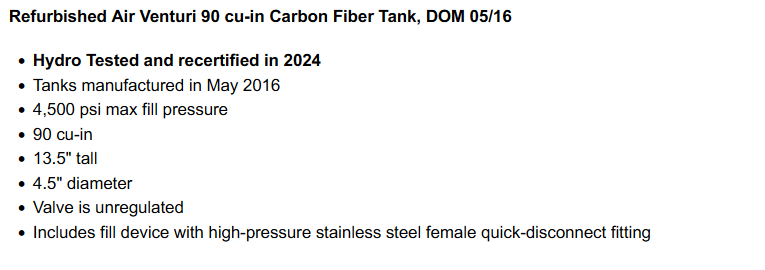

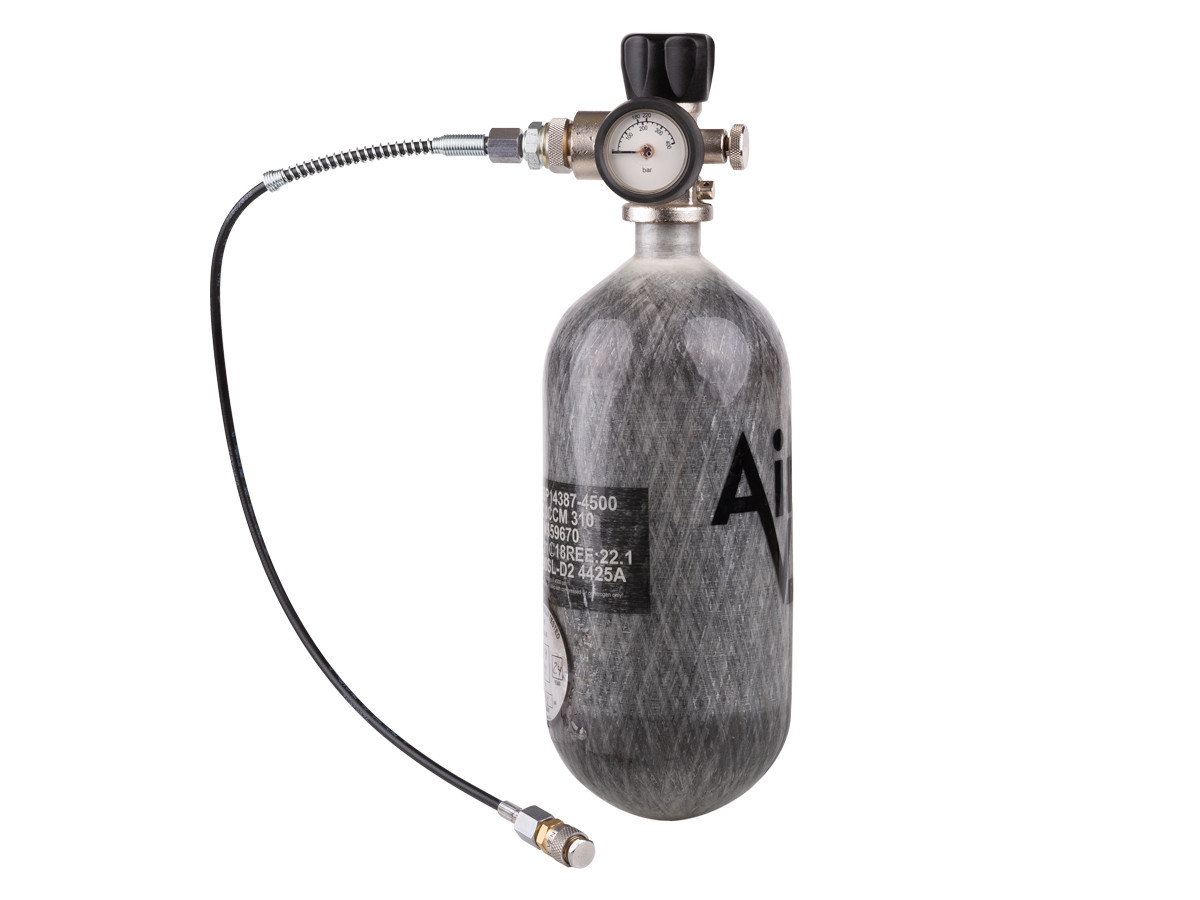

Refurbished Air Venturi 90 cu-in Carbon Fiber Tank, DOM 05/16 | Pyramyd AIR
Additional savings on a Refurbished Air Venturi 90 cu-in Carbon Fiber Tank, DOM 05/16 when you stock up for your next outdoor adventure at Pyramyd.
www.pyramydair.com

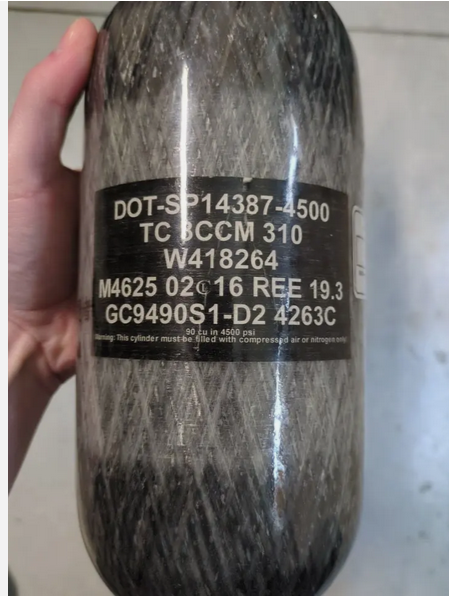

You can literally see the sticker from hydro testing on it here..
PLEASE DON'T GO AROUND SPREADING INCREDIBLY FALSE INFORMATION.
-Matt
Last edited:
Upvote 0
Upvote 0

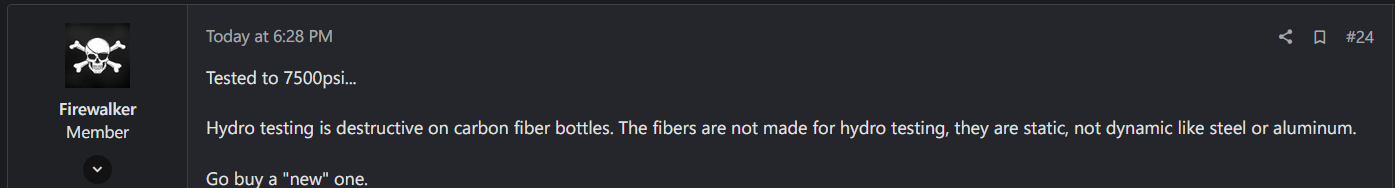

Also, chill with the Red Herring fallacy. The original statement you made was "Hydro testing is destructive on carbon fiber bottles. The fibers are not made for hydro testing, they are static, not dynamic like steel or aluminum."
Last edited:
Upvote 0
So, you didn't read the attachments then?
Denying truth is not the same as truth being false. Hydro testing was designed a hundred years ago for steel pressure vessels.
Along came aluminum pressure vessels and they also were hydro tested.
Both are dynamic materials, both expand then contract if safe pressures are maintained. The ONLY inspection other than visual is failure under test pressure when using hydrostatic testing.
Still following me?
Along came carbon fiber, not understanding the static and non dynamic nature of carbon fibers, they used hydrostatic testing on CF vessels but failures would become apparent over time and the 15 year lifespan was established.
The United States Navy wanted to extend the service life of thier CF tanks so in conducting studies (posted) it was determined that it was hydrostatic testing that was damaging the fibers thus shortening the life's of the CF tanks.
Investigations were conducted, hydrostatic testing was found to be the primary cause of hydrostatic testing failure so they looked for alternatives to hydrostatic testing.
Ultrasonic testing was tested and found to be superior in every way, new bottles with 30 year labels were created, they are not allowed to be hydrostatic tested, only Ultrasonic testing can be used on them.
These bottles are now available on the open market for firefighting and the United States Navy now uses them on all thier vessels as the 15 year bottles time out.
Denying truth is not the same as truth being false. Hydro testing was designed a hundred years ago for steel pressure vessels.
Along came aluminum pressure vessels and they also were hydro tested.
Both are dynamic materials, both expand then contract if safe pressures are maintained. The ONLY inspection other than visual is failure under test pressure when using hydrostatic testing.
Still following me?
Along came carbon fiber, not understanding the static and non dynamic nature of carbon fibers, they used hydrostatic testing on CF vessels but failures would become apparent over time and the 15 year lifespan was established.
The United States Navy wanted to extend the service life of thier CF tanks so in conducting studies (posted) it was determined that it was hydrostatic testing that was damaging the fibers thus shortening the life's of the CF tanks.
Investigations were conducted, hydrostatic testing was found to be the primary cause of hydrostatic testing failure so they looked for alternatives to hydrostatic testing.
Ultrasonic testing was tested and found to be superior in every way, new bottles with 30 year labels were created, they are not allowed to be hydrostatic tested, only Ultrasonic testing can be used on them.
These bottles are now available on the open market for firefighting and the United States Navy now uses them on all thier vessels as the 15 year bottles time out.
Upvote 0
At NO TIME did I say that hydrostatic testing is not still used. It is used on all carbon fiber bottles with a 15 year life. The reason is that hydrostatic testing is destructive on CF but not on steel and aluminum.
Upvote 0
Lastly, ultrasonic testing is actually an inspection, it is capable of finding cracks, separation, delamination and voids.
Hydrostatic testing is a failure test only. The visual portion is conducted on all pressure vessels regardless of materials and manufacture.
Hydrostatic testing is a failure test only. The visual portion is conducted on all pressure vessels regardless of materials and manufacture.
Upvote 0
No, this applies to all CF bottles universally.
Once a hydrostatic test has been performed on a fiber wound bottle, the clock starts ticking on lifespan.
Upvote 0
Try to get your untested DOT carbon fiber wrapped tanks filled at any reputable scuba shop.
-Matt
-Matt
Upvote 0
