Have some rate reset targets? Check out these upgrades and modifications to make them work and look better!
RAT TARGET MOD AND UPGRADES
- Thread starter DeadEyeNC
- Start date

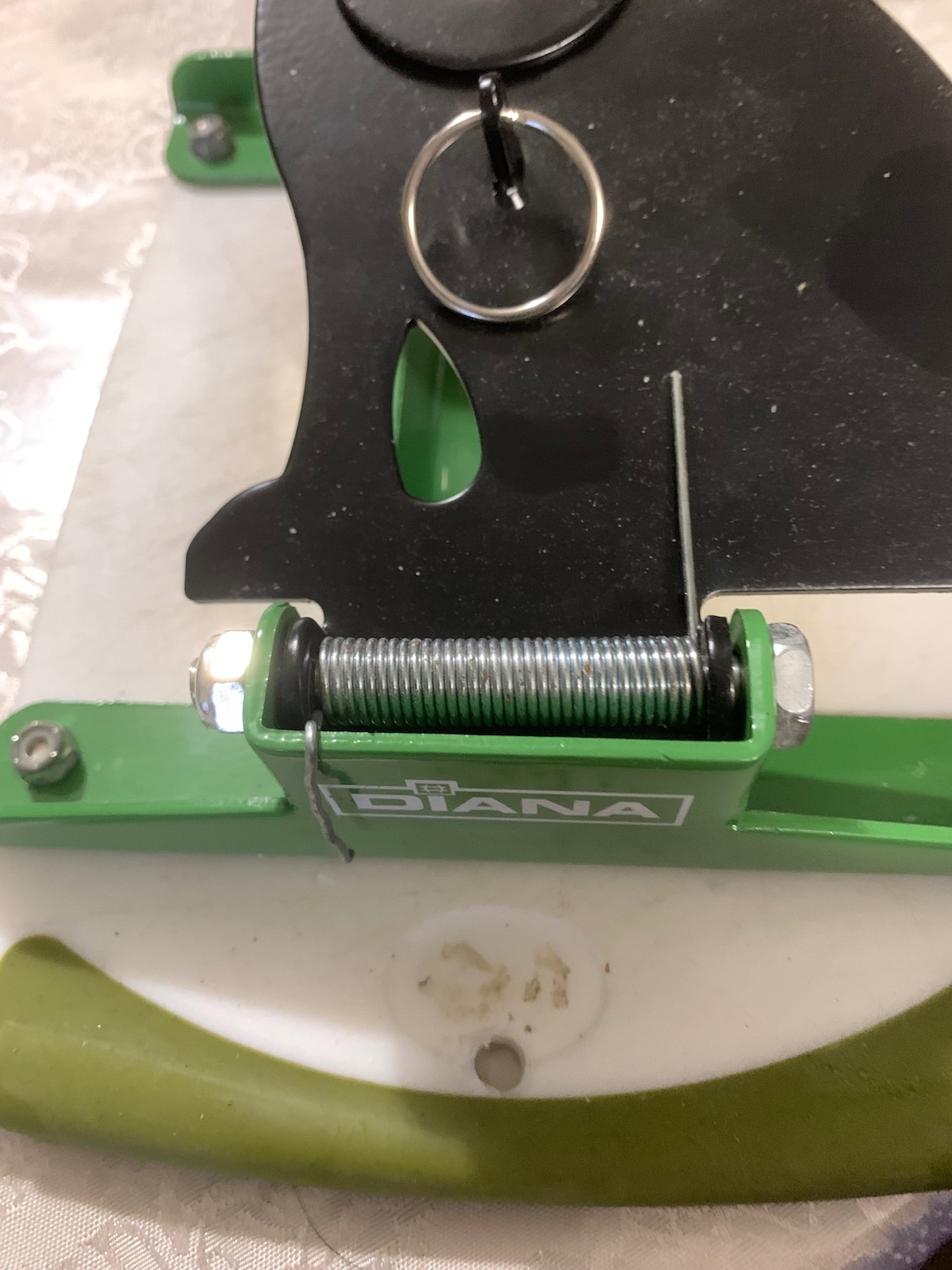

Do you ever install a torsion spring on the main linkage bolt to put back pressure on the faceplate. I have done this on Diana/Remington targets and it makes them much more reliable. I just bend that little tab, that holds the bottom of the paddle, out of the way.
The reducer on the front and the reset bar are both excellent ideas.
The reducer on the front and the reset bar are both excellent ideas.
Upvote 0
Interesting-
Does it still work with 12 fp? I would like to see pictures if you ever get the chance. Thanks!
Upvote 0
Someone pointed out I painted the back of the target white-
This was done with a purpose- the idea is to give better light on the paddle from the back of the target. I just failed to mention it!
This was done with a purpose- the idea is to give better light on the paddle from the back of the target. I just failed to mention it!
Upvote 0
All I shoot is 12 ft/lb and they have all been fine. This one will get tested and used in our next match.
The white in the back works very well too.
Face will be painted white or yellow depending on which lane it ends up on. Paddle will be black.
The white in the back works very well too.
Face will be painted white or yellow depending on which lane it ends up on. Paddle will be black.
Upvote 0
Upvote 0
Ah, I see-
We do have a target or two with a spring installed like this. Interesting. And technically all our gamo targets have a spring like this.
That little tab you mentioned can be a problem if it is too long and doesn't allow the target to seat properly in place- sort of a 'locked' up position. After testing some I did file that tab down just a bit to make them reset more reliably.
Good suggestion!
Also I have never seen a Diana target somehow, so that's neat.
Upvote 0
That tab, I just bend right out of the way as it is redundant with the spring installed. I have always found the tabs problematic.

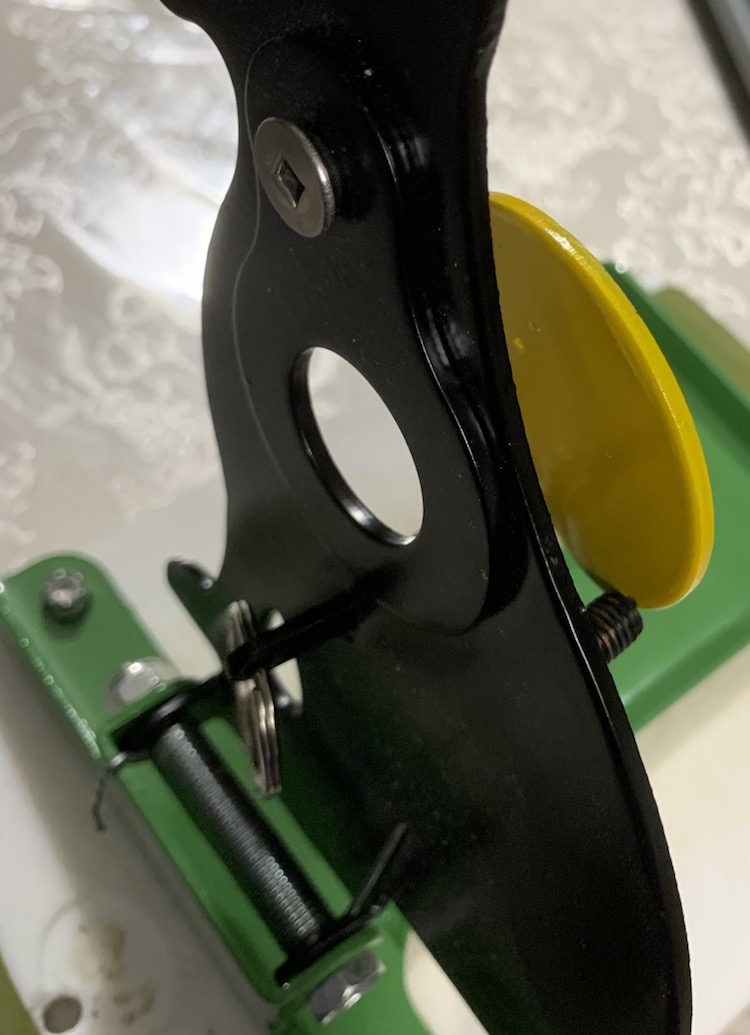

I also left the stud on the back to serve as a stop for the paddle. I drilled a different hole to attach the reducer to the front.
I also left the stud on the back to serve as a stop for the paddle. I drilled a different hole to attach the reducer to the front.
Upvote 0
OK, now I understand what you are describing. I personally have some Remington targets with that 'tab'.

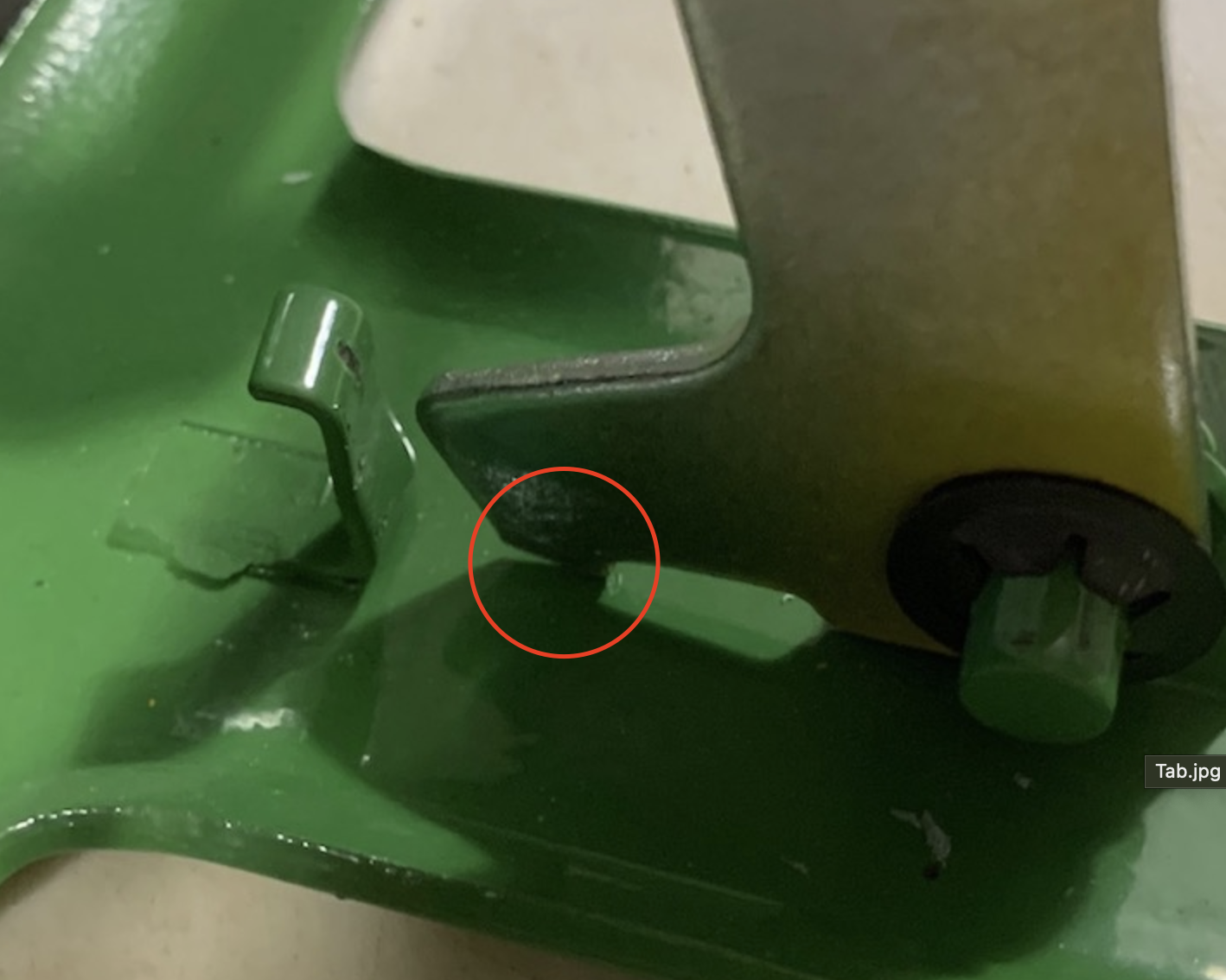

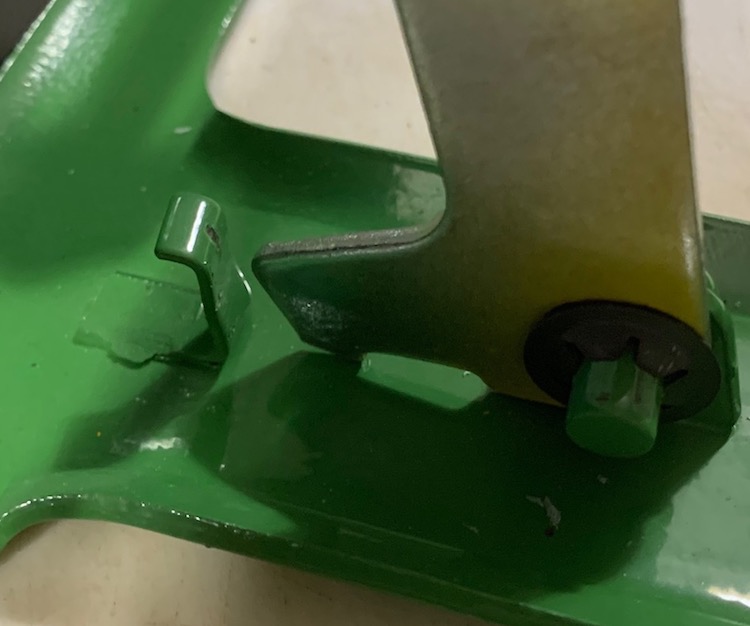

What I was describing that I have had to file down on some rat targets is this tab on the foot. On some it was made just a little too long and the paddle would not lock forward into place as it should. But an easy fix.
I've also replaced a lot of those pressed washers and replaced them with lock nuts.
What I was describing that I have had to file down on some rat targets is this tab on the foot. On some it was made just a little too long and the paddle would not lock forward into place as it should. But an easy fix.
I've also replaced a lot of those pressed washers and replaced them with lock nuts.
Upvote 0
I know what you mean. Sometimes the paddle just cannot come forward enough. I have done the same as you describe.
I have not taken that target to the club yet where I have all the hardware to replace the rivets on the linkage and the washer you describe. Not doing that just makes it certain the target will loosen up and perhaps fall apart during a match. Learned that the hard way from experience.
I have not taken that target to the club yet where I have all the hardware to replace the rivets on the linkage and the washer you describe. Not doing that just makes it certain the target will loosen up and perhaps fall apart during a match. Learned that the hard way from experience.
Upvote 0
Philip,
Here's a link to Brad's original write up. It actually was listed on the AAFTA page years ago, but didn't make it over when the upgrade happened. Scott Hull also had a great writeup on Gamo mods.
Yellow Airgun Forum Archive-Upgrading the Remington Field Targets with a spring
I was surprised to find that the Remington field targets didn't use a spring to apply pressure to the face to keep it engaged and aide in making the t
www.tapatalk.com Brad talking about doing the same thing to the Air Venturi Rat on the Run targets
Yellow Airgun Forum Archive-Wayne, Tyler, is this the Rat target you are testing/using?
I bought one of these Air Venturi Rat field targets from Airgun Depot and have been testing it over the past week. It is about 3.5mm (0.120"-0.123") t
www.tapatalk.com Greg
Upvote 0
Brad is a real innovator for sure. When he has an idea, I always pay attention, right back to when he had the plans for the wooden targets with big metal washers for hit zones. I still have a couple of those around. His self resetting targets were also awesome.
