Tuning RAW HM1000x Offset Moderator Removal?
- Thread starter cworkman74
- Start date
you know you can always remove the cf from the barrel and run a new piece of cf and make it like they sell them today , ive done it if you have an interest , i have pictures , then you can run any length of moderator or none at all if your out and about
Upvote 0
or best fittingsAwesome! Thank you. Do I also order a unf 1/2 20 adapter from Martin or Donny?
Upvote 0
its a little bit of work and being careful , but if your a little bit of a craftsman you can do a nice job !the old cf comes off good using a 5 inch flooring scraperAwesome! Thank you
Upvote 0
Please excuse my ignorance in this matter: BUT...I cannot seem to get anyone to explain to m what removing the cone shaped piecer has to do with mounting a Ronin from DonnyFL. I have everything off but the cone shaped piece, I cannot see how the Ronin will mount to the barrel even with the adapter recommended by Donny. I am assuming the moderator simply replaces the current device. But there are no threads on the Ronin or moderator that fit the end of the barrel. I am going to return it, if I can, Way beyond my skill level.
Upvote 0
I think the OEM cone adapter either has a grub screw or is bonded (glued) on. If glued, then heat is needed. You might want to contact Martin @ RAW, he will call you back if you leave a message, great guy.
Upvote 0

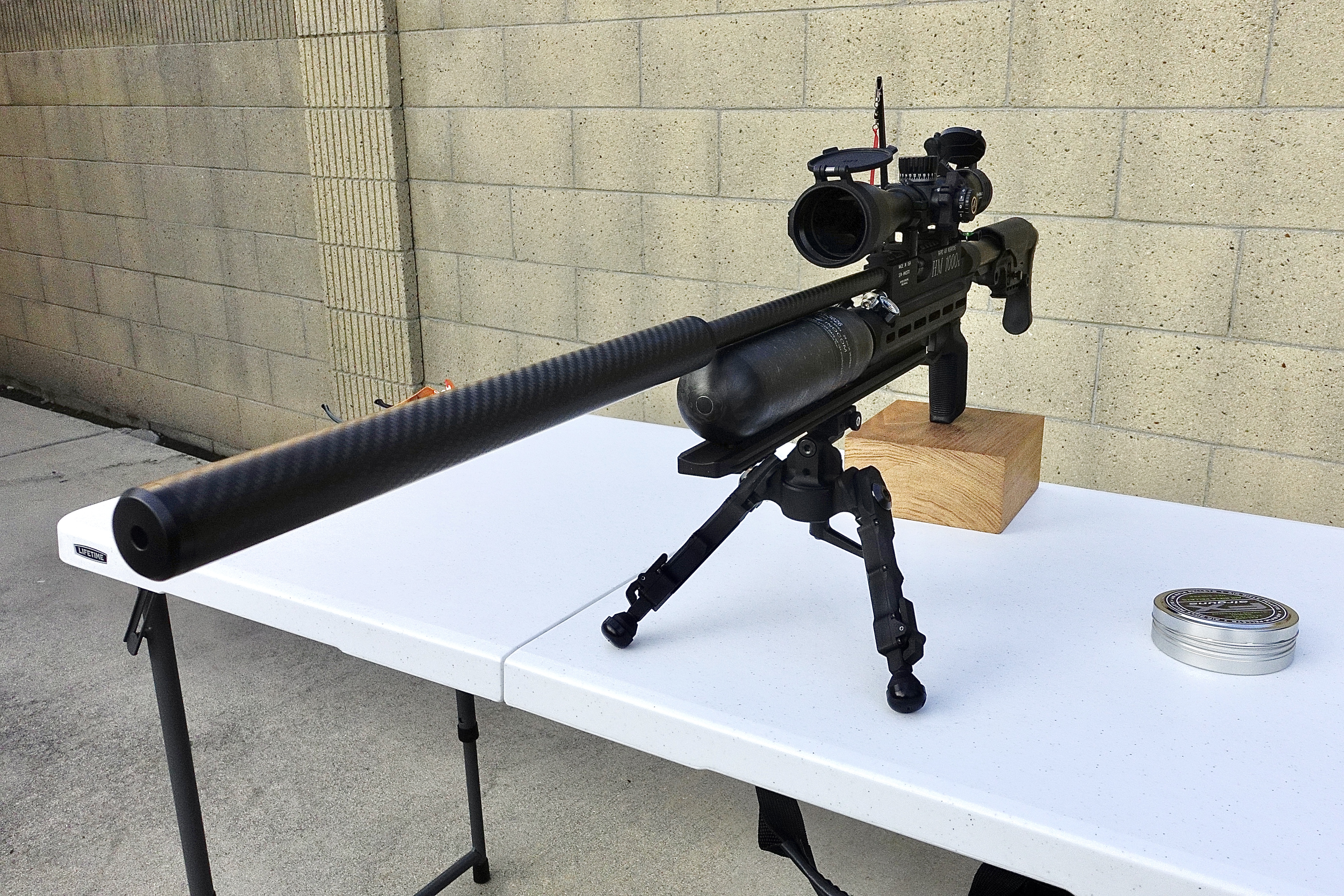

i ended up cutting mine off , i couldent find anything that would fit it or whatever , it made me mad and i wanted it off worse , my dremmel caught fire so i finished it with a hack saw , in the end my gun looks beautiful with a glossy cf tube on it , and the moderator makes it verry quiet now , i have a bag of parts that will NEVER go back on ! now if i want my moderator off i simply unscrew it ,
Upvote 0
amazon , 16mm ID> 18mm OD , i took a heavy duty 5in floor scraper and cut the cf off the barrel . i used fiberglass resin brushed on the barrel with a 2 in. hair brush "not too heavy " dont have much time so dont worry about a dry spot , as you slide it on rotate the cf shroud and have a rag with some acetone ready , , preparation goes a long way ! have a wet acetone rag ready before you start , it doesnt take but a thin coat and get going ! lots of different styles to choose from , youll need your slip on threaded end on hand so you know where to stop your cf shroud . if you dont feel comfortable doing the job im sure one of these fine craftsmen on here could do the job !
Upvote 0
Would that moderator still fit if you have the whole barrel sleeved? I know it goes over part of the barrel and people like that so they can take off the stock moderator and not have to re-sleeve it. Mine is fully sleeved but I want one like that.
Upvote 0
I haven't taken mine off....I think mine is glued on. If you send yours to Martin, he can install a unf 1/2 20 adapter and shortened carbon fiber sleeve, then you can add any moderator of your choice, I almost did that with mine when I sent mine in for service, was also thinking of adding a 700cc bottle....
Upvote 0
Mine was glued on but it didn’t take much effort to remove it, you can buy 1/2” unf adapters and fi them yourself, just measure the od of the barrel and order the correct size.
Bb
Upvote 0
Bb, do you know if the front OEM LDC cover on an older round version is threaded so I can remove it to see inside to see if there are baffles inside...or do you know if they came with baffels? Thanks in advance!
Upvote 0
It’s been a few years since I removed mine and threw it away, but from memory it unscrewed and left the aluminium section on the barrel, there are no baffles as such, just a mono block construction that screws onto the aluminium section.Bb, do you know if the front OEM LDC cover on an older round version is threaded so I can remove it to see inside to see if there are baffles inside...or do you know if they came with baffels? Thanks in advance!
Never seem the big Dia version
