Scope mounting options
- Thread starter gunnerf250
- Start date
So I have a Hatsan jet 2 and I want to mount a leapers accu shot swat compact scope to it. In must be something that can fit of 2.8 inches of rail.... any ideas?
Upvote 0
High rings. One in front of magazine chamber, one behind. It's gotta be high enough to clear magazine.
Upvote 0
I found a cheapo dove tail to pic rail adapter and I'm going to give that a try since the scope came with rings
Upvote 0
On my jet2 the rear rail and the front rail were out of alignment by about 1/16". I was able to stack a crazy number of pop can shims on top of each other to compensate, but from what I've read it's a fairly common problem. It appears that you intend on mounting yours further to the rear than mine, so it may not be an issue for you.
Upvote 0
it actually was an issue for me it was off vertically so that's why I'm going with only mounting it to the rear rail
Upvote 0

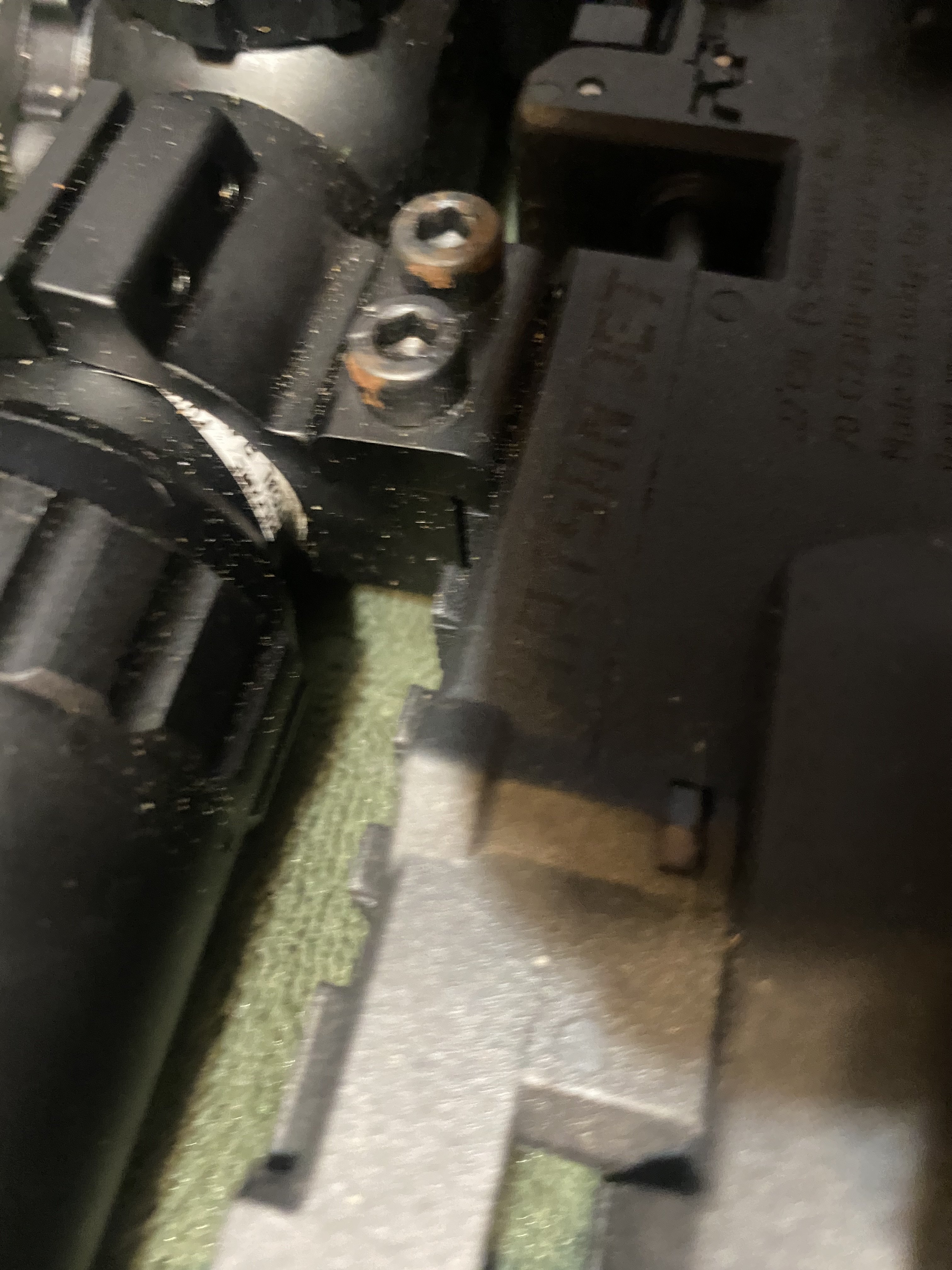

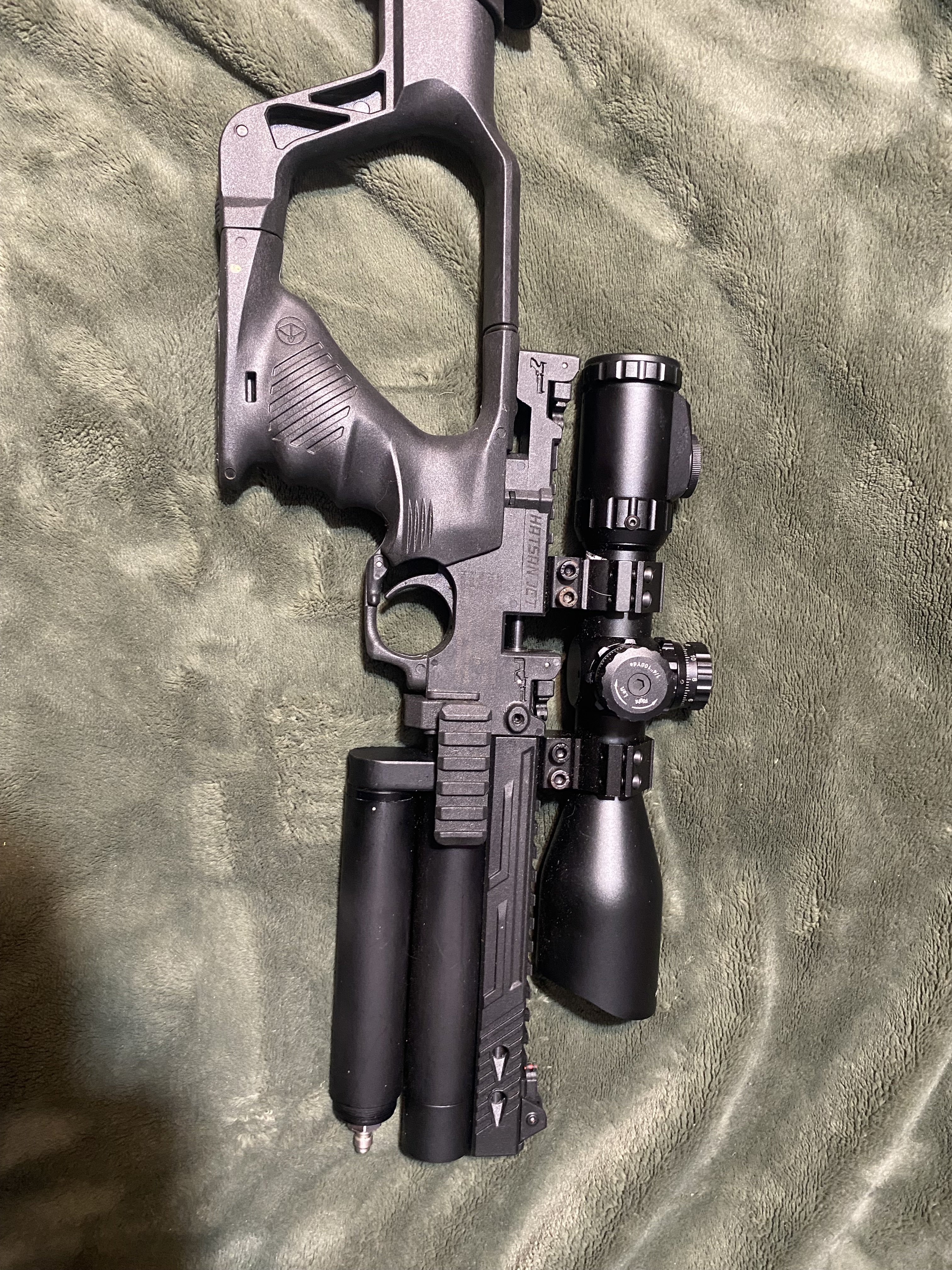

This is how I have mine mounted. It would be significantly better if it were 1.5” or so further to the rear. You can see a few of the shims peeking out of the ring.
Upvote 0
The Dove tail to pic rail adapter looks like its going to add some length to the rail might have to bubba it and trim it with a cut off wheel
Upvote 0
Here is what I use on those guns with limited rail and magazine space, and with short tubed scopes.
Monstrum H-Series Offset Picatinny Scope Rings
https://www.amazon.com/Monstrum-Offset-Picatinny-Scope-Diameter/dp/B089QVYWDB/ref=mp_s_a_1_1_sspa
Last edited:
Upvote 0
Don't make it too complex
2 tall picatinny 30mm scope rings
One on either side of the magazine.
Or
Measure how high the magzine sits above the rails, you may be able to use Medium height rings.
I'd get both just to be able to insure my eyeline to the scope off the cheek rest was good.
2 tall picatinny 30mm scope rings
One on either side of the magazine.
Or
Measure how high the magzine sits above the rails, you may be able to use Medium height rings.
I'd get both just to be able to insure my eyeline to the scope off the cheek rest was good.
Upvote 0
One of the good things about the Jet pistols is their stock. It's adjustable for both cheek rest height and length of pull so, so long as you can fit the magazine in you should be able to adjust the stock to fit the ring height. I always go for the lowest height possible.
Upvote 0
A little knock off dremel and cheap Amazon rail adapters and I got it to work a new squirrel gun is complete
