Slug sizing info help

[Llama]

Just wondering what some of you custom slug builders or guys that do it at home what do y'all use for a slug sizer and I was just wondering if something like this would work

Smooth Bullet Sizing Die Complete Kit - Hanks Precision Gun Parts

This is a complete kit for smooth sizing your bullets to fit in your rifle barrel. This kit consists of a sizing die body and adjustment nut, a wrench for making the adjustments, the bullet pusher stem, and an expander ball if you ever go to far and need to open up the die to the original size...

hanksprecisiongunparts.com



[caliusoptimus]

Just wondering what some of you custom slug builders or guys that do it at home what do y'all use for a slug sizer and I was just wondering if something like this would work

Smooth Bullet Sizing Die Complete Kit - Hanks Precision Gun Parts

This is a complete kit for smooth sizing your bullets to fit in your rifle barrel. This kit consists of a sizing die body and adjustment nut, a wrench for making the adjustments, the bullet pusher stem, and an expander ball if you ever go to far and need to open up the die to the original size...

hanksprecisiongunparts.com

I'm not sure what that is exactly... hard to tell from the photos.

I use a lee setup. Single press, with either the classic sizer kit or the breech lock sizer kit. I don't like the breech lock kit as much as the classic, but it has a wider range of available sizes and the dies are cheaper.



[coffeepan]

Lee's press and you can get a sizing die set for it from NOE. And Lee's own dies of course. But NOE has dies suitable for air guns like .218 etc
Here is link for system...

001 Push Through Size Die Body | NOE Bullet Moulds

noebulletmolds.com

And various sizes of bushings

Bushings | NOE Bullet Moulds

noebulletmolds.com



[Scotchmo]

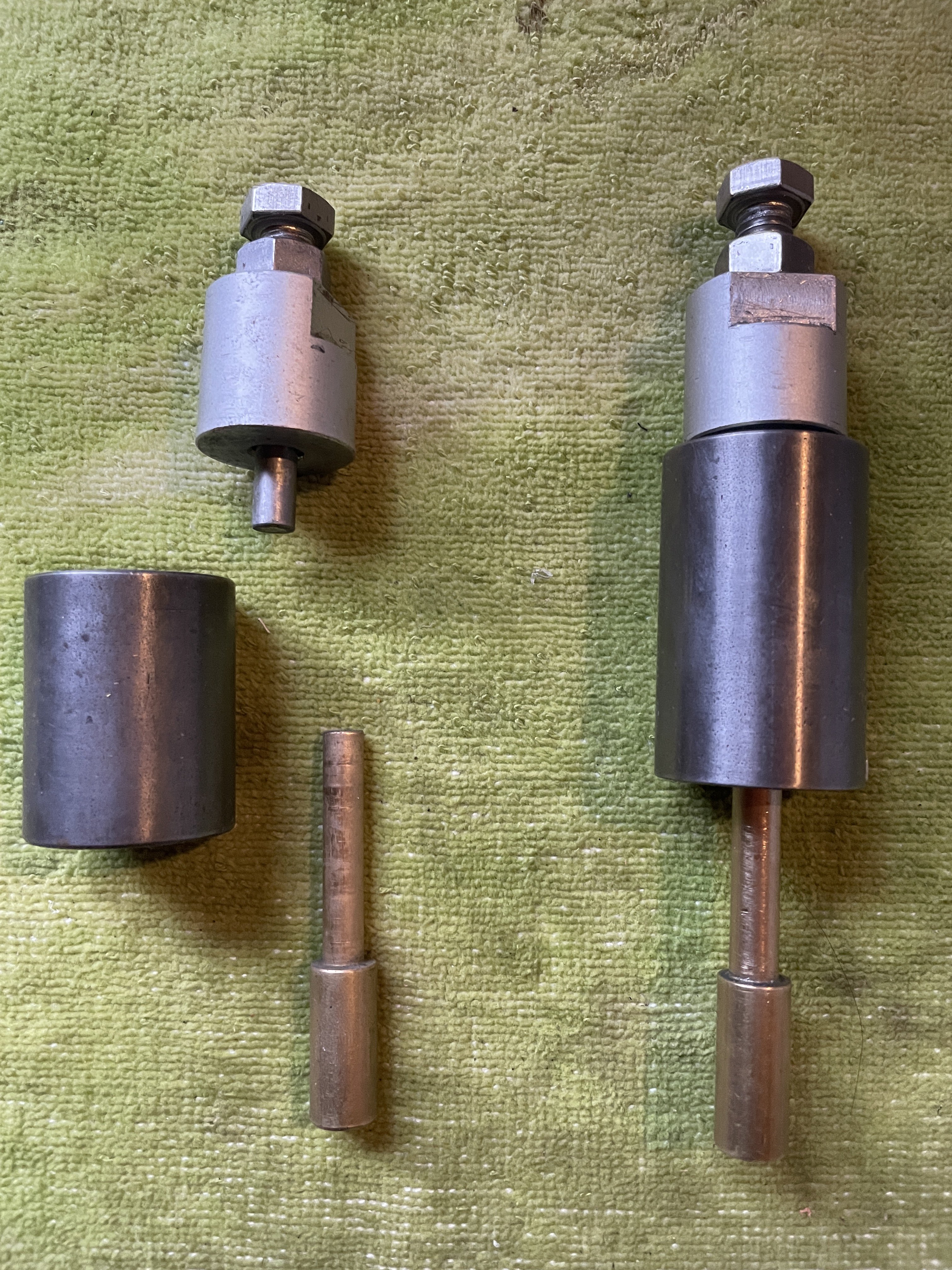

I make my own sizers for my big bore airgun slugs. The through hole of the die is reamed to bore diameter. I use a taper pin reamer to cut the lead-in on the die. I use the same tapered reamer to cut the barrel lead-in. Each die has two punches. An adjustable punch that controls how far the slug is set into the taper. That also controls the maximum diameter at the tail (driving band, if there is one). I usually size so that the driving band is about 0.001” smaller diameter than the grooves. I lube the slug and punch it into the die using a plastic mallet and adjustable punch. The nose of the slug ends up sized to ride the bore. Then I use the brass punch to drive the slug back out of the die.

7mm die set and .308 die set.



[sonnysan]

What calibers are you trying to size?

View attachment Sonnyslugs_2.0.xlsx



[dgeesaman]

Is there any reason one couldn’t buy a custom barrel and make a sizing element using the excess barrel length? Maybe hone the grooves out of it?



[gendoc]

Just wondering what some of you custom slug builders or guys that do it at home what do y'all use for a slug sizer and I was just wondering if something like this would work

Smooth Bullet Sizing Die Complete Kit - Hanks Precision Gun Parts

This is a complete kit for smooth sizing your bullets to fit in your rifle barrel. This kit consists of a sizing die body and adjustment nut, a wrench for making the adjustments, the bullet pusher stem, and an expander ball if you ever go to far and need to open up the die to the original size...

hanksprecisiongunparts.com

this sizer is used for smokeless/sabotless muzzle loaders.



[DesertSilver]

I've been using the NOE sizing system for the last 3 years and just love it.
