STL files to 3D print phone scope mount?

[EmptyTin_Tim]

Hey guys I've got a 3D printer and want to mount my phone to record infrared light shown downrange at night through my scope. Anyone have some pre made stl ? I didn't really see anything on thingiverse.com but maybe I missed it. I saw some for spotting scopes but not rifle scopes.

Thanks in advance!



[Triglav]

Where do you want your phone to be mounted?
Is it like a mount on the side of the gun, on a pic. rail or something, that you've got in mind?



[heavy-impact]

"air rifle phone scope" 3D Models to Print - yeggi

1919 "air rifle phone scope" 3D Models. Every Day new 3D Models from all over the World. Click to find the best Results for air rifle phone scope Models for your 3D Printer.

www.yeggi.com



[EmptyTin_Tim]

Where do you want your phone to be mounted?
Is it like a mount on the side of the gun, on a pic. rail or something, that you've got in mind?

I am gonna use the phone as a viewfinder not just to record, so I guess ideally it'd go in line , not do a 90° turn. It could hang off the ocular lens



[shaman]

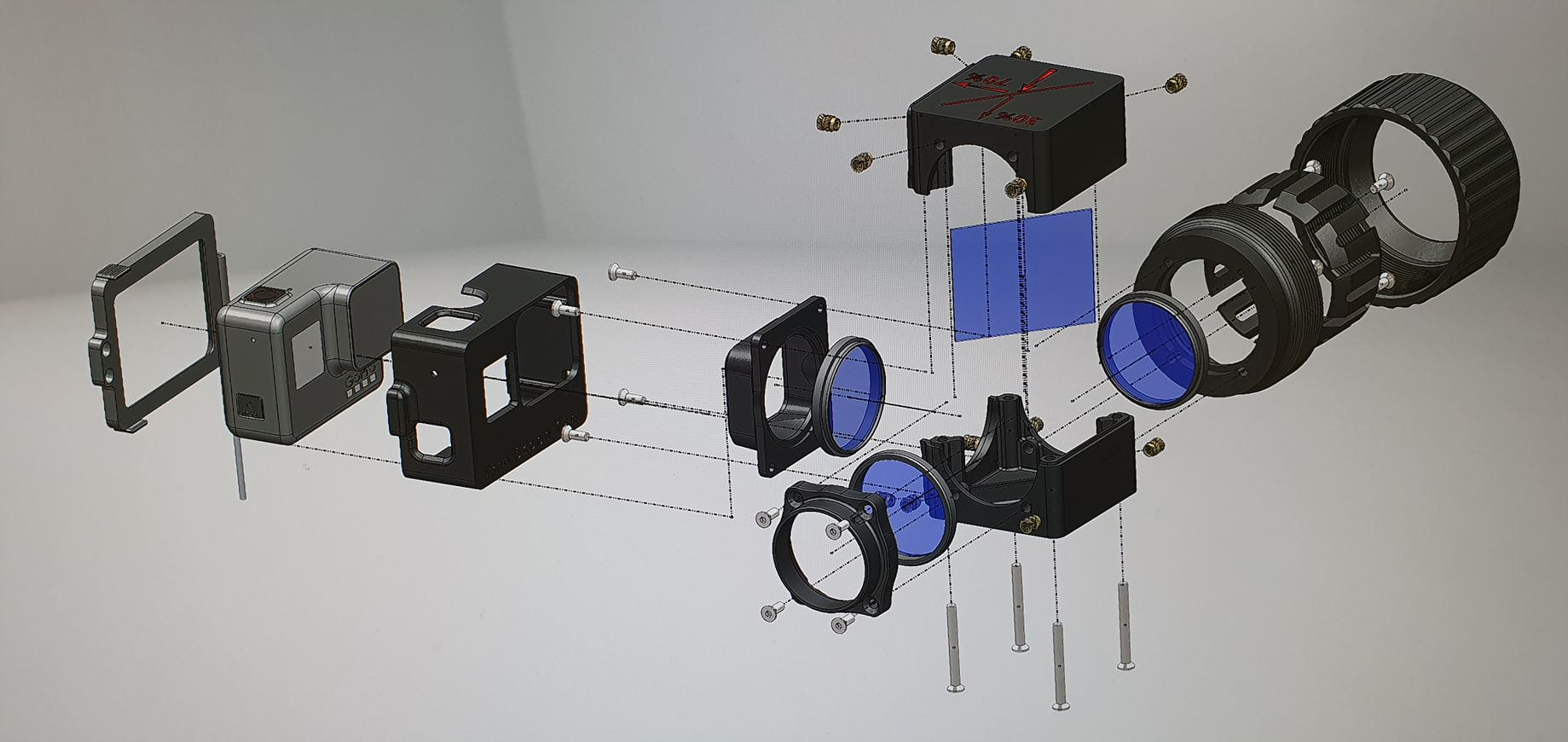

If you can design just the phone holder (it's easy) i can send you this:



[dreadnought.tactics]

If you can design just the phone holder (it's easy) i can send you this:

View attachment 424796

Could you send me this please



[Triglav]

How wide/thick is your phone?



[EmptyTin_Tim]

If you can design just the phone holder (it's easy) i can send you this:

View attachment 424796

That looks like a 90° turn with some fancy mirrors. Have you made that in real life before? Really cool!

How wide/thick is your phone?

I have a Samsung Galaxy S23 and was thinking I'd print a case for it to mount that way, just glue or make the case part of the design.

I'm new at 3d printing but really interested in making my own designs. I have like zero experience using Blender, FreeCAD, etc however, so if there were something really simple that'd be great.

I've got some hyper pla and petg I could use.



[Triglav]

That looks like a 90° turn with some fancy mirrors. Have you made that in real life before? Really cool!


I have a Samsung Galaxy S23 and was thinking I'd print a case for it to mount that way, just glue or make the case part of the design.

I'm new at 3d printing but really interested in making my own designs. I have like zero experience using Blender, FreeCAD, etc however, so if there were something really simple that'd be great.

I've got some hyper pla and petg I could use.

Maybe I'll look into designing the thing sometime in the future, as I may have a need for something similar myself...



[delooper]

If you decide you want to mount a traditional camera to your scope, there are a lot of options in the astrophotography world. There's fairly cheap steel and aluminum mounts available.



[EmptyTin_Tim]

If you decide you want to mount a traditional camera to your scope, there are a lot of options in the astrophotography world. There's fairly cheap steel and aluminum mounts available.

I think the problem with ones I've seen at least are that rifle scopes need eye relief whereas a spotting scope doesn't.



[delooper]

I think the problem with ones I've seen at least are that rifle scopes need eye relief whereas a spotting scope doesn't.

Yeah, that could be a problem, depending on the min eye relief you need. I think my astrophotography gear puts the camera (max) about 3" away from the scope eyepiece.



[EmptyTin_Tim]

Yeah, that could be a problem, depending on the min eye relief you need. I think my astrophotography gear puts the camera (max) about 3" away from the scope eyepiece.

Yeah mine has 3-3.4 inch eye relief. Also has those buttons for the illumination so that's the other obstacle for the scope phone mount.

UTG® 4-16X44 30mm Compact Scope, AO, 36-color Mil-dot, Rings

UTG® 4-16X44 30mm Compact Scope, AO, 36-color Mil-dot, Rings

www.leapers.com



[shaman]

That looks like a 90° turn with some fancy mirrors. Have you made that in real life before? Really cool!

This is made with such printed sidecam and iPhone 13 mini:



[bigHUN]

I would like to record the pellet/slug flight for tuning purposes only. My reason doesn't justify buying a new camera.
I have two DSLR as well and a bunch of higher quality lenses, the smaller camera may work but still heavy.
I was tinkering about a scope mount, but a Canon DSLR is heavy to mount it inline, and my Samsung S23 video doesn't have a recording speed high enough to capture the pellet flight anomalies.
I have a nice birding - spotting scope, but the power is less then my X50.
I am kind of hanging on a thin string with this my project.
Following with interest.



[Geojorjika]

If you can design just the phone holder (it's easy) i can send you this:

View attachment 424796

Hi . is it possible to get this model? I have used lots of different models and still seeking normal ones for use



[Luvmadaysoff]

If you can design just the phone holder (it's easy) i can send you this:

View attachment 424796

Hi Shaman, is it possible to get this design from you please? This looks perfect for what I'm trying to achieve. Thanks so much for posting this.



[Diyako]

If you can design just the phone holder (it's easy) i can send you this:

View attachment 424796



[Diyako]

Bro you can geve me ? File



[blackbird1993]

Here you go:

Mobile Phone Scope Mount by nias123

3D printed quick release mobile phone scope mount.Allows most mobile phones to be attached to an air rifle scope rail.Attaches to the 11mm scope rails rather than the scope itself.Further details here http://www.brettoliver.org.uk/Mobile_Phone_Scope_Mount/Mobile_Phone_Scope_Mount.htmFreeCAD...

www.thingiverse.com

40mm gun scope android phone holder by craget

This is a simple phone holder for any 40mm gun scope.You will need 4X 4mm counter sunk nut and bolts and 1X 6mm nut and bolt, pref wing nuts.The tube.stl and tube holder.stl will need to be glued together.

www.thingiverse.com

There are a lot on thingiverse....

Search for "scope phone", you get some pages....
