Tank thread sizes.

Jump to latest Follow Reply
T

TheBeardedGunsmith

Member
Mar 8, 2023
240
358
FAIRFIELD

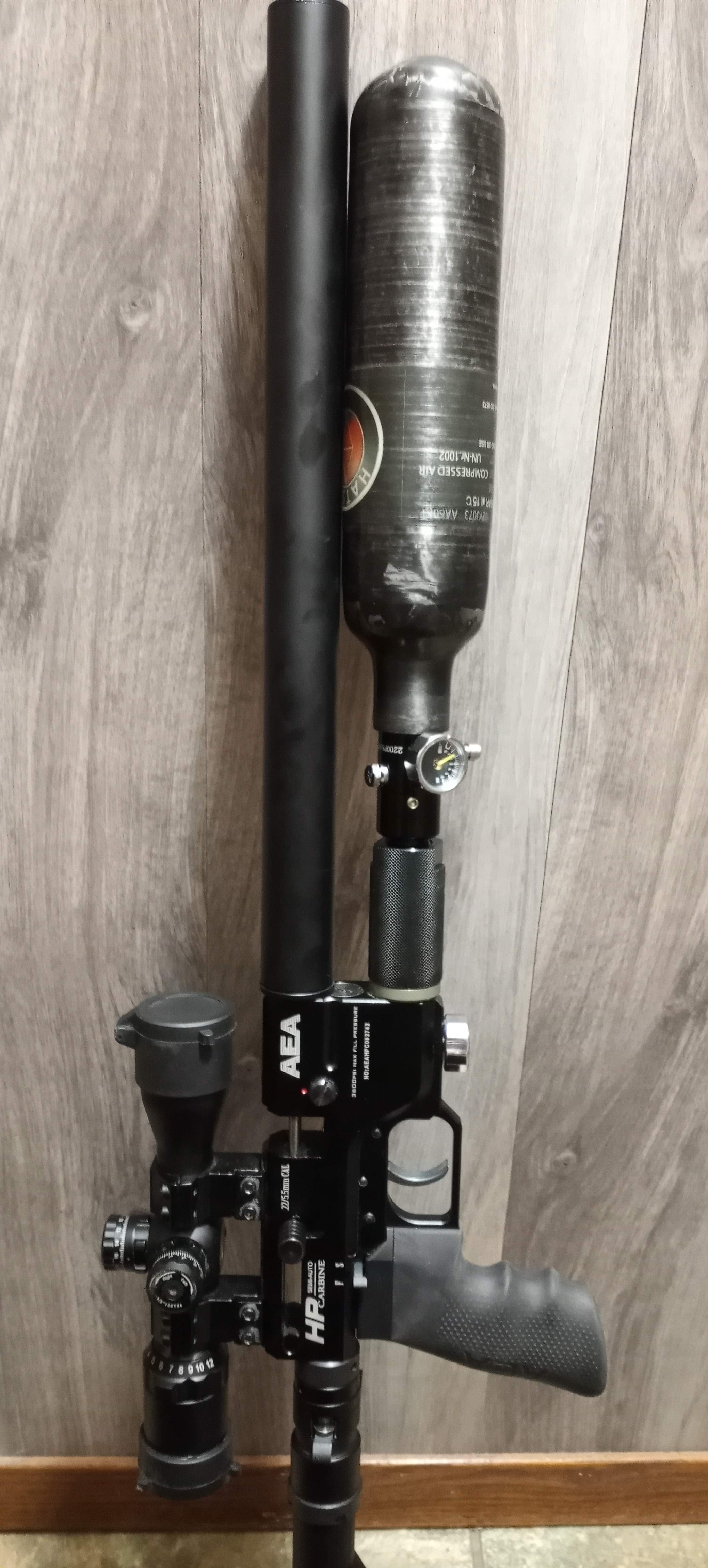

The tank that im using with my 50 caliber gun has a tank thread that is m18x1.5. The regulator that im using is 4500/3000 but it was a generic ebay find and I wanted something more reliable so I ordered a Ninja regulator that says it's for PCP use but the thread is 5/8-18. I'm having a heck of a time finding tanks with the 5/8-18 so will someone please school me on the uses of the two threads. I can't find the same reg with the metric so I figured I'd just buy a tank to match the standard thread.

Last edited:
  • Like
Reactions: HogKiller and RAMJET66
Upvote 0
That’s what sucks about the ninja reg for ‘pcp’ only. It has the 5/8” threads. It sucks because the 5/8” carbon fiber tanks are nowhere to be found (at least not when I was looking for them).

They did make a couple of runs of that valve for 18mm x 1.5. They didn’t last long when in stock. They may still make them or at least be able to supply the reg body as a part. Might be worth contacting them.

Dave

  • Like
Reactions: robinkuhlman
Upvote 0
Hajimoto sells the ninja x reg with metric theeads, output up to 3k psi.

hajimotoproductions.com

Ninja High Pressure Metric M18 Custom Output - Hajimoto Productions LLC

Ninja Paintball is beginning to produce these with a polished brass bonnet. We will be forced to only offer the polished brass version once all the black steel bonnets are gone. We do include the ball/pin and spring should you happen to have a thin pin depression system capable of actually...
hajimotoproductions.com hajimotoproductions.com

  • Like
Reactions: TheBeardedGunsmith
Upvote 0
Firewalker said:
Just get a tank adapter?

www.ebay.com

PCP to Paintball HPA Tank Regulator Adaptor Adapter Converter M18*1.5 5/8"-18UNF | eBay

Find many great new & used options and get the best deals for PCP to Paintball HPA Tank Regulator Adaptor Adapter Converter M18*1.5 5/8"-18UNF at the best online prices at eBay! Free shipping for many products!
www.ebay.com
Click to expand...
This is a strange adapter. I'm not sure what it's use would be because an adapter fitting the application that I need would be a female/male adapter. That one appears to be female/female.

  • Like
Reactions: Firewalker
Upvote 0
SqrlHntr said:
Hajimoto sells the ninja x reg with metric theeads, output up to 3k psi.

hajimotoproductions.com

Ninja High Pressure Metric M18 Custom Output - Hajimoto Productions LLC

Ninja Paintball is beginning to produce these with a polished brass bonnet. We will be forced to only offer the polished brass version once all the black steel bonnets are gone. We do include the ball/pin and spring should you happen to have a thin pin depression system capable of actually...
hajimotoproductions.com hajimotoproductions.com
Click to expand...
Damn, I wish I had found that before purchasing the one I have. I hope they'll accept a return.

Upvote 0
  • Like
Reactions: John "spysir" Blount
Upvote 0
TheBeardedGunsmith said:
This is a strange adapter. I'm not sure what it's use would be because an adapter fitting the application that I need would be a female/male adapter. That one appears to be female/female.
Click to expand...

Not strange at all, its the bridge between the gun (M18*1.5) and the regulator (5/8"-18UNF). The gun is male, the reg is male on both ends.


Last edited:
  • Like
Reactions: TheBeardedGunsmith
Upvote 0
When I started down the PCP rat hole some years ago I bought more than my fair share of *upgrades* that for a plethora of reasons failed to work out. I did learn that there is one goto operation for PCP regulators, Huben Power. Ninja is good but they are primarily paintball equipment with some PCP hardware.

I've done the Chinese knockoff Huben crickets, the generic fixed and adjustable regulators. But nothing compares to the real deal Huben Power regulators. You pay a premium and shipping is usually $30 but they are rock solid. I just ordered a Z valve for a Talon SS I'm refurbishing.

I believe Haji on his web site and Alien Airguns (?) on ebay sell the real Huben. Anything on Aliexpress is a knockoff.

I'd return the Ninja (if you can) and go Huben. They have regulators with g14 and m18 gun interfaces and all of them have M18 bottle interfaces. Along with some airgun specific interfaces like Airforce and AEA.

-- Matt

Upvote 1
