I’m trying to help out a friend and to source him a fill probe O ring for his .22 Origin. Anybody have the o ring size ? Umarex is no help I’ve already called and no Google is no help. I’ve already scoured the internet before posting This.
Umarex Umarex Origin Fill Probe O Ring Size
- Thread starter PasadenaMike
- Start date
First I got to say...Umarex was sending me a new Origin fill probe free of charge... Been waiting over two years now
luckily, I found my original one. Sorry Umarex, I'll never let that go. Not mad though, as I wasn't charged. Just saddened me. Probably got lost in the mail...
Standard 008 (3/16 x 5/16) might work just by eyeballing, can't get the little bugger off to tell for sure. Don't have my metric kit handy at the moment, not certain if a metric equivalent 8mm OD would be a better fit (maybe 8mm OD x 5mm ID, 1.5mm thick).
luckily, I found my original one. Sorry Umarex, I'll never let that go. Not mad though, as I wasn't charged. Just saddened me. Probably got lost in the mail...Standard 008 (3/16 x 5/16) might work just by eyeballing, can't get the little bugger off to tell for sure. Don't have my metric kit handy at the moment, not certain if a metric equivalent 8mm OD would be a better fit (maybe 8mm OD x 5mm ID, 1.5mm thick).
Last edited:
Upvote 0

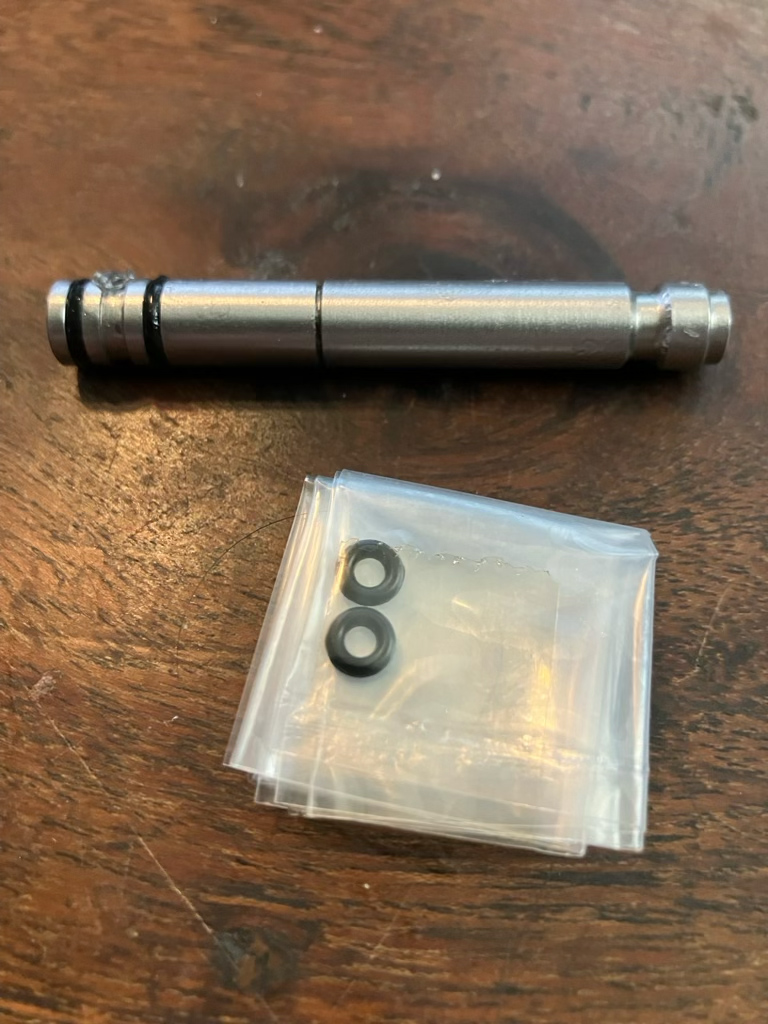

Ok, Here are the ones that came in the bag with the probe.
OD 0.210
ID 0.090
Thickness. 0.060
Tiny o rings are difficult to measure with calipers, so these numbers may be off slightly.
OD 0.210
ID 0.090
Thickness. 0.060
Tiny o rings are difficult to measure with calipers, so these numbers may be off slightly.
Upvote 0
