Umarex Umarex Zelos

[Firewalker]

@Firewalker do you know if the tube/bottle base is m18x1.5 thread? Also, how hard would it be to delete the reg or just run it open?

I'm thinking delete the fill adapter on the 60 so I can pull the bottle back, and then drill and tap the other side of the plenum across from the regulator gauge and put my fill nipple there. Or up by where the reg is on the side where the vent hole is to keep the fill nipple out of the way of the safety.

This would make the regulator gauge the fill pressure gauge and then I could run it as a bell curve gun. I think the power potential would increase this way.

No, it's 16x1.5 pitch.

I have not pulled the regulator yet but it needs ambient air to regulate so you would need a "Regulator Delete" to bypass it.



[Dr. Kralenstein]

No, it's 16x1.5 pitch.

I have not pulled the regulator yet but it needs ambient air to regulate so you would need a "Regulator Delete" to bypass it.

Ok thanks for the info. Just trying to figure out the way to make it as short as possible. They do make m18x1.5 to m16x1.5 adapter though, just again, adds length back.



[Dr. Kralenstein]

No, it's 16x1.5 pitch.

I have not pulled the regulator yet but it needs ambient air to regulate so you would need a "Regulator Delete" to bypass it.

I guess this little hole is for the regulator to breathe?

Also, what's this set screw for? A vent?



[Firewalker]

I guess this little hole is for the regulator to breathe?

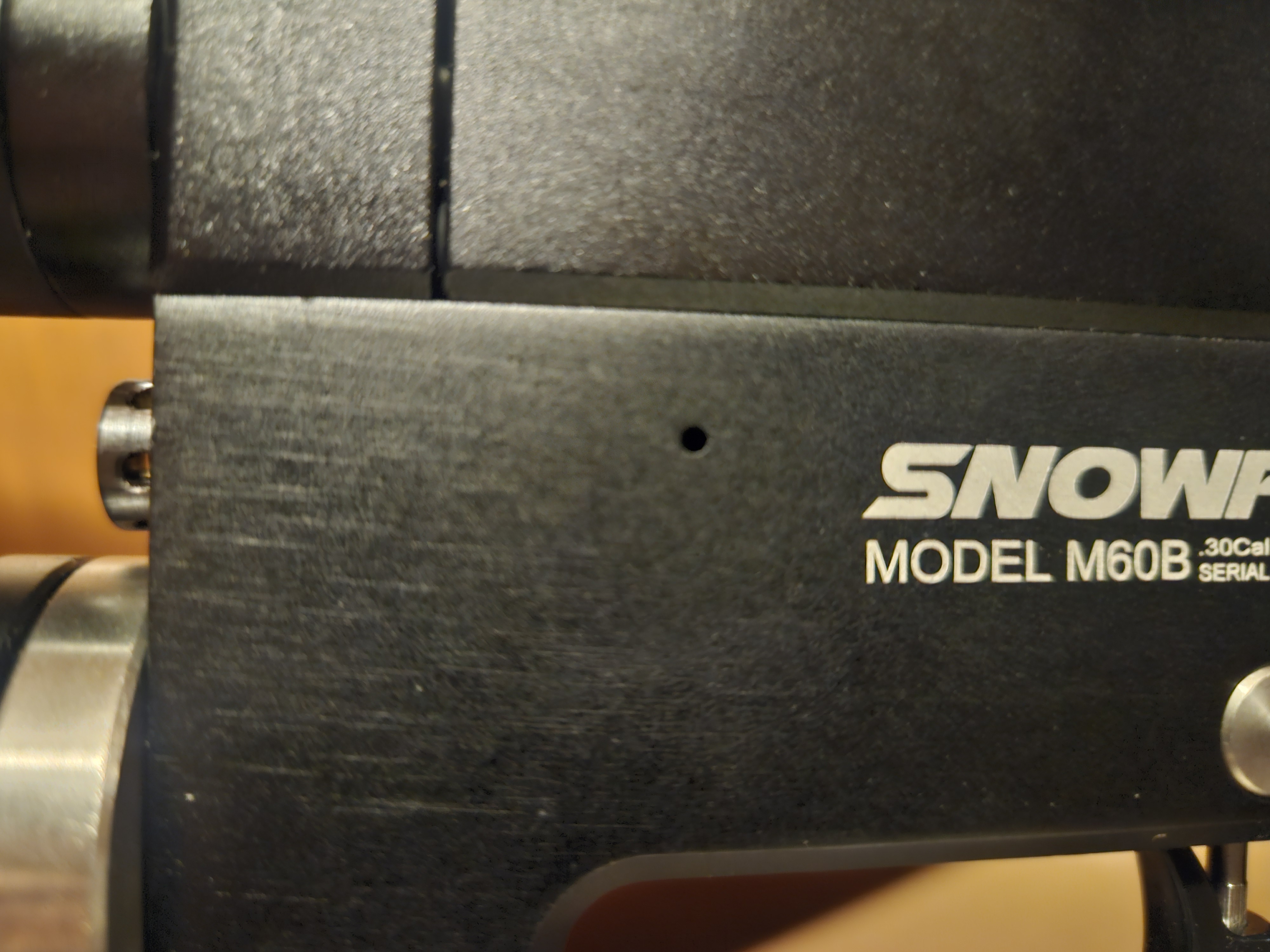

View attachment 507708


Also, what's this set screw for? A vent?

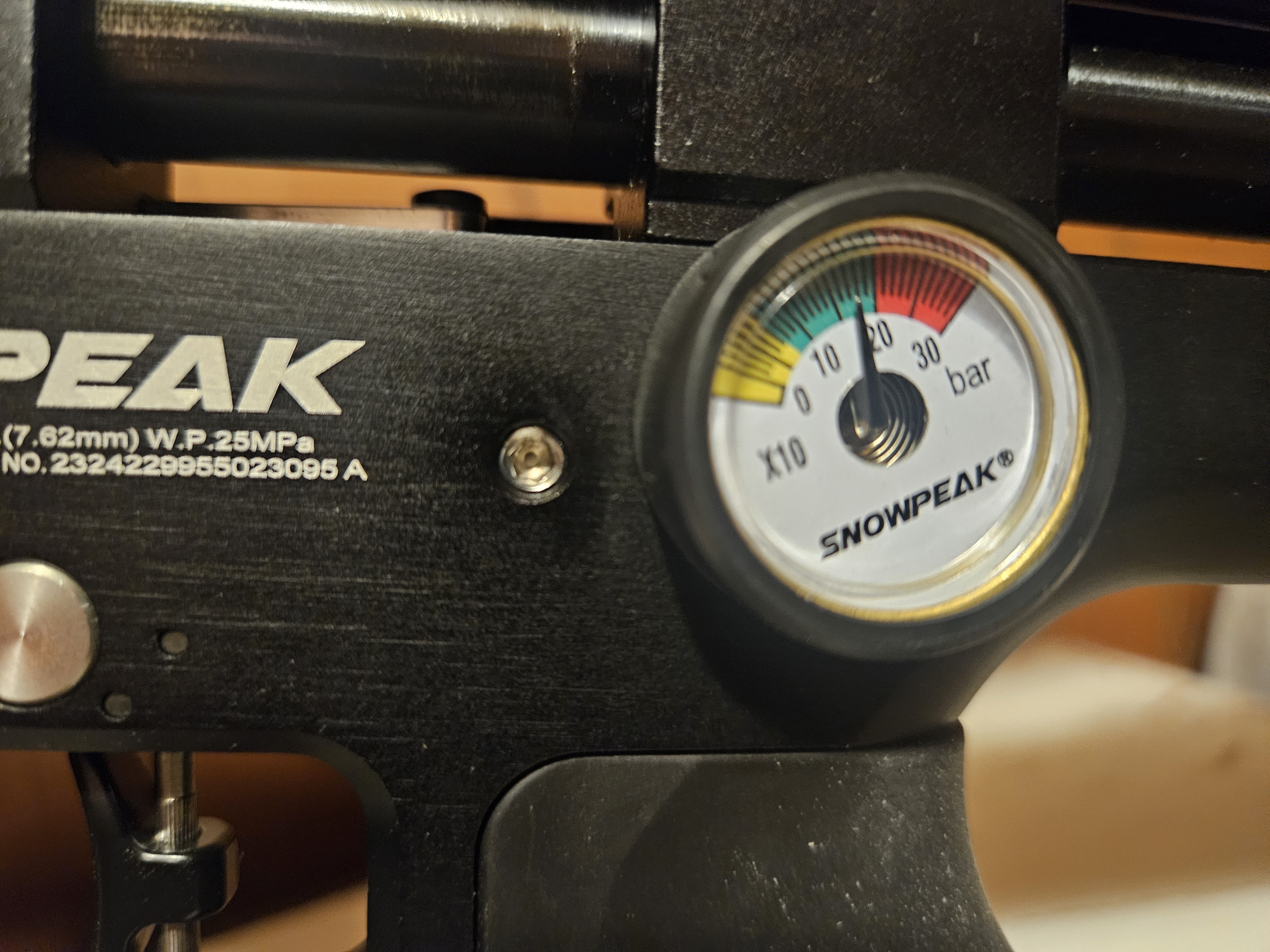

View attachment 507710

Top pic: Reg vent

Bottom pic: De-gassing screw



[Dr. Kralenstein]

Top pic: Reg vent

Bottom pic: De-gassing screw

That's exactly what I thought. Thank you for confirming, Snowpeak Whisperer!



[Firewalker]

Do you have the weight with the carbon fiber bottle? If it is the same weight or lighter... a CF bottle may be the way to go.

Zelos air tube is 22.6 oz.

.42L Carbon Fiber bottle is 18.4 oz.

.36L Carbon Fiber bottle is 15.2 oz.

More air, less weight, no suicide-foster fitting!



[zerochance]

Zelos air tube is 22.6 oz.

.42L Carbon Fiber bottle is 18.4 oz.

.36L Carbon Fiber bottle is 15.2 oz.

More air, less weight, no suicide-foster fitting!

Now that is convincing. The .36L CF bottle will probably get more shots too.



[Firewalker]

Now that is convincing. The .36L CF bottle will probably get more shots too.

Its just a 250cc tube, a 220cc bottle is almost as large and the 360cc bottle is almost a third larger and the 420cc bottle is almost 3/4 more air!

All three still weigh less than the tube.



[Firewalker]

865 fps 28.24gr Barracuda's at OEM 2100 reg pressure, 475mm barrel.

0.406 group at 50y.

Not bad for a Compact Zelos!!



[Perle]

865 fps 28.24gr Barracuda's at OEM 2100 reg pressure, 475mm barrel.

0.406 group at 50y.

Not bad for a Compact Zelos!!


View attachment 507731

impressive,

lets see a picture of this mystical airgun



[Firewalker]

impressive,

lets see a picture of this mystical airgun



[Dr. Kralenstein]

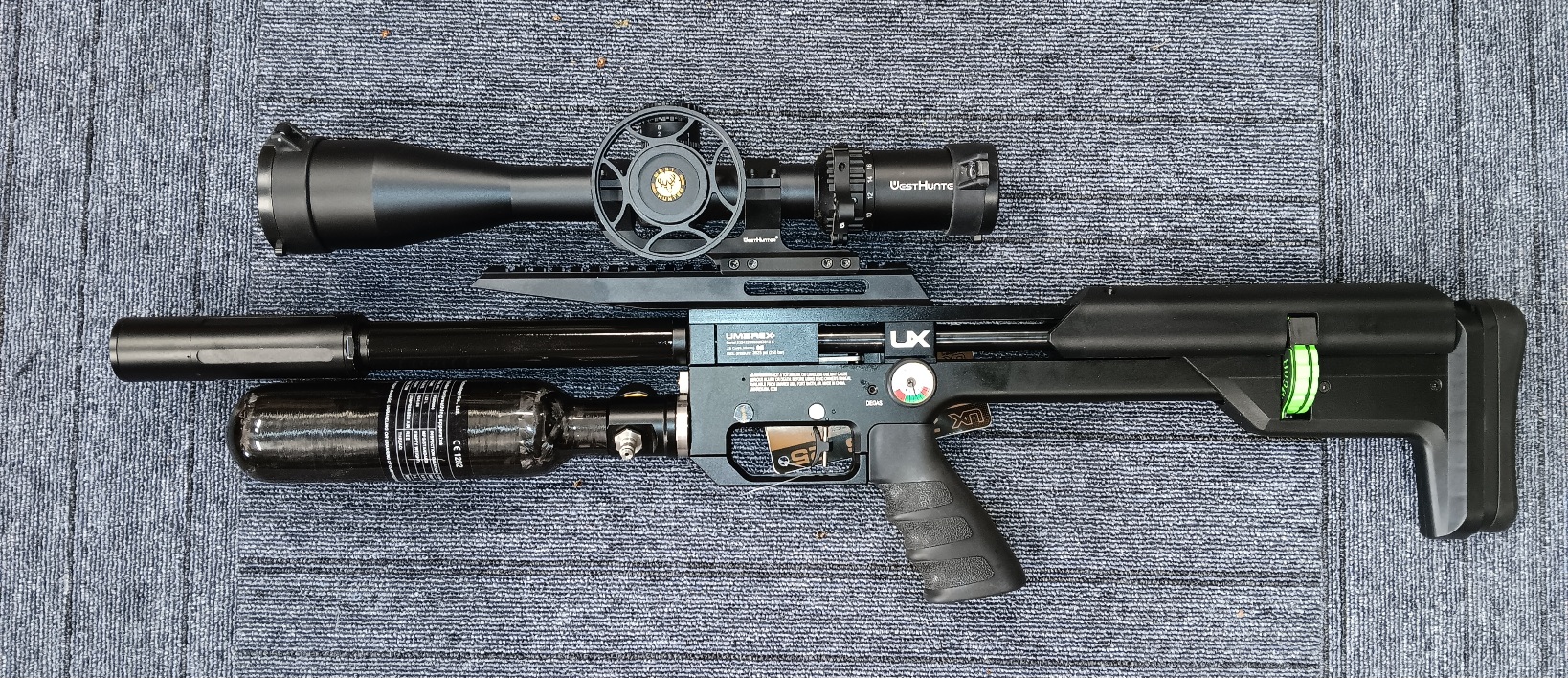

View attachment 507737

Do you make those mags in 30 cal? Polymags won't fit in the factory mag. Too deep by just a hair.



[Perle]

View attachment 507737

My lord that’s nice. Great job David, looks amazing ! With that baseline accuracy what a winning combo. I already know how well made my zelos is. Great stuff airsmith !



[zerochance]

View attachment 507737

That is amazing. Honestly it should have this option by factory! Well done!



[Floridaman2005]

Just an update. Got my Zelos in and it had significant damage on the trigger screws and a good dent in the upper plenum by the barrel. Supplier said they couldn’t do anything about it, called Umarex and they said they wouldn’t do anything about “cosmetic” damage. Pretty poopty practices in my opinion. How are you going to charge someone full price for a damaged rifle and say oh well, it’s only cosmetic. **** Umarex and **** thegundock.com. Will never do business with either of them ever again.



[Perle]

Just an update. Got my Zelos in and it had significant damage on the trigger screws and a good dent in the upper plenum by the barrel. Supplier said they couldn’t do anything about it, called Umarex and they said they wouldn’t do anything about “cosmetic” damage. Pretty poopty practices in my opinion. How are you going to charge someone full price for a damaged rifle and say oh well, it’s only cosmetic. **** Umarex and **** thegundock.com. Will never do business with either of them ever again.

Can you supply pictures ?
That’s troubling



[Floridaman2005]

Can you supply pictures ?
That’s troubling



[Firewalker]

Do you make those mags in 30 cal? Polymags won't fit in the factory mag. Too deep by just a hair.

Look up Tango Sierra for .30 options...



[Firewalker]

Just an update. Got my Zelos in and it had significant damage on the trigger screws and a good dent in the upper plenum by the barrel. Supplier said they couldn’t do anything about it, called Umarex and they said they wouldn’t do anything about “cosmetic” damage. Pretty poopty practices in my opinion. How are you going to charge someone full price for a damaged rifle and say oh well, it’s only cosmetic. **** Umarex and **** thegundock.com. Will never do business with either of them ever again.

Pictures please...



[JaceSpace1369]

Zelos air tube is 22.6 oz.

.42L Carbon Fiber bottle is 18.4 oz.

.36L Carbon Fiber bottle is 15.2 oz.

More air, less weight, no suicide-foster fitting!

Do you happen to know what the shroud ID is? I want to get some baffles, just need to make sure I have the correct size. It would be great if the Akela baffles fit in it as those work tremendously well on the akela platform. My buddies zelos shoots decently when it's not clipping. Sadly it needs an oversized mod for it to not clip.

View attachment 507737

Great job!
