Beeman Weihrauch HW30S($4.40) for less than a McDonalds Happy Meal($5.69)

Notice the .400 spacer?

Screenshot 2024-07-25 at 00-27-15 New-Hw30-R7 Deluxe Tune Kit.png

$4??? Wow, I did not know such prices even exist nowadays :ROFLMAO::ROFLMAO::ROFLMAO:. Congrats on the nice score and I hope you will get it up and running in no time. It's a great project to invest time in and should render very satisfactory results at the end. Looking at your photos, it seems like it's mechanically sound and just needs some TLC (y). Please keep us posted on the progress!

Last edited:

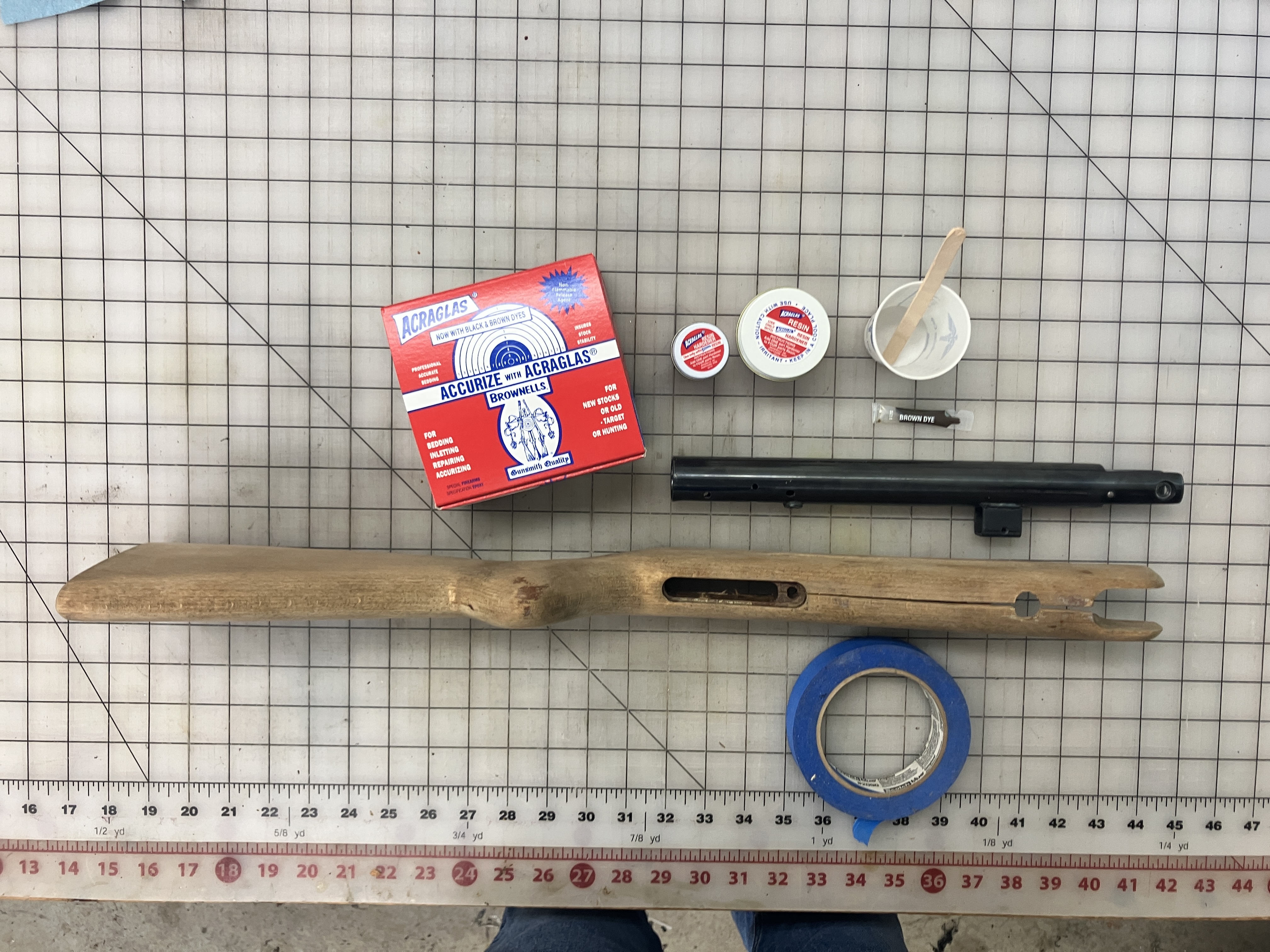

Found a little time to strip and repair the cracked stock. Was originally going to use Acraglas gel but decided it would be too thick to successfully force into the narrowing split, so used the regular Acraglas which is much thinner.

1427 (2).JPG

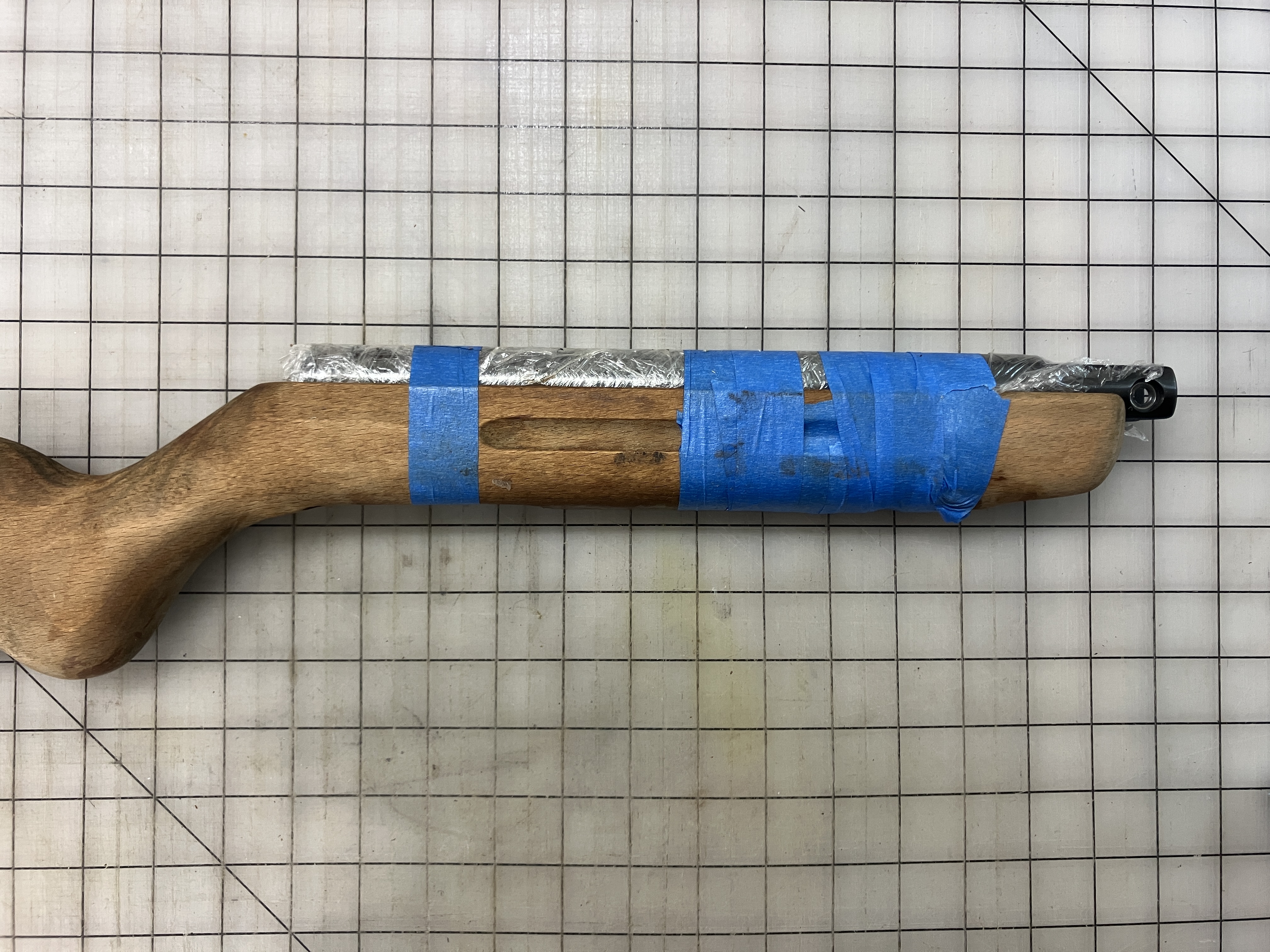

Initially taped to hold in place, after applying the mixture, and then used hand clamps (not shown) to squeeze the crack together better.

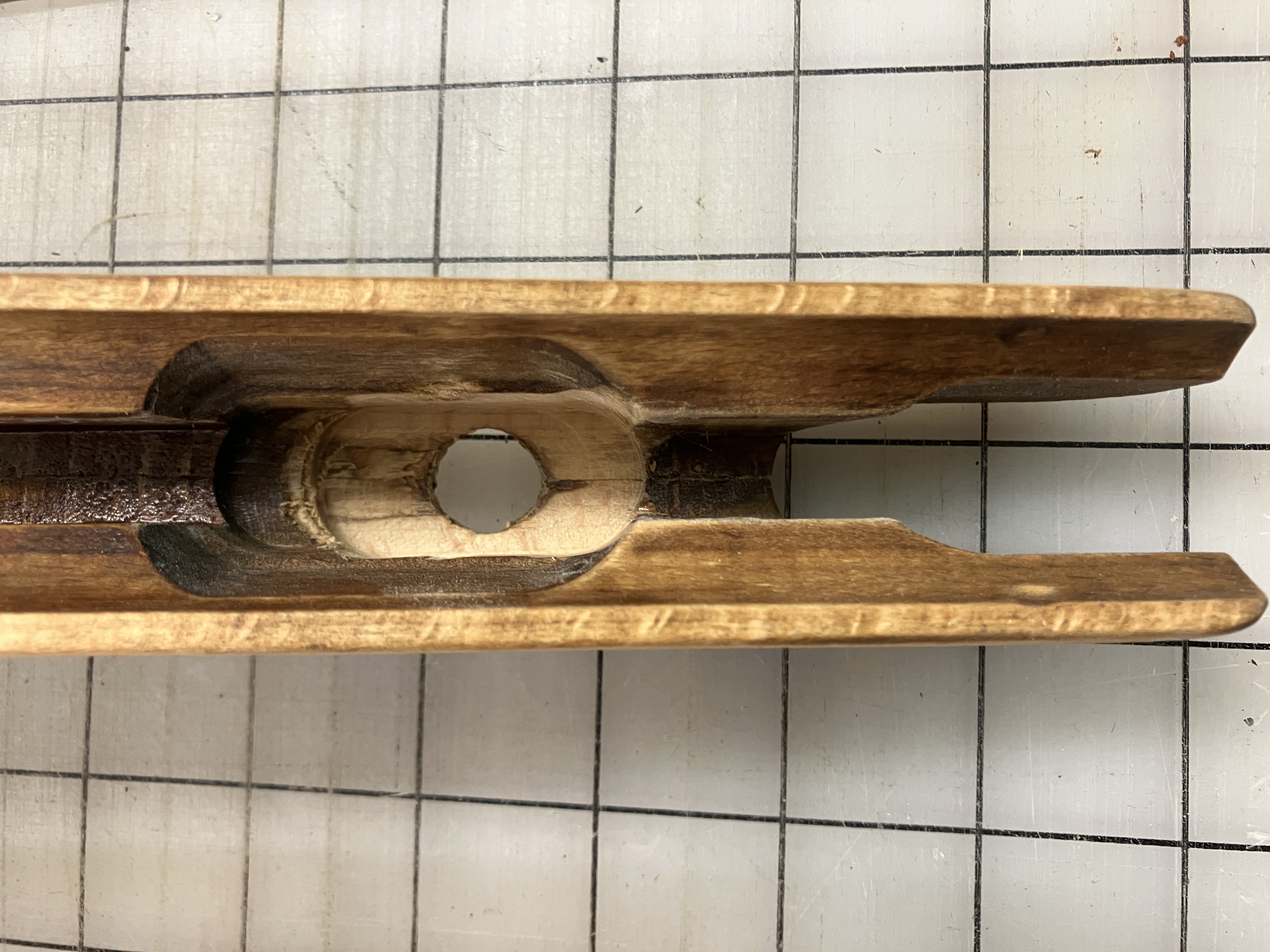

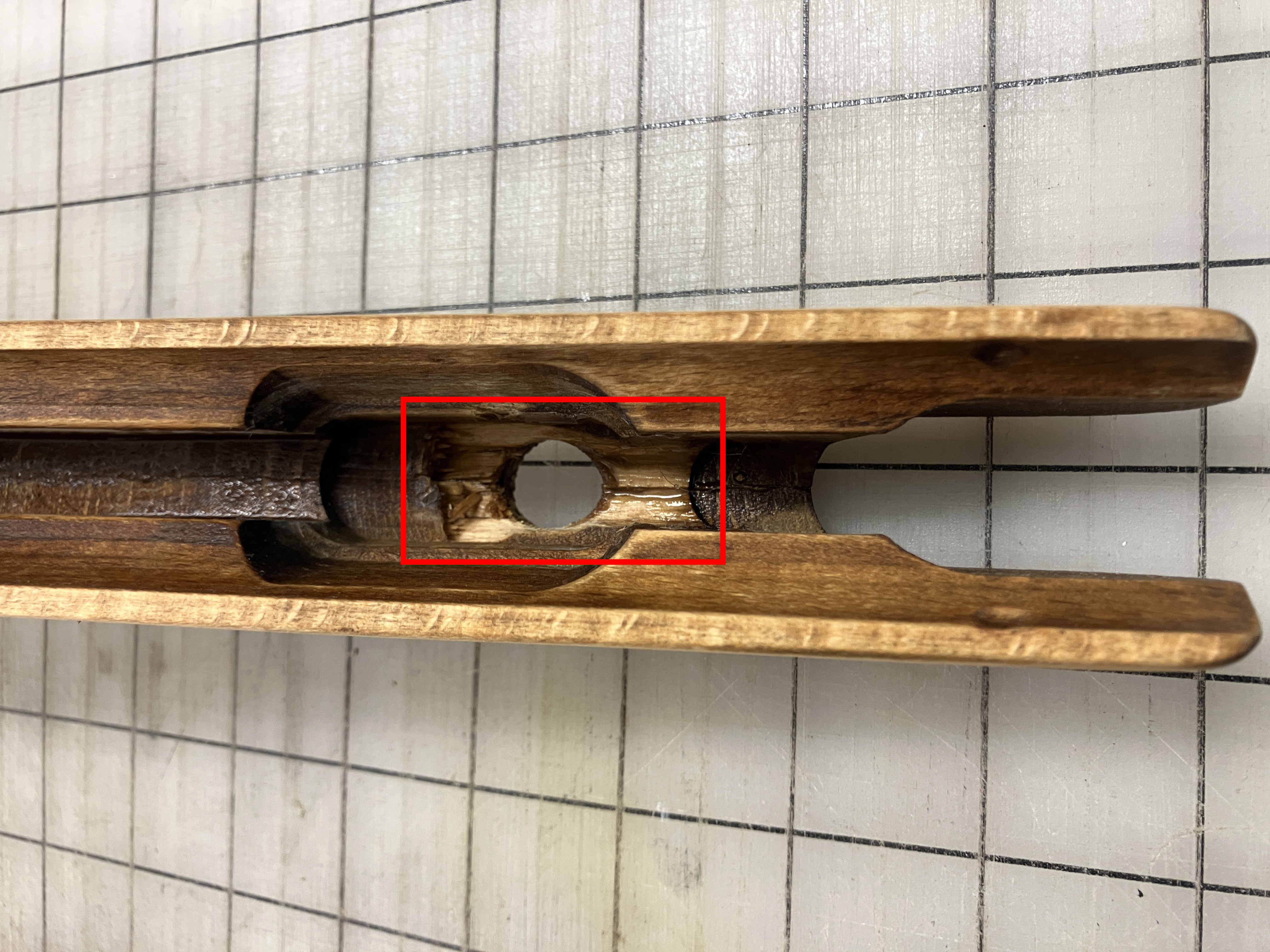

Now just have to mill out the area that has a chunk missing and epoxy in a block of hard wood.
missing chunk.jpg

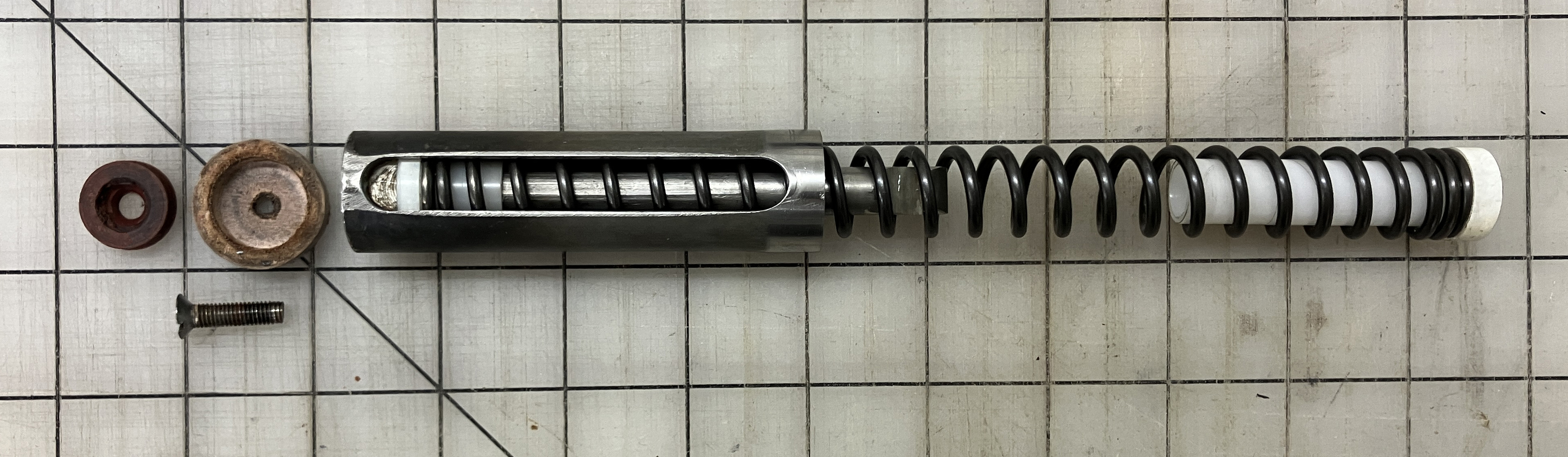

New spring and breech seal arrived from ARH. Turned a top hat and tighter fitting spring guide than the factory one.
1429 (3).JPG

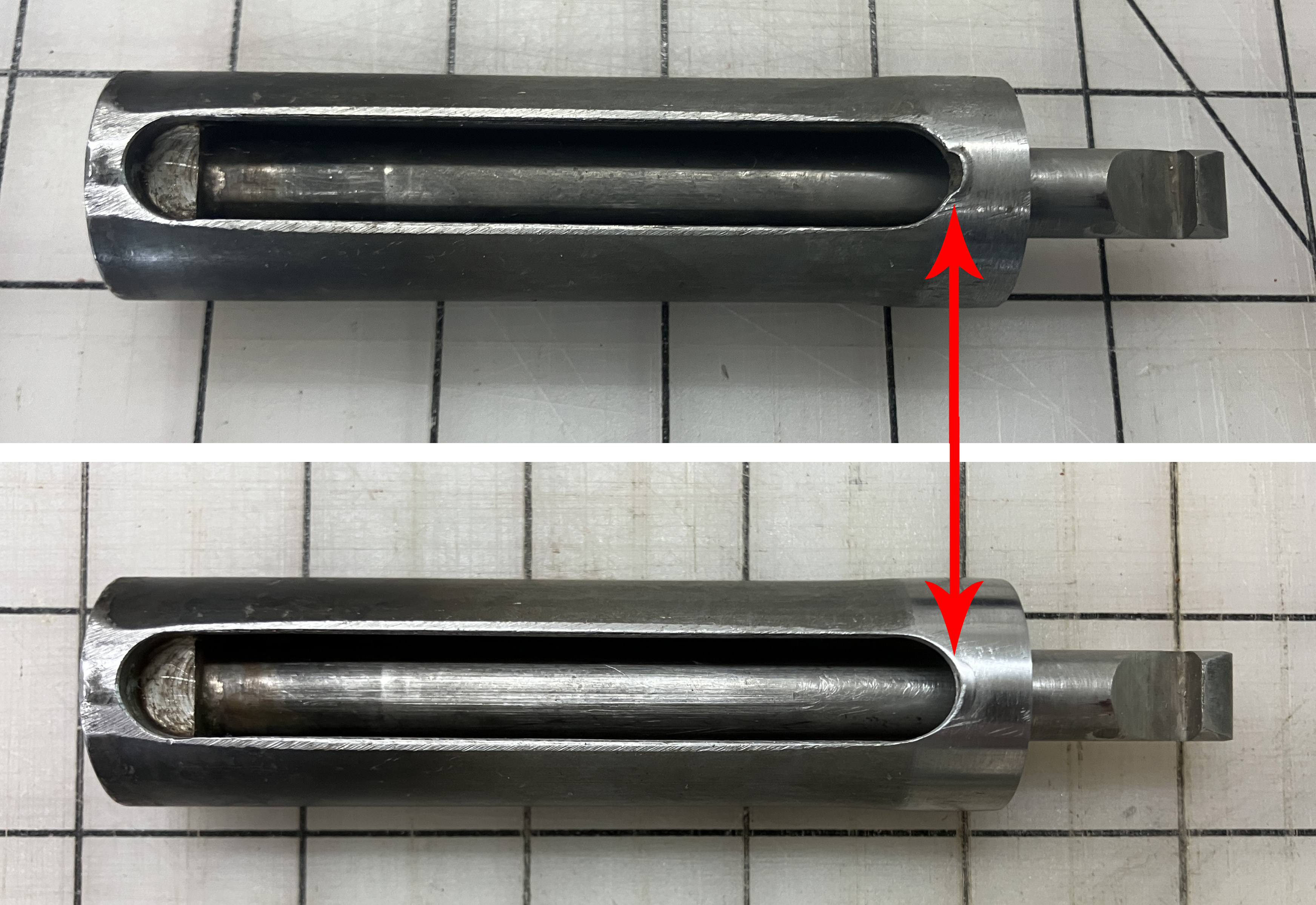

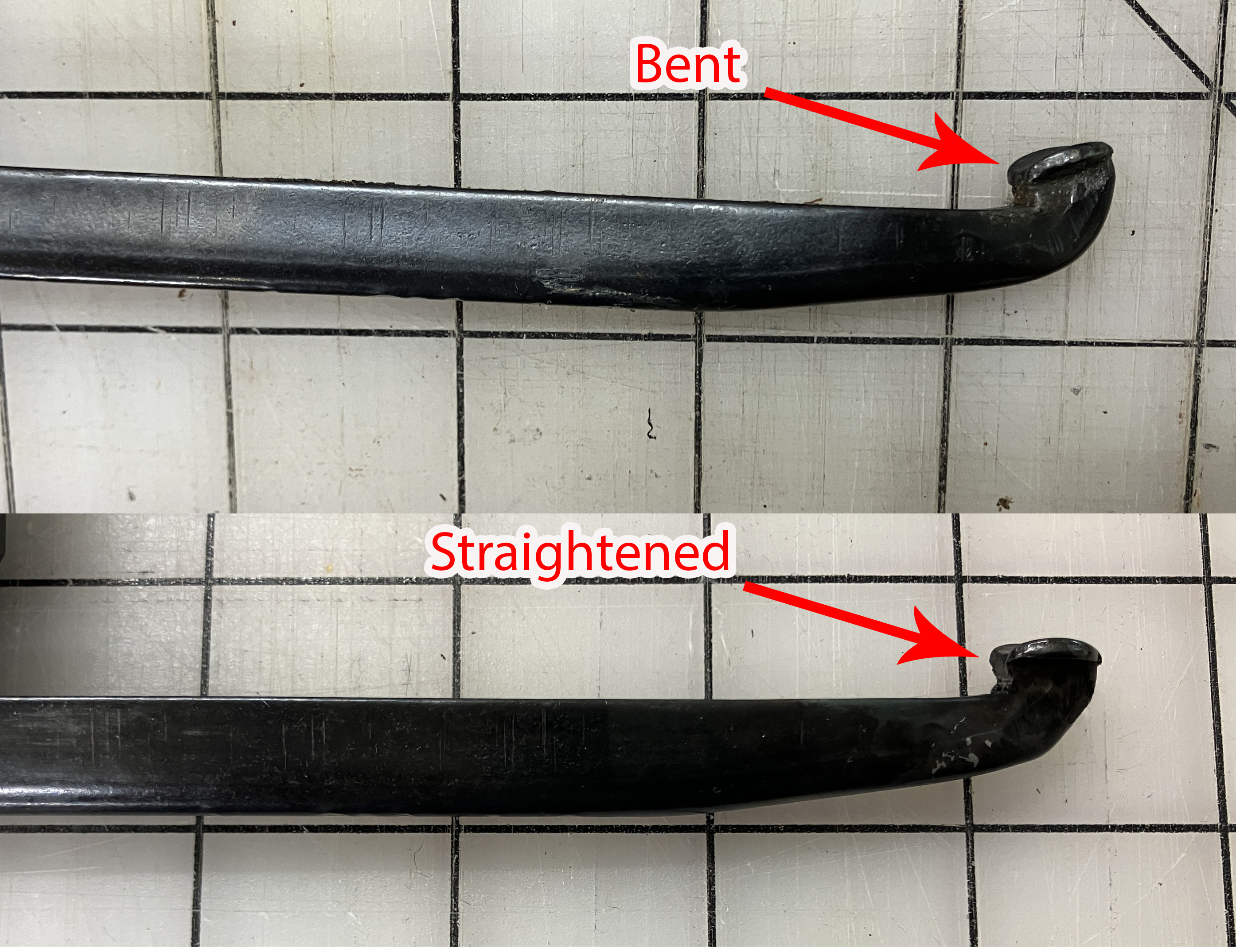

Additionally, the cocking lever's end tabs were bent back into a straight position, and the distorted piston slot was fixed.
straightened tabs.jpg
reshaped piston slot.jpg

Last edited:
Found a little time to strip and repair the cracked stock. Was originally going to use Acraglas gel but decided it would be too thick to successfully force into the narrowing split, so used the regular Acraglas which is much thinner.

View attachment 483806


Initially taped to hold in place, after applying the mixture, and then used hand clamps (not shown) to squeeze the crack together better.
View attachment 483807


Now just have to mill out the area that has a chunk missing and epoxy in a block of hard wood.
View attachment 483805


New spring and breech seal arrived from ARH. Turned a top hat and tighter fitting spring guide then the factory one.
View attachment 483804

Additionally, the cocking lever's end tabs were bent back into a straight position, and the distorted piston slot was fixed.
View attachment 483811View attachment 483809
Looking Good!

Outstanding repair, that stock will, in all likelihood, be stronger than when it left the fatherland. Also, nice job on the piston slot.
Care to share your procedure for straightening the tabs on that cocking lever? Heat, cold bend, whack it with a hammer?
Kudos for keeping the leather piston seal as well, they shoot so smoothly in OEM configuration. Can't wait to see the end product.

Outstanding repair, that stock will, in all likelihood, be stronger than when it left the fatherland. Also, nice job on the piston slot.
Care to share your procedure for straightening the tabs on that cocking lever? Heat, cold bend, whack it with a hammer?
Kudos for keeping the leather piston seal as well, they shoot so smoothly in OEM configuration. Can't wait to see the end product.

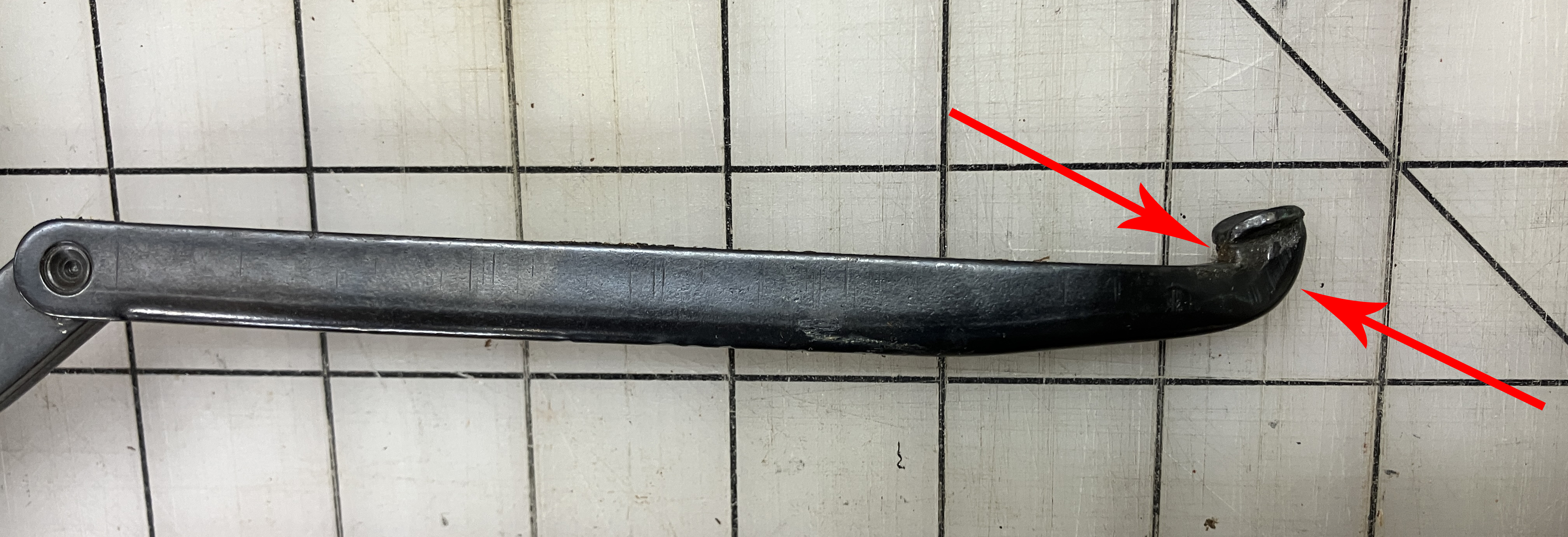

Heated the curved area to a dull cherry red and locked the jaws of some channel locks onto the points indicated by the red arrows (avoiding the ears), and bent it down. Then quenched in old motor oil.
clamp areas.jpg

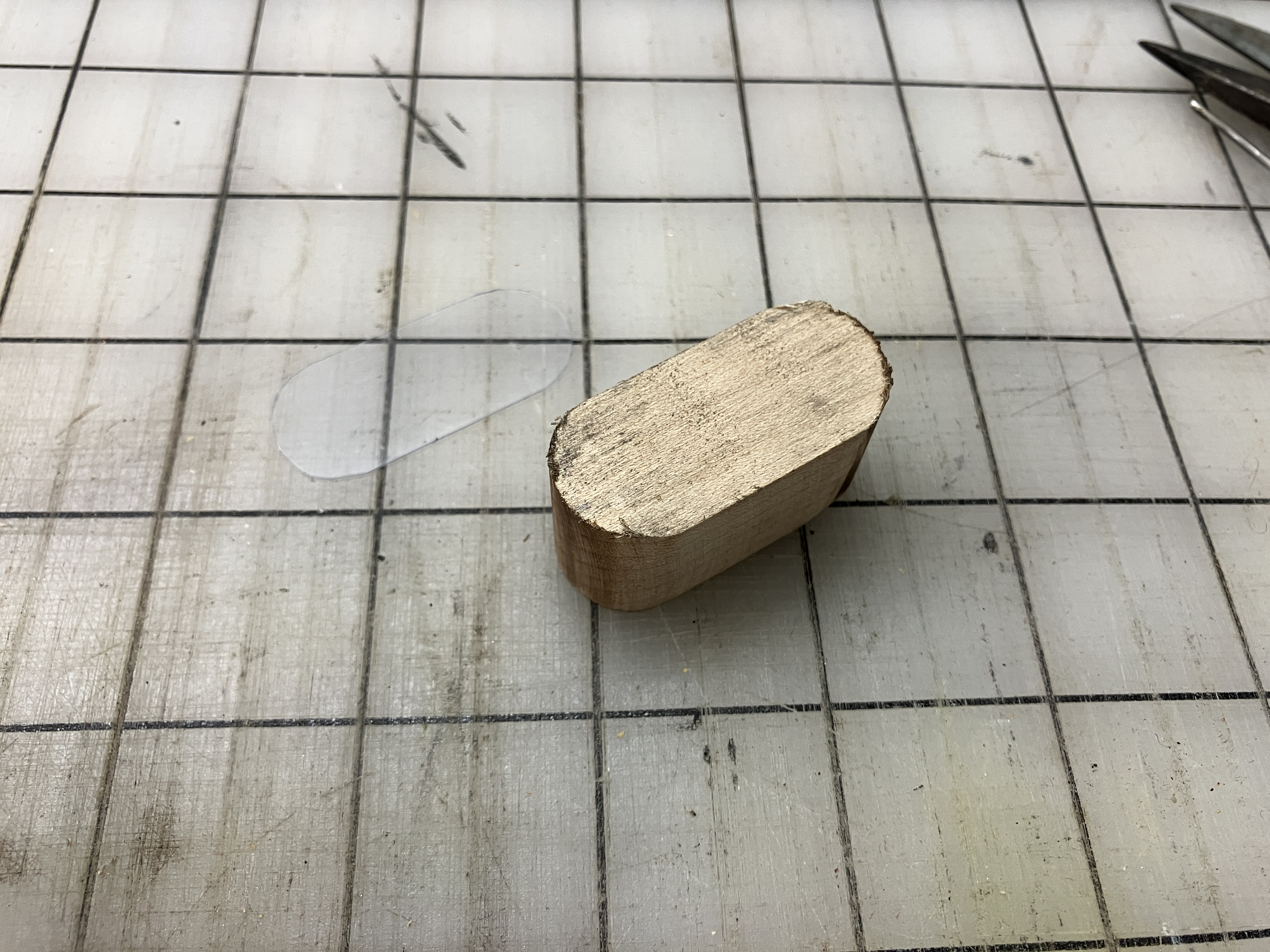

Milled out the area of the stock where the wood was missing and then formed a block of maple to fit. Notice the clear template laying next to the block?
1450 (2).JPG

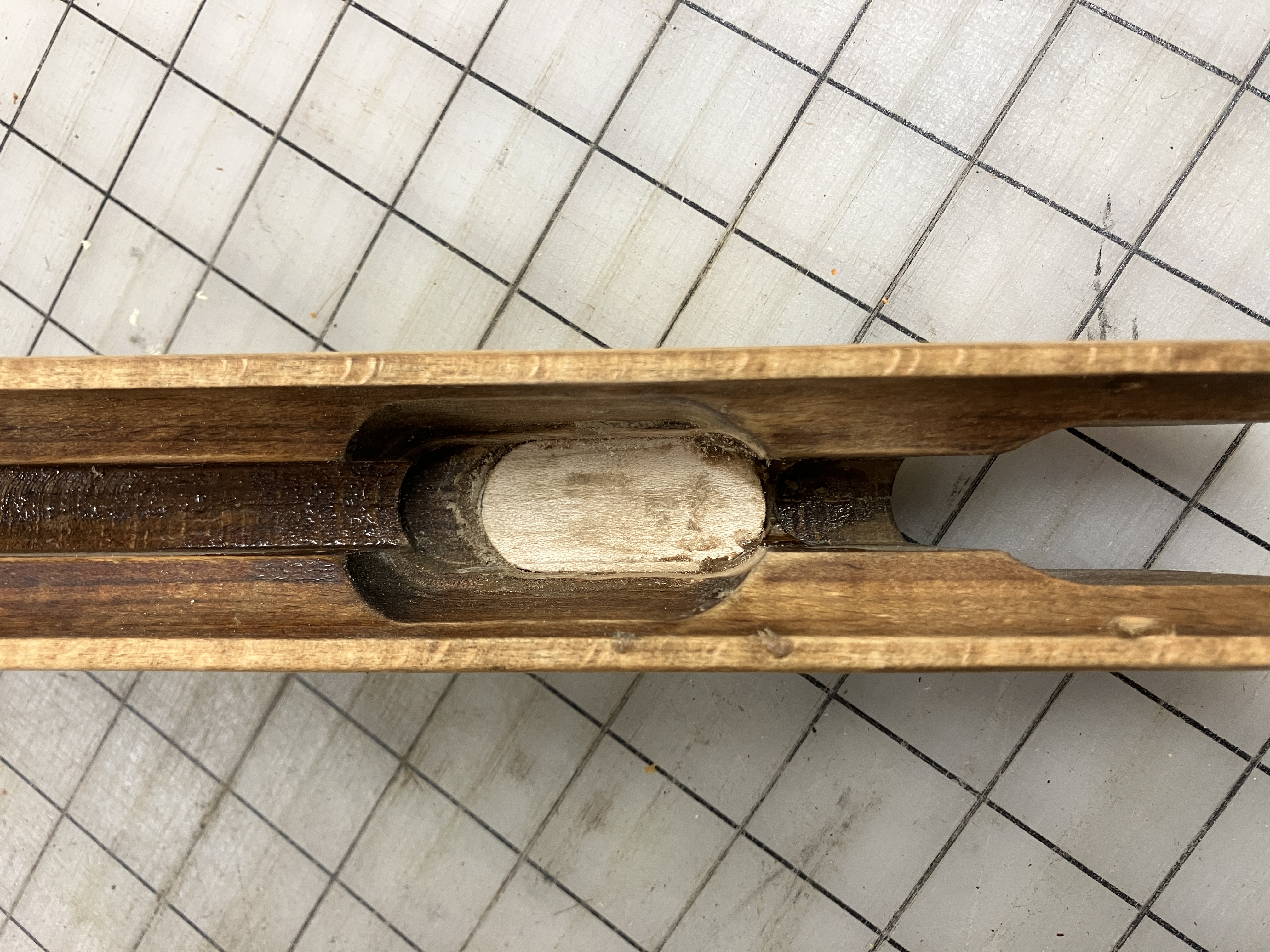

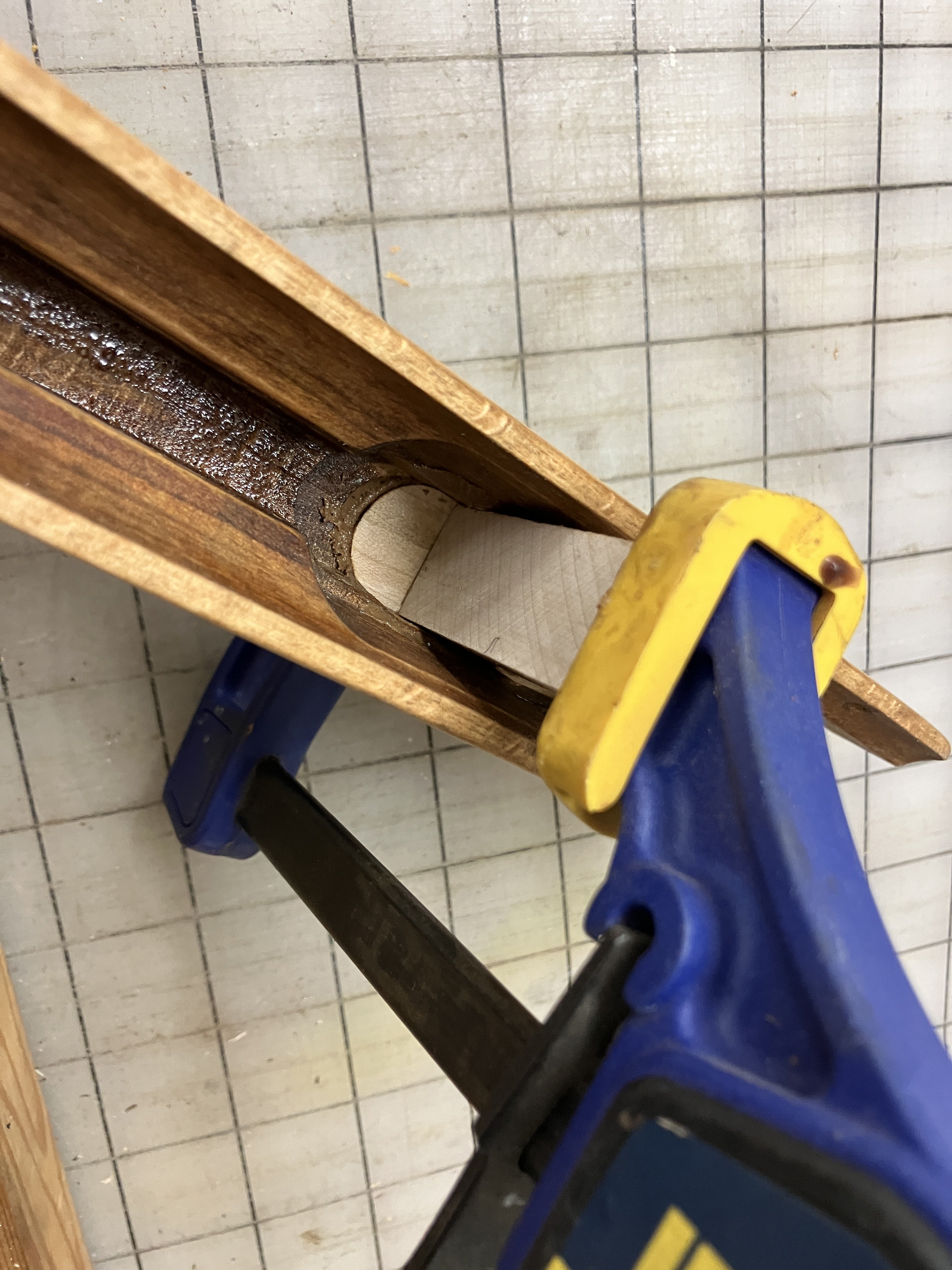

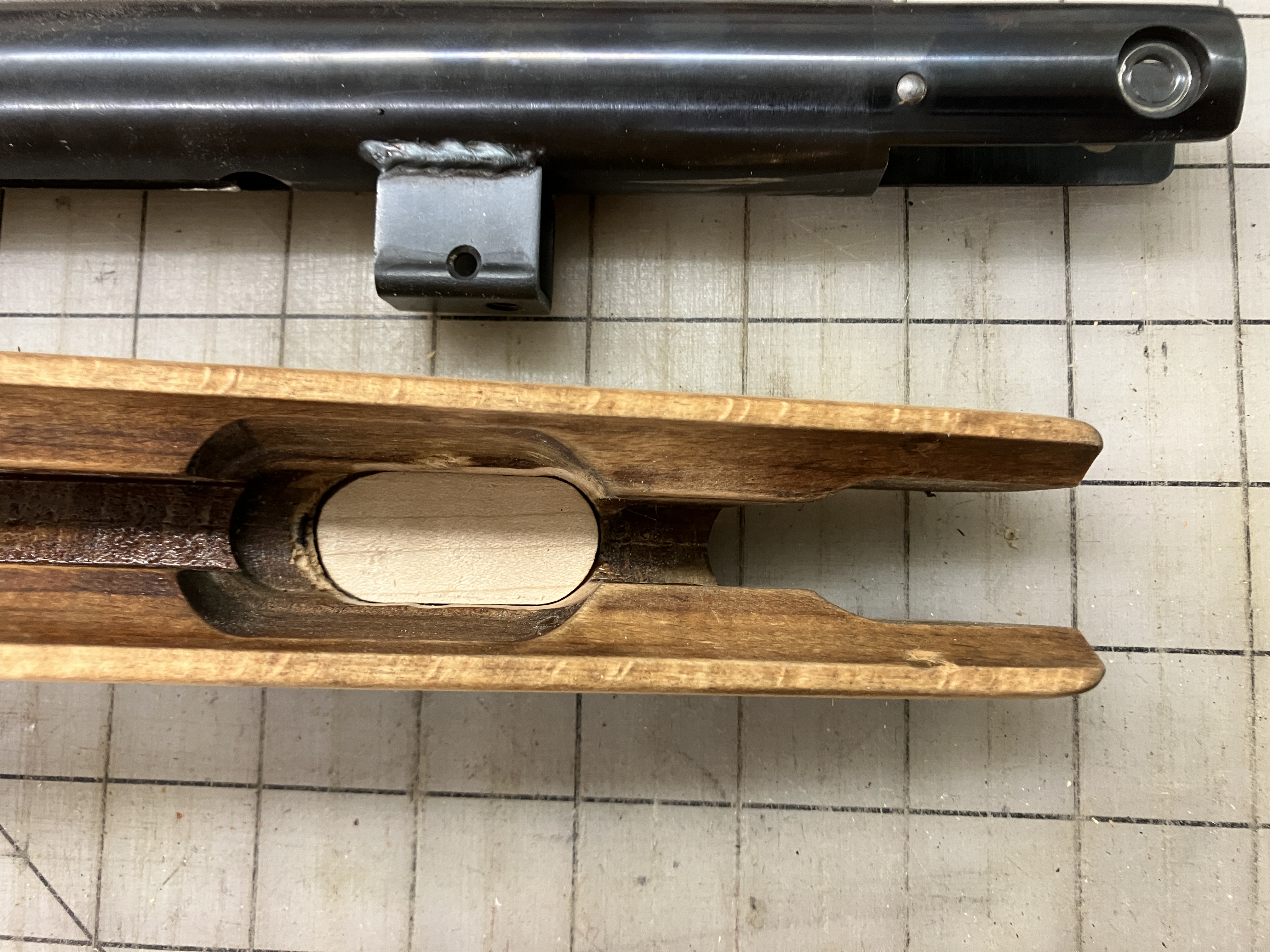

After cutting the maple block to fit flush, the tube was inserted to see if it wobbled forward or backward. Lastly, the block was epoxied and clamped into position.
1453 (2).JPG




On a side note, here's a side by side comparison of this 1977 Rekord trigger and a 1986 trigger from an R7. The earlier trigger has laminated steel plates for the piston sear, whereas the later variant is solid.
Rekord differences.jpg

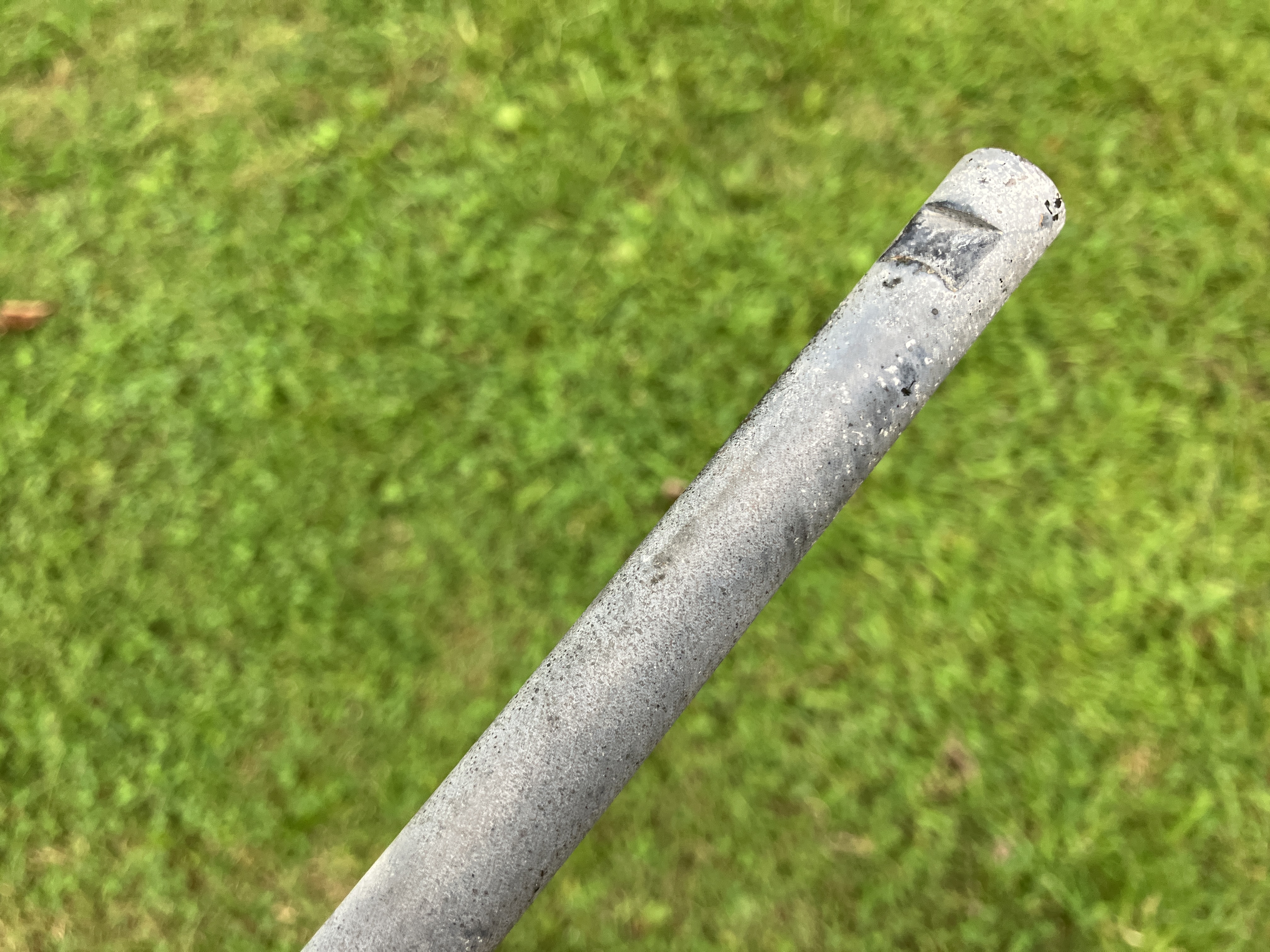

As you can see from the following pics, the barrel and tube have been attacked by the red devil.
rust pitting barrel.jpg
rust pitting tube.jpg

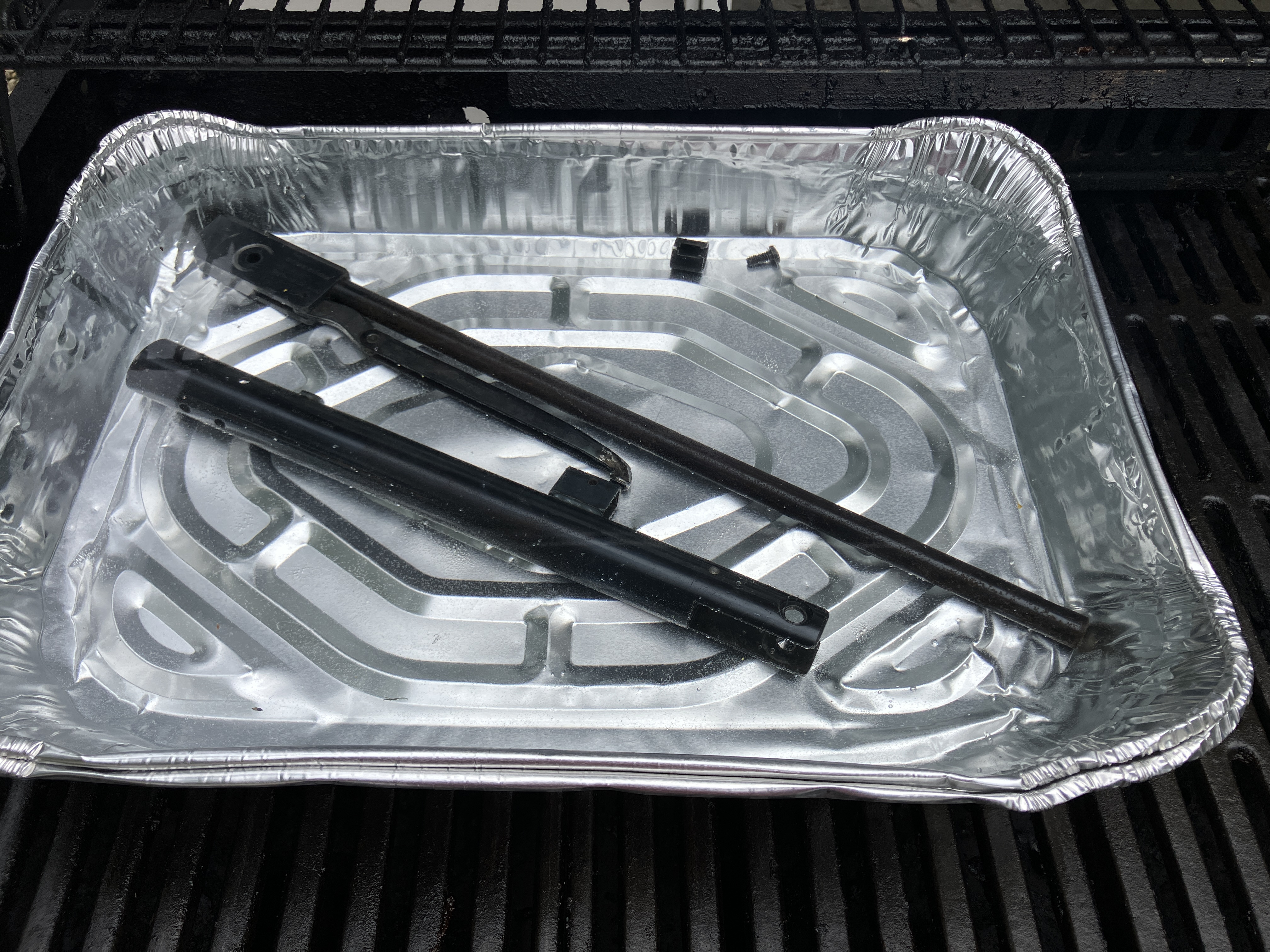

When there's visible pitting, drastic measures have to be taken to remove it. So instead of grilling fresh salmon for lunch yesterday, I used the gas grill to boil the HW30 barrel and tube in distilled water.


Grabbed a couple beers and let her cook for about an hour or so.

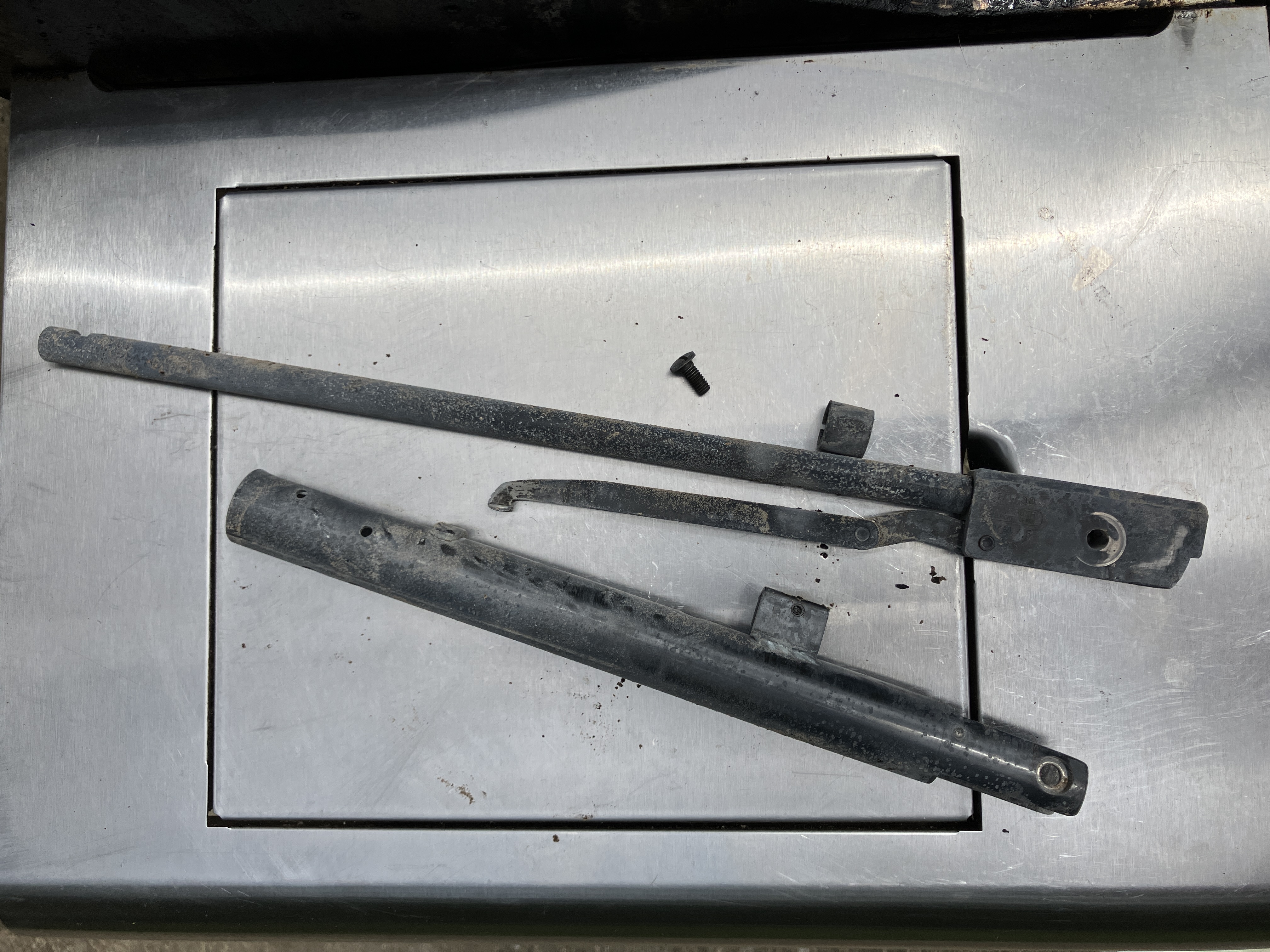

Here's the pieces fresh out of the pot. Yikes! No worries though, they just need carded off.

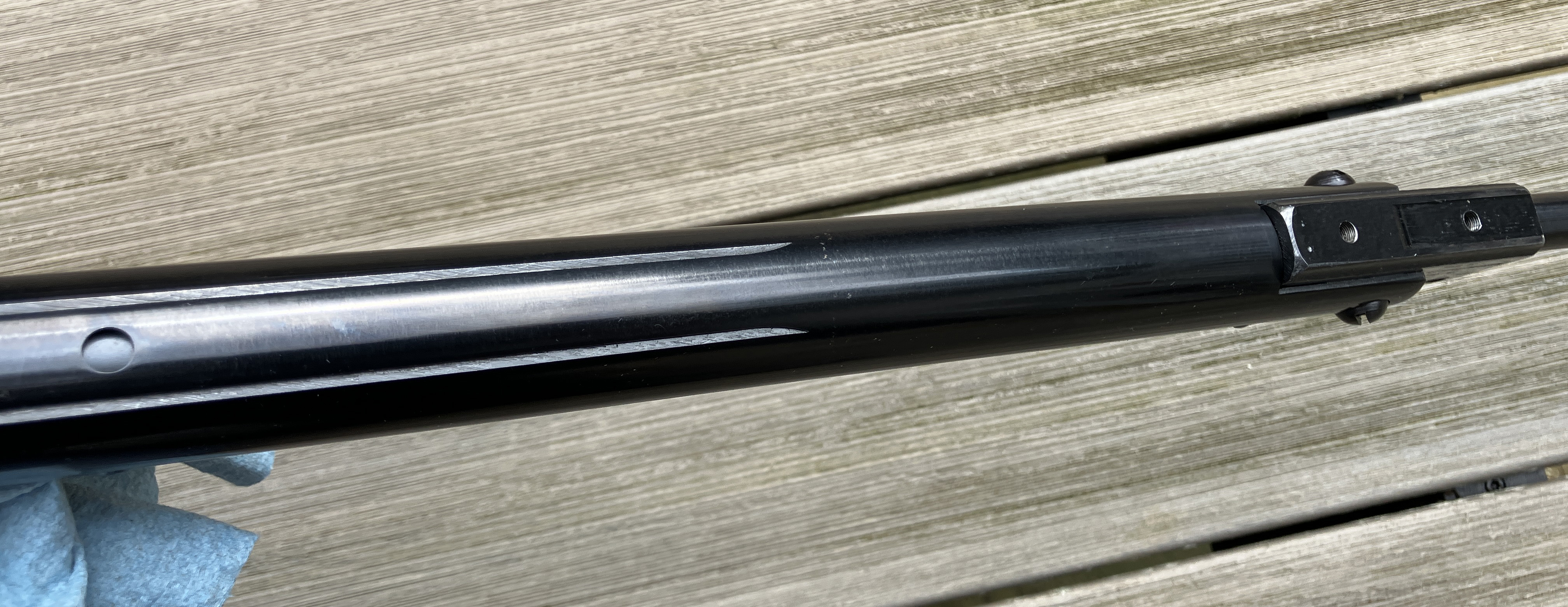

I don't have a carding wheel so used 0000 steel wool to remove the baked on crust. A little elbow grease and the end results show an amazing transformation as can be seen here in the before/after pics.

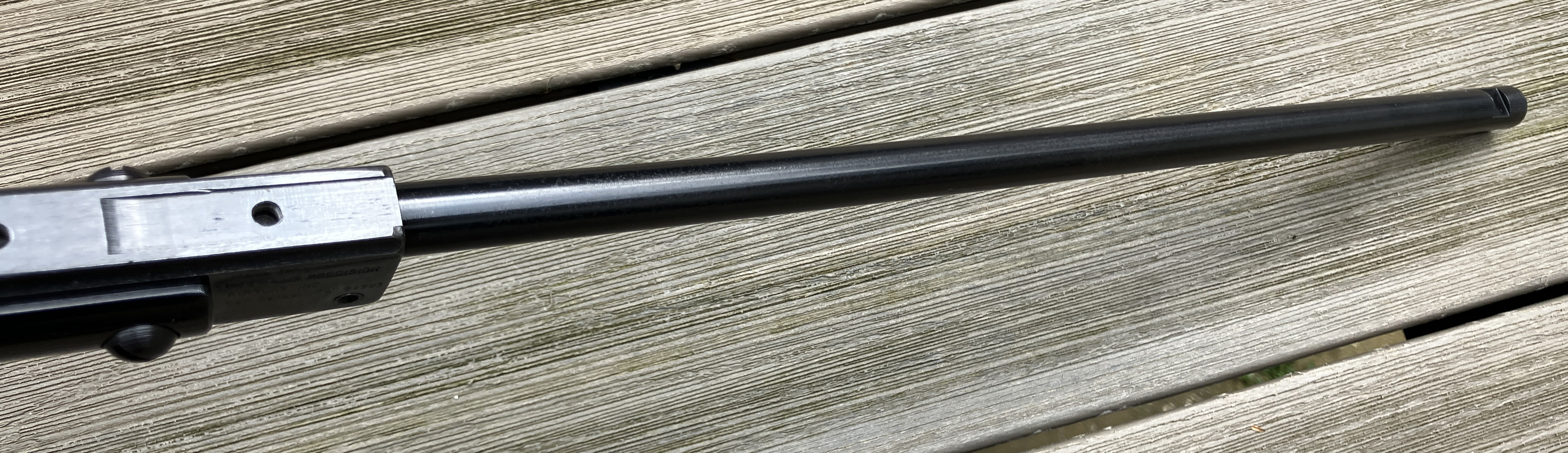

barrel before_after.jpg

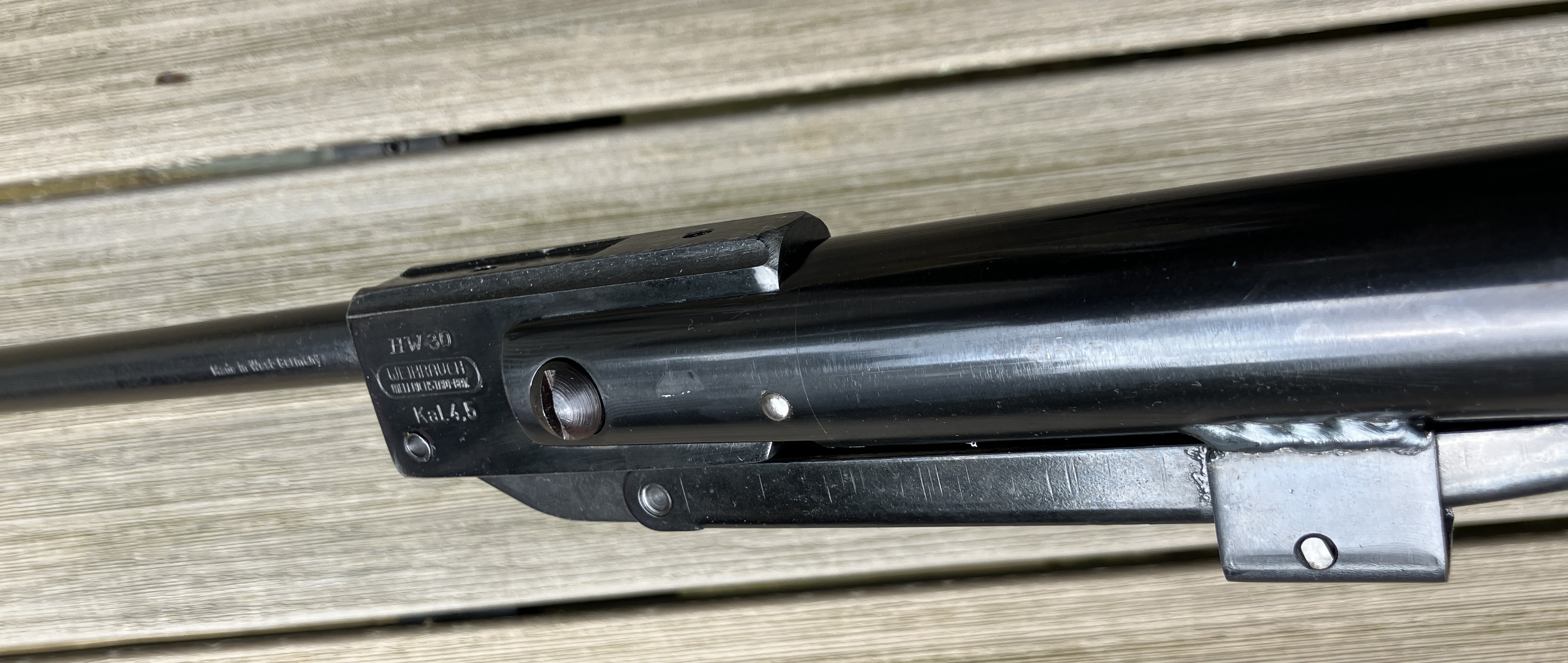

tube before and after carding.jpg



More end results

Found a little time to strip and repair the cracked stock. Was originally going to use Acraglas gel but decided it would be too thick to successfully force into the narrowing split, so used the regular Acraglas which is much thinner.

View attachment 483806


Initially taped to hold in place, after applying the mixture, and then used hand clamps (not shown) to squeeze the crack together better.
View attachment 483807


Now just have to mill out the area that has a chunk missing and epoxy in a block of hard wood.
View attachment 483805


New spring and breech seal arrived from ARH. Turned a top hat and tighter fitting spring guide than the factory one.
View attachment 483804

Additionally, the cocking lever's end tabs were bent back into a straight position, and the distorted piston slot was fixed.
View attachment 483811View attachment 483809
quite the nice professional repair, i am impressed !

Was it re-blued, hot or cold?
No parts were reblued. Just degreased, boiled, and carded using 0000 steel wool. It's the easiest way to eradicate rust that has progressed beyond the surface. and still keep the original bluing. This method works better than simply scrubbing with steel wool and oil, and it has been used on numerous personal restoration projects successfully.

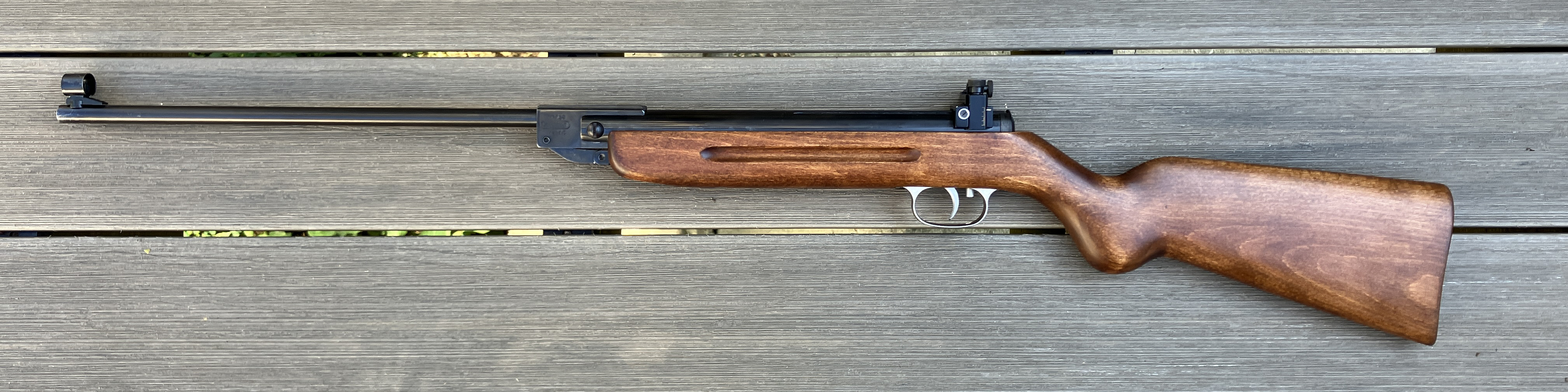

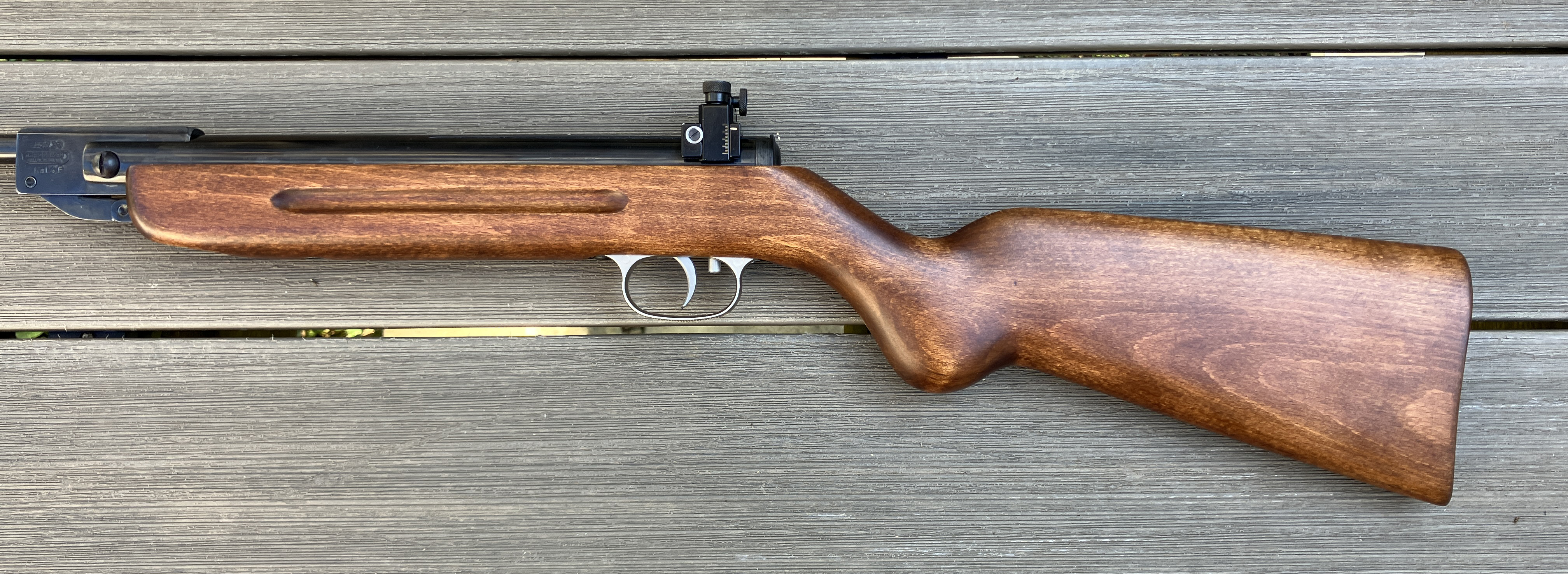

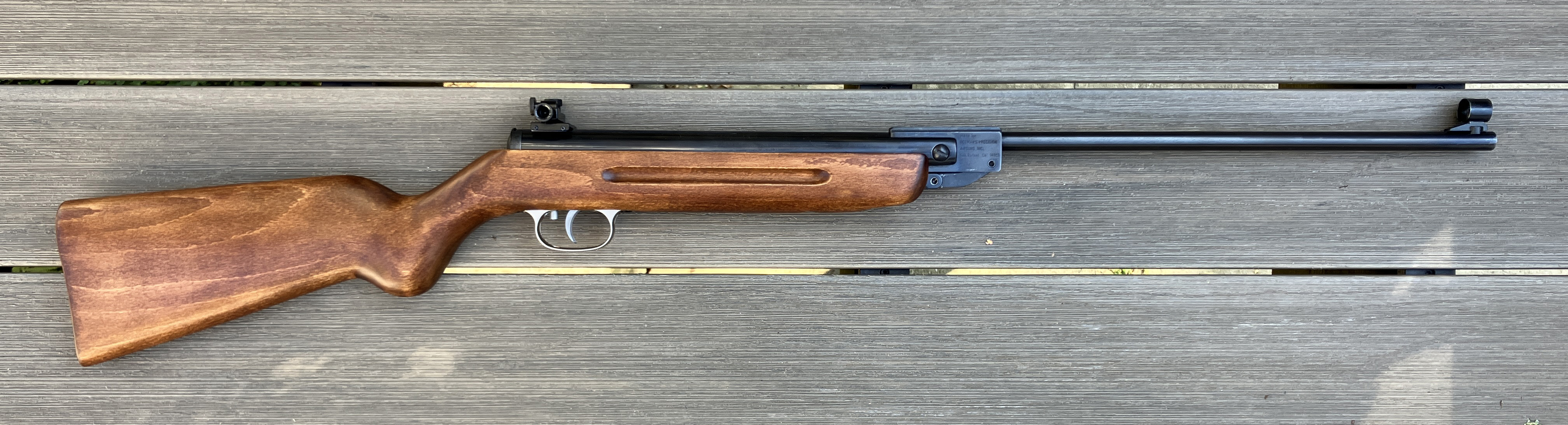

Gun is finished, so figured I'd better post some follow-up information and pictures.

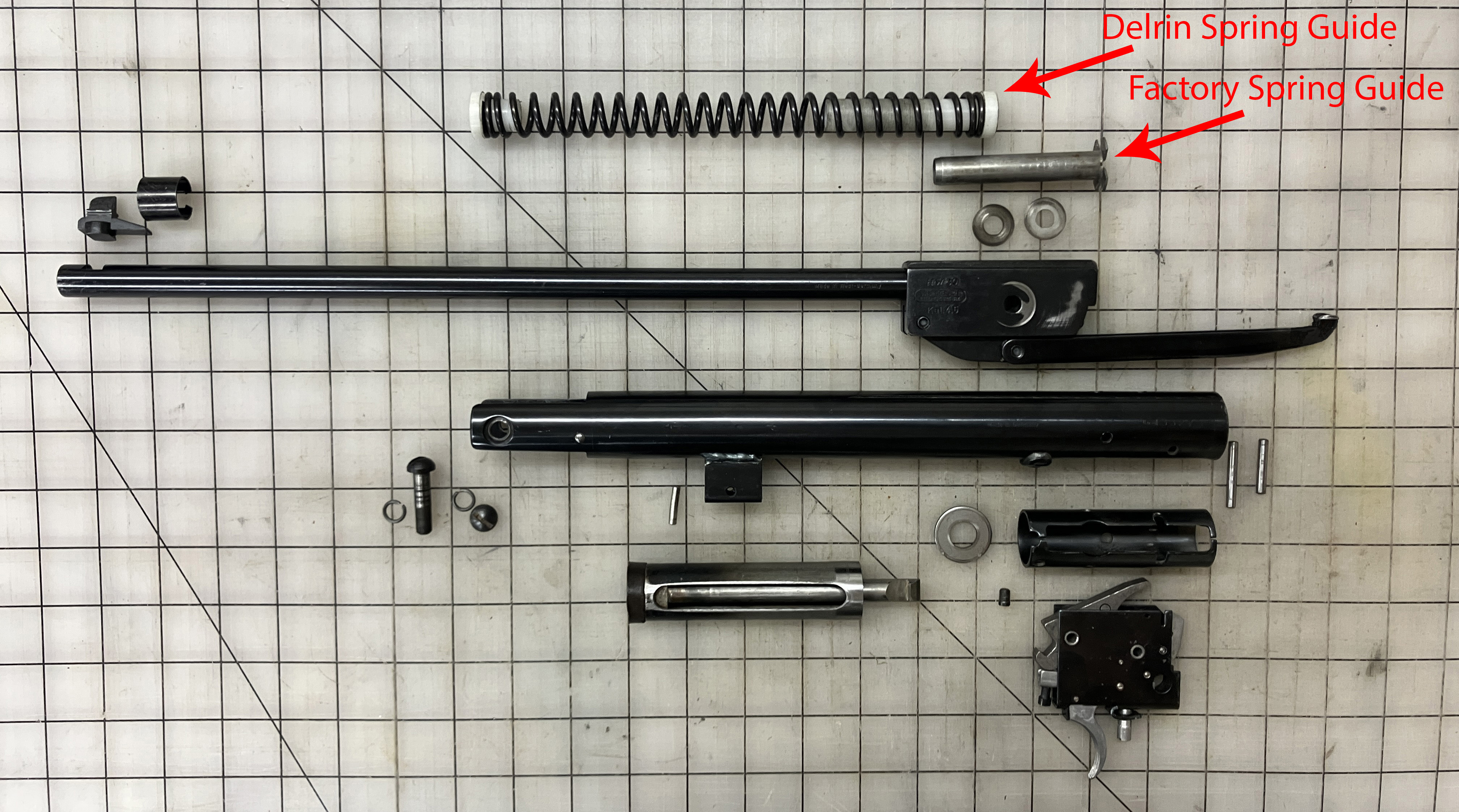

Layout of parts.
Parts layout.jpg

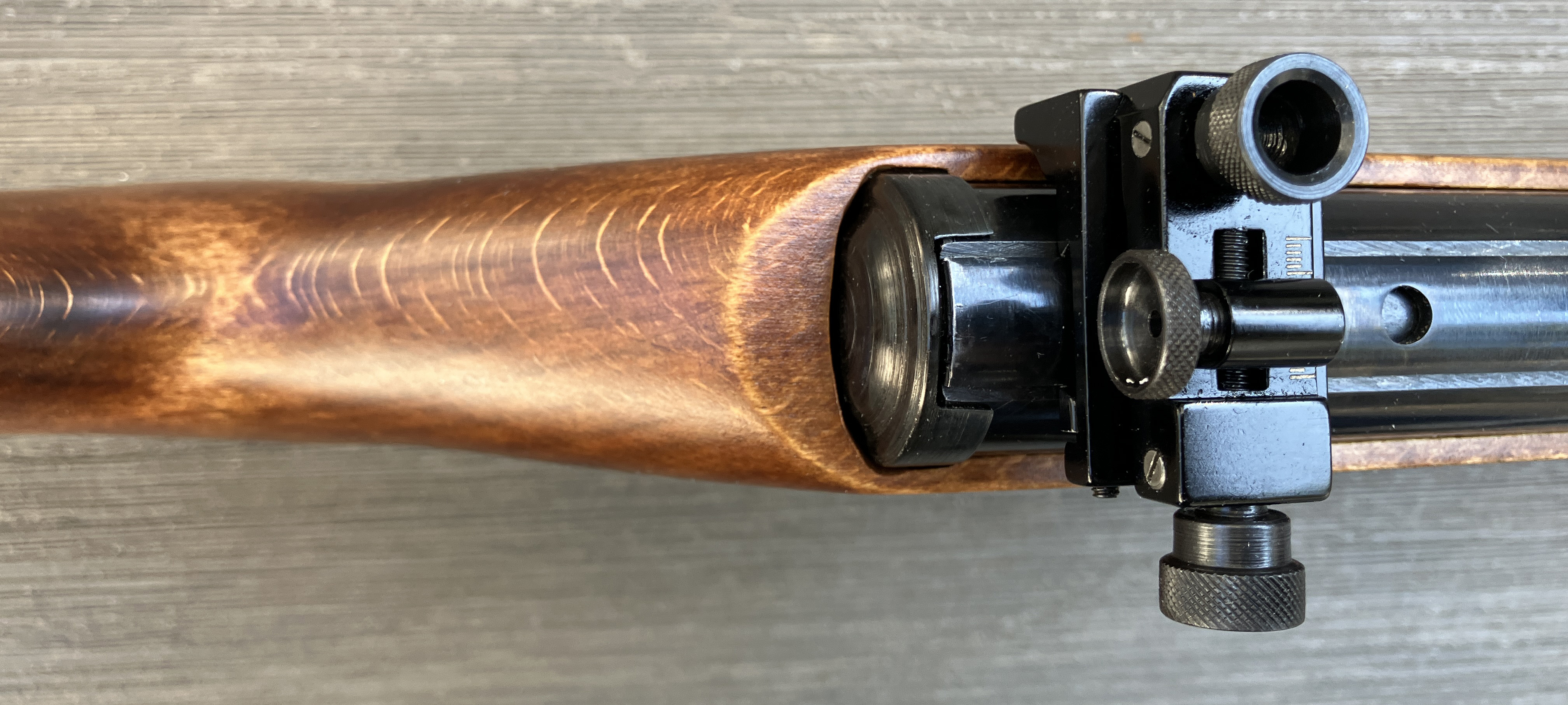

Could not find a factory rear cap, so ended up turning one on the lathe. Turned out Ok, but can you tell I'm not a machinist. LOL

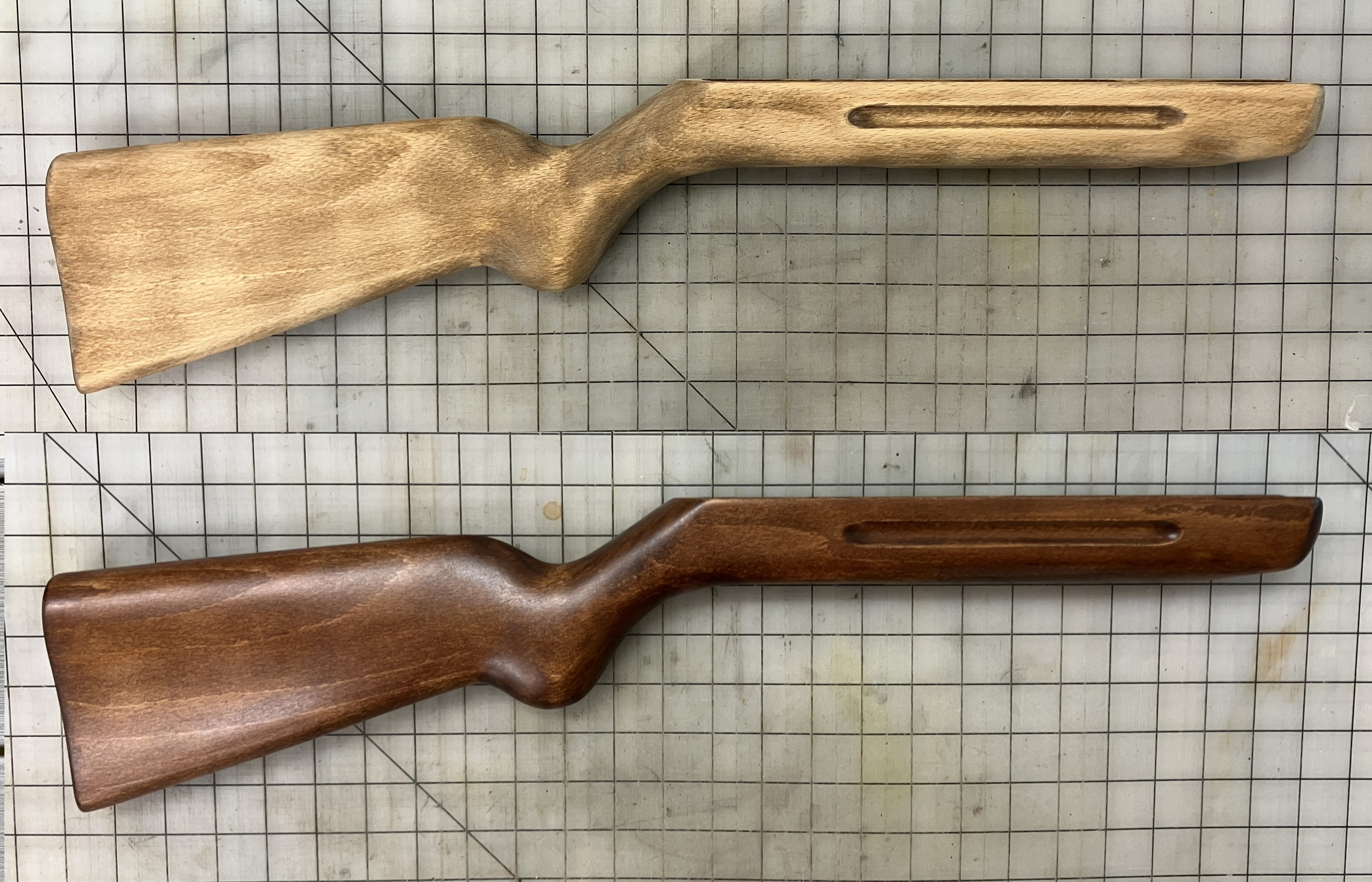

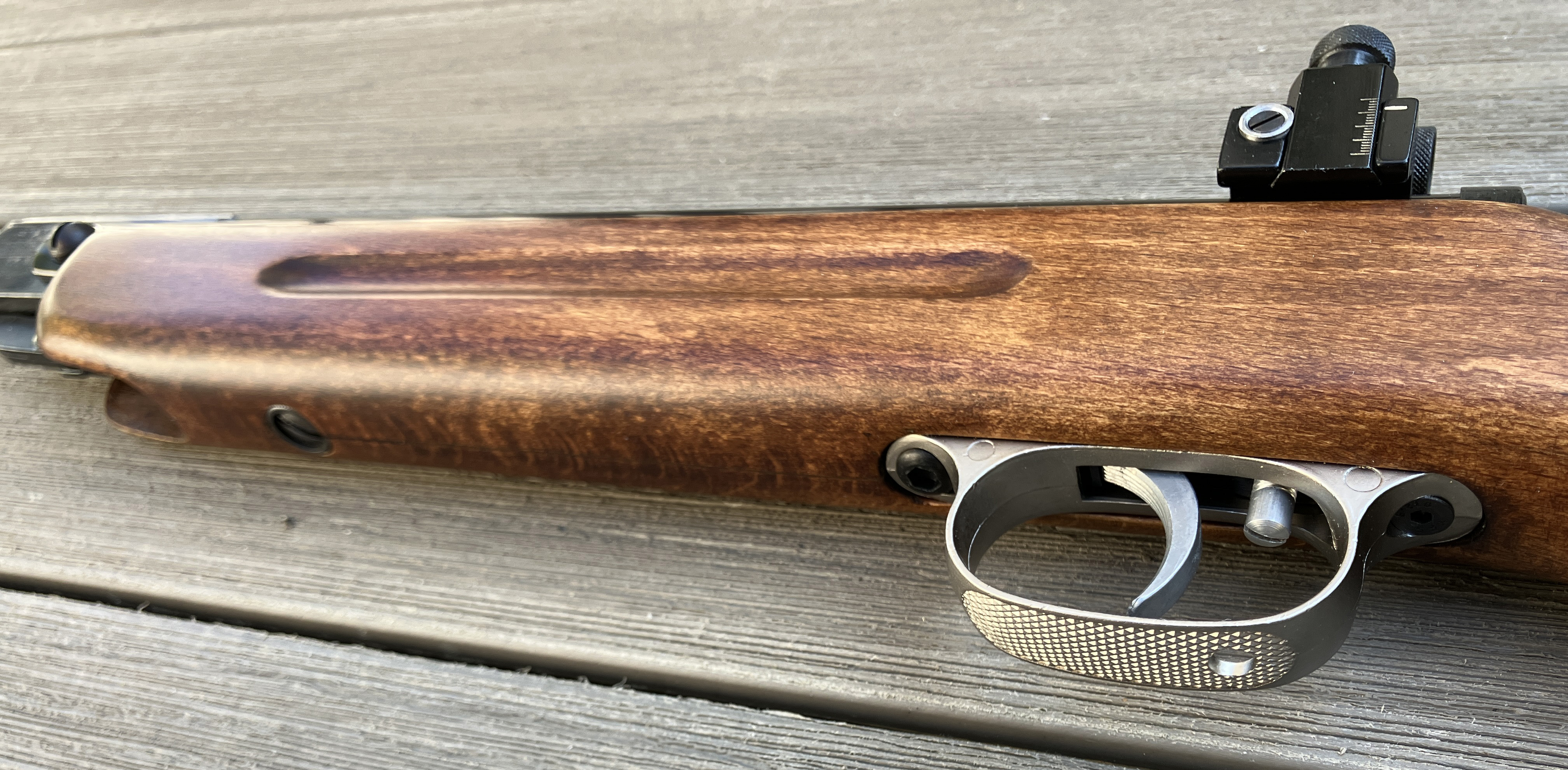

Stripped the stock and used dye to add some color to the blotchy Beech. Then a few coats of Tru-Oil with some dye added to help blend.

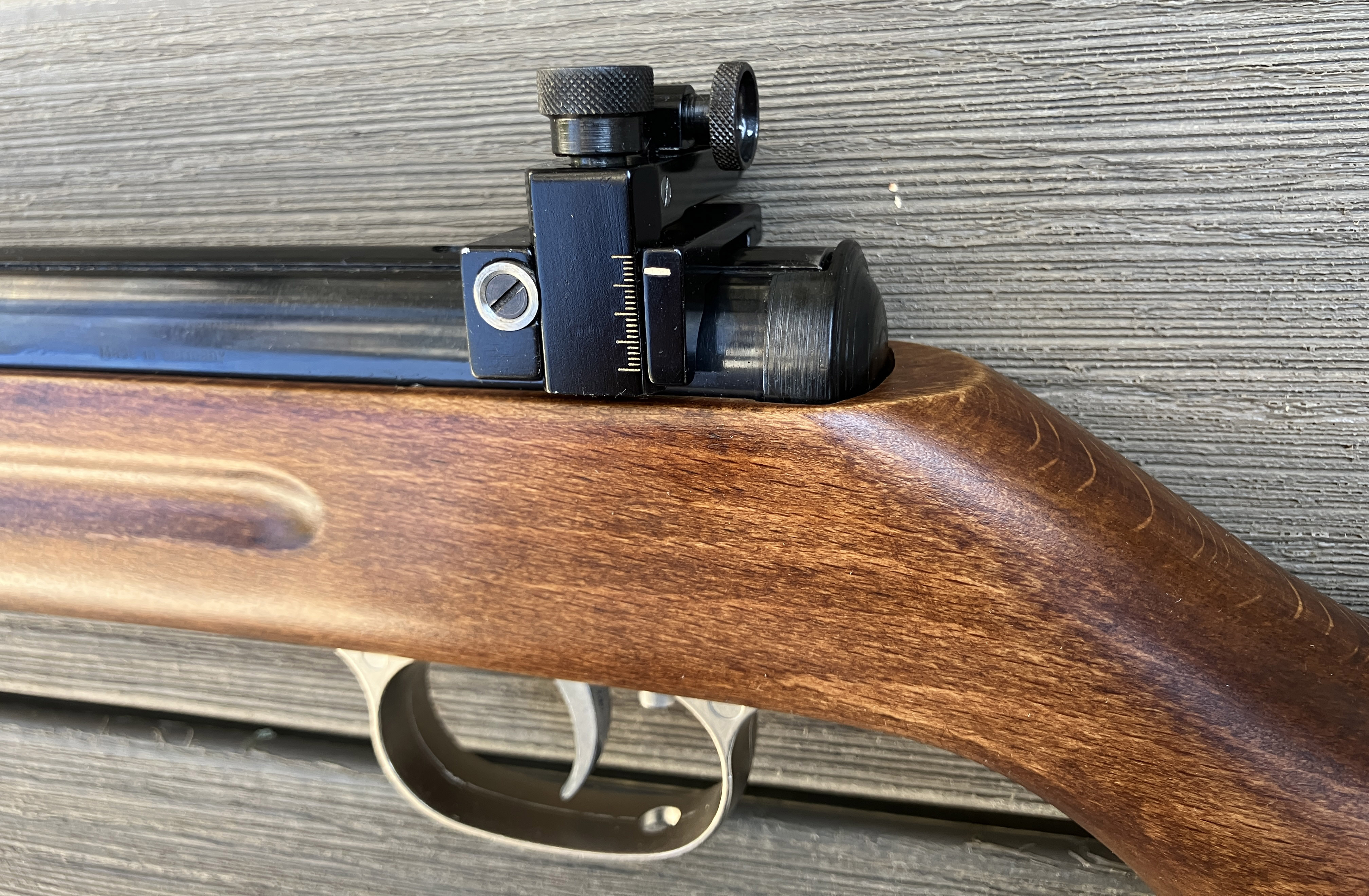

Found a satin nickel trigger guard and added the Williams sight.
