What adaptor do I need to fill my tank

[Eddy1840]

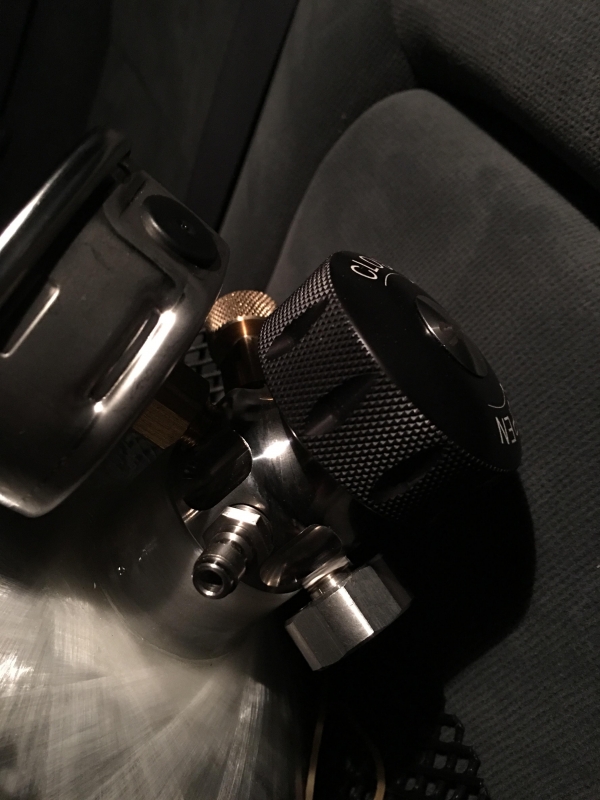

i have a omega tank with the hp3 valve, I went to the scuba shop but they didn't have any adaptor to fill it so I went to the fire department and they olso said the same bring an adaptor and we'll do it..



[Brian10956]

It look like a foster female quick connect will fit on that.

https://www.amazon.com/Air-Venturi-Foster-Female-Quick-Disconnect/dp/B00F0NSJKU

on the other end you need to see what fitting will connect to Air source



[Centercut]

For the Dive Shop

Female DIN to 1/8" BSP

http://r.ebay.com/nVDNdp

1/8 BSP female foster

https://www.ebay.com/itm/Foster-Quick-Disconnect-Female-to-1-8-BSPP-Female-5000-psi-AV-00052/222764881227?hash=item33ddd2554b:g:AggAAOSwySVaPBci:sc:USPSFirstClass!92103!US!-1

For the Fire Station you'll need a CGA347 adaptor to female foster QD fitting. Like this. Has 1/4" male NPT, so you'll need to get adaptors to get it down to the 1/8" female foster QD.

https://www.ebay.com/itm/CGA-347-SCBA-firefighting-x-1-4-MNPT-Adapter-F-06181/162442004492?hash=item25d24c480c:g:-WQAAOSwDk5T2Vmy

Or this:

https://www.ebay.com/itm/CGA-347-SCBA-firefighting-x-1-4-FNPT-Adapter-F-06180/162310820699?_trkparms=aid%3D222007%26algo%3DSIM.MBE%26ao%3D2%26asc%3D44039%26meid%3Df5857fd27bf5499892e70a5bf67b1975%26pid%3D100005%26rk%3D1%26rkt%3D2%26sd%3D162442004492%26itm%3D162310820699&_trksid=p2047675.c100005.m1851



[Eddy1840]

Brian10956

It look like a foster female quick connect will fit on that.

https://www.amazon.com/Air-Venturi-Foster-Female-Quick-Disconnect/dp/B00F0NSJKU

on the other end you need to see what fitting will connect to Air source

Sorry I meant from Their to my tank. I don't know what are they using to fill theirs. I don't know if it would work?https://m.nl.aliexpress.com/item/32839651461.html?pid=808_0009_0131&spm=a2g0n.search-amp.list.32839651461&



[Peskådot671]

To have it filled at the fire station, you need to get this adapter...

The end on the right is a female foster that connects to the male foster on your tank. The other end on the left is a CGA347 male adapter that firemen use to fill their SCBA tanks.







This is the female end used to fill the their SCBA tanks which connects to the adapter pictured above.







This is the valve on a SCBA tank which has the same threads as the adapter pictured on the top.



[Peskådot671]

Don't know why my pictures are not showing.



[Eddy1840]

Peskadot671

To have it filled at the fire station, you need to get this adapter...

The end on the right is a female foster that connects to the male foster on your tank. The other end on the left is a CGA347 male adapter that firemen use to fill their SCBA tanks.

D





This is the female end used to fill the their SCBA tanks which connects to the adapter pictured above.







This is the valve on a SCBA tank which has the same threads as the adapter pictured on the top.

Thank you.. can you try again to upload the pictures..



[Peskådot671]

Thus adapter goes to your tank.

http://experthpa.com/cart/cart.php?m=product_detail&p=126



The fire station uses this connection which goes to your adapter.

https://www.google.com/search?client=ms-android-samsung&biw=360&bih=280&tbm=isch&sa=1&ei=_dE6W7qzBo_X-Qatqo6wDg&q=CGA347+female+threads&oq=CGA347+female+threads&gs_l=mobile-gws-wiz-img.12...5714603.5738808..5740319...1....673.7184.3-14j0j4......0....1.......5..0j35i39j0i24j0i67j0i10i24.AOkl%2BhlyHtM%3D#imgrc=TS-wKIByoDLcRM:



This is the valve on a SCBA tank that has the same threads as the adapter.

https://www.google.com/search?client=ms-android-samsung&biw=360&bih=377&tbm=isch&sa=1&ei=n9E6W6iSCdOtoATIm55Y&q=scba+tank+valve&oq=scba+tank+valve&gs_l=mobile-gws-wiz-img.12..0j0i24.87547.90361..91293...0....962.2689.3-5j6-1......0....1.........0i30.PTCEEHSQk1I%3D#imgrc=lFSNCitrOAQLMM:



I hope the links go through because I'm having problems posting screenshots from my phone. Hope this helps.



[Eddy1840]

Thank you
