What valve do I need for this?

[Dr. Kralenstein]

Searched and didn't really get a definitive answer.

Don't know I need a DIN 300 or a CGA 347. Going to get this set up for my friend so he can use the pcp I built for him. His hand pump went out and this is just easier for him. I'll just refill it when needed.



[Kpac]

Searched and didn't really get a definitive answer.

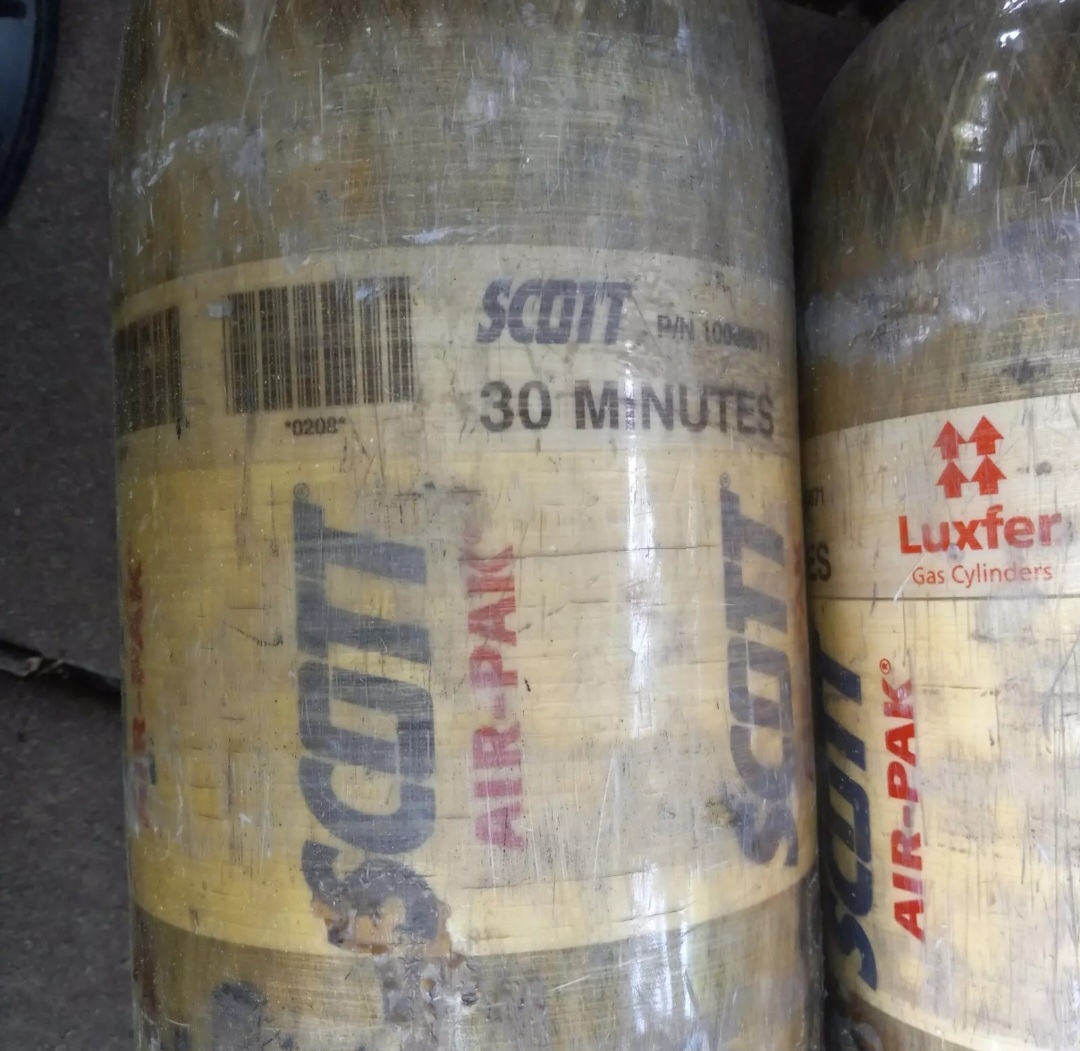

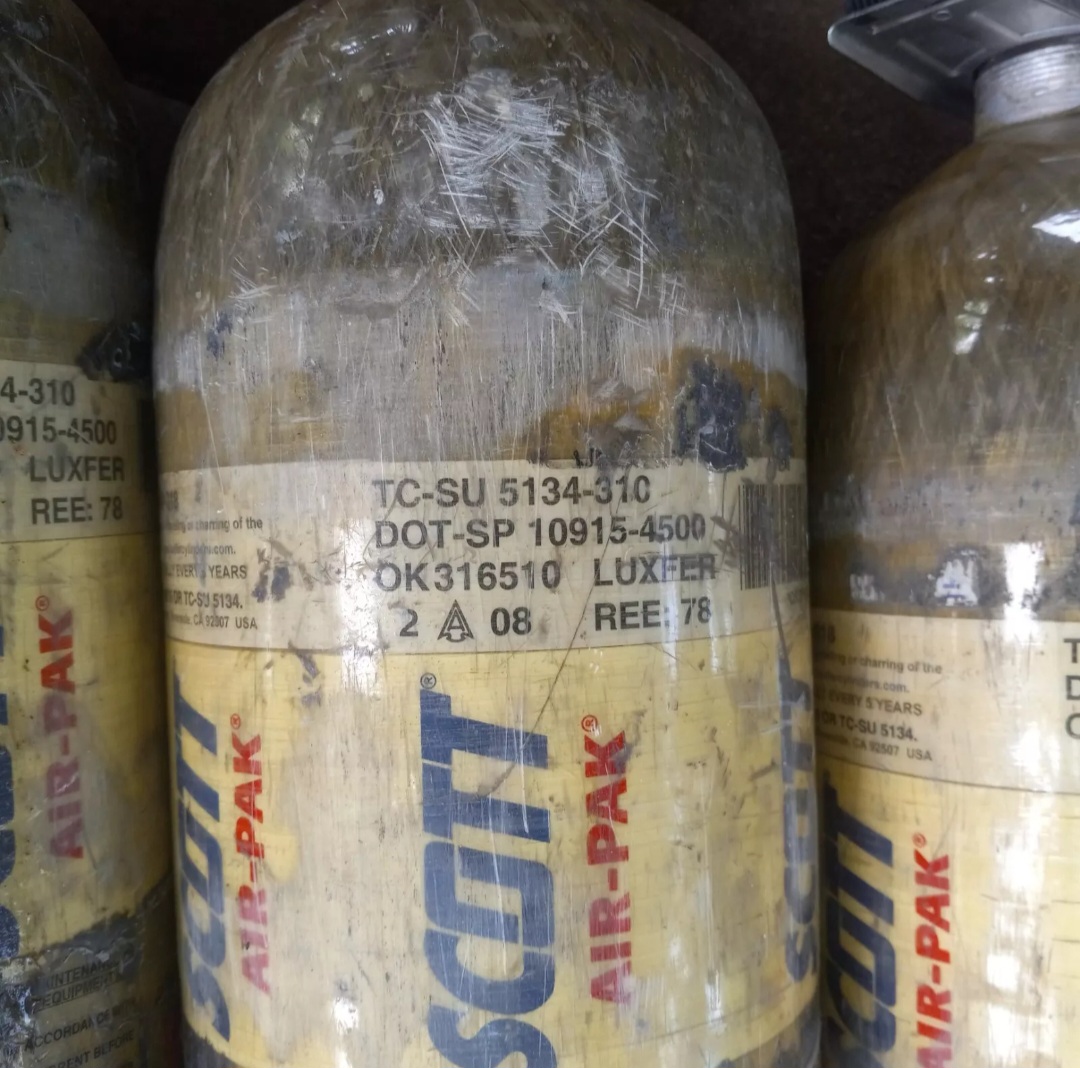

View attachment 485614View attachment 485615

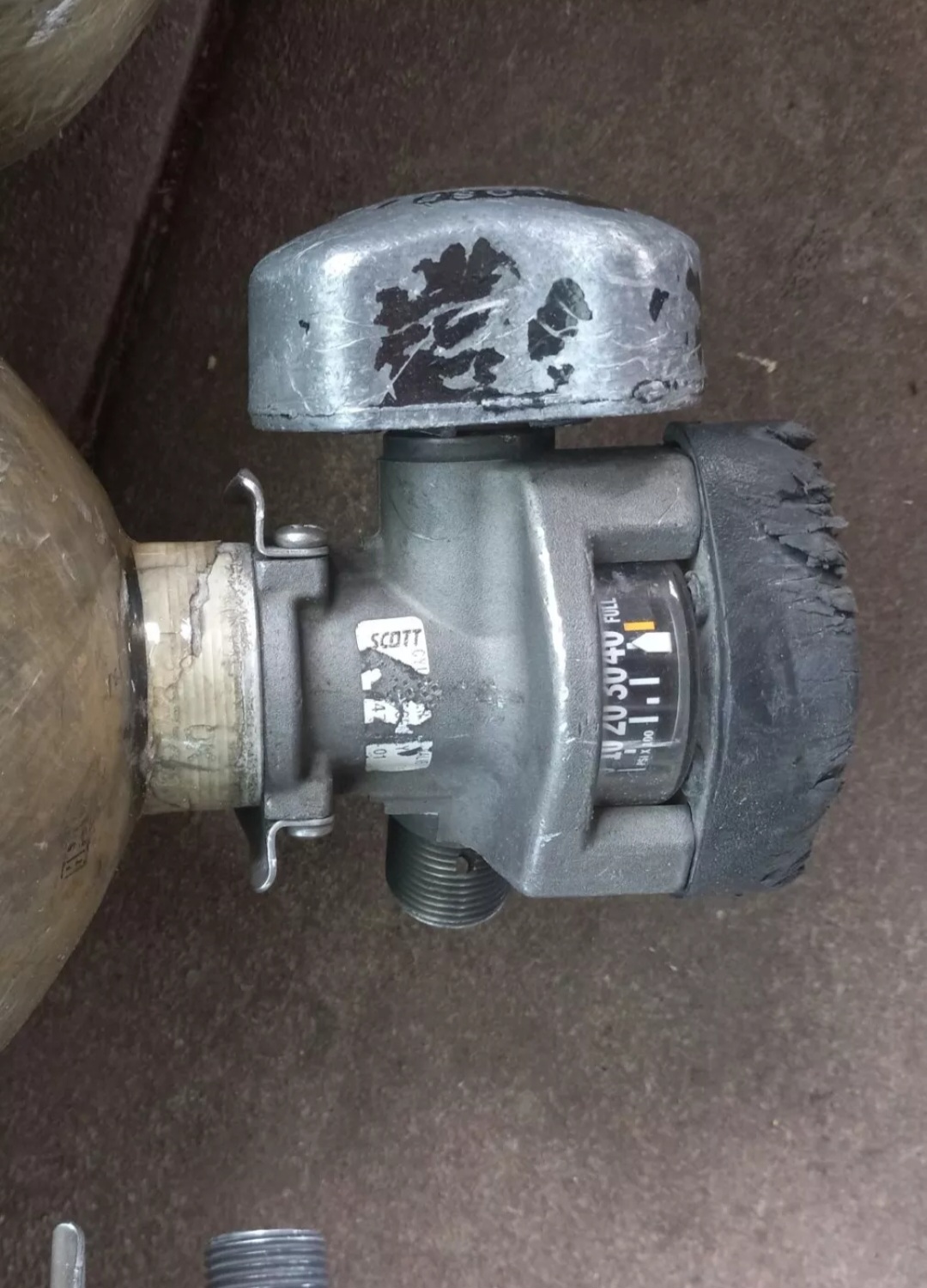

View attachment 485617

Don't know I need a DIN 300 or a CGA 347. Going to get this set up for my friend so he can use the pcp I built for him. His hand pump went out and this is just easier for him. I'll just refill it when needed.

Be careful my friend they look a little old and they do expire better off getting a port compresser you can hook it up to the car but good luck be safe



[Dr. Kralenstein]

It was hydro'd in 2018 and still holding air. Hopefully it'll be okay lol.



[JimBentley]

I purchased one like this and am very happy.

7/8-14 scba valve - Google Shopping

www.google.com

It allows slow fill to the gun, but quick fill from a compressor by way of the second Foster fitting.
This valve allows me to fill my 45 min tank about 10 min faster than the typical "slow fill"



[anonymous_.457]

Searched and didn't really get a definitive answer.

View attachment 485614View attachment 485615
View attachment 485617

Don't know I need a DIN 300 or a CGA 347. Going to get this set up for my friend so he can use the pcp I built for him. His hand pump went out and this is just easier for him. I'll just refill it when needed.

Cga-347.



[Dr. Kralenstein]

Cga-347.

The cga347 doesn't have threads on the regulator. Is that right?

Never mind, I see the threads on one I was looking at. They had an adapter threaded into it in the pics.


I was thinking of removing the entire scba valve and was wondering what the actual bottle's threads were.



[Bill_D]

The tank threads are 7/8 X 14



[Dr. Kralenstein]

The tank threads are 7/8 X 14

Thanks Bill. I thought that's what they are. I might just get the cga347 adapter, but original plan was to replace the entire valve with an adjustable regulator.



[Bill_D]

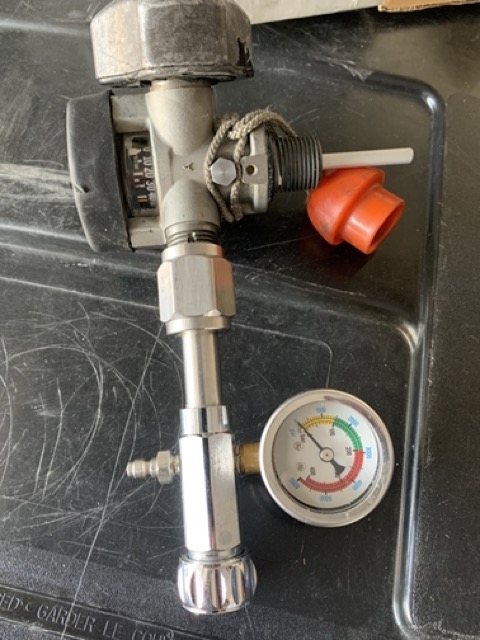

I have that same valve with the adapter, with gauge (not sure how accurate) and quick connect fitting.
Come off the first bottle I had, - your welcome to it if you just pay the shipping.
PM me



[anonymous_.457]

The cga347 doesn't have threads on the regulator. Is that right?

Never mind, I see the threads on one I was looking at. They had an adapter threaded into it in the pics.


I was thinking of removing the entire scba valve and was wondering what the actual bottle's threads were.

The scba tanks threads is 7/8-14 they do sell normal valves for them.



[DesertSilver]

Make sure if you use a normal scba valve you remove the tube. That way if you have a notion there might be water in the tank you just turn it upside down a slightly open the valve. Any water will be blown out of the tank.
