Hi I have a few small tanks which are 18x1.5 thread , I would like to use them for carrying extra air in field , does anyone know where to buy fitting with shut off I can hook a short hose to , or if they make one with a hose thanks LOU
where to get a valve for a 500 cc tank ?
- Thread starter jwrabbit123
- Start date
JW, I went with one of these since I had a spare 500cc Royale bottle. It works well, the only thing I wish they'd do different would be to use a slower bleed system instead of the instantaneous push button. If just seems a little to violent but it does do the job. It actually came with the nicer red hose pictured in the Daytripper package.
Jimmy
https://www.bestfittings.co.uk/shop/airgun-charging-equipment/cylinder-accessories/mini-cylinder-vale-assembly-day-tripper-valve/
Jimmy
https://www.bestfittings.co.uk/shop/airgun-charging-equipment/cylinder-accessories/mini-cylinder-vale-assembly-day-tripper-valve/
Upvote 0
Go to ebay and search m18 valve
https://www.ebay.com/itm/M18x1-5-Male-to-G-5-8-Femal-Thread-4500psi-Pressure-Safety-Valve-PCP-Paintball/312205555407?hash=item48b0e6b6cf:g:b5EAAOSwCA5bYx2k:rk:15
f:0
https://www.ebay.com/itm/PCP-Paintball-Din-Valve-Tank-ON-OFF-Valves-w-Gauge-ON-THE-SIDE-M18-Male-G5-8/192513754396?hash=item2cd2b6c51c:g:6dAAAOSwEm1a1rCK:rk:12f:0
https://www.ebay.com/itm/Paintball-Din-Valve-Tank-ON-OFF-M18-Male-G5-8-Female-30Mpa-4500psi-M18/223237086240?hash=item33f9f79c20:g:aegAAOSwHnJb8b5a:rk:8f:0
https://www.ebay.com/itm/M18x1-5-Male-to-G-5-8-Femal-Thread-4500psi-Pressure-Safety-Valve-PCP-Paintball/312205555407?hash=item48b0e6b6cf:g:b5EAAOSwCA5bYx2k:rk:15
f:0https://www.ebay.com/itm/PCP-Paintball-Din-Valve-Tank-ON-OFF-Valves-w-Gauge-ON-THE-SIDE-M18-Male-G5-8/192513754396?hash=item2cd2b6c51c:g:6dAAAOSwEm1a1rCK:rk:12
f:0https://www.ebay.com/itm/Paintball-Din-Valve-Tank-ON-OFF-M18-Male-G5-8-Female-30Mpa-4500psi-M18/223237086240?hash=item33f9f79c20:g:aegAAOSwHnJb8b5a:rk:8
f:0Upvote 0
Jimmy,
I see they have these for 5/8"UNF (ninja paintball) but it looks like the output is a male DIN? never seen that before. Can you post a pic of yours? Based on the "basic valve kit" picture it doesn't look enough parts to make it work as is. Or do you also have to buy that din to 1/8" gauge?
Upvote 0

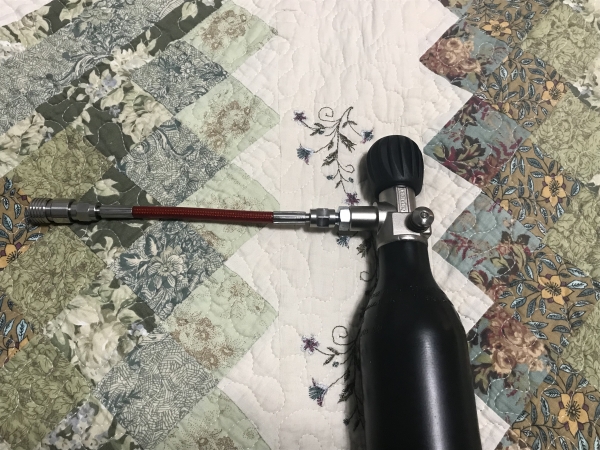

They have them in both tank thread configurations (selectable) and with the supplied Allen wrench you can remove the DIN fitting and screw in a nipple that the hose screws onto directly. I got the basic kit without the gauge. Here’s mine and I almost forgot that on the gun end of the hose it has one of the BSP swivel female nuts that that has a cone shaped seal in it. I just happened to have a male Foster that was the same. I think it might have been one shipped from Daystate. Just a heads up so you won't be completely thrown off .
Jking
Jking
Upvote 0
that looks great is this the basic kit from them ? so gage hole sealed? but it does have a drain on the side?
Upvote 0
Yeah, the basic kit, the gauge assembly would screw into where the nipple I mentioned before goes and then that nipple would screw into the other side of the gauge assembly, then the hose onto it. The bleeder is on the exposed side of my picture. It's the silver round button sticking up. It's spring loaded. Just push it and it relieves the pressure on the hose once the valve is closed.
jk
jk
Upvote 0
BTB, I did to at first and was figuring on having to do a work around. Slick the way they held it in place with a hollow hex screw. Unscrew it and screw in the o-ring sealed hex headed nipple.
JK
JK
Upvote 0
