HW/Weihrauch Which mount for a Weihrauch with an Element Helix

[sh4d0vv]

Hello,

What scope mounts are recommended for a 97k or similar air rifles with a dovetail? My 97K came with a scope and mounts but I noticed that the scope was slipping back ever so slightly with every shot. I am thinking of replacing my scope and mounts with an Element optics Helix with a 30mm body and a one piece mount. I have heard good things about BKL one piece mounts but there are so many options that I was getting a bit overwhelmed.

Any insight or suggestions are greatly appreciated.



[WoodWelder]

What was the scope that came with your rifle, make and size?

If your scope and mounts were moving then all you need are mounts with a stop pin to keep it secured.



[WoodWelder]

Here is a video. Ignore the kit, you don't need it. LOL



[bdzjlz]

I have used the RWS Lockdown one piece mount very successfully on my 97s, though I prefer the Sports Match two piece mounts using one stop pin in the rear mount.



[jarmstrong]

don't forget to wipe the rails and rings and scope with alcohol,, I use 91% isopropyl alcohol
I prefer the SportsMatch med rings



[cavedweller]

Hello,

What scope mounts are recommended for a 97k or similar air rifles with a dovetail? My 97K came with a scope and mounts but I noticed that the scope was slipping back ever so slightly with every shot. I am thinking of replacing my scope and mounts with an Element optics Helix with a 30mm body and a one piece mount. I have heard good things about BKL one piece mounts but there are so many options that I was getting a bit overwhelmed.

Any insight or suggestions are greatly appreciated.

This rail was made specifically for the HW 97 or the TX 200, it has 20 moa built in - best mount period - see fleabay:

Dovetail to Weaver scope rail base 20MOA , rings, air rifle LG110, tx200, hw97 | eBay

20MOA drop (ideal for Field Target shooting ranges). Mounting rail can be mounted on a Dovetail 11 mm rail and is equipped with a Weaver/Picatinny base. Rings weight: 122g. Heigth (center to center): 30mm.

www.ebay.com



[Northwoods22]

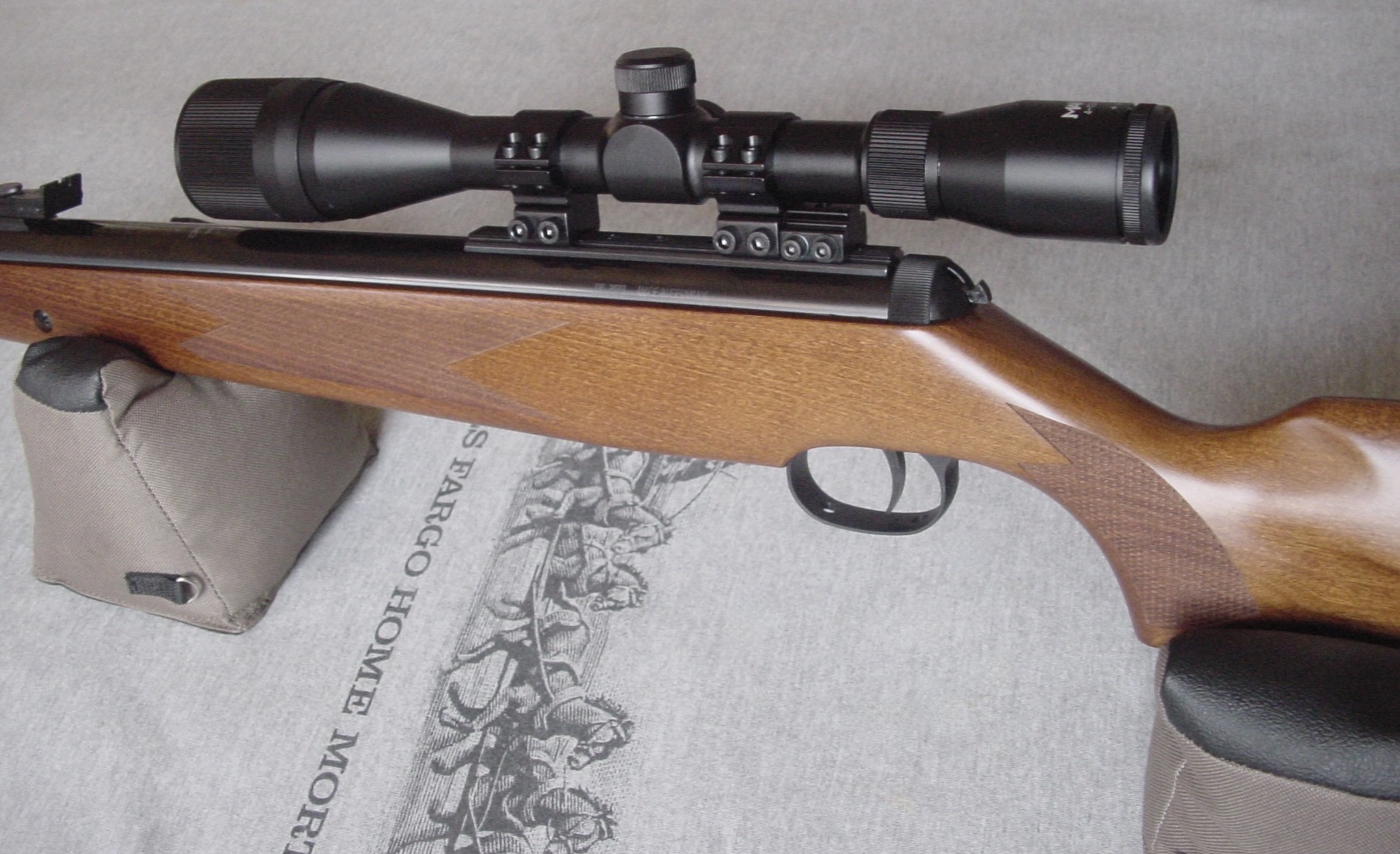

Sportsmatch makes a separate recoil stop block with a steel stop pin that works well if you're using rings without a stop pin/screw. PA has them for around $13.00. I have one on my D350. Rock solid, no rearward creep.



[cavedweller]

Sportsmatch makes a separate recoil stop block with a steel stop pin that works well if you're using rings without a stop pin/screw. PA has them for around $13.00. I have one on my D350. Rock solid, no rearward creep.

View attachment 442568

thats cool - i've never seen that done



[Northwoods22]

thats cool - i've never seen that done

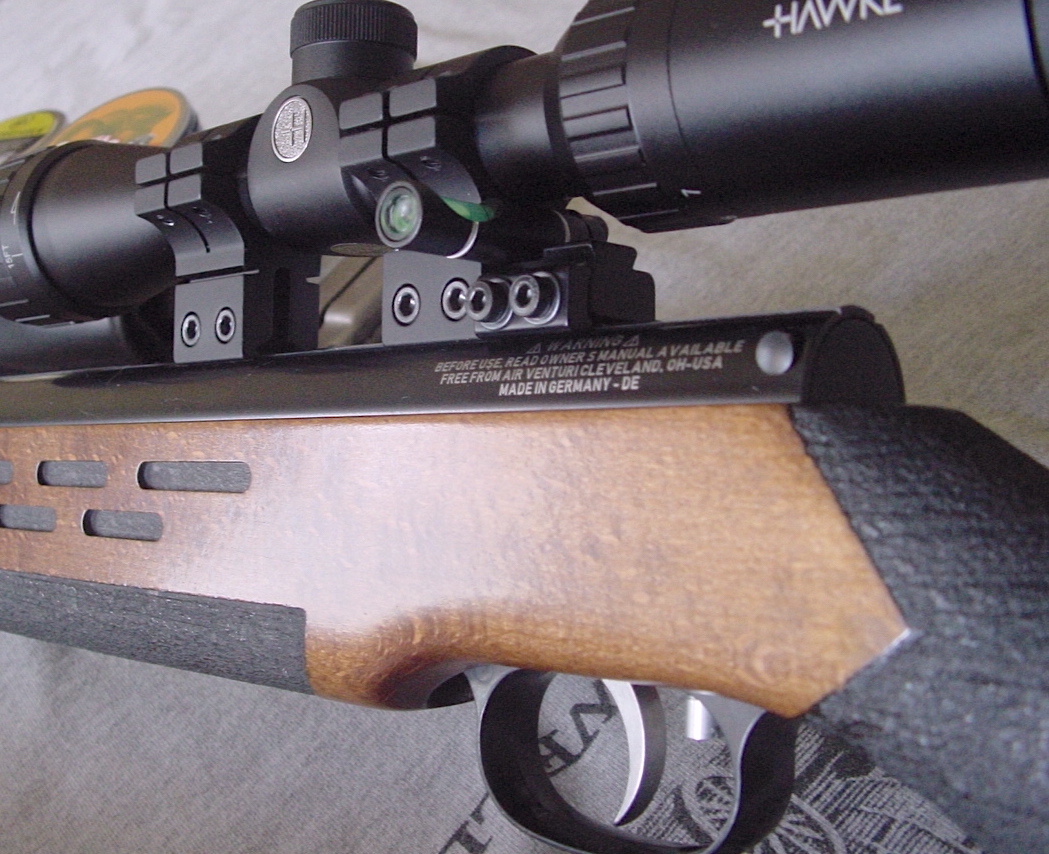

It also has a small dovetail on top that, if the scope diameter and ring height is right, will accept a Sportsmatch spirit level. I added one to my .22 HW98. Tucks under the scope nicely and is easy to see.



[sh4d0vv]

Thank you for all the input and advice!



[sh4d0vv]

Thank you for all of your help. The scope and mounts that came on my 97k were garbage (ohhunt).

Thanks to your advice I purchased a set of Sportsmatch T035C 2-Pc Medium 30mm Scope Mounts for a Element Helix 2-16x50 HDLR (SFP) - APRC-1 MOA.

Will post pics of the before and after at some point soon.



[sh4d0vv]

FYI, Sportsmatch T035C 2-Pc Medium 30mm Scope Mounts do not fit the Element Helix 2-16x50 HDLR (SFP) on the 97K.

Ordered Sportsmatch HTO36C 2-Pc 30mm High Scope Mounts which should clear.



[.20calguy]

FYI, Sportsmatch T035C 2-Pc Medium 30mm Scope Mounts do not fit the Element Helix 2-16x50 HDLR (SFP) on the 97K.

Ordered Sportsmatch HTO36C 2-Pc 30mm High Scope Mounts which should clear.

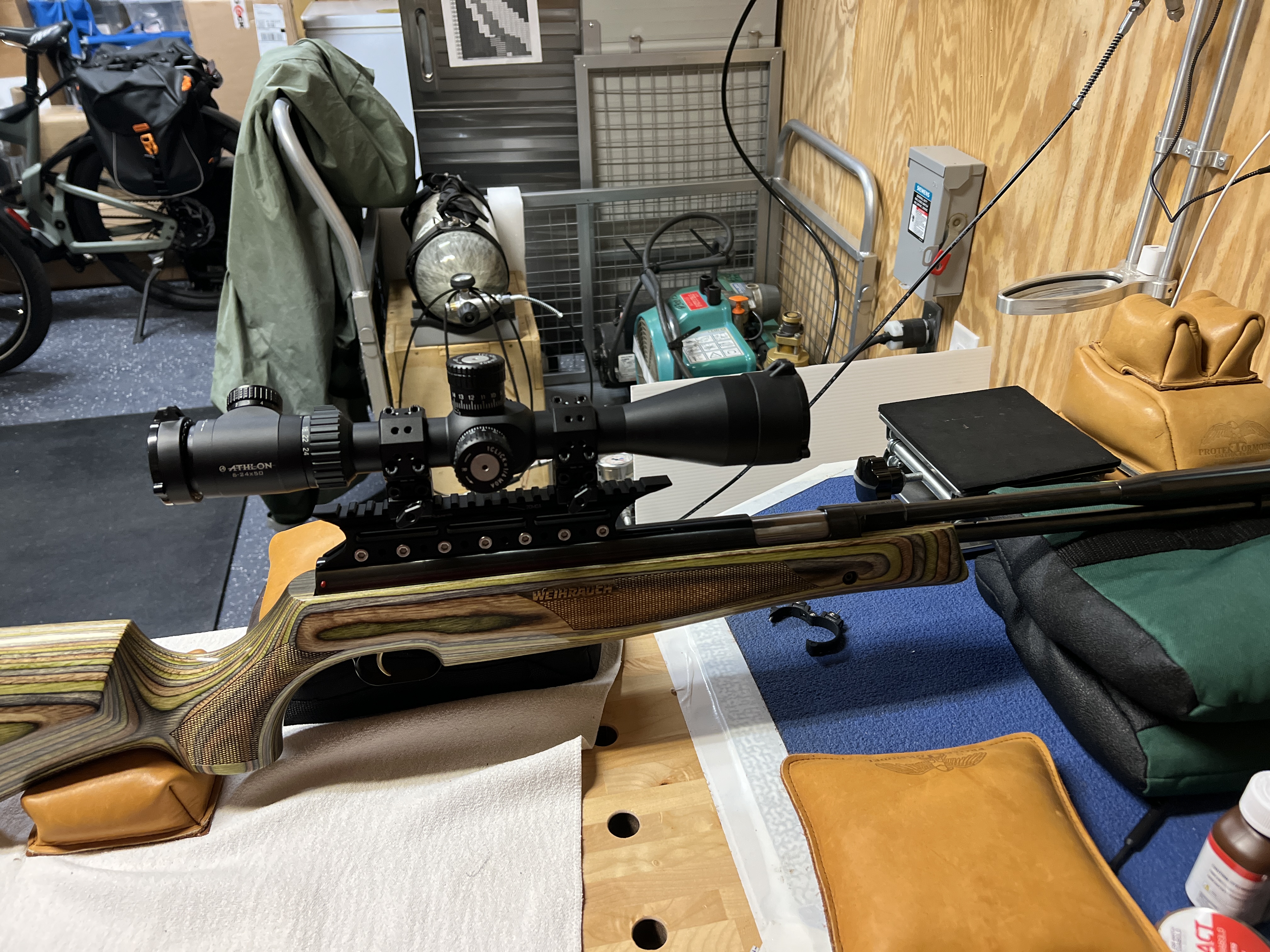

I used West Hunters, but I'm still waiting for the 97K to come in, so I had to try it out on the HW30.
