Wildcat Power Plenum

[wyshadow]

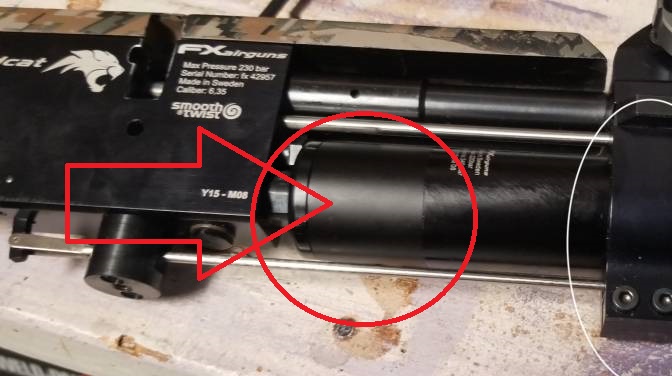

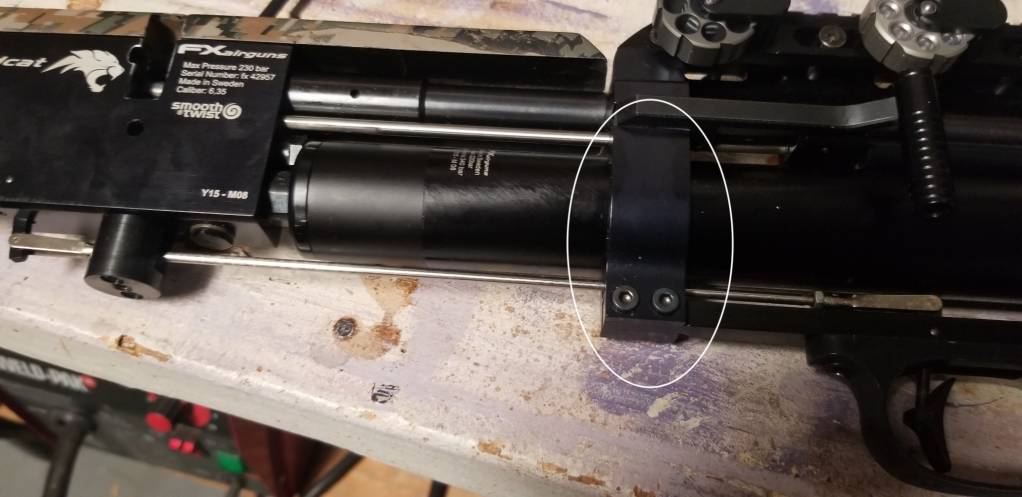

I just finished installing my power plenum but I ran in to a problem I don't what where I went wrong. I saw the video on Ernest's video but my wildcat didn't come out like his did. Don't know the name of the part is but its the part that holds the tank, barrel, trigger, and picatinny rail on. This part is covering up the vent hole for the reg. Has anyone run into this problem?



[nisouck]

The part I show is not on my Wildcat that is mounted with a Plenum coming from Huma Air.

Did you add this piece with the mounting of the plenum?



[wyshadow]

nisouck,

That's the PP



[nisouck]

I understand your problem.

With the Huma Air the plenum and regulator are internal so, no problem at all. It's what I have mounted on my Wildcat.

https://www.huma-air.com/FX-Wildcat-Power-Plenum-XL-Set-With-Tuning-Regulator



[wyshadow]

nisouck,

I'm wondering if the huma-air plenum is the only way to go for the wildcat, I didn't go with the Huma PP because I didn't want to give up space for the PP in the air tank.



[nisouck]

nisouck,

I'm wondering if the huma-air plenum is the only way to go for the wildcat, I didn't go with the Huma PP because I didn't want to give up space for the PP in the air tank.

Yes, I understand.

Which one did you mount?

Do you have a link?



[mr.grimm]

Buy another plenum and double stack them. Then the hole will be visible.



[steved192]

Instead of the 1.2” plenum you installed, get the 2.5” plenum also from Ernest Rowe. Both are on his website.



[nisouck]

Buy another plenum and double stack them. Then the hole will be visible.

Can't find on the site .... could you help with the link?



[wyshadow]

Instead of the 1.2” plenum you installed, get the 2.5” plenum also from Ernest Rowe. Both are on his website.

I should have gone to 910 tuning's website. I bought the PP through eBay and the 2.5 inch plenum wasn't on there.



[mr.grimm]

https://910airguntuningandrepairsllc.com



[Marco25]

Well I just installed my 1.2 plenum on my wildcat mk2 that I bought from 910airguntuning and when I put the air tube back on the gun the regulator adjustment hole lines up under the barrel. It clears the mounting bracket but it’s under the darn barrel. I have contacted Ernest and Newman and waiting for a reply to get this fixed. I will keep the results updated here.



thanks Marco



[yalel]

.



[yalel]

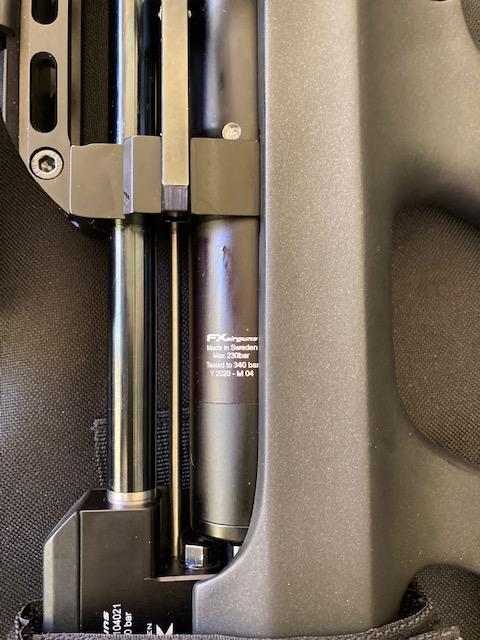

reg adjustment hole position WC compact MKIII after Ernest Rowe Power Plenum install. Nicely passing the bracket ( in contrast to what a DL PP would do) and not needed to take off the stock anymore when adjusting the regulator. How nice an upgrade can be ! If this nice allignment and fit is also applicable to Wildcat MK1 and 2 I don’t know.



[Marco25]

.Thanks Yalel for the picture that would be very convenient



marco
