Umarex Zelos pics ..

Picked this up for cheap on eBay after the seller couldn't reseal it. Added a c88 valve and an FX liner kit. I have a .22 500mm superior liner in it now. It's doing about 45-50fpe with the reg set at 165bar. At 50m it shoots alot of stuff well but at 100m the 23g H&N .218 do the best.

I picked up a 700mm heavy and the extension as well so will test it next week.

View attachment IMG_20250216_114522.heic

Wait, it's that long with the mod?? Damn that's a shorty!
That’s the whole point of the exercise! I figured this would be the best example ( 450mm barrel ).
Butt to bottle length end is 27.5 in

A tatsu would put it at 29.5
But the mini Magna works great.

Glad you like it. Dave really came through here. It’s smooth as silk.

  • Like
Reactions: JaceSpace1369
That’s the whole point of the exercise! I figured this would be the best example ( 450mm barrel ).
Butt to bottle length end is 27.5 in

A tatsu would put it at 29.5
But the mini Magna works great.

Glad you like it. Dave really came through here. It’s smooth as silk.
That's awesome! I love compact builds! I prefer higher power, but if it's compact enough I'm okay with lower to normal power. He sure does great work!

  • Like
Reactions: Perle
That's awesome! I love compact builds! I prefer higher power, but if it's compact enough I'm okay with lower to normal power. He sure does great work!
i figured many took the notos and modded it to 30 32 fpe longer barrel and more shot capacity * bottles and z blocks

it made more sense to me to take the zelos and have a compact made for less than a full mod and barrel notos.

  • Like
Reactions: JaceSpace1369
i figured many took the notos and modded it to 30 32 fpe longer barrel and more shot capacity * bottles and z blocks

it made more sense to me to take the zelos and have a compact made for less than a full mod and barrel notos.
I made my notos have a crazy shot count. Power was enough to take down iguanas and it was accurate enough shooting dimed sized groups at 50yds with crosmans. I hated the trigger so I got rid of it.

  • Like
Reactions: Perle
Picked this up for cheap on eBay after the seller couldn't reseal it. Added a c88 valve and an FX liner kit. I have a .22 500mm superior liner in it now. It's doing about 45-50fpe with the reg set at 165bar. At 50m it shoots alot of stuff well but at 100m the 23g H&N .218 do the best.

I picked up a 700mm heavy and the extension as well so will test it next week.

View attachment 549287
165 reg. Do you remember Hammerspring turns ? From flush ?
This is with no porting or plenum increase ?

Impressive power.

165 reg. Do you remember Hammerspring turns ? From flush ?
This is with no porting or plenum increase ?

Impressive power.
I have the c88 valve which has 7mm tp compared to the standard valve with 3.7mm. The FX liner thimble has a larger TP vs the stock barrel as well, I forget the measurements off hand thought. I don't recall the hammer spring settings but it's cranked in.

  • Like
Reactions: Perle

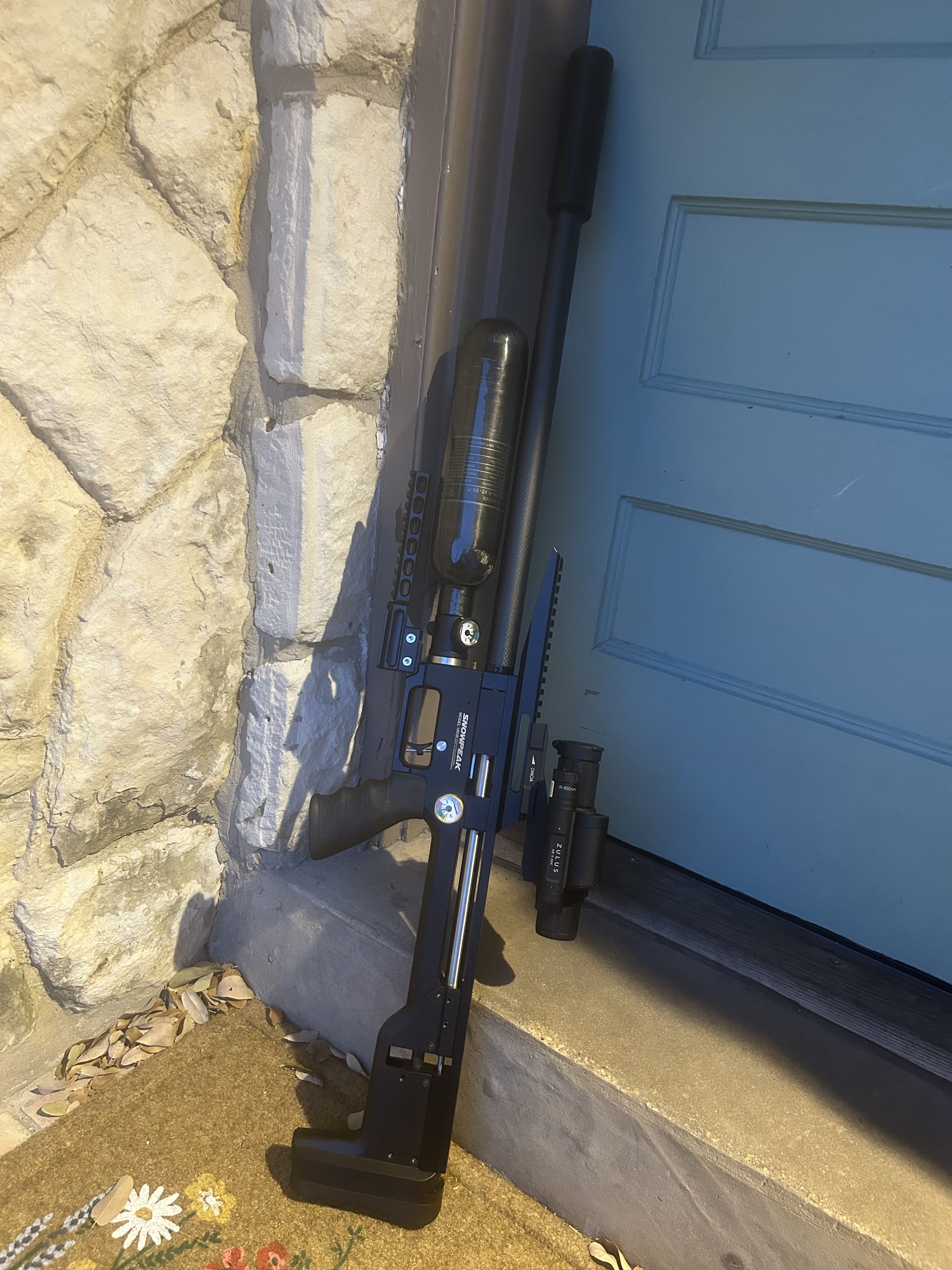

Got my 700m heavy liner yesterday and installed it. Reg was at 165Bar. Shot some groups at 50m and 100m. .218 NSA 25g 1025 fps, 27g 940fps, & 30g 900fps, shot well at. a 100m. 2nd to them were the JSB KO .217 & .218 and the JSBMRD deeps. Was shooting West and had 10-15mph S crosswind so he groups should tighten up next time.




Got my 700m heavy liner yesterday and installed it. Reg was at 165Bar. Shot some groups at 50m and 100m. .218 NSA 25g 1025 fps, 27g 940fps, & 30g 900fps, shot well at. a 100m. 2nd to them were the JSB KO .217 & .218 and the JSBMRD deeps. Was shooting West and had 10-15mph S crosswind so he groups should tighten up next time.

View attachment 549497

View attachment 549498
Try the zan 28.5gr .218, those are by far the best in accuracy in my buddies zelos even at 810fps out to 174yds

  • Like
Reactions: xsarfc9x
Ya, I'll try them. I have the .217 sampler pack but wasn't able to get to testing them today. Need to order the .218 pack.
Yeah that's what I had on hand at the time as well as apolo slugs and something else. The 28.5gr beat everything else. Hitting an upright coca cola can at 174yds 8 times in a row is a true testament in my eyes, specially at about 810fps
