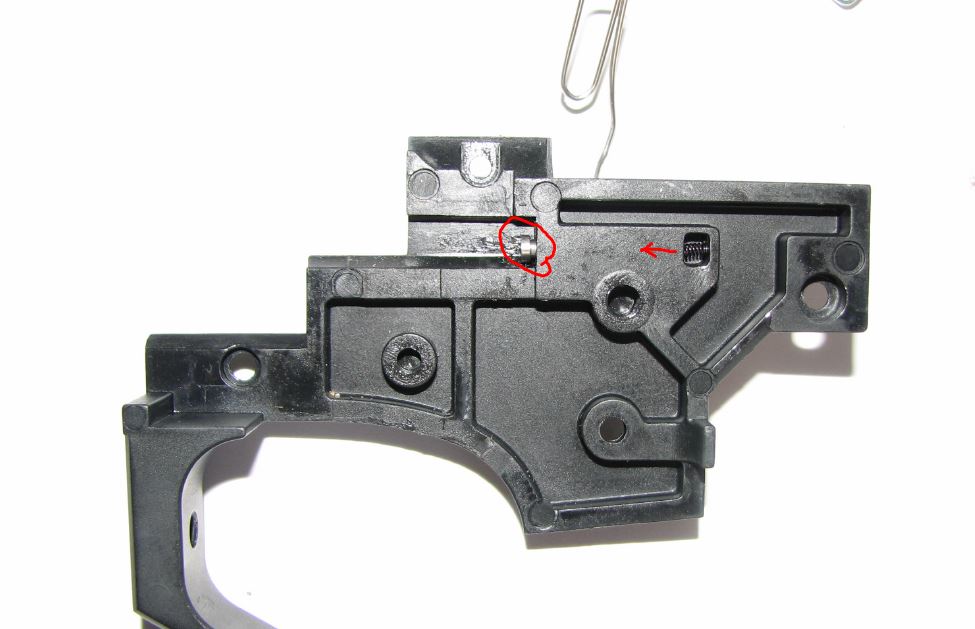

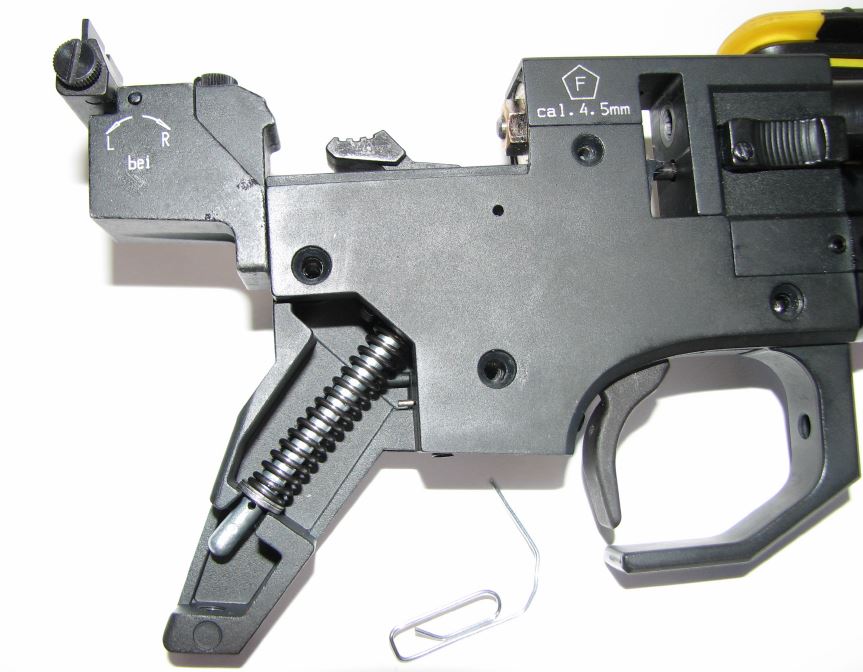

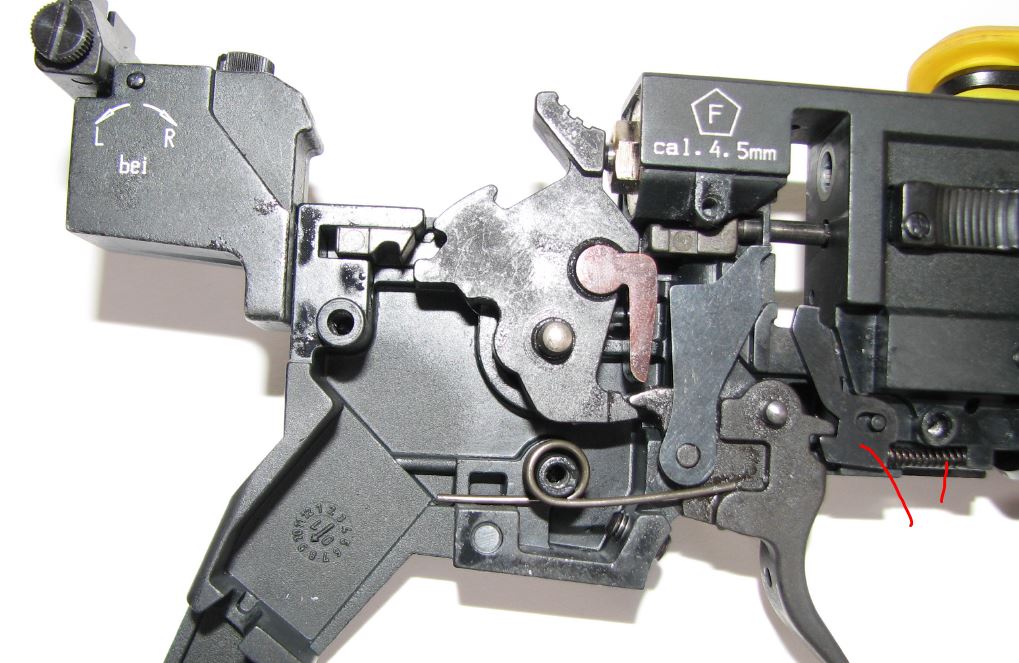

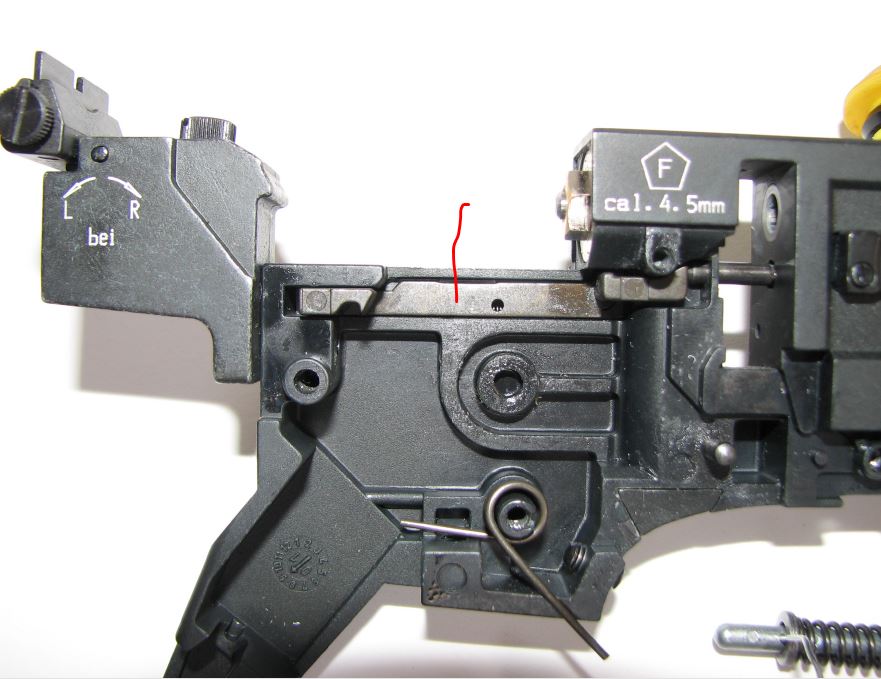

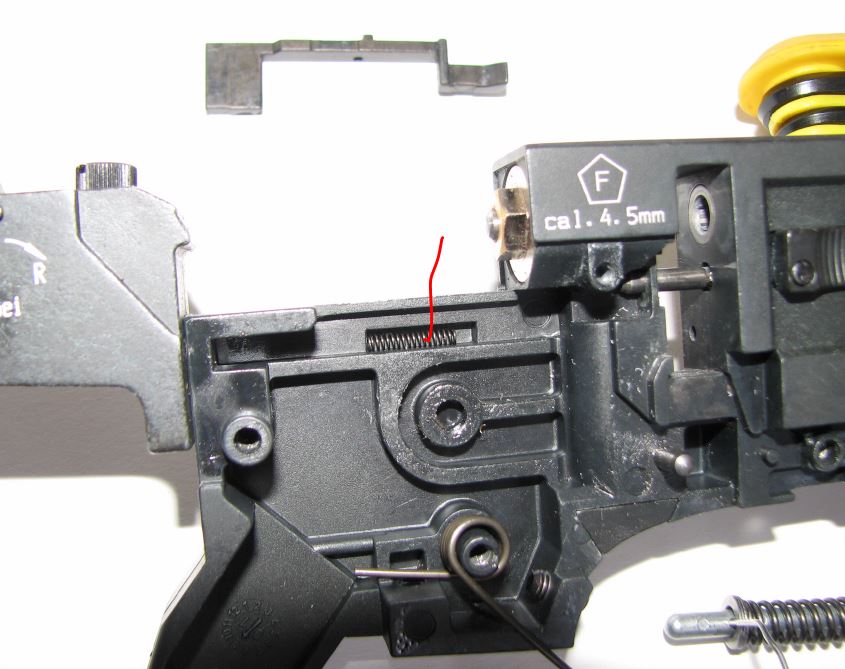

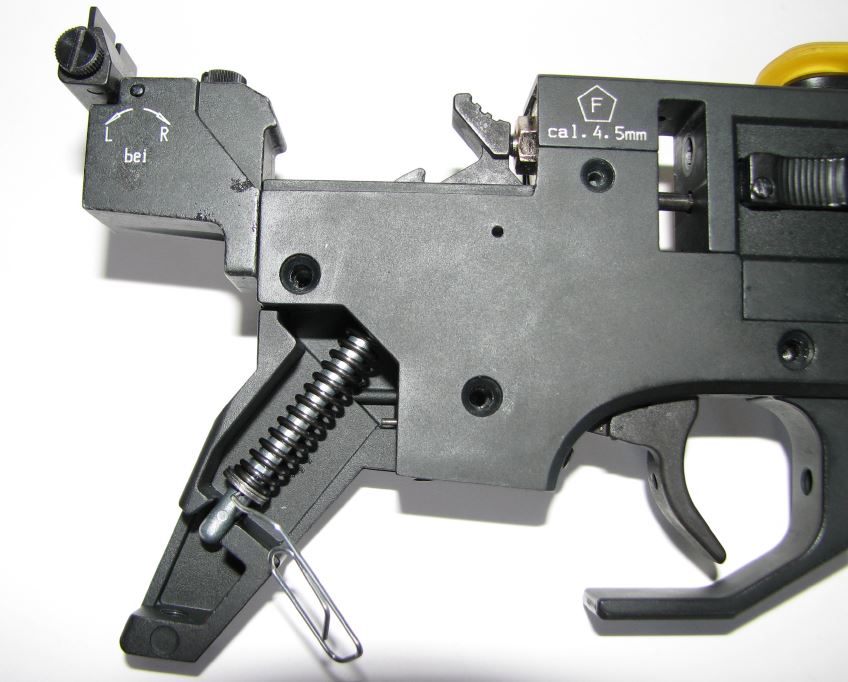

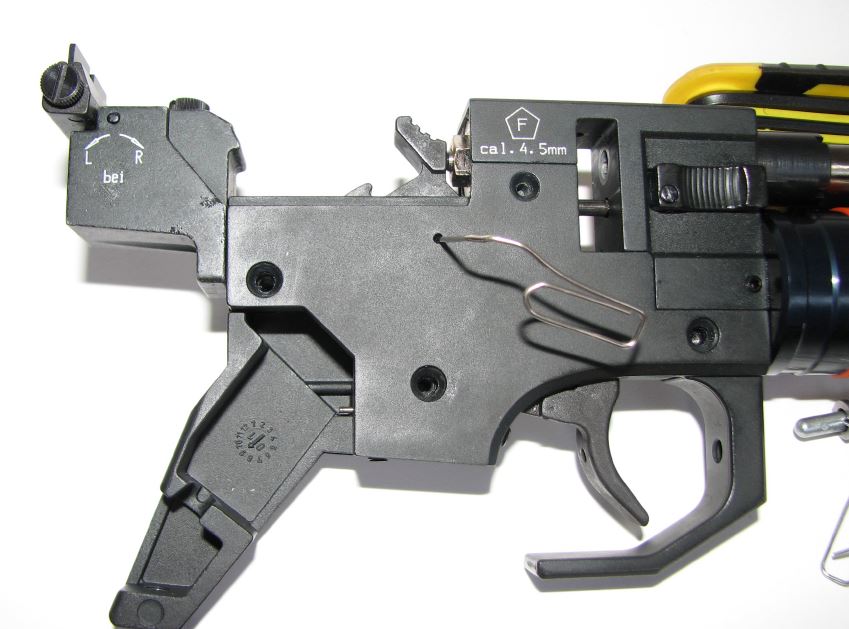

Excellent documentation Towle! Thanks a lot.Pictures from takedown, a paper clip is your friend
View attachment 308647View attachment 308648View attachment 308649View attachment 308650View attachment 308651View attachment 308652View attachment 308653View attachment 308654

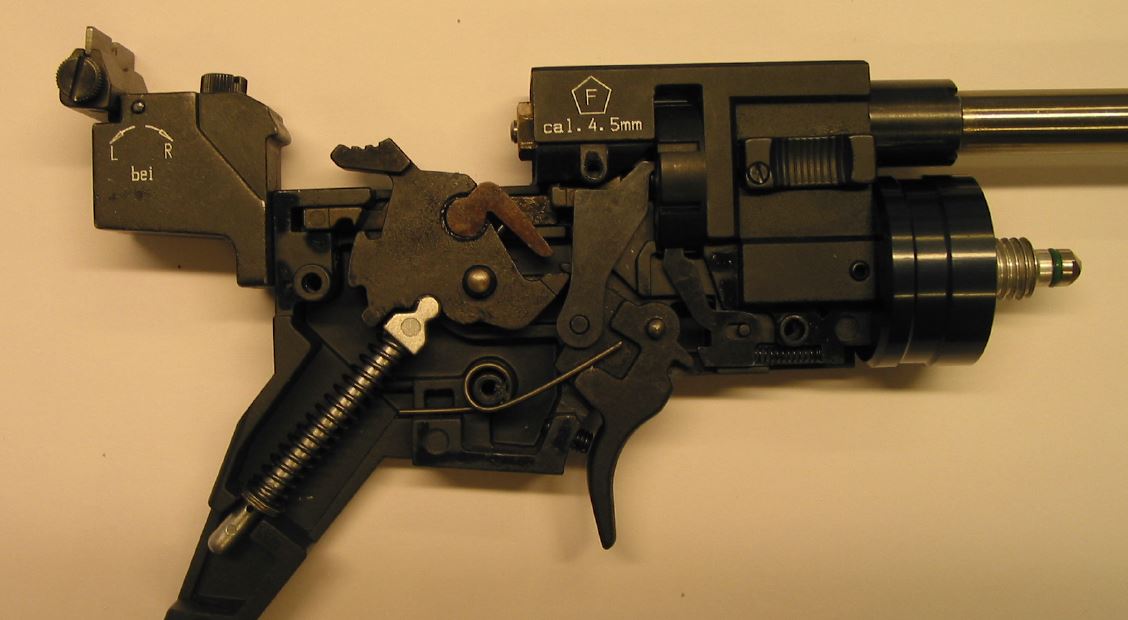

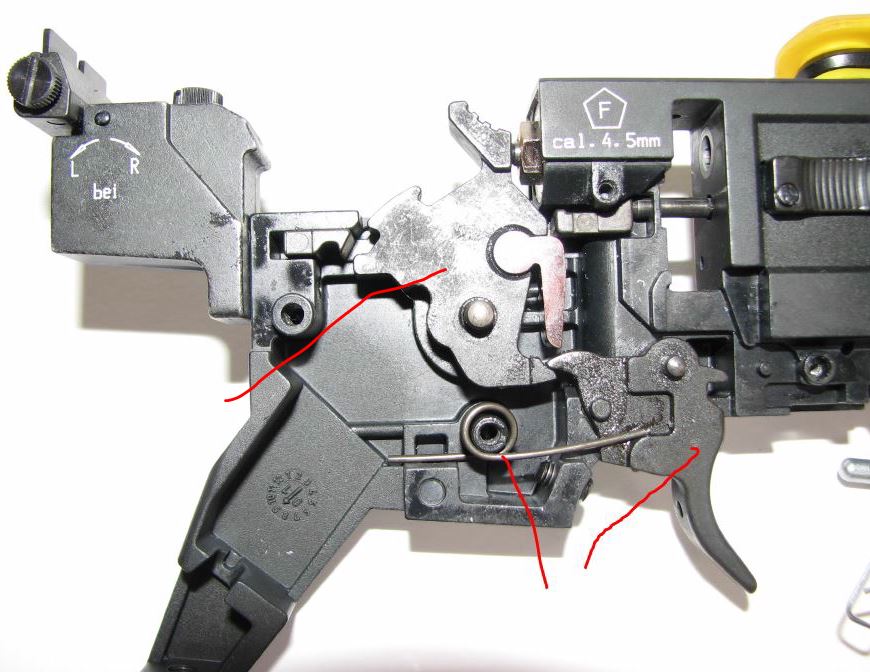

The action in single action
View attachment 308655View attachment 308656

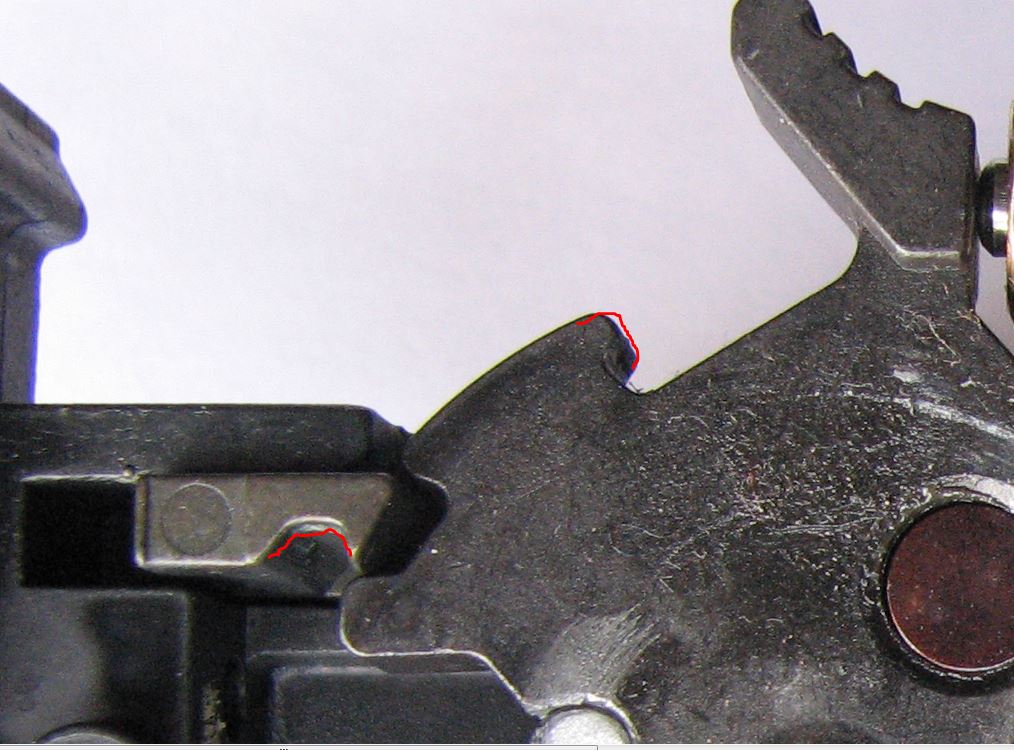

Dry fire notch
View attachment 308658

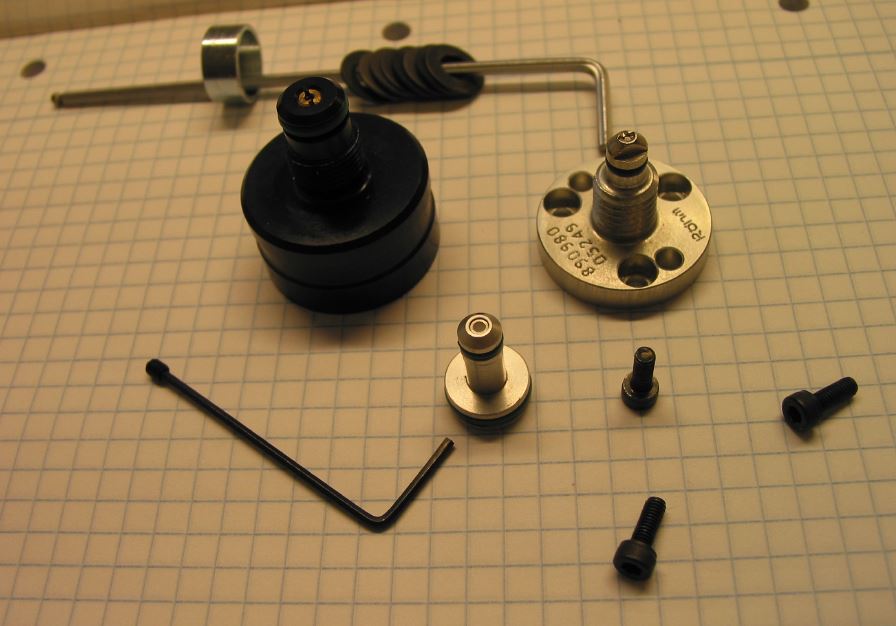

Regulator
View attachment 308659View attachment 308660
My notes
View attachment 308661

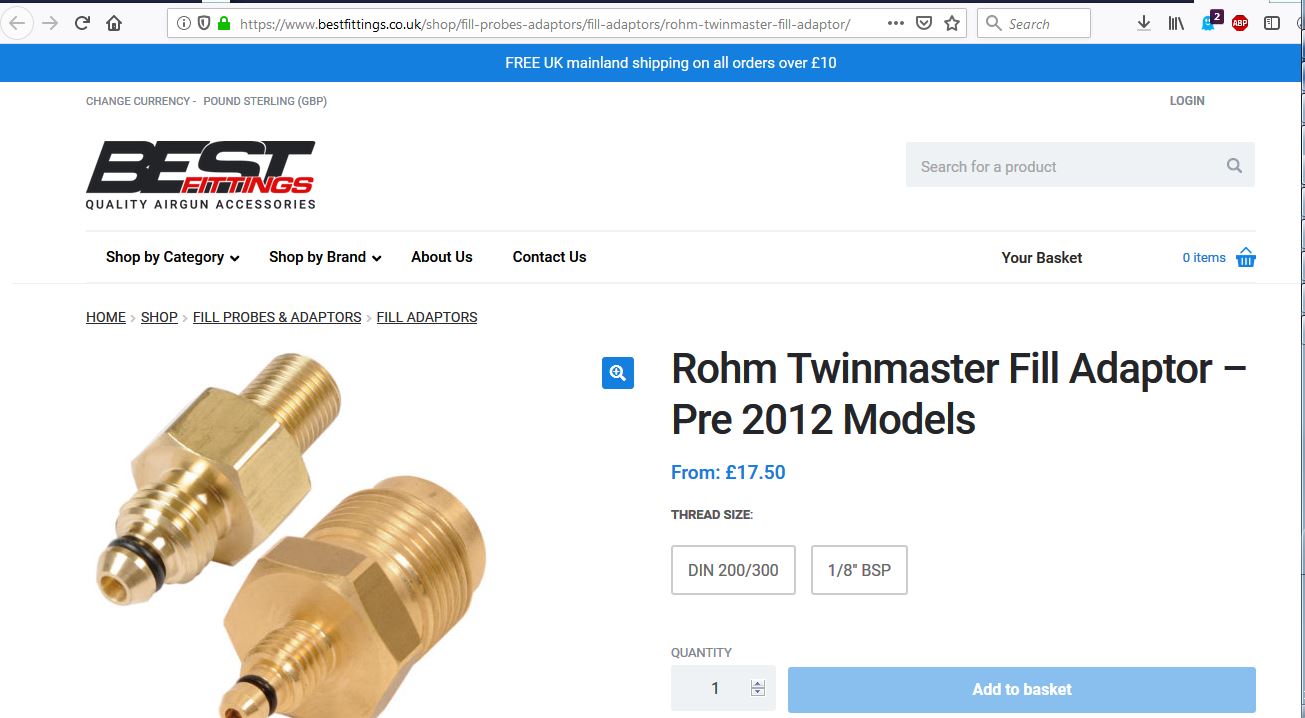

Fill probes
View attachment 308662

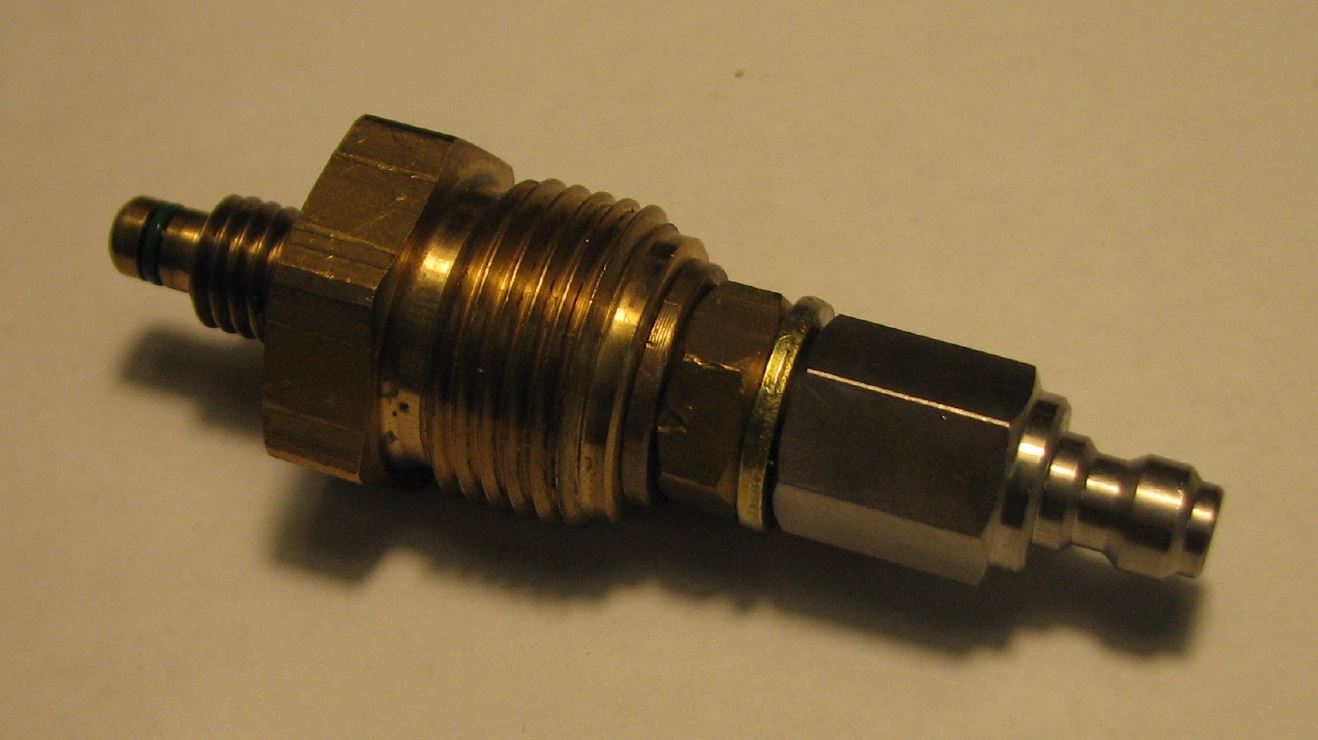

Original fill probe modified for foster coupling
View attachment 308663

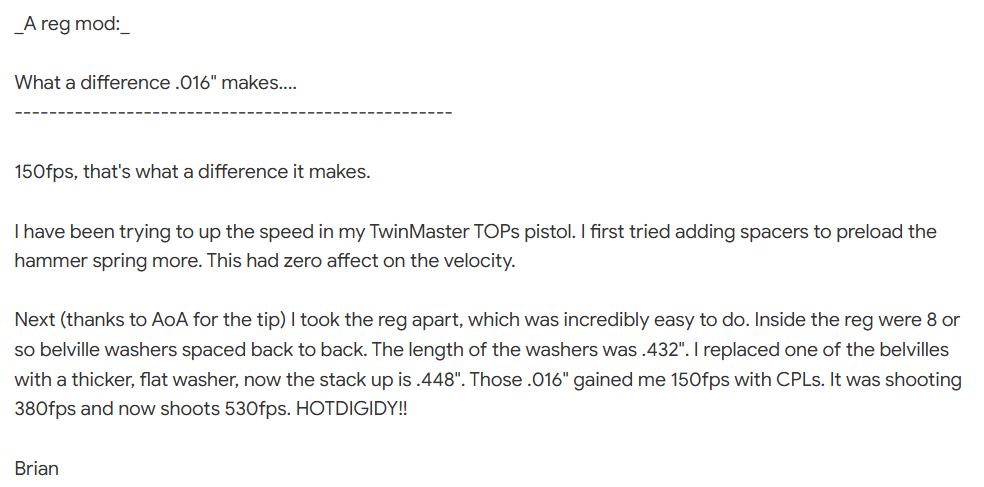

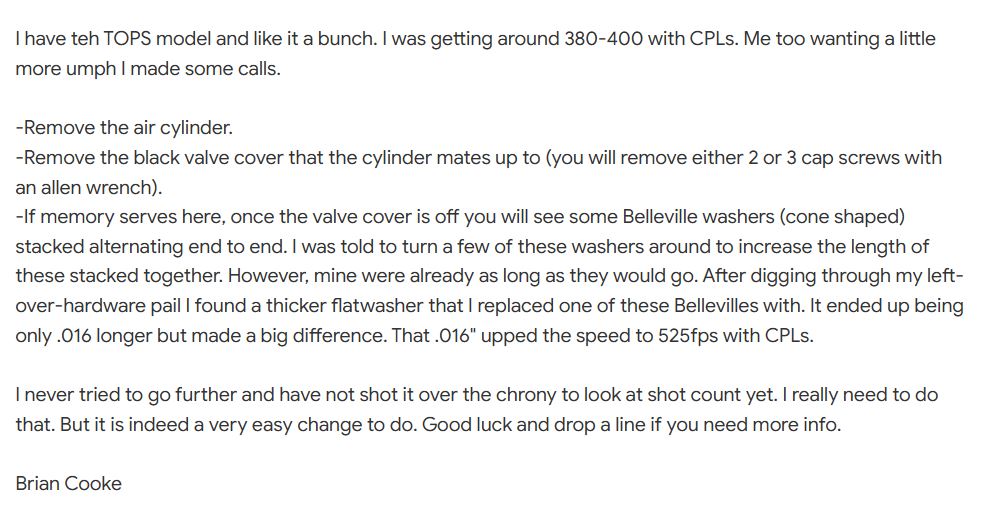

Screenshot of mods I picked up from another site
View attachment 308664
View attachment 308665

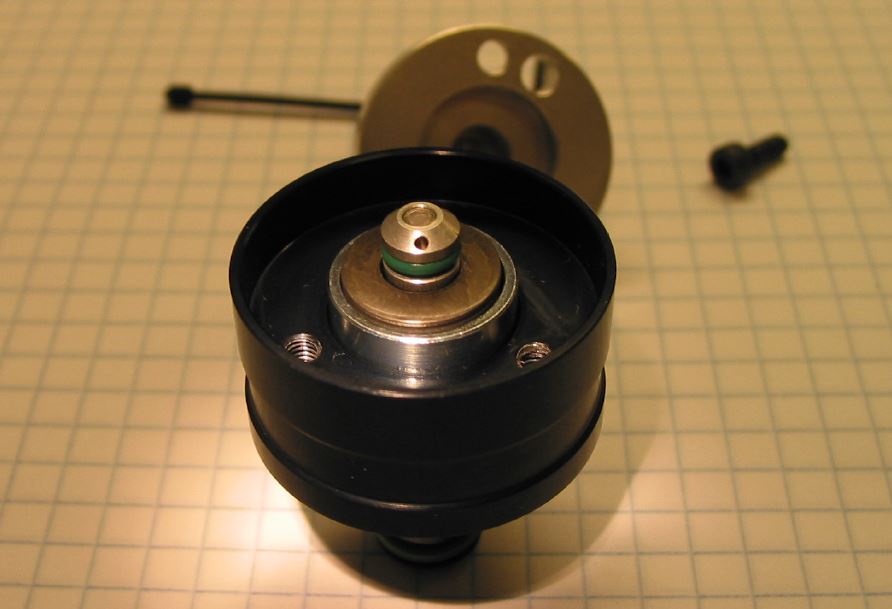

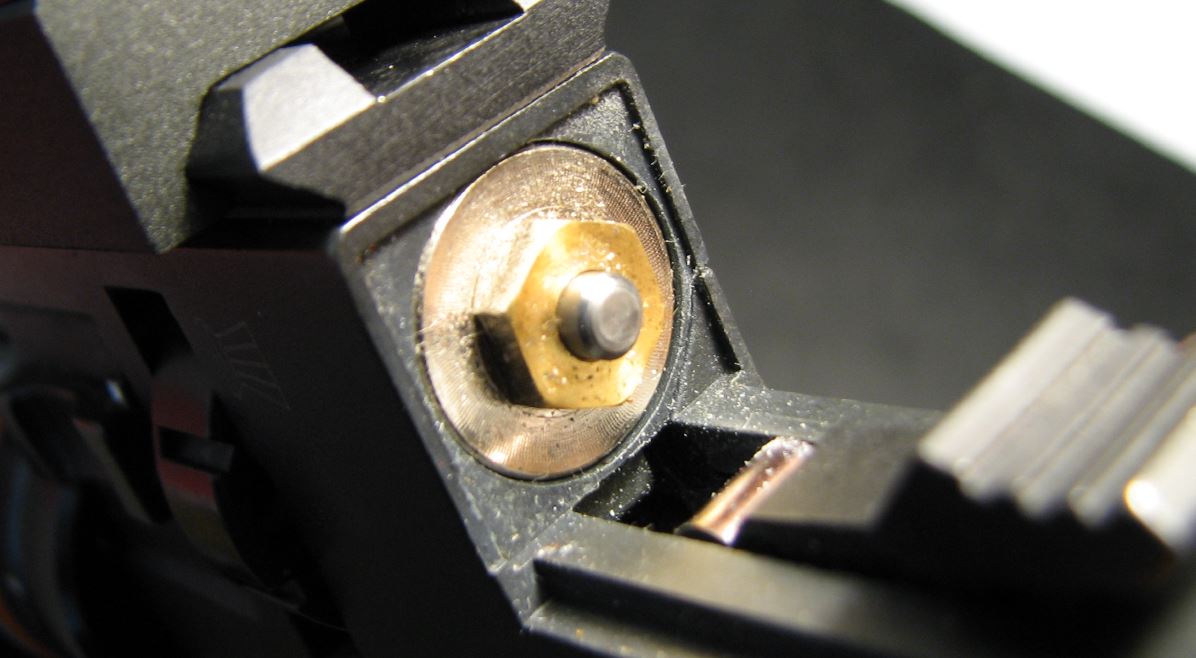

My memory was wrong, did not flip one of the belleville washers but replaced one with a thicker one, also removed a small amount of material from the valve housing face, this allows the valve stem to go deeper for added air flow
View attachment 308667
View attachment 308657

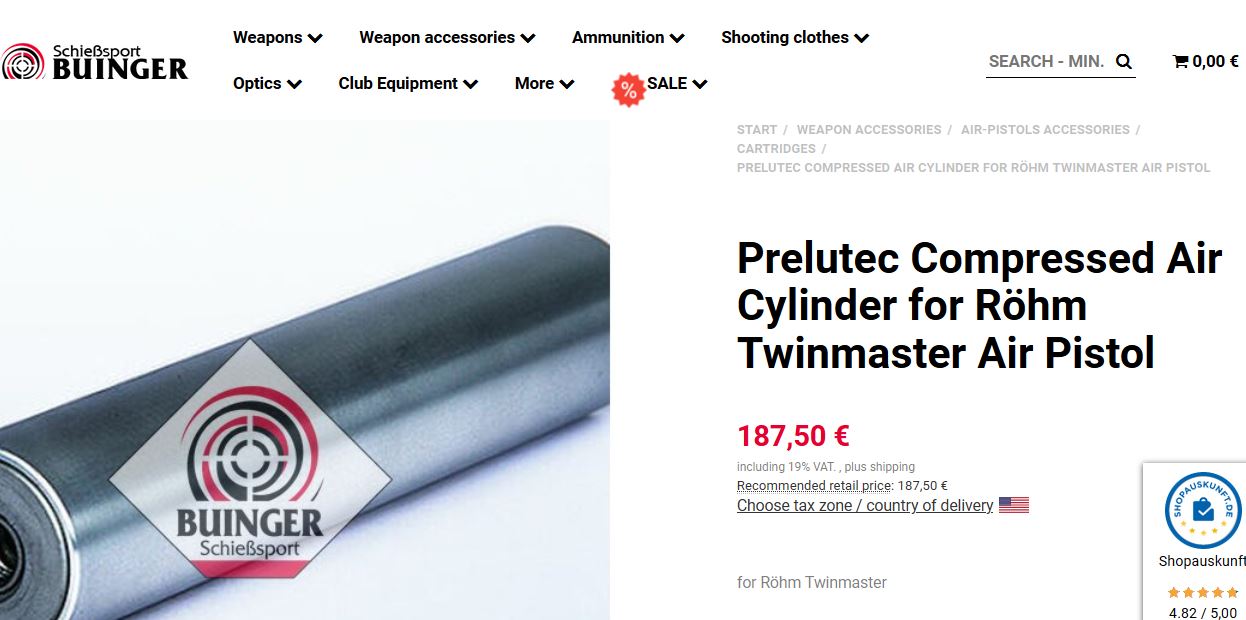

Excellent Towle! I sent them a request. My TM is a 2001 model, and I want to make 100% sure it fits before I order one.Compressed air cartridge for Röhm Twinmaster or weapon with the same connection
200 bar, with manometer, M10x1.5 original Röhm connection (1.5mm pitch)
L=175mm Ø = 32.7 mm
Cartridge Röhm Twinmaster
View attachment 309092
I recently purchased a used base "Action" CO2 Twinmaster
Excellent Towle! I sent them a request. My TM is a 2001 model, and I want to make 100% sure it fits before I order one.

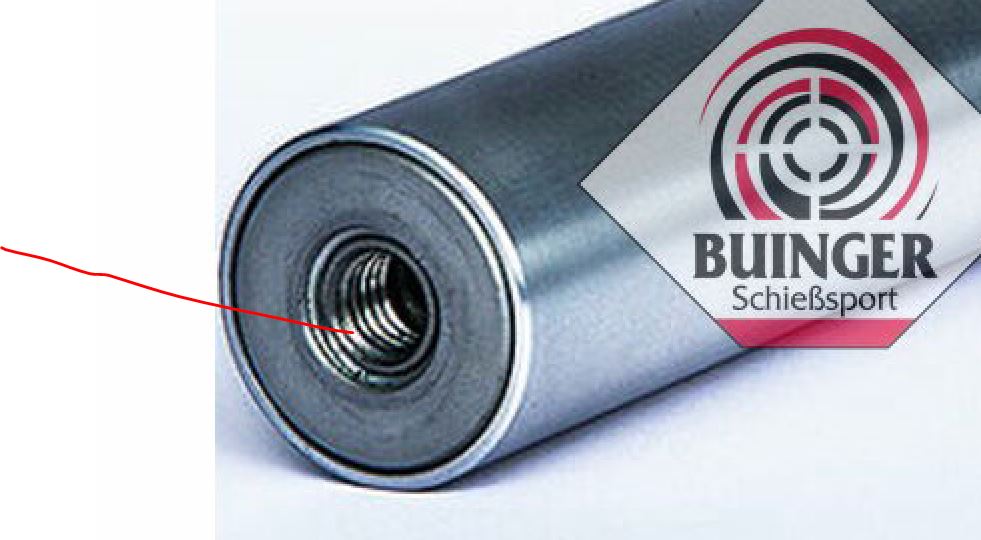

Thanks for your effort and input Towle. Regardless I want to hear from them before ordering. PS: a PM by the way (regarding your colt-question).All mine is also from 2001 - looks to me they made the treads with a Helicoil insert, if so, more wear resistant than the original aluminum
BTW, any machinist should be able to make a new cylinder or use an existing cylinder and reuse the original back part, so there is always that
View attachment 309185
Towle - no desire for co2. Very happy with the two cylinders, and even if I don’t top-fill the older one, I have a huge amount of shots. Ok, this gun is no power house, but I have enough of those already, and this Twinmaster is ideal for in-house shooting.Thank You very much, looks great! - and congrats with the new cylinder, are you interested in a Co2 adaptor if any offers comes my way or is that FAC like in DK?
